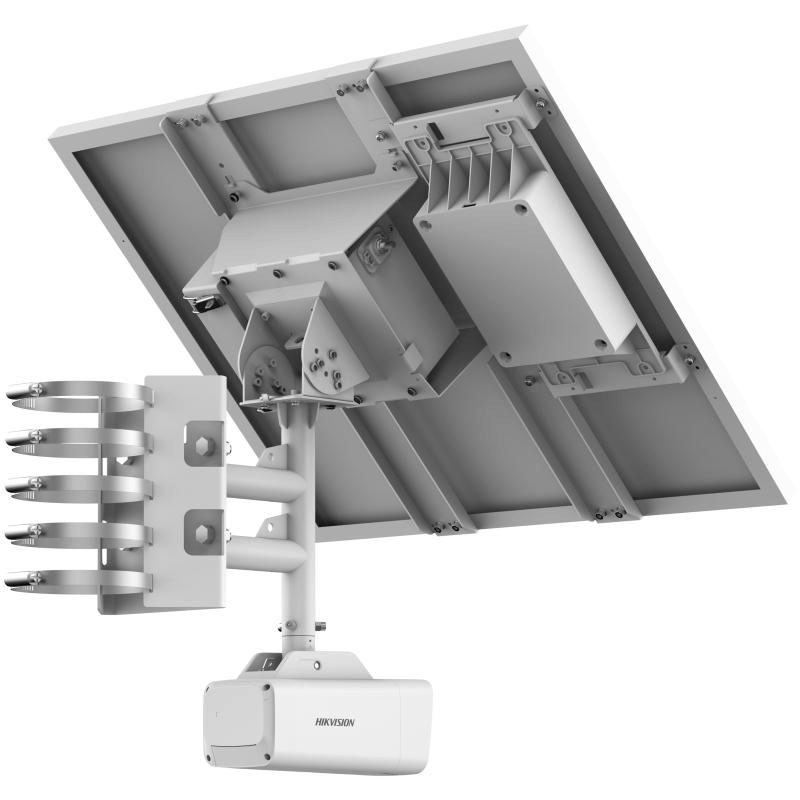

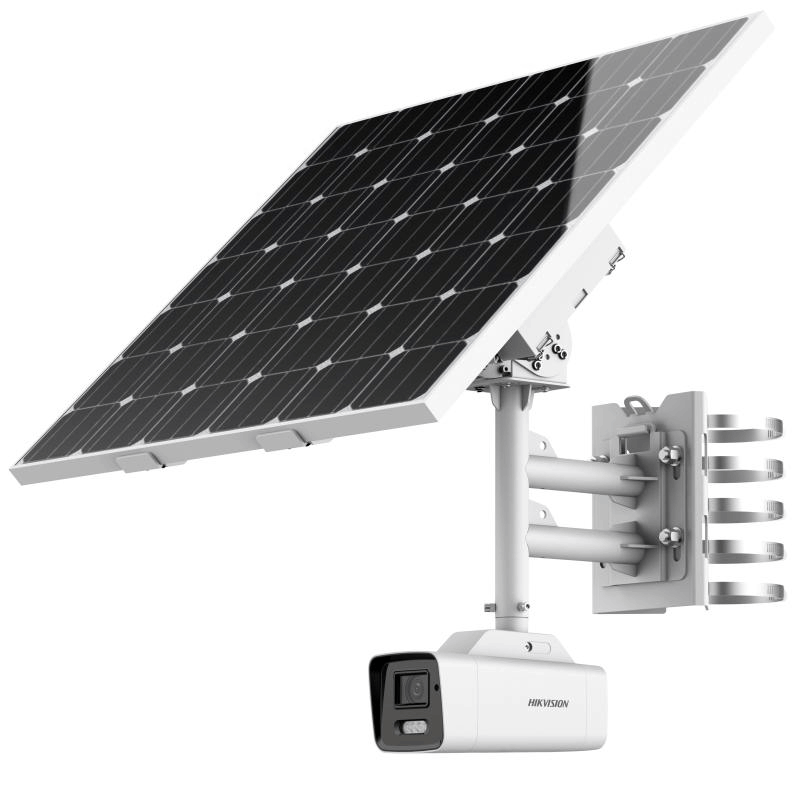

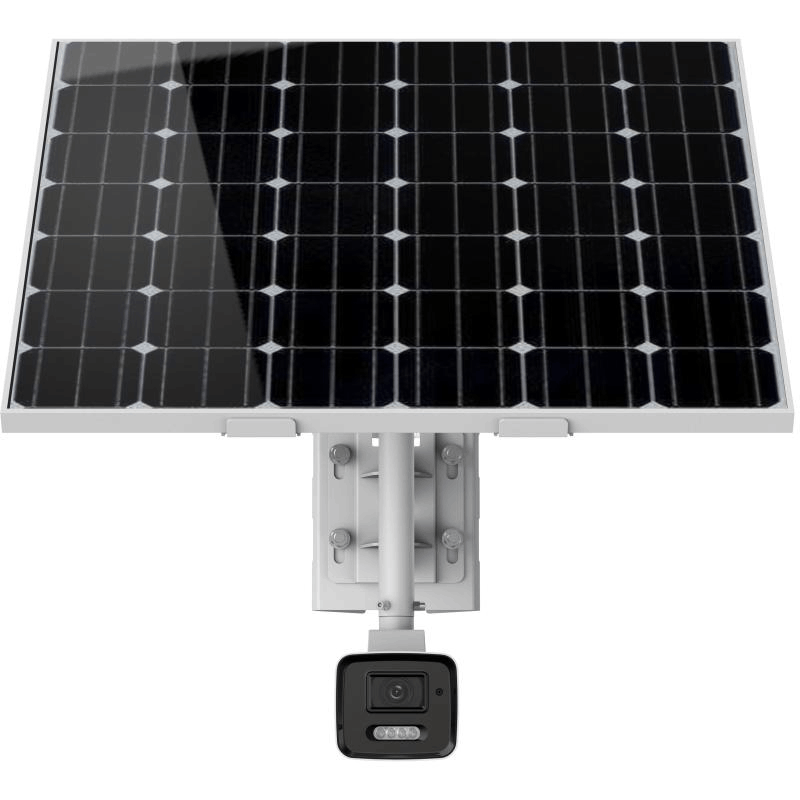

Hikvision DS-2XS6A46G1/P-IZS/C36S80 Solar ANPR 4MP Bullet 4G KIT , 80W PANEL

Model: DS-2XS6A46G1-P-IZS-C36S80

Who This Is For

Site managers dealing with remote gate entries, rural access roads, or unmanned construction compounds where trenching mains power and laying data cabling simply is not viable. The Hikvision DS-2XS6A46G1/P-IZS/C36S80 is a self-contained solar ANPR bullet camera kit that combines a 4MP motorised varifocal camera, built-in 4G LTE transmission, onboard number plate recognition, and an 80W solar panel into a single deployable unit. There is no electrician required, no conduit, and no dependence on an existing network. The 4G uplink sends plate data and footage directly to a monitoring platform or VMS, making this a genuine fit for councils managing rural reserves, agricultural operations monitoring livestock gate access, or security contractors installing temporary surveillance on development sites where infrastructure does not yet exist.

What This System Actually Does

Who Buys This Model

• Rural and agricultural operators: Farmers and station managers monitoring gate access to properties where the nearest power point may be kilometres away. The solar kit eliminates the need for an electrician and the 4G link removes any dependence on on-site network infrastructure.
• Construction site security contractors: Temporary surveillance deployments on development sites that have no mains power connected yet. The unit installs on a pole, self-powers, and can be relocated when the project moves to the next stage.
• Local councils and reserve managers: Monitoring vehicle access to parks, boat ramps, tip sites, and recreation areas where the council needs a log of registered plates but cannot justify the cost of trenching power and data to a remote entry point.
• Logistics and transport operators: Depot entrances or weighbridge approaches in semi-remote locations where logging incoming and outgoing vehicle plates is an operational requirement and connecting to fixed infrastructure is not practical.

Honest Assessment

The DS-2XS6A46G1/P-IZS/C36S80 solves a problem that no standard network camera can - combining ANPR, 4G, and solar into a single deployable kit that genuinely works in locations without any existing infrastructure. The onboard plate recognition means you get structured data from every vehicle pass without needing a dedicated ANPR server, and the motorised varifocal lens means you can dial in the capture angle precisely after the camera is mounted. These are real operational advantages on remote sites. Where this kit will not suit: it is not designed for high-volume, high-speed multi-lane ANPR such as motorway tolling or car park boom gate automation requiring sub-second response across multiple lanes simultaneously - a fixed infrastructure ANPR system with dedicated capture lighting and lane management would be more appropriate for that workload. Ongoing 4G data costs also need to be factored into the total cost of ownership, and SIM provisioning is the installer's responsibility. Available through Security Australia, this kit suits controlled-access single-lane approaches at vehicle speeds typical of a site entry.

Before You Buy

Quick Fit Check

• Good match if: You need to log vehicle plates at a remote single-lane gate or access point with no mains power and no fixed network - the solar panel, battery, 4G, and onboard ANPR are all included in this kit.
• Good match if: Your site requires a temporary or relocatable surveillance solution where re-deploying a cabled camera would require an electrician each time - the self-contained solar 4G design means a new pole mount is all that is needed to move the system.
• You may need a different model if: Your application involves multi-lane high-speed ANPR, boom gate integration requiring millisecond trigger response, or sites with mains power available where a fixed-infrastructure ANPR bullet or dedicated ANPR capture camera would deliver higher throughput and more consistent performance.

Key Features & Technical Specifications

Real-World Scenarios

How It Compares

• Choose this if: Your site has no mains power and no fixed network, and you need documented vehicle plate capture with 4G transmission from day one - this is the only format that delivers all three without additional hardware purchases.
• You may need a different model if: Your location has reliable mains power and a fixed network connection - a dedicated wired ANPR bullet camera on a fixed infrastructure system will give you higher sustained throughput, consistent lighting control, and easier integration with barrier and boom gate hardware.
• Pairs well with: A cloud-based ANPR management platform or VMS with 4G device support, and a steel or aluminium heavy-duty camera mounting pole rated for outdoor exposure.

Common Questions

1. Does this kit include everything needed to install at an off-grid site?

   Yes, with one exception. The DS-2XS6A46G1/P-IZS/C36S80 includes the 4MP ANPR bullet camera and the 80W solar panel as a matched kit. The camera has a built-in battery, built-in 4G LTE modem, and onboard ANPR processing. The only item not included is a data SIM card - you will need to source and provision a suitable 4G data SIM from your preferred carrier before the camera can transmit.

2. Will this camera work through an Australian winter with limited sun?

   It depends on your specific site conditions. The 80W solar panel is sized to sustain the camera through typical day-night cycles, but extended overcast periods in higher-latitude locations with significant winter cloud cover can reduce battery reserve. Sites in southern Victoria or Tasmania with heavy winter shading should assess average daily sun hours and consider whether supplementary battery capacity is appropriate for their operational requirements.

3. What vehicle speeds will the ANPR accurately read plates at?

   The onboard ANPR on this model is suited to controlled-access, low-to-moderate speed approaches typical of site entries, farm gates, and parking areas - generally vehicles approaching at walking-to-slowing speed rather than open-road or highway velocity. The camera is not rated for free-flow highway ANPR where vehicles pass at 80km/h or above. For gate and boom gate style applications where vehicles slow to enter, the capture geometry and shutter speed settings can be configured via the camera's interface to optimise plate read accuracy for your specific entry conditions.

4. Does the motorised varifocal lens need to be set up on a laptop at the camera, or can it be adjusted remotely?

   The motorised varifocal lens (IZS) can be adjusted remotely via the camera's web interface or compatible VMS once the 4G connection is active. This means an installer can make fine focal adjustments from a vehicle or site office without returning to the pole. Initial commissioning still requires access to confirm the camera is aimed correctly and capturing plates at the right frame size, but lens zoom and focus do not require a physical tool at the camera head.

5. How does the ANPR handle partial or dirty plates?

   Onboard ANPR performs best with clean, unobstructed plates in consistent lighting conditions. Heavily soiled plates, non-standard plate formats, or plates partially blocked by a tow bar or trailer hitch will reduce recognition confidence. The camera logs a confidence score with each read, allowing your management platform to flag low-confidence captures for manual review rather than discarding them entirely. Configuring the capture angle to minimise trailer obstruction during commissioning will improve overall read rate on sites with heavy towing traffic.

6. Does this camera integrate with third-party VMS or access control platforms?

   Yes. The camera communicates over standard IP protocols and the ANPR data output is compatible with Hikvision's own platform (iVMS-4200, HikCentral) as well as third-party VMS platforms that support Hikvision ANPR data streams via ISAPI or SDK integration. If you are specifying this camera for integration with an existing access control or vehicle management system, confirm your platform's specific Hikvision ANPR compatibility with your software vendor before installation. Security Australia can advise on platform compatibility questions prior to purchase.

7. Is a single-lane approach required, or can this camera cover multiple entry lanes simultaneously?

   A single-lane approach is required for reliable ANPR. The onboard processor reads one plate capture at a time, and the lens field of view is optimised for a single lane at a defined distance. Multi-lane ANPR - where 2 or more vehicles pass side by side simultaneously - requires dedicated multi-camera or specialised wide-angle ANPR capture equipment with independent lane triggers. This kit is the correct choice for single controlled-lane entries; for multi-lane applications a fixed-infrastructure ANPR system with per-lane cameras is the appropriate product type.

Downloads & Resources

No downloads available for this product.
