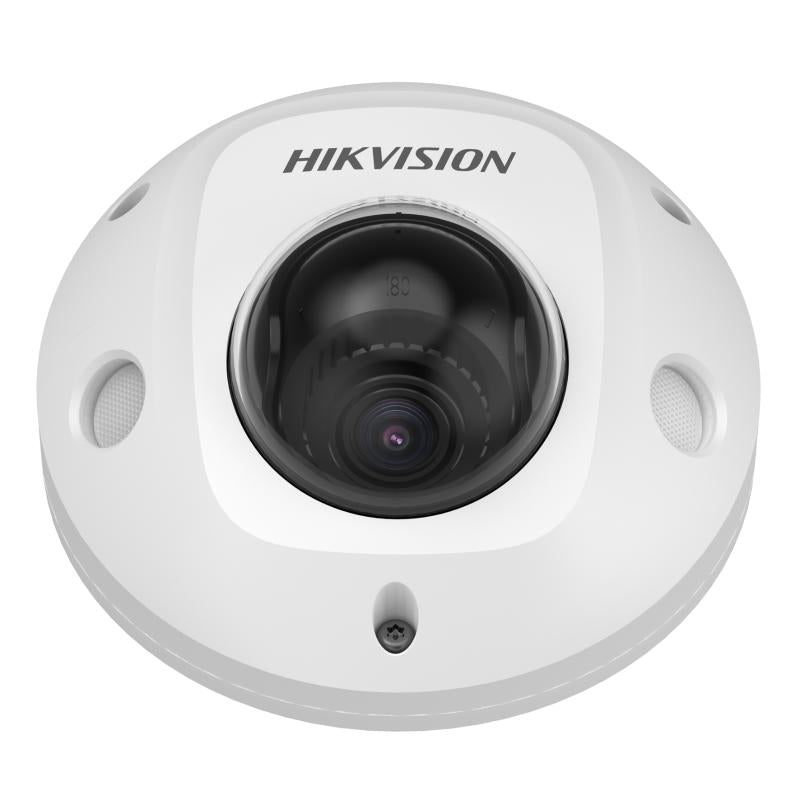

Hikvision DS‑2XM6756G1‑IDM/ND – 5 MP Mobile Dome Camera | 120 dB WDR, IP67, IK10

Model: DS-2XM6756G1-IDM/ND

Who This Is For

When fitting out a fleet vehicle, transit coach, rail carriage, or heavy plant machine with an onboard camera system is the priority, the Hikvision DS-2XM6756G1-IDM/ND is built specifically for that environment. Unlike standard surveillance cameras adapted for vehicle use, this is an engineered mobile dome rated IP67 for dust and water ingress and IK10 for impact resistance - both essential when the camera is mounted inside a bus, truck cabin, or working machinery that generates vibration and risk of contact. The 5 MP sensor delivers sharp detail at 120 dB Wide Dynamic Range, handling the constant transition between tunnel darkness and bright daylight that challenges conventional cameras in moving vehicles. The built-in microphone supports audio capture alongside video. Installers specifying onboard camera solutions for government transport operators, logistics fleets, or mine-site vehicles will find the DS-2XM6756G1-IDM/ND directly addresses the mechanical and optical demands of mobile deployment.

What This Camera Actually Does

Who Buys This Model

• Fleet and Transit Operators: Bus, coach, and rail operators deploying onboard passenger surveillance who need a camera rated for cabin ceiling mounting that withstands daily passenger contact and cleaning cycles.
• Mining and Resources Site Managers: Specifying cameras for haul trucks, plant machinery cabins, and light vehicles operating in dusty, high-vibration environments where IP67 and IK10 ratings are a procurement baseline.
• Security Integrators Working on Vehicle Builds: Installers putting together mobile NVR-based systems for armoured vehicles, cash-in-transit vans, or specialised fleet builds who need a dome form factor with confirmed mobile-grade durability.
• Government Transport Authorities: Procurement teams specifying onboard cameras across public bus or rail rolling stock, where 5 MP resolution and audio capture are required to meet incident review standards and duty-of-care obligations.

Honest Assessment

The DS-2XM6756G1-IDM/ND does what most fixed-installation domes cannot: it combines a 5 MP sensor with 120 dB WDR, IP67, and IK10 in a housing purpose-built for the vibration and condensation cycles of vehicle deployment. The built-in microphone is a practical advantage in passenger transport applications where audio evidence matters. For integrators building out mobile NVR systems, the dome profile and robust ingress ratings reduce the risk of callbacks caused by environmental failure. Where this camera is not the right call is in static fixed-install applications where budget is tight - a standard dome at this resolution will cost less when mobile durability is not required. It is also not a PTZ or wide-angle unit, so large cabin coverage across an articulated bus or long carriage will typically require multiple units. The DS-2XM6756G1-IDM/ND is available through Security Australia for integrators specifying mobile and vehicle camera systems.

Before You Buy

Quick Fit Check

• Good match if: You are installing onboard cameras in buses, rail carriages, or heavy plant cabins and require a dome that carries both IK10 and IP67 ratings alongside 5 MP resolution for post-incident review.
• Good match if: Your system design requires audio capture in the same unit as the camera, and the vehicle cabin ceiling mounting suits a dome profile - the built-in microphone removes a separate component from the install.
• You may need a different model if: Your installation is fixed to a building wall or ceiling with no mobile or vehicle requirement - a standard IP dome at the same resolution will deliver equivalent image performance at a lower cost point, and you will have a broader range of NVR compatibility options to choose from at Security Australia.

Key Features & Technical Specifications

Real-World Scenarios

How It Compares

• Choose this if: Your installation is inside a moving vehicle and you need a camera that combines 5 MP resolution with 120 dB WDR, IK10 impact resistance, IP67 sealing, and a built-in microphone in a purpose-built mobile housing.
• You may need a different model if: Your installation is in a fixed building location - a standard 5 MP IP dome will deliver comparable image quality at lower cost and with broader NVR compatibility, without the mobile-specific engineering premium.
• Pairs well with: A Hikvision mobile NVR designed for in-vehicle recording, with solid-state storage to handle vibration and GPS integration for route logging alongside camera footage.

Common Questions

1. Will this camera work with a standard IP NVR?

   Not reliably. The DS-2XM series is engineered for Hikvision mobile NVRs. Standard fixed-install IP NVRs may not fully support the mobile series stream profiles and firmware. For a vehicle deployment, pair this camera with a compatible Hikvision mobile NVR to ensure stable recording, proper channel management, and access to mobile-specific features.

2. Does the IK10 rating mean the dome cover cannot be broken?

   No. IK10 means the dome resists a 20-joule impact force, which is the maximum on the IK rating scale - it covers incidental contact, luggage strikes, and deliberate minor vandalism. Sustained or extreme force can still cause damage. In practice, IK10 is significantly more resistant than unrated or IK08-rated domes and is the appropriate specification for public transport and vehicle cabin installations.

3. What does 120 dB WDR actually do inside a vehicle?

   It compresses extreme contrast into a usable image. Vehicle cabins experience rapid lighting changes - dark tunnels, direct sunlight through side windows, bright doorway openings against a dark interior. At 120 dB, the camera manages a much wider brightness range than a standard WDR camera (typically 60-90 dB), producing detail in both the darkest and brightest areas of the frame simultaneously rather than exposing for one and clipping the other.

4. Does this camera work for a bus with both a cabin and an external door view?

   A single unit will not cover both. The DS-2XM6756G1-IDM/ND is a fixed dome camera for ceiling mounting, not a multi-sensor or wide-angle panoramic unit. To cover both the cabin interior and a door entry point, you would deploy 2 cameras positioned appropriately, or consider a mobile panoramic camera type if full-cabin single-unit coverage is the goal.

5. Is it legal to record audio inside a vehicle with the built-in microphone?

   That depends on your jurisdiction and deployment context. Australian state and territory surveillance and privacy laws vary. In some jurisdictions, recording audio in a passenger-carrying vehicle requires posted notices. In others, additional consent requirements apply. Confirm compliance with your legal adviser or the relevant authority before enabling audio recording - the built-in microphone is a hardware capability, but its use must meet local legislative requirements.

6. How many cameras will a typical bus cabin require?

   That depends on the bus length and coverage intent. A standard 12-metre city bus typically requires 2 to 4 cameras to cover the driver area, front cabin, rear cabin, and door positions. The DS-2XM6756G1-IDM/ND stocked by Security Australia is a single-unit purchase, so system designers should plan camera positions and channel counts on their mobile NVR accordingly before ordering quantities.
