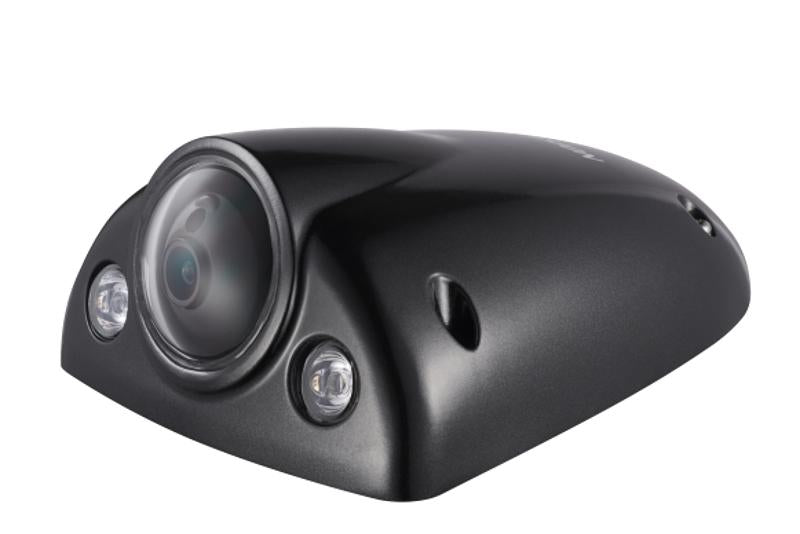

Hikvision DS-2XM6522G1 2MP Outer Vehicle Mobile Camera, 30m IR
The Hikvision DS-2XM6522G1 is a robust 2MP mobile network camera designed for high-quality imaging in demanding environments. It features 120 dB true WDR technology to capture clear images even in challenging lighting conditions. The camera uses efficient H.265+ compression, reducing storage needs while maintaining image quality. It is built for durability, with water and dust resistance (IP68/IP69K) and vandal-proof protection (IK10). It also supports advanced streaming, ensuring smooth live views even with unstable network conditions, and offers 3D digital noise reduction for sharper images.
Features
Code/SKU: DS-2XM6522G1
Quick Specs:
| Camera | Min. Illumination: 0.01 Lux @ (F1.2, AGC ON), 0 Lux with IR |
| P/N | PAL: 25fps, NTSC: 30fps |
| Image Sensor | 1/2.8″ Progressive Scan CMOS |
| Shutter Speed | 1/3 s to 1/100,000 s |
| Case Type | Wedge |
| Slow Shutter | Yes |
| Resolution | 2MP |
| Day & Night | IR Cut Filter |
| Angle Adjustment | 2.8 mm: pan: -15° to 15°, tilt: 15° to 30°, rotate: -90° to 90° 4 mm/6 mm: pan: -15° to 15°, tilt: 0° to 30°, rotate: -90° to 90° |
| Lens | Focal Length & FOV: 2.8 mm: horizontal FOV 105°, vertical FOV 56°, diagonal FOV 126° 4 mm: horizontal FOV 87°, vertical FOV 44°, diagonal FOV 104° 6 mm: horizontal FOV 53°, vertical FOV 28°, diagonal FOV 62° |
| Lens Mount | M12 |
| Lens Type | Fixed Lens |
| Max. Aperture | 2.8 mm/4 mm/6 mm: F 1.6 |
| Illuminator | Smart Supplement Light: Yes |
| IR Wavelength | 850nm |
| IR Range | Up to 30m |
| Video | Max. Resolution: 1920 × 1080 |
| Main Stream | 50Hz: 25fps (1920 x 1080, 1280x960, 1280 x 720) 60Hz: 30fps (1920 x 1080, 1280x960, 1280 x 720) |
| Sub-Stream | 50Hz: 25fps (704 x 576, 640x480, 352 x 288, 320x240) 60Hz: 30fps (704 x 576, 640x480, 352 x 288, 320x240) |
| Third Stream | 50Hz: 25fps (1920 x 1080, 1280x960, 1280x720, 704x576, 640x480, 352 x 288, 320x240) 60Hz: 30fps (1920 x 1080, 1280x960, 1280x720, 704x480, 640x480, 352 x 240, 320x240) |
| Video Compression | Main Stream: H.265 /H.264/H.264+/H.265+ Sub-Stream: H.265 /H.264 / H.264+/H.265+/MJPEG Third Stream: H.265 /H.264/H.264+/H.265+ |
| Video Bit Rate | Main Stream: 256 Kbps to 12 Mbps Sub-Stream: 256 Kbps to 4 Mbps Third Stream: 256 Kbps to 12 Mbps |
| H.264 Type | BaseLine Profile/Main Profile/High Profile |
| H.265 Type | Main Profile |
| Scalable Video Coding (SVC) | H.264 and H.265 encoding |
| Region Of Interest (ROI) | Support 2 fixed regions for (main/sub) stream |
| Network Protocols | TCP/IP, HTTP, HTTPS, DHCP, DNS, DDNS, RTSP, SNMP, QOS, FTP, RTCP, NTP, UPNP, SMTP, IGMP, ICMP, IPV6, UDP, SSL/TLS |
| Simultaneous Live View | Up to 8 channels |
| API | HIKSDK, ONVIF (PROFILE S, PROFILE G, PROFILE T), ISAPI |
| User Management | Up to 16 users, 3 levels: Administrator, Operator, and User |
| Web Browser | IE8+, Chrome45+, Edge41+, Firefox45+ |
| Wide Dynamic Range (WDR) | 120 dB |
| Smart IR | No |
| Image Settings | Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser |
| Day/Night Switch | Day/Night/Auto/Schedule |
| SNR | ＞50dB |
| Image Enhancement | BLC, HLC, 2DNR, 3DNR |
| Privacy Mask | 4 regions of privacy mask |
| Picture Overlay | LOGO picture can be overlaid on video with 128 × 128 24bit bmp format |
| DNR | 3DNR |
| Ethernet Interface | Without -M: 1 RJ45 10M/100M self-adaptive Ethernet port -M: 1 four-core M12 aviation plug |
| Audio | No |
| Alarm | No |
| RS-485 | No |
| Reset Key | Yes |
| Heater | Yes |
| TF Card Storage | Built-in Micro TF Slot, up to 256 GB (not for baseline) |
| Linkage Method | Upload to FTP, notify monitoring center, send email, trigger recording |
| Basic Event | Motion detection, video tampering alarm, exception (network disconnected, IP address conflict, illegal login, TF card error) |
| Smart Event | Line crossing detection, Intrusion detection, Region entrance detection, Region exiting detection, Unattended baggage detection, Object removal detection, Object detection (faces), Scene change detection, Defocus detection, Loitering Detection, People Gathering Detection, Fast Moving Detection, Parking Detection |
| Product Dimension | Camera: 163.7 mm × 122.6 mm × 65.1 mm (6.4" × 4.8" × 2.6") With package: 252 mm × 190 mm × 108 mm (9.9" × 7.5" × 4.3") |
| Power Interface | -I/ND: RJ45 interface, PoE power supply -ID: Ø 5.5 mm coaxial power plug, DC -IDM: two-core Molex connector, DC power supply -IM/ND: four-core M12 aviation plug, PoE power supply |
| Power Consumption | -ID, -IDM: 9~36 V DC, max. 10 W -I/ND, -IM/ND: PoE: (802.3af, 36 V to 57 V), max. 10 W |
| Protection | IP68 (IEC 60529-2013), IK10 (IEC 62262:2002), IP69K (ISO 20653:2013) |
| Power Supply | -ID, -IDM: 9-36V, two-core terminal block, reverse polarity protection & PoE 802.3af -I/ND, -IM/ND: PoE: 802.3af, Type 1 Class 3 |
| Camera Material | Metal |
| Product Weight | Camera: Approx. 905 g (2.0 lb.) With package: 1271 g (2.8 lb.) |
| Startup and Operating Conditions | -40 °C to 75 °C (-40 °F to 167°F), humidity less than 95% (non-condensing) |
| Language | Support English, French, German, Russian, Italian, Korean, Portuguese, Spanish, Turkish, Polish, Czech |
| General Function | Anti-flicker, 3 streams, heartbeat, mirror, privacy mask |
| Approval | Electrical Safety Protection: IK10 (IEC 62262:2002) EMC: FCC, CE, RCM, KC Safety: CB, CE, LOA, BIS Environment: CE-RoHS Automotive and Railway: EN50155-2017, EN45545, E-MARK |
All IP cameras and recording devices (NVR’s/DVR’s) are covered by a 3 year back-to-base manufacturer warranty.
Our warranty is limited to the replacement of faulty items or parts and does not include damage due to incorrect fitting of parts or accessories, or damage due to mishandling the equipment once out of the box. All faults are sent to the manufacturer for inspection and diagnosis before a replacement is sent out.
Read more about the Terms & Conditions here – https://www.securityaustralia.com.au/terms-and-conditions/
*Just spend over $100 to activate Fast Free Shipping!
Despatch Times: Products are despatched on the same day if the order was placed before 11am on any weekday, Monday - Friday. All other orders are processed and despatched within 24 hours or next business day.
Order Confirmation: Once you place an order, you will receive a confirmation email. This indicates that your order has been received in our system and is now being processed for dispatch. If your item is back-ordered or unavailable, we will notify you via email, and if we do not receive a response, we will attempt to contact you by phone as soon as possible. We value your time and strive to be prompt. If your item(s) are available for immediate shipment (within 2 days), we will process the charges and prepare the order for shipping.
Shipping Times: General shipping times for StarTrack, TNT and Allied couriers are between 1-3 working days from despatch. Longer delivery times may be caused by your package being held at your local courier depot that is beyond our control. Please contact us or the local post depot for confirmation.
Tracking Numbers: all tracking numbers will be emailed to you by our warehouse processing team within the day, after your order is despatched to our local courier.
Hikvision DS-2XM6522G1 2MP Outer Vehicle Mobile Camera, 30m IR
The Hikvision DS-2XM6522G1 is a durable 2MP mobile network camera ideal for outdoor surveillance. It features advanced imaging technologies like 120 dB true WDR, which ensures clear visuals even against strong backlighting, and 3D DNR for noise reduction.
Its H.265+ compression reduces bandwidth and storage needs while maintaining high video quality. Built to withstand harsh conditions, the camera is IP68/IP69K water and dust-resistant and IK10-rated for vandal resistance. It also supports advanced streaming for smooth live viewing, even in poor network conditions.
3D DNR (Digital Noise Reduction):
This function reduces image noise for cleaner, sharper images in low-light settings, greatly enhancing overall image quality.
Rugged Design:
Built to withstand harsh environments, making it ideal for mobile surveillance applications like transportation and outdoor security.
Slow Shutter:
Allows for extended exposure times, enabling the capture of clearer images in low-light scenarios by enhancing light sensitivity.
Automatic IR Cut Filter:
Ensures optimal image quality by automatically switching between day and night modes based on lighting conditions, providing consistent performance.
Wide Dynamic Range (WDR):
Utilizes 120 dB true WDR to perform optimally in scenes with varying lighting, thus maintaining detail in both bright and dark areas.
Multiple Stream Support:
Allows for different resolutions and bit rates with main, sub, and third streams, granting flexibility in various surveillance scenarios.
Region of Interest (ROI):
Supports fixed regions for the main and sub streams, allowing users to prioritize important areas for better resource allocation.
Vandal Resistant Construction:
IK10-rated design ensures the camera is protected against vandalism, making it suitable for high-risk environments.
Technical Specifications
| Model | DS-2XM6522G1-I(D)(M)(/ND) |
| Image Sensor | 1/2.8″ Progressive Scan CMOS |
| Max. Resolution | 1920 × 1080 (2 MP) |
| Min. Illumination | Color: 0.01 Lux @ (F1.2, AGC ON), 0 Lux with IR |
| Shutter Speed | 1/3 s to 1/100,000 s |
| Infrared (IR) Range | Up to 30 meters |
| Wide Dynamic Range (WDR) | 120 dB for better visibility in strong contrasts |
| Video Compression | H.265+ / H.265 / H.264+ / H.264 |
| Audio Features | No built-in microphone |
| Lens | 2.8 mm fixed lens |
| Field of View (FOV) | Horizontal: 105°, Vertical: 56°, Diagonal: 126° |
| Power Supply | 12 VDC ± 25% or PoE (802.3af) |
| Protection Rating | IP68/IP69K (water and dust resistant), IK10-rated for impact resistance |
| Operating Conditions | -40 °C to 70 °C (-40 °F to 158 °F), Humidity: 95% or less (non-condensing) |
| Weight | Approx. 1 kg (2.2 lb) |
| Dimensions | Standard mobile camera size suitable for vehicle installations |
