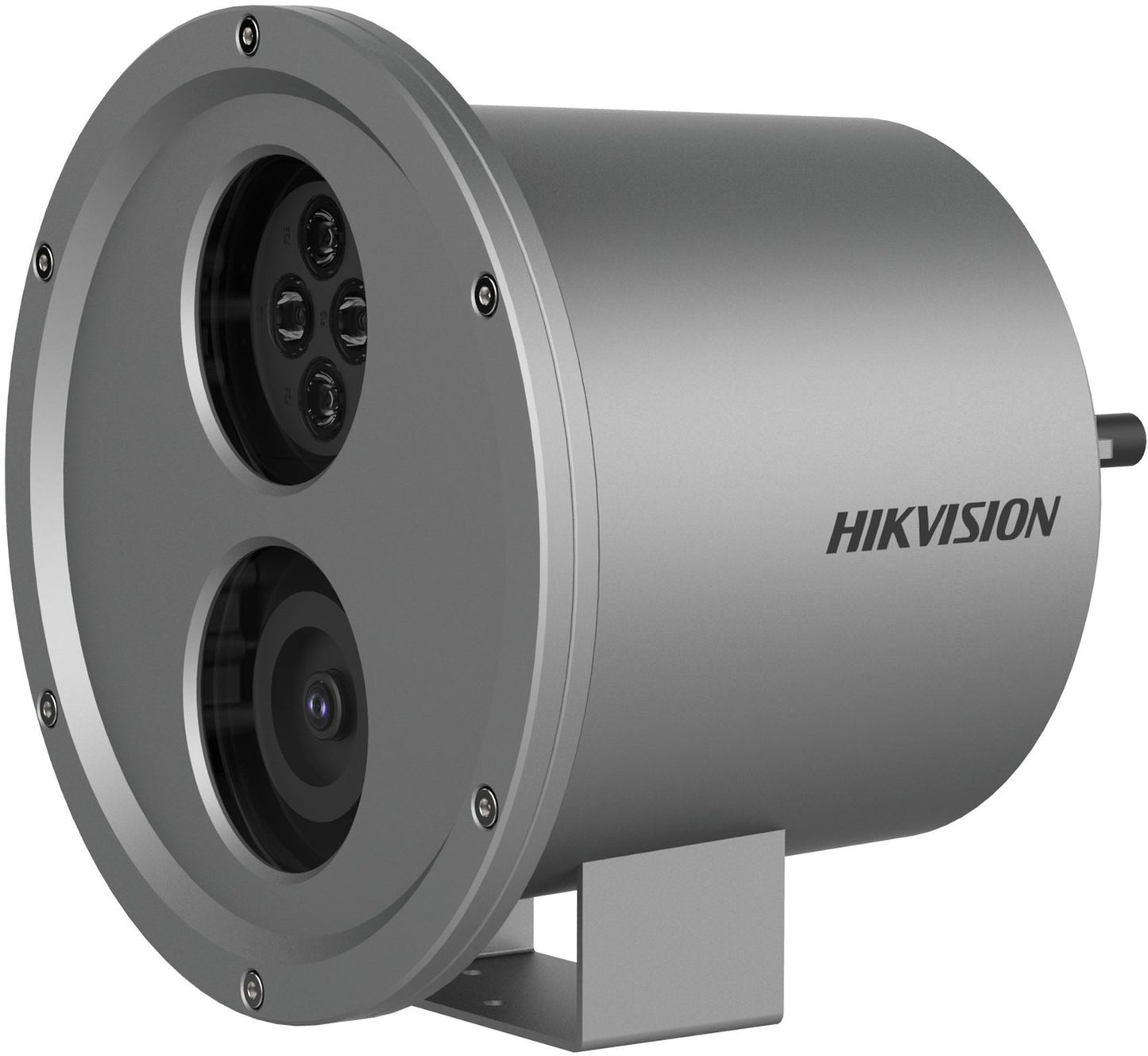

Hikvision DS-2XC6224G0-L 2MP Underwater Network Camera

Model: HIK-2XE6242FIS4-2

Who This Is For

For facility managers, aquatic engineers, and security integrators who need verified underwater video surveillance in environments where standard IP cameras simply cannot operate. The Hikvision DS-2XC6224G0-L is purpose-built for submerged installation at depths of up to 15 metres, covering applications such as swimming pools, aquariums, fish farms, water treatment infrastructure, and marine research facilities. At 2MP full HD resolution with 120 dB wide dynamic range, it handles the significant lighting challenges inherent to underwater environments - including surface glare, refraction, and uneven artificial lighting across a pool or tank. With an IP68 protection rating, microSD storage up to 128 GB, and an operating temperature range of -30 °C to +60 °C, this camera is built for continuous submersion rather than occasional splashing. Lens options of 2.0mm, 2.8mm, or 4.0mm give installers the field-of-view flexibility needed across very different tank and pool geometries.

What This Camera Actually Does

Who Buys This Model

• Aquatic Centre Operators: Public swimming pools and leisure centres requiring underwater monitoring of lanes, dive areas, and shallow entry zones for safety and incident documentation, where a standard dome camera mounted above water is insufficient for submerged visibility.
• Aquarium and Marine Park Facilities: Large-format display tanks and touch pools where submerged cameras allow visitor-facing live feeds, staff monitoring of animal behaviour, and security coverage of tank interiors that would otherwise have no camera line-of-sight from above.
• Aquaculture and Fish Farm Operators: Commercial fish farming operations needing continuous underwater monitoring of stock health, feeding patterns, and tank conditions - leveraging the behaviour analysis features to detect abnormal movement without requiring manual inspection dives.
• Water Infrastructure Security Teams: Councils and utilities managing water reservoirs, pumping stations, or treatment plant intake points that require verified underwater coverage of submerged infrastructure at the IP68 protection level.
• Security Integrators Handling Specialist Installs: Integrators tendering on aquatic facility upgrades or marine venue builds who need a verified, brand-name underwater network camera with confirmed depth rating and standard ONVIF-compatible network output that connects to an existing VMS or NVR.

Honest Assessment

The DS-2XC6224G0-L genuinely fills a gap that most camera ranges do not address at all. Its confirmed IP68 rating and 15-metre depth tolerance, combined with 2MP resolution, 120 dB WDR, and on-board storage, make it a credible choice for permanent submersion in pools, tanks, and shallow marine installations. The wide operating temperature range extends its usefulness across cold-water and heated environments alike, and the behaviour analysis capability adds monitoring value beyond simple recording. What this camera will not do is replace a long-range IR bullet or a wide-area PTZ above the waterline - it is a single-purpose underwater device with a fixed lens, 12 VDC power (no PoE), and no confirmed optical zoom. If your site needs both above-water perimeter coverage and underwater monitoring, you will need separate cameras for each application. The DS-2XC6224G0-L is part of the Security Australia range and suits projects where underwater placement is the primary requirement.

Before You Buy

Quick Fit Check

• Good match if: You need a permanently submerged camera rated to 15 metres depth with a confirmed IP68 rating for a pool, aquarium, tank, or water infrastructure application where no above-water camera angle provides the required view.
• Good match if: Your facility requires on-board local storage as a recording backup and your power infrastructure supports a dedicated 12 VDC run to the camera mounting point.
• You may need a different model if: Your primary requirement is above-water outdoor perimeter coverage, long-range IR detection, or PoE-powered installation from a standard network switch - in those cases, a conventional outdoor bullet, turret, or dome camera will be a more appropriate product type.

Key Features & Technical Specifications

Real-World Scenarios

How It Compares

• Choose this if: You need a network camera that can remain permanently submerged at depths up to 15 metres with a confirmed IP68 rating, 2MP resolution, and local on-board storage - no other standard dome, bullet, or turret camera category covers this application.
• You may need a different model if: Your monitoring requirement is above the waterline - for outdoor perimeter coverage, eave mounting, or long-range IR detection, a conventional outdoor turret, bullet, or PTZ camera will be a more appropriate and cost-effective product type.
• Pairs well with: A compatible network video recorder with sufficient channels to manage underwater camera streams alongside any above-water cameras on the same site, allowing unified recording and playback from a single interface.

Common Questions

1. Does this camera support PoE, or does it need a separate power supply?

   No. The DS-2XC6224G0-L requires a dedicated 12 VDC power supply - it does not support Power over Ethernet. You will need to run both a network cable and a separate 12 VDC power cable to the camera's mounting location. All cable entry points must be sealed to the IP68 standard before submersion to maintain the waterproof rating.

2. Will this camera work at 15 metres depth continuously, or is that a maximum tested depth?

   The 15-metre depth rating is the confirmed maximum operational depth per the IP68 specification for this model. The camera is designed for continuous submerged deployment within that limit, not just short-duration immersion. Installations beyond 15 metres depth are outside the rated specification and cannot be recommended.

3. Can I change the lens after purchasing, or is the lens fixed?

   The lens is fixed at the point of manufacture. You select either the 2.0mm, 2.8mm, or 4.0mm option when ordering, and the installed lens cannot be swapped in the field without returning the unit. Calculate your required field of view at your intended mounting distance before placing your order to ensure you select the correct lens variant.

4. Does this camera record locally if the network goes down?

   Yes. The DS-2XC6224G0-L supports a microSD/SDHC/SDXC card up to 128 GB for local on-board recording. If the network connection is lost, the camera can continue recording to the card. This is particularly useful for remote or infrastructure installations where network reliability cannot be guaranteed at all times.

5. What does the 120 dB wide dynamic range actually do in an underwater setting?

   It allows the camera to capture usable detail in scenes where bright and dark areas exist simultaneously in the same frame. In underwater pool environments specifically, overhead lighting and surface reflections create extreme contrast. The 120 dB WDR rating means the sensor can expose for both the lit areas near the surface and the darker water column below without one portion of the image becoming completely washed out or underexposed.

6. Will this camera work in saltwater or marine environments?

   The IP68 rating confirms protection against continuous submersion, but the confirmed specification does not state a specific saltwater corrosion rating beyond the IP68 ingress protection classification. For marine deployments, consult the full Hikvision DS-2XC6224G0-L datasheet or contact Security Australia to confirm material compatibility with your specific saltwater environment before installing.

7. What types of behaviour analysis does this camera support?

   The DS-2XC6224G0-L supports 6 behaviour analysis types and 3 exception detection types. The specific analysis categories available within Hikvision's camera firmware include options such as zone intrusion and line crossing detection, allowing operators to configure automated alerts without requiring constant manual monitoring. Review the full datasheet for the complete list of supported analysis event types applicable to this model.
