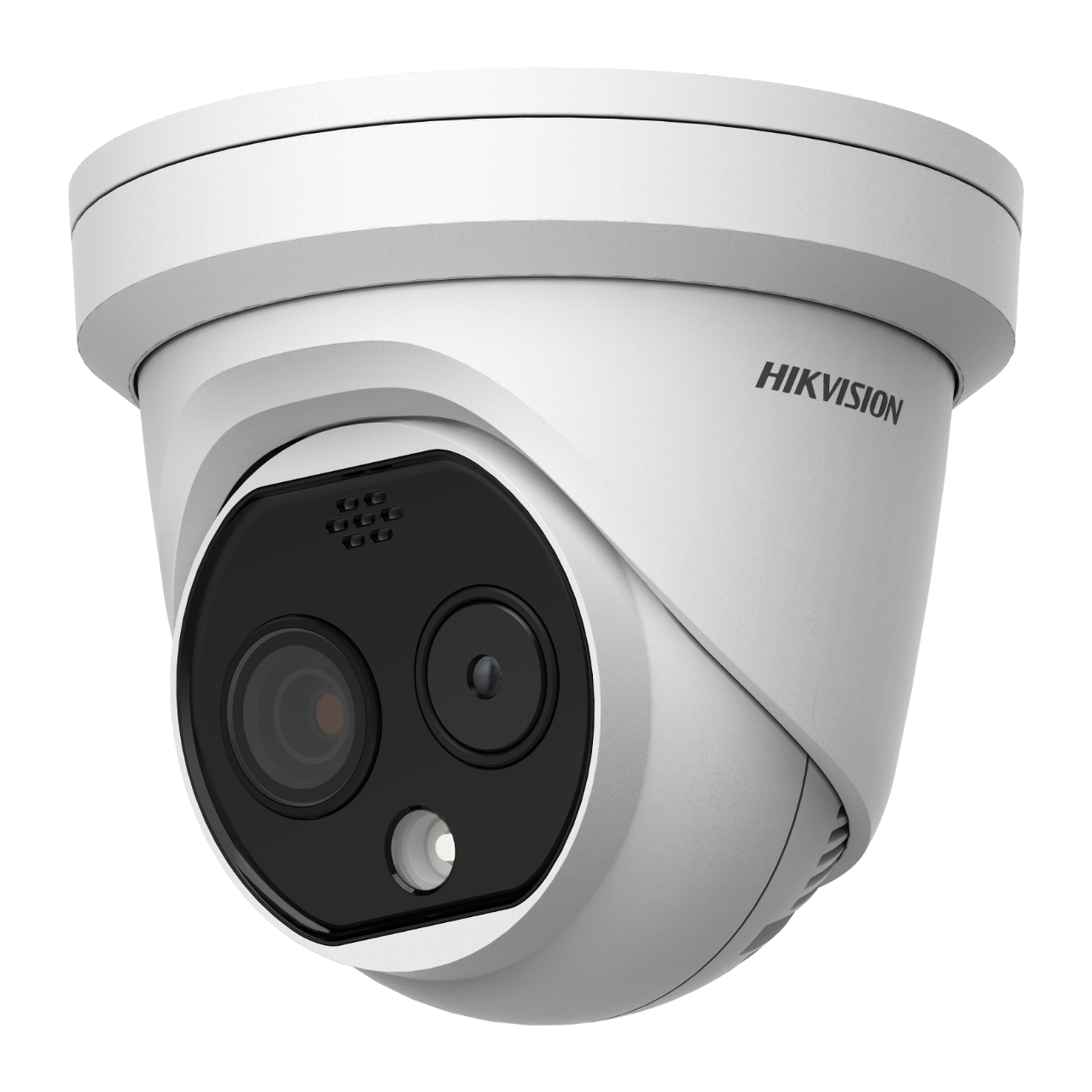

Hikvision DS-2TD1217-6/PA HeatPro Turret 6.2mm

Model: DS-2TD1217-6/PA

Who This Is For

When detection in total darkness, smoke, dust, or heavy rain is the priority, a standard optical camera simply cannot fill the gap. The Hikvision DS-2TD1217-6/PA HeatPro Turret is built for installers and site managers who need heat-based detection to work independently of lighting conditions - perimeter fences, rural properties, building exteriors, construction sites, and industrial yards where conventional cameras fail at night or in poor visibility. The camera pairs a 160 x 120 thermal sensor with a 4 MP optical module and combines both channels into a single bi-spectrum view, giving operators thermal detection precision alongside full-colour visual context. The integrated strobe light and audio alarm mean it can actively deter rather than just record. With IP67 weather protection and onboard microSD storage up to 256 GB, this is a self-contained solution for demanding outdoor sites where cabling to an NVR is limited or where standalone edge recording is needed.

What This Camera Actually Does

Who Buys This Model

• Rural and Agricultural Property Owners: Monitoring large paddock boundaries, equipment yards, or sheds overnight where there is zero ambient lighting and standard IR cameras lose effectiveness beyond their illuminator range.
• Construction Site Managers: Protecting plant and materials on unstaffed sites after hours, where dust, low light, and wide open perimeters make optical-only cameras unreliable for after-hours detection.
• Industrial Facility Security Teams: Covering loading docks, chemical storage perimeters, or critical infrastructure boundaries where early detection of unauthorised entry is needed before a person reaches a sensitive area.
• Installers Specifying Standalone Perimeter Points: Sites where running cable back to a central NVR is impractical - the 256 GB edge storage means the camera records locally without NVR dependency.
• Security Integrators Adding Active Deterrence: Projects where a client wants the camera to do more than record - the strobe and audio alarm provide an immediate response layer without adding a separate siren or lighting device.

Honest Assessment

The DS-2TD1217-6/PA does a specific job well: detecting human and vehicle intrusions in conditions where optical cameras fail. The sub-40 mK NETD rating means the thermal sensor resolves fine temperature differences, and the bi-spectrum fusion genuinely adds value for operators who need both detection confidence and visual identification in one view. The active deterrence features - strobe and audio - are functional on-camera tools, not marketing language.

What it will not do: the 160 x 120 thermal resolution is a detection-grade sensor, not an identification-grade one. You will see that a human is present, but you will not extract facial detail from the thermal channel. The 8 mm fixed optical lens and 15 m IR range also limit this camera to close-to-mid-range coverage - it is not suited to monitoring long open approaches of 50 m or more. For that application, a thermal camera with a longer focal length thermal lens would be more appropriate. Available through Security Australia, this model suits sites where the detection trigger is the priority and visual identification is handled by supporting optical cameras.

Before You Buy

Quick Fit Check

• Good match if: You are monitoring an entry point, gate, or building perimeter in an unlit outdoor environment overnight - the thermal sensor detects heat signatures without any lighting infrastructure required.
• Good match if: You need the camera to actively respond to detected intrusions - the onboard strobe and audio alarm trigger on deep learning-classified human or vehicle targets without requiring a separate alarm device or guard response.
• You may need a different model if: Your site requires long-range perimeter detection across open ground of 50 m or more - a thermal camera with a higher-resolution sensor and longer focal length thermal lens would provide better detection performance at distance. Check the full thermal camera range on securityaustralia.com.au for longer-range options.

Key Features & Technical Specifications

Real-World Scenarios

How It Compares

• Choose this if: You need a single camera that detects intrusions in zero light or poor visibility conditions and actively deters with strobe and audio, with the option to record locally without an NVR.
• You may need a different model if: Your site requires detection across long open approaches of 50 m or more - a thermal camera with a higher-resolution thermal sensor and longer focal length lens would provide more accurate detection at greater distances. Check the full thermal camera range on securityaustralia.com.au.
• Pairs well with: A compatible Hikvision NVR with bi-spectrum or thermal camera support, allowing centralised management alongside other optical cameras on the same system.

Common Questions

1. Will this camera detect people in complete darkness with no lighting at all?

   Yes. The thermal channel operates entirely on heat detection and requires no ambient or artificial light whatsoever. The 160 x 120 UFPA sensor reads thermal radiation from a person's body regardless of lighting conditions. The optical channel still requires the onboard IR illuminator - rated to 15 m - or ambient light to produce a usable visual image, but the thermal detection is fully independent of light.

2. Does this camera work as a standalone recorder without an NVR?

   Yes. The DS-2TD1217-6/PA supports microSD, SDHC, and SDXC cards up to 256 GB for onboard edge recording. This means the camera can record continuously or on event trigger without any network video recorder connected. For sites where NVR cabling is impractical, this allows fully self-contained operation, with footage accessible locally from the card.

3. What does the NETD rating below 40 mK actually mean in practice?

   It means the camera can resolve very small differences in surface temperature. NETD (Noise Equivalent Temperature Difference) is the smallest temperature change the sensor can distinguish from background noise. A rating below 40 mK is considered good sensitivity for a detection-grade thermal camera - it means a person standing against a warm wall or in a moderately warm environment is still detectable because the sensor resolves the temperature contrast between the target and the background reliably.

4. What is the thermal resolution and does it produce an identification-quality image?

   No, not for facial identification. The thermal sensor is 160 x 120 pixels - this is a detection-grade resolution, not an identification-grade one. At this resolution, the thermal channel will reliably show that a human or vehicle is present in the scene and trigger alarms accordingly. It will not produce an image from which a face, number plate, or clothing detail can be extracted. For identification, the 4 MP optical channel (2688 x 1520) at up to 15 m IR range handles that function.

5. Does this camera work for detecting people through glass windows or glass doors?

   No. Thermal cameras cannot detect heat through standard glass. Glass is opaque to thermal infrared radiation - it reflects or absorbs the thermal signal rather than transmitting it. The DS-2TD1217-6/PA is designed for direct line-of-sight outdoor monitoring, not for detecting heat sources through glazing. The optical channel functions normally through glass but loses the thermal detection benefit entirely in that configuration.

6. How does the bi-spectrum image fusion work and what does the operator actually see?

   The camera processes both the thermal and optical streams simultaneously and overlays them into a single composite image. The thermal layer provides the heat-based detection signal while the optical layer adds colour and texture detail. Operators can adjust the fusion blend and contrast to suit their monitoring preference, and switch between 15 colour palettes on the thermal channel. This means a single camera feed on the VMS shows both channels without the operator needing to manage two separate streams or toggle between views to assess an alarm event.

7. Will this camera reduce false alarms compared to a standard motion-detection optical camera?

   Yes, significantly in most outdoor scenarios. The combination of thermal-based detection and deep learning target classification means the camera differentiates between human targets, vehicles, and other heat sources or movement. Standard motion detection on an optical camera triggers on any pixel change - shadows, headlights, vegetation movement, or animals. The DS-2TD1217-6/PA's classification layer filters these out and only triggers alerts on confirmed human or vehicle targets. For sites with a history of nuisance alarms, this is one of the main practical reasons to choose a thermal-based detection camera. Security Australia stocks this model for exactly this application where false alarm reduction is a project requirement.

Downloads & Resources

No downloads available for this product.
