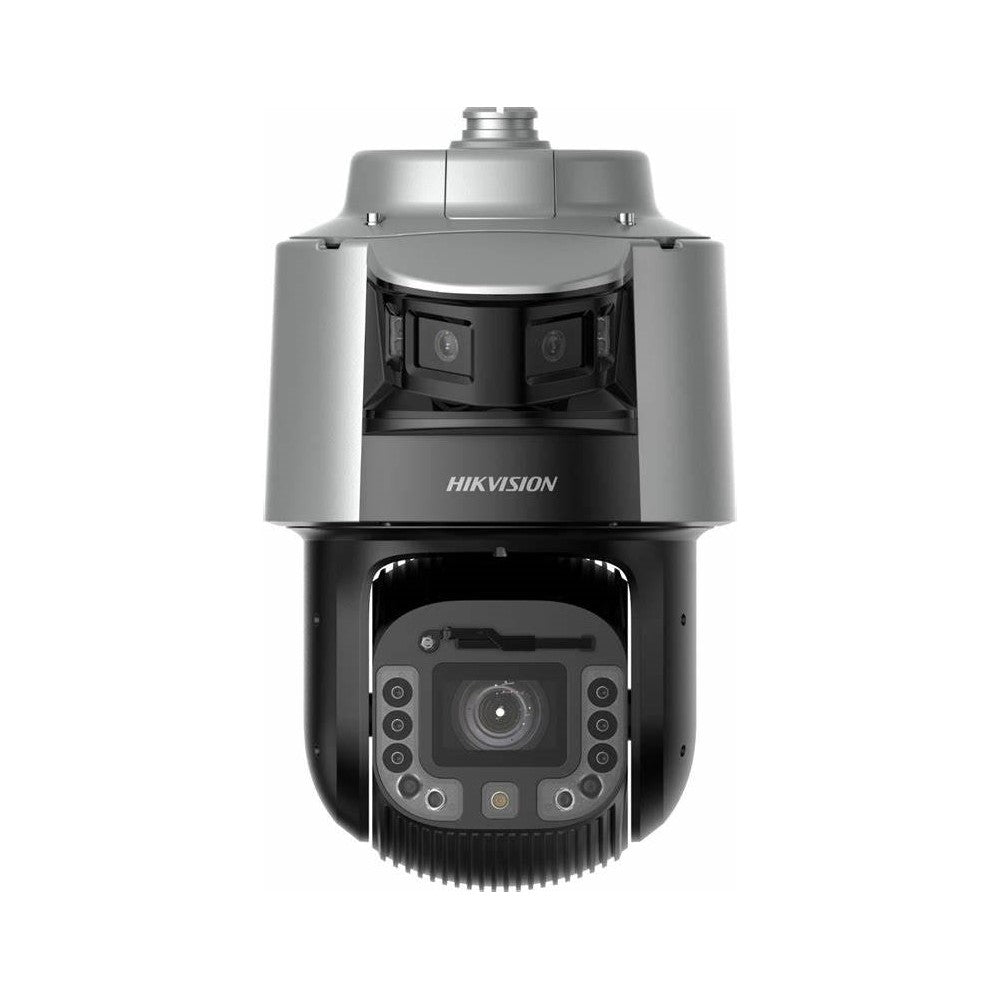

Hikvision DS-2SF8C442MXG-ELW/26 4MP TandemVu PTZ Camera, 24/7 Colour 42x Zoom

Model: DS-2SF8C442MXG-ELW/26

Who This Is For

For security specifiers and integrators who need a single camera position to deliver both a wide fixed overview and a high-powered optical zoom channel simultaneously, the Hikvision DS-2SF8C442MXG-ELW TandemVu PTZ is built around that exact requirement. The TandemVu design pairs a fixed bullet channel - providing a constant wide-area view - with a 42x optical zoom PTZ channel that operators can steer independently, without losing the overview feed. This makes it particularly suited to large open sites: transport hubs, stadium perimeters, port access points, commercial precincts, and correctional facility yards where operators need to track an incident in detail while keeping the broader scene on screen. The camera handles Australian outdoor conditions with IP67 and IK10 ratings, operates across -30°C to +60°C, and brings deep learning analytics to both channels for human and vehicle classification.

What This Camera Actually Does

Who Buys This Model

• Transport and Infrastructure Operators: Bus terminals, rail stations, and port facilities where operators need a fixed overview of the concourse or yard while independently zooming the PTZ to track a specific person or vehicle without losing the wide-area feed.
• Large Commercial Precinct Security Teams: Shopping centre management and stadium operators specifying pole-mounted perimeter cameras that can cover wide carpark expanses with the overview channel while operators use the 42x zoom to follow an incident in real time.
• Mining and Industrial Site Security Integrators: Installers deploying cameras across open processing yards, weighbridge approaches, or gate entries where the -30°C to +60°C operating range, IP67 rating, and 300 m IR distance address the site's physical demands.
• Correctional and High-Security Facility Specifiers: Security consultants designing perimeter or yard coverage where the IK10 vandal resistance, independent dual-channel recording, and deep learning classification reduce both physical vulnerability and operator alert fatigue.
• CCTV Upgrade Projects Replacing Multiple Cameras: System designers consolidating legacy installations where a single TandemVu position can replace a dedicated overview camera plus a separate PTZ, reducing pole infrastructure, cabling runs, and NVR channel count.

Honest Assessment

The DS-2SF8C442MXG-ELW's core strength is the TandemVu architecture - the ability to deliver a simultaneous fixed overview and an independently operated 42x optical zoom PTZ from one camera body. On a managed or monitored site, that removes the operational trade-off where steering a standard PTZ means losing the wide-area view. The 300 m IR range, DarkFighter sensor, and deep learning classification make it genuinely capable across large dark outdoor areas with reduced nuisance alerting. The IK10 and IP67 ratings are appropriate for exposed installations where build quality matters.

This is a complex, operator-facing device. It is not suited to small residential or retail installations where a simpler turret or standard PTZ delivers the same outcome at lower cost and complexity. The dual-channel output also consumes 2 NVR channels, which needs to be factored into channel planning. Buyers specifying this through Security Australia should confirm NVR compatibility and available channel capacity before ordering.

Before You Buy

Quick Fit Check

• Good match if: You need a single camera position to provide a continuous wide-area overview and an independently steerable 42x zoom channel at the same time - such as a transport hub, stadium perimeter, or large open car park.
• Good match if: The installation site demands IP67 weather resistance, IK10 impact resistance, and operation across -30°C to +60°C - for example, an exposed industrial perimeter, mining gate, or outdoor public space camera pole.
• You may need a different model if: The installation is a small retail site, single-tenancy home, or office with a limited NVR channel budget - a standard PTZ or turret camera type will deliver the required coverage at lower system cost and complexity without the dual-channel overhead.

Key Features & Technical Specifications

Real-World Scenarios

How It Compares

• Choose this if: You need simultaneous independent wide-area overview and long-range PTZ zoom from a single camera position - the TandemVu dual-channel architecture is the confirmed technical reason to select this over a standard PTZ.
• You may need a different model if: Your application requires full 360-degree continuous horizontal pan coverage or preset tour automation across a wide pan range - a full-rotation PTZ camera type will be a better fit for those operational requirements.
• Pairs well with: A high-channel-count NVR with deep learning support to handle dual-stream input per camera and make full use of the human and vehicle classification analytics on both channels.

Common Questions

1. Does this camera keep recording the wide view when the PTZ is being operated?

   Yes. The TandemVu design runs the fixed bullet channel and the PTZ channel as 2 independent video streams simultaneously. When an operator steers or zooms the PTZ channel, the bullet channel continues recording the wide-area overview without interruption. Both streams record separately to the NVR, so there is no gap in the wide-area footage regardless of PTZ operator activity.

2. Will this camera work on a standard PoE switch or NVR PoE port?

   It depends on power budget. The camera supports IEEE 802.3bt PoE as well as DC 12V. Standard 802.3bt provides up to 51 W per port, so confirm your switch or NVR PoE port can supply sufficient power for this unit before connecting. If deploying multiple TandemVu units on a single PoE switch, total switch PoE budget must be checked across all connected devices to avoid power drops under load.

3. How many NVR channels does this camera use?

   2 channels per camera. Because the DS-2SF8C442MXG-ELW outputs 2 independent 4MP streams - one from the fixed bullet channel and one from the PTZ - it occupies 2 NVR channels per unit. This must be accounted for in system design. A 16-channel NVR accommodates a maximum of 8 TandemVu units if all channels are dedicated to this model.

4. What does the 42x optical zoom actually allow operators to see in practice?

   At 42x optical zoom, operators can pull in subjects at significant distances and retain usable detail for identification purposes, depending on lighting and atmospheric conditions. The optical zoom produces no pixel degradation, unlike digital zoom. The additional 16x digital zoom extends this further when the optical range has been fully utilised. For comparison, a standard PTZ in this class typically offers 20x to 36x optical zoom, making the 42x specification relevant for sites with long approach distances or large open areas where close-zoom detail at range is an operational requirement.

5. Does the deep learning classification work on both channels independently?

   Yes. Deep learning human and vehicle classification is confirmed as a function of this camera and applies across both channels. This means the wide-area bullet channel can trigger classification-based alerts on its own stream while the PTZ channel operates independently - the analytics are not limited to a single active stream. This is operationally significant for sites using the camera in an unmonitored or automated alerting configuration.

6. What is the pan and tilt range on the PTZ channel, and does it support preset positions?

   The full pan and tilt range specifications are not confirmed in the available product data. The bullet channel tilt is confirmed as adjustable between 7° and 17°. For verified PTZ pan and tilt range figures and preset position capability, contact the team at Security Australia before specifying this unit into a design that relies on specific angular coverage requirements from the PTZ channel.

7. Will this camera handle an outdoor installation in extreme Australian heat or cold?

   Yes. The confirmed operating temperature range is -30°C to +60°C. This covers exposed installations in northern Australian industrial sites during summer as well as alpine or high-elevation installations during winter. The IP67 rating also confirms full dust ingress protection and water resistance to submersion depth, which is relevant for installations in Queensland's wet season or coastal environments subject to heavy rain and humidity.
