  • Sku: DS-2PT3326IZ-DE3
  • Vendor: SecurityAustralia

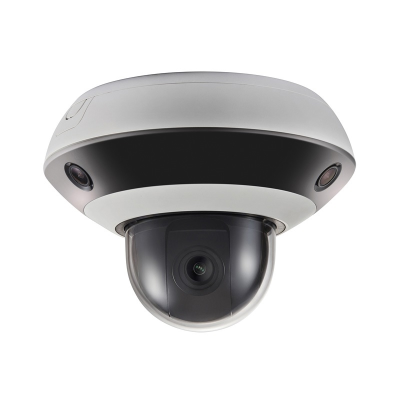

Hikvision DS-2PT3326IZ-DE3 PanoVu Mini Series IR Network PTZ CCTV Camera

$880.00 AUD
 per
Tax included.
Shipping calculated at checkout.
Spend $100.00 to FREE SHIPPING

Free shipping - Enjoy free shipping when your order exceeds $100!

All orders are despatched within the next business day!

Best local support in Aus! We back all products with a 3 year manufacturer warranty.

Hikvision DS-2PT3326IZ-DE3 PanoVu Mini Series IR Network PTZ CCTV Camera

Hikvision's DS-2PT3326IZ-DE3 combines 3 fixed lens cameras and one pan, tilt, and zoom camera in a compact indoor design, providing comprehensive 360-degree coverage for enhanced situational awareness. The PTZ camera allows simultaneous capture of every detail with precision. Each sensor delivers balanced and crystal-clear 2MP images. The tracking PTZ features a 4x optical zoom with a 2.8 to 12mm lens.

Ideal for monitoring medium-sized indoor areas such as community halls, this camera ensures effective surveillance and detailed image capture in diverse environments.

Key Features

  • Comprehensive Coverage: Combines 3 fixed lens cameras with a PTZ camera for full 360-degree surveillance capability.
  • High-Quality Imaging: Each sensor delivers balanced 2MP images for clear and detailed visuals.
  • Optical Zoom: Equipped with a 4x optical zoom with a 2.8 to 12mm lens for flexible monitoring options.
  • Enhanced Situational Awareness: Provides a complete overview for better incident response and monitoring.
  • Compact Design: Ideal for indoor environments with limited space but high surveillance needs.

Code/SKU: DS-2PT3326IZ-DE3
Quick Specs:

  • Camera Type: Panoramic PTZ camera for versatile area coverage.
  • Resolution: 2MP for high-quality video surveillance.
  • Zoom Capability: 4x optical zoom for detailed observation.

Specifications

Panoramic Camera
Image Sensor:Three 1/2.8" progressive scan CMOS
Max. Image Resolution:1920 × 1080
Min. Illumination:Color: 0.05 Lux @(F2.0, AGC ON) B/W: 0.01 Lux @(F2.0, AGC ON) 0 Lux with IR
Lens:f2mm/F2.0
Angle of View:Horizontal field of view: 128.5° × 3Vertical field of view: 75.7°Diagonal field of view: 144°
Main Stream:50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288)60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240)
Sub Stream:50 Hz: 20 fps (704 × 576, 640 × 480, 352 × 288)60 Hz: 20 fps (704 × 480, 640 × 480, 352 × 240)
Image Compression:H.265/H.264
White Balance:Auto/Manual/ATW (Auto-Tracking White Balance)/Indoor/Outdoor/Fluorescent Lamp/Sodium Lamp
Shutter Time:50 Hz: 1/1 s to 1/30,000 s60 Hz: 1/1 s to 1/30,000 s
Day& Night:ICR
PTZ Camera
Image Sensor:1/2.8" progressive scan CMOS
Max. Image Resolution:1920 × 1080
Minimum Illumination:Color: 0.05 Lux @(F2.0, AGC ON)B/W: 0.01 Lux @(F2.0, AGC ON)0 Lux with IR
Angle of View:Horizontal field of view: 120° to 56.6° (wide - tele)Vertical field of view: 61.8° to 31.7° (wide - tele)Diagonal field of view: 149° to 65° (wide - tele)
Zoom Speed:Approx.5.4 s (optical, wide - tele)
Focal Length:2.8 mm to 12 mm, 4× optical zoom
White Balance:Auto / Manual /ATW/Indoor/Outdoor/Daylight lamp/Sodium lamp
AGC:Support
Shutter Time:50 Hz: 1/1 s to 1/30,000 s60 Hz: 1/1 s to 1/30,000 s
Day & Night:IR Cut Filter
Optical Defog:Support
ROI encoding:Main stream and sub-stream respectively supports eight fixed areas.
Main Stream:50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720)60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720)
Sub Stream:50Hz:25fps (704×576, 352×288, 176×144)60Hz:30fps (704×480, 352×240, 176×120)
Image Compression:H.265/H.264
WDR:Digital WDR
Privacy Masking:8 programmable privacy masks
Pan and Tilt
Pan Range:0° to 350°
Pan Speed:0.1°/s to 30°/s (configurable), preset speed: 30°/s
Tilt Range:0° to 90°
Tilt Speed:0.1°/s to 30°/s (configurable), preset speed: 30°/s
Number of Preset:300
Scheduled Task:Preset/Dome Reboot/Dome Adjust
Power-off memory:Support
System Function
IR:Up to 10 m IR distance
PTZ Linkage:Support
Smart Detection:Motion Detection, Video Tampering Detection, Exception
Input & Output
Audio Input:1-ch audio input
Audio Output:1-ch audio output
Network
Audio compression:G.711ulaw/G.711alaw/G.722/G.726/MP2L2/PCM
Protocol:IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, DHCP, PPPoE, Bonjour
Application programming:Open-ended API, support Onvif, ISAPI, CGI
System Integration
Menu:English
User/Host Level:Up to 32 users,3 Levels: Administrator, Operator and User
Security Measures:User authentication (ID and PW); Host authentication (MAC address); IP address filtering
Web Browser:IE 8 to 11, Chrome 31.0 to 44, Firefox 30.0 to 51
Simultaneous Live View:Up to 8 × 2 channels
Ethernet:1 RJ45 10 M/100 M Ethernet
Onboard Storage:Built-in Micro SD/SDHC /SDXC card slot, up to 128GB, manual/alarm recording
General
Power supply:12 VDC, 2.0 A and PoE (802.3at), 42.5 to 57 VDC, 0.6 A, Class4
Consumption (without hard disk):Max.24 W (Max. 6 W for IR)
Working temperature:-10°C to 50°C (14°F to 122°F)
Working humidity:Humidity 90% or less
Material:PC + ABS & Aluminum alloy
Protection Level:TVS 2000V Lightning Protection, Surge Protection and Voltage Transient Protection
Dimensions (W×D×H):Φ 183 mm × 133.2 mm (Φ 7.20" × 5.24")
Weight:Approx. 0.9 kg (1.98 lb)

Documentation

3 Years Manufacturer Warranty

All IP cameras and recording devices (NVR’s/DVR’s) are covered by a 3 year back-to-base manufacturer warranty.

Our warranty is limited to the replacement of faulty items or parts and does not include damage due to incorrect fitting of parts or accessories, or damage due to mishandling the equipment once out of the box. All faults are sent to the manufacturer for inspection and diagnosis before a replacement is sent out.

Read more about the Terms & Conditions here – https://www.securityaustralia.com.au/terms-and-conditions/

Trusted Brand Partner & Security Equipment Wholesaler

Authorised Brand Partner with Responsive & Fast Aussie Sales Support Team ★★★★★
Best After-Sales Support and Troubleshooting Team with Years of Installation Experience.

Free Delivery* & Despatch Time

*Just spend over $100 to activate Fast Free Shipping!

Despatch Times: Products are despatched on the same day if the order was placed before 11am on any weekday, Monday - Friday. All other orders are processed and despatched within 24 hours or next business day.

Order Confirmation: Once you place an order, you will receive a confirmation email. This indicates that your order has been received in our system and is now being processed for dispatch. If your item is back-ordered or unavailable, we will notify you via email, and if we do not receive a response, we will attempt to contact you by phone as soon as possible. We value your time and strive to be prompt. If your item(s) are available for immediate shipment (within 2 days), we will process the charges and prepare the order for shipping.

Shipping Times: General shipping times for StarTrack, TNT and Allied couriers are between 1-3 working days from despatch. Longer delivery times may be caused by your package being held at your local courier depot that is beyond our control. Please contact us or the local post depot for confirmation.

Tracking Numbers: all tracking numbers will be emailed to you by our warehouse processing team within the day, after your order is despatched to our local courier.

View full details

Hikvision DS-2PT3326IZ-DE3 PanoVu Mini Series IR Network PTZ CCTV Camera

$880.00 AUD
 per

Hikvision DS-2PT3326IZ-DE3 PanoVu Mini Series IR Network PTZ CCTV Camera

The Hikvision DS-2PT3326IZ-DE3 is an innovative camera specifically designed to enhance indoor surveillance capabilities. This versatile PanoVu camera combines the functionalities of three fixed lens cameras and one pan-tilt-zoom (PTZ) camera, offering 360-degree coverage that provides comprehensive monitoring across medium-sized areas like community halls. It leverages advanced imaging technologies to ensure reliability and clarity in various lighting conditions.

With its impressive 2MP resolution, this camera captures crystal-clear images that enable effective identification of people and objects. The inclusion of a 4x optical zoom lens (2.8 to 12mm) allows users to focus on critical details, making it especially useful for dynamic indoor environments. Designed for superior low-light performance, it ensures quality monitoring during nighttime operations with built-in infrared capabilities, making it a practical choice for 24/7 surveillance.

The integration of intelligent analytics features enhances the DS-2PT3326IZ-DE3’s capabilities, providing an extra layer of security through motion detection and alerts. Its user-friendly interface ensures easy configuration and management, allowing security personnel to respond promptly to any incidents. Overall, this advanced camera is ideal for institutions looking to bolster their surveillance infrastructure efficiently.

Features:

  • Compact Design: Integrates three fixed lens cameras and one motorized PTZ camera into a single unit, optimizing space while providing extensive coverage in a compact format.
  • 360-Degree Surveillance: Provides complete situational awareness through its ability to pan and tilt, ensuring that every corner of the monitored area is covered effectively.
  • High-Resolution Imaging: Captures 2MP crystal-clear video, ensuring that all details are visible for thorough monitoring and accurate identification of individuals and objects.
  • Motorized PTZ Functionality: Offers 4x optical zoom capabilities with a 2.8mm to 12mm lens, allowing focused monitoring of specific objects and areas of interest from a distance.
  • Impressive Low-Light Performance: Achieves excellent performance at low-light levels with an illumination as low as 0.05 Lux in color mode, providing valuable data for round-the-clock surveillance.
  • Advanced Imaging Technologies: Supports H.265 video compression formats, which significantly reduce storage and bandwidth usage while retaining high-quality video output for efficient management.
  • Integrated IR Capabilities: Equipped with powerful infrared technology for night vision, ensuring reliable surveillance capabilities in complete darkness, extending visibility and monitoring capabilities.
  • Smart Video Content Analytics: Incorporates intelligent detection features such as motion tracking and event notifications, enhancing security monitoring by providing prompt alerts to operators.

Functions:

Comprehensive Monitoring Coverage:
The unique design of the PanoVu camera enables extensive surveillance across wide areas, providing effective monitoring without the need for multiple installations.

Efficient Incident Tracking:
The advanced PTZ functions facilitate real-time tracking of moving objects, ensuring that security personnel can follow subjects without losing sight of them.

Reliable Night Vision:
The camera’s infrared capabilities ensure ongoing functionality during nighttime hours, providing continuous video feed visibility for effective security management.

Proactive Security Alerts:
Intelligent video analytics trigger instant notifications for detected movement or security breaches, allowing operators to respond immediately to potential incidents.

User-Friendly Management Interface:
The intuitive controls ensure straightforward navigation of camera settings and features, promoting ease of use for operators across varied experience levels.

Flexible Installation Options:
This camera is designed with versatility in mind, allowing for easy integration into existing surveillance systems, enabling broad adaptability based on user needs.

Durability in Various Environments:
The robust design ensures that the camera withstands physical impacts and environmental factors, ensuring long-term monitoring reliability across many operational settings.

Remote Monitoring Capability:
Enables users to access live feeds and camera configurations remotely, ensuring operational flexibility and efficient management for security operations.

Technical Specifications

Model DS-2PT3326IZ-DE3
Camera Type PanoVu Mini Series IR Network PTZ Camera
Sensor Type 1/2.8" Progressive Scan CMOS
Number of Cameras 3 Fixed Cameras + 1 PTZ Camera
Resolution (Fixed Cameras) 1920 × 1080 at 30fps
Resolution (PTZ Camera) Up to 1920 × 1080 at 30fps
Min. Illumination (Color) 0.05 Lux @(F2.0, AGC ON)
Min. Illumination (B/W) 0.01 Lux @(F2.0, AGC ON)
IR Illumination 0 Lux with IR
PTZ Zoom 4x Optical Zoom, 8x Digital Zoom
Lens (PTZ) 2.8 to 12mm
Field of View (Horizontal) 128.5° x 3 (Fixed Cameras)
Compression Format H.265
Start-Up Time Less than 30s
Protection Rating IP66
Power Supply 12V DC
Networking Supports Ethernet, with PoE option
