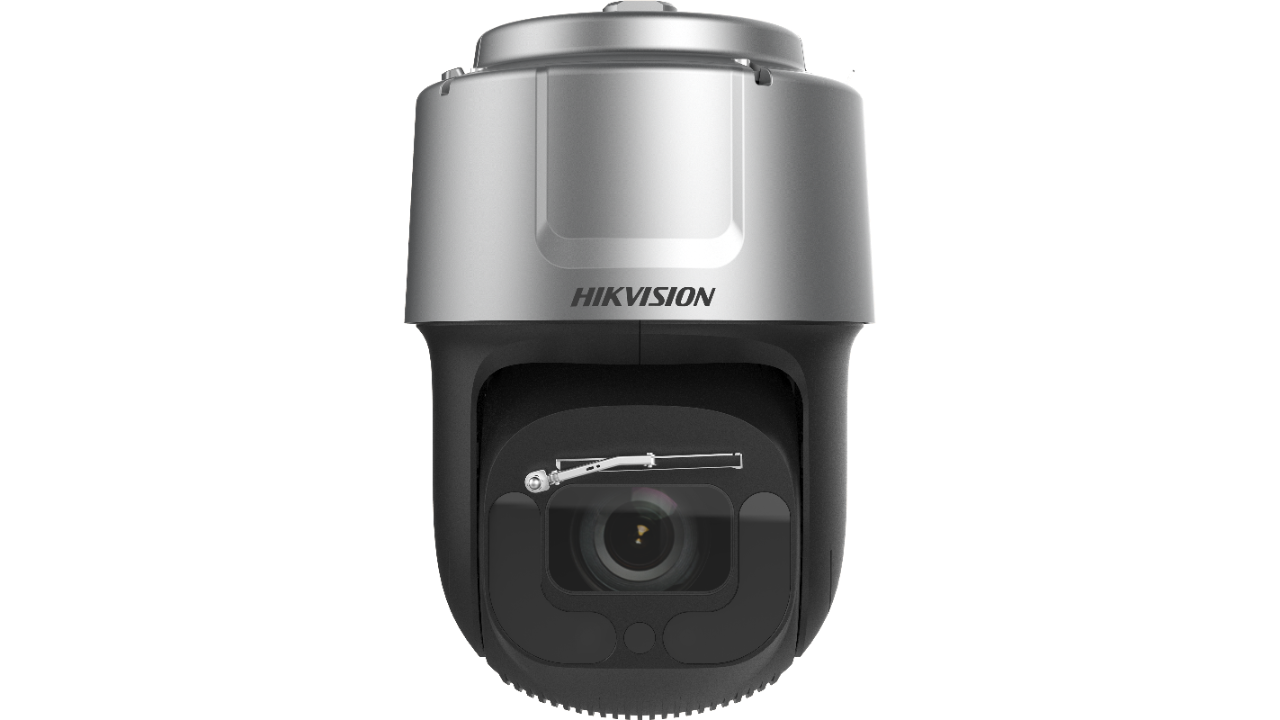

Hikvision DS-2DF8C842IXS-AELW 8MP (4K) PTZ Camera, 42x Zoom, up to 500m IR, IP66, IK10, Hi-PoE/24VAC

Model: DS-2DF8C842IXS-AELW

Who This Is For

When wide-area coverage from a single camera position is the priority, the Hikvision DS-2DF8C842IXS-AELW is built for exactly that task. Installers specifying cameras for transport corridors, large industrial yards, ports, critical infrastructure perimeters, and open public spaces will find the combination of 8MP 4K resolution and 42x optical zoom gives operators enough reach to capture usable detail at distances where most fixed cameras become impractical. The 500m IR range extends that capability through the night and in conditions where ambient lighting is unreliable. At 8.5 kg with IP66 weatherproofing and IK10 vandal resistance, this is a camera specified for permanent outdoor infrastructure rather than temporary or light-commercial use. Hi-PoE or 24VAC power options give integrators flexibility when working on existing 24VAC infrastructure or modern PoE switch-based deployments.

What This Camera Actually Does

Who Buys This Model

• Transport and infrastructure operators: Rail corridors, bus interchanges, port entry points, and highway monitoring installations where a single pan-tilt position needs to cover multiple lanes or approach directions across hundreds of metres at night.
• Industrial and mining site security teams: Large open yard perimeters, haul roads, and equipment laydown areas where 500m IR coverage and IK10 vandal resistance are non-negotiable, and 24VAC power infrastructure is already in place.
• Government and critical infrastructure integrators: Installations at utilities, water treatment sites, and public space surveillance networks where AI-based vehicle and face detection feeds into broader VMS-triggered alert workflows.
• Stadium and events venue security: Large open-air environments where one controllable 4K PTZ replaces several fixed wide-angle cameras, with operators able to zoom from a crowd overview down to an individual in a single preset move.

Honest Assessment

The DS-2DF8C842IXS-AELW is a high-specification PTZ that does what it claims: 4K clarity at range, serious night performance with 500m IR, and physical build quality suited to heavy outdoor deployment. The 1/1.2" sensor is notably larger than many PTZ competitors at this zoom range, which contributes to the low-light figures and keeps image quality meaningful at full zoom. The -40°C to 70°C operating range is relevant for Australian outback and alpine installations where temperature extremes are genuine concerns.

This camera is not the right tool for tight indoor spaces, small retail premises, or budget-constrained deployments - it is a purpose-built infrastructure camera at a corresponding price point. Installers should also note that two-way audio is listed as optional, not built-in, so audio capability requires confirmation at purchase. For applications where coverage width rather than zoom depth is the priority, a multi-sensor panoramic camera may be more practical. The DS-2DF8C842IXS-AELW is available through Security Australia.

Before You Buy

Quick Fit Check

• Good match if: You are monitoring a large open perimeter, transport corridor, or industrial yard at night and need 500m IR reach with enough zoom to identify individuals or vehicles at distance from a single camera position.
• Good match if: Your site already runs 24VAC PTZ infrastructure, or you have Hi-PoE switches in place, and you are upgrading to 4K resolution while retaining existing cabling and mounting positions.
• You may need a different model if: Your priority is covering a wide panoramic arc with no operator interaction - a multi-sensor panoramic or fisheye camera will provide always-on 180-degree or 360-degree coverage without requiring preset management or active PTZ control.

Key Features & Technical Specifications

Real-World Scenarios

How It Compares

• Choose this if: You need a single outdoor PTZ with 4K resolution, 42x optical zoom, and 500m IR range on a site where long-range identification and night performance are the primary brief - particularly where 24VAC power is already present.
• You may need a different model if: Your monitoring requirement is constant full 360-degree situational awareness without active operator control - a multi-sensor panoramic camera provides always-on wide coverage that a PTZ cannot replicate unless staffed at all times.
• Pairs well with: A Hi-PoE managed switch or 24VAC transformer with sufficient capacity, a Hikvision-compatible NVR or VMS with PTZ control support, and a rated heavy-duty outdoor pole or parapet mount.

Common Questions

1. Will this camera work on a standard PoE switch?

   No. The DS-2DF8C842IXS-AELW requires Hi-PoE (60W) when powered over Ethernet - standard IEEE 802.3bt (51 W) and 802.3at (30W) PoE switches do not supply enough power for this unit. You will need a Hi-PoE capable switch or Hi-PoE injector, or alternatively use the 24VAC power input if that infrastructure is already in place at your site.

2. What pan and tilt range does this PTZ cover?

   The camera pans 360 degrees continuously with no physical stop, and tilts from -20 degrees (slightly upward) to 90 degrees (straight down). The -20-degree upward tilt is useful for installations on lower poles or walls where a subject on an elevated walkway or ramp needs to be covered. The 90-degree downward tilt ensures there is no blind spot directly beneath the camera at ground level.

3. Does the 42x optical zoom maintain 4K resolution throughout the zoom range?

   Yes. The 8MP 4K sensor operates at full 3840 x 2160 resolution regardless of zoom position. The optical zoom adjusts the lens focal length rather than digitally cropping the sensor, so you retain full pixel count at maximum zoom. This is what makes long-range identification practical - at 42x you are still working with 8MP worth of detail rather than a digitally enlarged crop of a lower-resolution image.

4. How does the Smart IR work at different zoom distances?

   The Smart IR system automatically adjusts IR illuminator intensity as the optical zoom changes. At wide angle covering a large area, IR output is distributed broadly. As you zoom in to a subject at distance, the IR beam narrows and intensifies to match the narrower field of view - this prevents the common PTZ problem of a close subject being overexposed in IR while distant subjects remain unlit. The maximum IR range of 500m applies at the long end of the zoom range.

5. Does this camera support two-way audio?

   Two-way audio is listed as optional on this model, not built-in as standard. This means the camera does not include a built-in speaker and microphone in the base configuration. If two-way audio is a requirement for your installation, confirm with the supplier at time of ordering whether the audio-equipped variant applies to this specific SKU and what external hardware may be required.

6. Will this camera work in extreme Australian climate conditions?

   Yes. The DS-2DF8C842IXS-AELW is rated for -40°C to 70°C operating temperature, covering both alpine winter environments and the radiant heat conditions experienced at outback or roof-mounted installations during summer. The IP66 rating protects against heavy rain and dust ingress, and the IK10 rating confirms the housing withstands 20 joules of impact force - relevant for exposed public locations and sites with vehicle movement nearby. This model is part of the Security Australia range specifically for infrastructure-grade deployments.

7. What VMS or NVR systems is this camera compatible with?

   The camera supports ONVIF protocol, which provides baseline compatibility with most major VMS platforms and NVRs. Native Hikvision features including AI detection events, PTZ preset triggers, and Smart IR settings are fully accessible through Hikvision iVMS-4200, Hik-Connect, and Hikvision-native NVRs. Third-party VMS platforms with ONVIF support will provide PTZ control and video streaming but may not expose all AI-based event types - confirm your VMS vendor's Hikvision integration depth if AI-triggered rules are part of your monitoring design.
