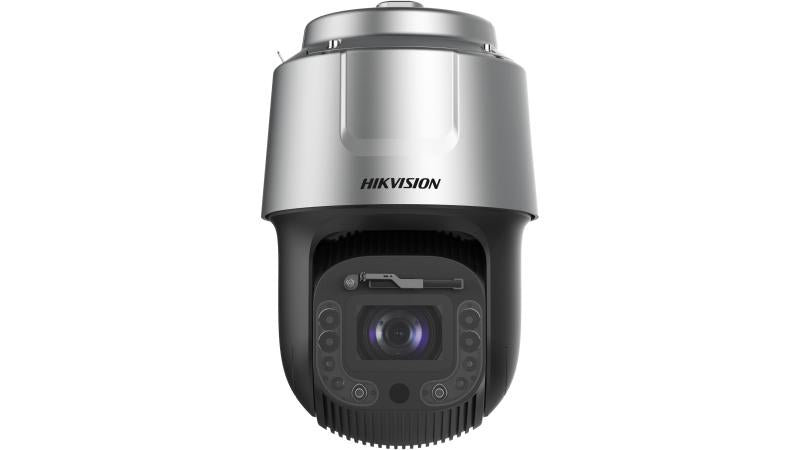

Hikvision DS-2DF8C842IXG1-ELWY 4K 42x DarkFighter IR Network PTZ Dome

Model: DS-2DF8C842IXG1-EL(W)(Y)

Who This Is For

When wide-area coverage from a single camera position is the priority, the Hikvision DS-2DF8C842IXG1-EL(W)(Y) is a serious tool for the job. This 4K PTZ dome pairs a 42x optical zoom with DarkFighter low-light performance and long-range IR, making it suited to large open sites where fixed cameras simply cannot stretch coverage far enough. Think ports, logistics hubs, mining compounds, university campuses, and large retail car parks where operators need to identify detail at distance - day or night - without deploying a bank of cameras. The integrated wiper keeps the lens clear during rain events, which matters on exposed installations. Security integrators and site managers specifying a camera that can actively track and zoom on a subject across a large open area, rather than passively record a wide scene, will find this model built precisely for that task.

What This Camera Actually Does

Who Buys This Model

• Security Integrators on Large Commercial Sites: Specifying a single pan-tilt-zoom unit to cover a wide outdoor area - logistics yards, retail car parks, industrial compounds - where multiple fixed cameras would be less cost-effective and harder to cable.
• Ports and Transport Hubs: Operations needing to zoom to container numbers, vehicle identifiers, or personnel at long distance across open apron areas, particularly overnight where DarkFighter low-light performance makes the difference between a usable and unusable image.
• Mining and Energy Sites: Remote or exposed installations where the IP66 rating, IK10 impact resistance, and integrated wiper reduce maintenance requirements and keep the camera operational in harsh conditions without frequent site visits.
• University and Hospital Campuses: Control room operators using preset positions and auto-tracking to actively monitor multiple zones across a large footprint from a single camera, reducing the number of recording channels and cable runs required.
• Coastal and Marine Facilities: Marinas, boat ramps, and waterfront infrastructure where salt air, rain, and exposure demand a weatherproof unit with a wiper to maintain lens clarity and a long-zoom lens to cover wide water-facing approaches.

Honest Assessment

The DS-2DF8C842IXG1-EL(W)(Y) does what large-site PTZ cameras are supposed to do: it provides 4K resolution, 42x optical reach, genuine low-light colour imaging through DarkFighter, and a weatherproof build that handles real outdoor conditions. The integrated wiper is a practical detail that separates it from PTZ units that require manual cleaning on exposed mounts. For active operator-driven monitoring or auto-tracking on a wide-open site, this is a technically capable unit available through Security Australia. What it will not do is replace a multi-sensor panoramic camera where continuous 180- or 360-degree recording with no blind spots is the requirement - a PTZ only records where it is pointed at any given moment. It also demands a PoE+ power source or 24VAC wiring, so the infrastructure budget and NVR channel capacity need to be confirmed before procurement.

Before You Buy

Quick Fit Check

• Good match if: You need to actively monitor or track subjects across a large open site at distance, day or night, using a single camera position with 4K identification capability at full 42x zoom.
• Good match if: The installation is exposed to weather and requires a camera rated to IP66 and IK10 with an integrated wiper to maintain image quality through rain and dust without manual intervention.
• You may need a different model if: Continuous full-perimeter recording with no gaps is the requirement - a multi-sensor panoramic camera records all directions simultaneously, whereas a PTZ only captures the direction it is actively pointed toward at any moment.

Key Features & Technical Specifications

Real-World Scenarios

How It Compares

• Choose this if: You need 4K resolution combined with 42x optical zoom and DarkFighter low-light performance in a single outdoor PTZ dome with an integrated wiper for exposed installations.
• You may need a different model if: Your requirement is continuous all-direction recording with no gaps - a multi-sensor panoramic camera captures 180 or 360 degrees simultaneously without a moving mechanism, whereas this PTZ records only the direction it is actively pointed.
• Pairs well with: A PoE+ managed switch or dedicated PTZ power supply, an NVR with sufficient channel bandwidth for 4K streams, and fixed overview cameras at key chokepoints to complement the PTZ's active tracking role.

Common Questions

1. Will this camera work on a standard PoE switch?

   No. This PTZ requires PoE+ (IEEE 802.3at) as a minimum - standard PoE (802.3af) switches are limited to 15.4W per port and cannot supply enough power for a motorised PTZ dome of this class. Confirm your switch supports 802.3at before ordering. Alternatively, 24VAC from a local transformer is a reliable option for long cable runs or where a suitable switch is not available at the rack.

2. Does the 42x optical zoom actually deliver 4K quality at full telephoto?

   Yes. The 42x figure is optical zoom, not digital. The 8MP 4K sensor maintains full resolution at every zoom step because the lens physically adjusts the image rather than cropping a lower-resolution frame. At maximum zoom you are still working with the full 3840 x 2160 sensor output, which is what makes the difference for identification tasks at long distance - numberplates, faces, and clothing detail remain sharp in a way that a digitally zoomed 2MP camera cannot match.

3. How does the IR work when the camera is zoomed in at long range?

   The IR illuminators on this camera are zoom-tracking - they narrow their beam as the camera zooms in, so the IR coverage area matches what the lens is actually seeing. Standard fixed-IR PTZ cameras often produce a bright centre hotspot and dark edges at full zoom because the IR beam stays wide while the lens narrows. Zoom-tracking IR eliminates this and provides more even illumination at the target distance.

4. Does this camera support auto-tracking?

   Yes. The DS-2DF8C842IXG1-EL(W)(Y) supports auto-tracking, where the camera detects and follows a moving subject automatically without an operator manually steering. This is useful in unmanned monitoring scenarios or where a single operator needs to manage multiple PTZ positions. Auto-tracking behaviour and sensitivity thresholds are configurable through the camera's web interface or via a compatible Hikvision NVR.

5. Will this camera work for licence plate reading at distance?

   It depends on your specific site geometry. The 4K resolution and 42x optical zoom provide the resolution density needed to read numberplates at significant distance, but actual readability depends on the vehicle approach angle, lighting conditions, and how much of the frame the plate occupies at the zoom level in use. This camera is not a dedicated ANPR unit with fixed-lane optics and exposure control tuned specifically to plate capture - it is a general-purpose PTZ that can deliver plate-legible images when correctly positioned and zoomed. Contact Security Australia with your site layout if you need guidance on whether this or a dedicated ANPR camera is the right tool for a specific application.

6. What pan and tilt speeds does this PTZ support, and how many presets can it store?

   The DS-2DF8C842IXG1-EL(W)(Y) supports variable pan and tilt speeds. Hikvision's 8-series PTZ platforms in this class typically support up to 300 preset positions, configurable patrol paths between presets, and pattern recording where the camera repeats a manually driven movement sequence. This makes it practical for guarded-tour applications where the camera needs to sweep between defined points on a timed schedule without operator input.

7. Is the integrated wiper manually triggered or automatic?

   Both. The wiper on the (W) variant can be triggered manually by an operator from the VMS or NVR interface, or it can be set to run automatically at configured intervals. For sites with intermittent rain, manual trigger on-demand is the most common approach - the operator activates the wiper when image degradation is visible on the monitor rather than running it on a fixed cycle that may activate unnecessarily in dry conditions.
