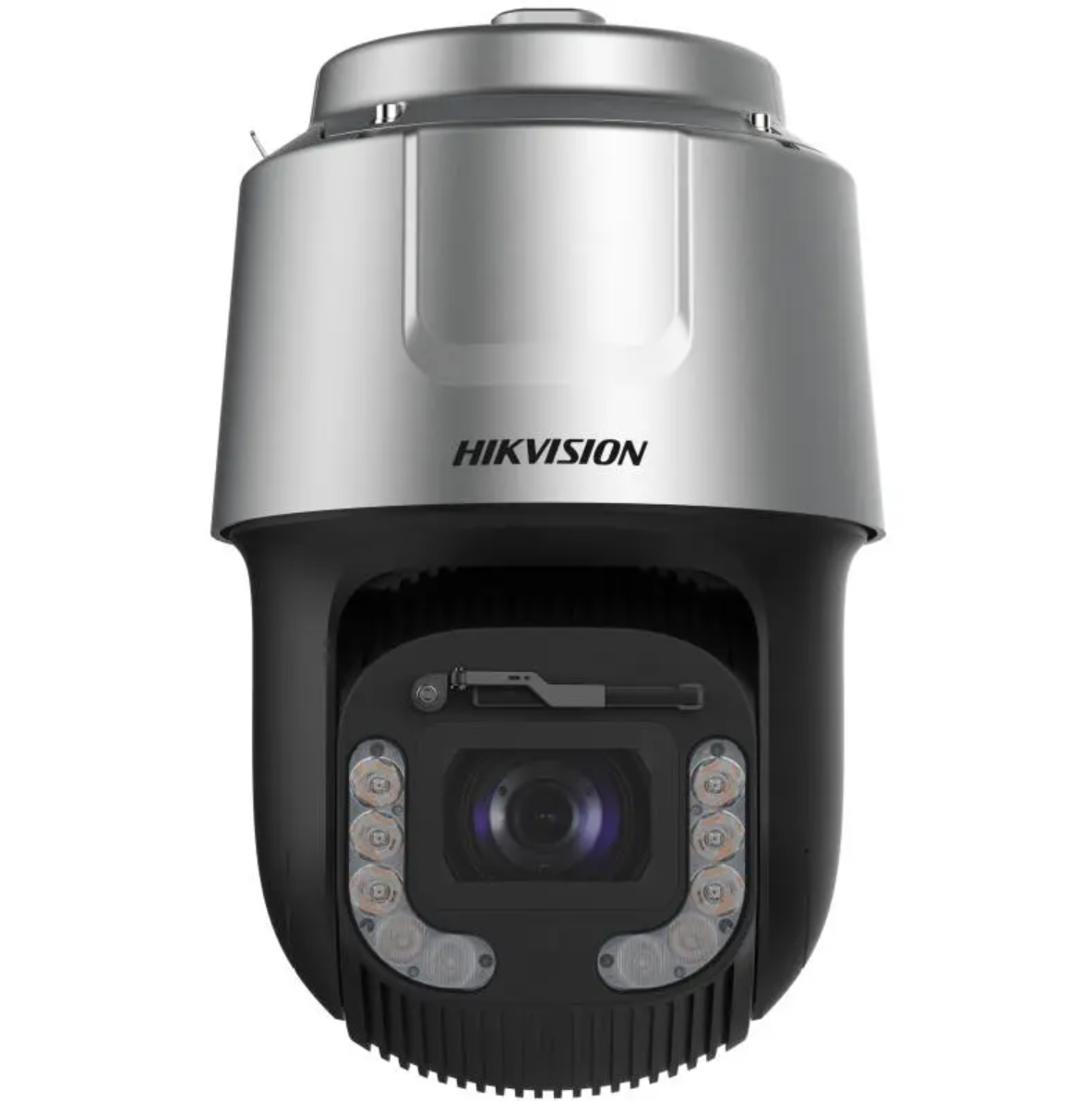

Hikvision DS-2DF8C425MHS-DELW 4 MP 25X DarkFighterX IR Network Speed Dome 300m IR

Model: DS-2DF8C425MHS-DELW

Who This Is For

When covering long approaches, wide open yards, or multi-zone outdoor sites with a single camera position is the priority, the Hikvision DS-2DF8C425MHS-DELW delivers the reach and low-light depth to make it viable. This is a 4MP speed dome with 25x optical zoom and 300m IR range, built around DarkFighterX dual-sensor technology that maintains colour detail at illumination levels well below what standard cameras can handle. It carries IP67 weatherproofing, IK10 impact resistance, and TVS 6kV lightning protection, which makes it a serious candidate for exposed outdoor installations where environmental conditions are a constant factor. Installers specifying perimeter cameras for industrial yards, transport depots, correctional facilities, large carparks, or port infrastructure will find the combination of pan/tilt range, optical zoom, and extreme IR reach gives them genuine coverage flexibility that a fixed lens camera simply cannot match from the same mounting point.

What This Camera Actually Does

Who Buys This Model

• Industrial Site Security Teams: Facilities managers at mining, manufacturing, and logistics sites who need a single camera to cover long vehicle entry roads or large yard perimeters without running cable to multiple fixed camera positions.
• Transport and Port Operators: Security coordinators at ports, rail yards, and freight depots where vehicle movements across wide open areas need to be tracked at distance with enough zoom to capture identifying detail.
• Council and Critical Infrastructure Installers: Integrators specifying perimeter protection for water treatment plants, power substations, or council assets where the IK10 and TVS 6kV ratings meet asset protection procurement requirements.
• Correctional and Institutional Security Managers: High-security facilities that require full perimeter sweep capability from elevated fixed mounts, with the IR range to maintain coverage across large exercise yards or approaches at night.
• Large Rural Property Owners: Remote stations or properties in northern and outback Australia where the operating temperature range and IP67 rating matter as much as the camera's coverage capability.

Honest Assessment

The DS-2DF8C425MHS-DELW does a specific job well: it puts 4MP resolution, 25x optical zoom, and 300m IR reach into a single hardened housing rated for the harshest outdoor conditions. The DarkFighterX dual-sensor design is a genuine technical differentiator for sites that cannot justify or install supplemental IR lighting. The combination of IK10, IP67, and TVS 6kV lightning protection means the hardware is specified to survive in environments where standard outdoor cameras fail within months. For wide-area perimeter monitoring from a single pole mount, this is a strong fit. What it will not do is replace a multi-camera fixed system where simultaneous recording of multiple zones is required - a PTZ is only watching one direction at a time, and if budget allows, pairing it with fixed overview cameras gives more complete scene coverage. It also requires a power supply rated for up to 62W, which rules out standard IEEE 802.3af PoE switches without a PoE+ or dedicated power source. Available through Security Australia, this camera suits project-level procurement rather than single-camera add-ons.

Before You Buy

Quick Fit Check

• Good match if: You need a single camera to monitor a long vehicle approach road or open yard at night - the 300m IR range and 25x zoom allow identification-level detail at distances that fixed IR cameras cannot reach.
• Good match if: The installation is in a harsh outdoor environment with exposure to weather, physical interference, or lightning risk - IP67, IK10, and TVS 6kV protection are confirmed ratings for this housing.
• You may need a different model if: You need simultaneous recording of multiple separate zones at all times - a multi-sensor panoramic camera or a set of fixed cameras would provide continuous full-scene coverage that a PTZ cannot match while tracking a single direction.

Key Features & Technical Specifications

Real-World Scenarios

How It Compares

• Choose this if: Your site requires a camera to identify subjects or read detail at 150-300 metres in low light from a single mounting position - the 300m IR range and F1.6 aperture DarkFighterX sensor combination is designed specifically for that requirement.
• You may need a different model if: Your primary need is simultaneous, unattended recording of multiple fixed zones - a multi-sensor panoramic camera or a set of fixed wide-angle cameras will capture all zones at once without an operator managing PTZ direction.
• Pairs well with: A compatible PoE++ managed switch or dedicated 36VDC power supply capable of delivering 62W per port, and fixed overview cameras positioned to provide continuous wide-angle scene recording while this unit handles directional zoom and detail.

Common Questions

1. Will this camera work with a standard PoE switch?

   No. This camera requires up to 62W of power from a 36VDC supply, which exceeds both standard IEEE 802.3af PoE (15.4W) and IEEE 802.3at PoE+ (30W). You will need either a dedicated 36VDC power adaptor or a high-wattage PoE switch with per-port budgets capable of delivering at least 62W. Connecting to an underpowered PoE port may result in the camera failing to initialise PTZ motors or IR entirely.

2. What is the optical zoom ratio and how does it affect image quality at distance?

   This camera has a 25x optical zoom ratio, moving from a 5.9mm wide position to a 147.5mm telephoto position with no digital interpolation. Optical zoom preserves the full 2560 x 1440 sensor resolution across the entire zoom range, meaning image quality at 147.5mm is not degraded compared to wide angle. The additional 16x digital zoom extends reach further but does reduce effective resolution - for identification purposes at maximum reach, the 25x optical range is the usable limit.

3. Does this camera have a tilt stop that creates a blind spot directly below the mount?

   Yes. The tilt range is -20° to 90°, where 90° is straight down. At -20° the camera is looking slightly upward from horizontal. In practice, on a standard pole mount at 5-6 metres, the -20° upper limit is rarely a usable position. The 90° downward tilt means the camera can look directly beneath the mount, which eliminates the under-mount blind spot that affects some PTZ designs with more restricted tilt ranges.

4. Does this camera maintain colour imaging at night without additional lighting?

   Yes, down to 0.0004 lux in colour mode. The DarkFighterX dual 1/1.8" CMOS sensor design and F1.6 aperture are the key contributors to this low-light colour performance. In conditions with any ambient light - streetlights, vehicle headlights, reflected urban glow - the camera will retain colour information. Below that threshold the IR cuts in, and at 0 lux the camera operates in black and white using the 300m IR illuminators.

5. Will this camera handle the temperature extremes on a north Queensland rooftop installation?

   Yes. The confirmed operating range is -40°C to 70°C. Rooftop surface temperatures in tropical north Australia can reach 60-65°C on steel or Colorbond structures in summer - the 70°C upper limit accommodates that with a small margin. The IP67 rating also addresses the heavy rainfall exposure common in cyclone-affected regions, and TVS 6kV lightning protection is directly relevant for elevated outdoor mounts in high-strike zones.

6. How does the rapid focus mode work during zoom transitions?

   Rapid focus is a Hikvision-specific mode that pre-calculates focus positions across the zoom range to minimise the lag between zoom movement and a sharp image being delivered. In standard auto-focus PTZ cameras, zooming from wide to telephoto requires the lens to hunt for focus, which can take 2-5 seconds. Rapid focus significantly reduces that settling time, which matters when operators are tracking a moving vehicle or person and need a usable image immediately after zooming in.

7. Is the IK10 rating sufficient for a camera mounted where it could be physically tampered with?

   IK10 is the highest impact resistance rating in the IEC 62262 scale, corresponding to resistance against 20 joules of impact - roughly equivalent to a 5kg mass dropped from 40cm. For a camera on a street pole or building corner where opportunistic interference is the concern, IK10 provides meaningful resistance. It is not designed to withstand sustained deliberate attack with tools, and in genuinely high-risk vandalism environments a fully recessed or cage-protected mounting position would supplement the housing rating. The team at Security Australia can advise on mounting options for specific site risk profiles.

Downloads & Resources

No downloads available for this product.
