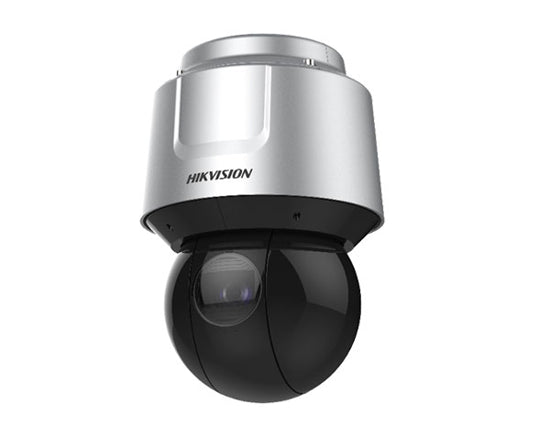

Hikvision DS-2DF8A836IX-AEL 8-inch 4K 36X Powered by DarkFighter IR Network Speed Dome

Model: DS-2DF8A836IX-AEL

Who This Is For

When covering large, open sites with a single camera position is the priority, the Hikvision DS-2DF8A836IX-AEL delivers a level of optical reach most fixed cameras simply cannot match. This 8-inch 4K speed dome is built for security integrators and facility managers responsible for airports, ports, highway corridors, industrial precincts, and large open-air venues - anywhere a single camera needs to actively track and zoom rather than passively record. With 36x optical zoom spanning 5.7mm to 205mm, 4K resolution at the sensor, DarkFighter low-light performance down to 0.001 lux in colour, and a 100m IR range, it handles wide-area patrol and close-up identification in a single unit. PoE+ (802.3at) or 24VAC power, IP67 weatherproofing, and an IK10 impact rating mean it is built for exposed, high-value outdoor installations where downtime is not an option.

What This Camera Actually Does

Who Buys This Model

• Airports and Transport Hubs: Security teams monitoring taxiways, car parks, and terminal approaches where a single mounted unit needs to zoom to identification-grade detail across several hundred metres of open ground.
• Mining and Industrial Sites: Site security managers specifying cameras for exposed perimeters, weighbridge entries, and haul road monitoring - where the IK10 housing, -40°C to 70°C operating range, and IP67 rating are prerequisites, not bonuses.
• Ports and Logistics Precincts: Integrators covering container yards and vessel berths where AI-based vehicle tracking automates target-following across large, partly unlit areas without requiring a staffed monitoring position at every camera.
• Highway and Road Authority Projects: Engineers deploying cameras along arterial roads or intersections where 36x optical zoom allows one unit to cover approaching lanes at distance and zoom to close-up vehicle detail on demand.
• Large Venue and Stadia Operators: Facility managers who need a PTZ that patrols defined preset positions automatically but can be manually directed by operators during events to track individuals of interest across open concourses.

Honest Assessment

The DS-2DF8A836IX-AEL does a specific job genuinely well: it combines long-range 4K optical zoom with AI-driven auto-tracking in a housing rated for Australia's harshest outdoor conditions. The DarkFighter sensor performing at 0.001 lux colour is a measurable advantage over standard PTZ optics in unlit or poorly lit sites, and the 100m IR range extends that into full darkness. H.265+ compression keeps bandwidth and storage load manageable despite the 4K output. What this camera will not do is replace a multi-camera fixed layout for full-perimeter coverage - a PTZ only faces one direction at any moment, so active monitoring or a configured patrol schedule is required to make full use of it. At 9.5 kg with an 8-inch dome housing, it also demands a solid structural mount and is not suited to lightweight fascia or residential eave installations. Buyers comparing PTZ options will find the DS-2DF8A836IX-AEL available through Security Australia alongside compatible mounting hardware.

Before You Buy

Quick Fit Check

• Good match if: You need a single camera to actively patrol a large open area - such as a port yard, highway approach, or industrial compound - and auto-track human and vehicle targets without continuous operator input.
• Good match if: Your site is in an exposed outdoor environment with extreme temperature variation, where the -40°C to 70°C operating range, IP67 weatherproofing, and IK10 impact rating are required for reliable long-term operation.
• You may need a different model if: Your requirement is full continuous perimeter coverage without blind spots - a network of fixed wide-angle turret or bullet cameras will provide always-on coverage across all zones simultaneously, where a single PTZ cannot.

Key Features & Technical Specifications

Real-World Scenarios

How It Compares

• Choose this if: You need a single camera to cover a large open area with active AI tracking, 4K zoom-in detail, and a housing rated for sustained outdoor exposure - particularly where camera count needs to be minimised across a wide monitored zone.
• You may need a different model if: Your site requires continuous, simultaneous coverage of multiple fixed zones - a network of fixed turret or multi-sensor panoramic cameras provides always-on coverage across all areas at once without the blind-spot limitation of a single PTZ unit.
• Pairs well with: Fixed wide-angle outdoor bullet or turret cameras to provide permanent overview coverage at key entry and exit points, with this unit deployed as the active tracking and zoom resource for the broader monitored area.

Common Questions

1. Does this camera work with a standard PoE switch?

   No. The DS-2DF8A836IX-AEL requires PoE+ (IEEE 802.3at), not standard PoE (802.3bt). The PTZ drive motor, internal heater, and camera electronics together draw more power than 802.3bt's 51 W cap can supply. You will need a PoE+ switch or injector rated to at least 30W per port, or an alternative 24VAC power supply at the camera location. Using an undersized power source will cause the unit to behave unpredictably or fail to initialise correctly.

2. Will this camera track a moving person or vehicle automatically without an operator watching?

   Yes, with correct configuration. The onboard AI classifies detected objects as human or vehicle and drives the PTZ mechanism to follow the target automatically. Auto-tracking must be enabled and tuned during commissioning - detection zones, minimum object size, and re-capture behaviour all require configuration through the camera's web interface or a compatible VMS. Once set up, the camera will track and zoom without continuous operator input.

3. How far can the IR illuminator reach at full zoom?

   The IR range is rated to 100m. At maximum 36x zoom (205mm focal length), the field of view is very narrow, so the IR beam is effectively focused into a tighter cone - this means the 100m illumination range is most usable when the camera is zoomed in on a target at distance rather than wide-angle scanning. At wider zoom positions, the IR spreads across a broader scene with reduced per-area intensity.

4. What is the pan and tilt range, and can the camera look straight down?

   Pan is 360° continuous with no end-stop, meaning the camera can follow a target in any horizontal direction without reversing. Tilt range is -20° to 90°, where 90° is straight down. Auto-flip is supported, which means when tracking a subject moving directly beneath or past the mount, the camera electronically flips the image and continues tracking rather than losing the target at the tilt limit. This makes it suitable for targets that pass close to the base of the mount.

5. Does this work on sites with extreme temperature ranges - for example, an alpine location in winter?

   Yes. The operating temperature range of -40°C to 70°C covers virtually every Australian climate and most international deployments. The internal heater activates automatically in cold conditions to protect optics and drive components. For alpine installations, confirm that the cabling and connectors used are also rated for low-temperature operation, and that the PoE+ switch or power supply is housed in a temperature-controlled enclosure if located outdoors.

6. How does the 36x optical zoom affect image quality compared to digital zoom?

   Optical zoom uses the physical lens to magnify the image before it reaches the sensor, so the full 4K sensor resolution (4096 x 2160) is retained at every zoom level. Digital zoom, by contrast, crops and enlarges a portion of the already-captured image, which degrades detail. At 36x optical, you are still working with the native sensor output - detail remains usable for identification at distances where a camera relying on digital zoom would show pixelation. The stocked range of PTZ cameras at Security Australia includes models with varying zoom ratios depending on site requirements.

7. What happens when the AI tracking loses a target - does the camera return to patrol?

   Yes, return-to-patrol behaviour is configurable. When AI tracking loses a detected target - due to the target leaving the scene, moving behind an obstruction, or exceeding the camera's field of view - the camera can be set to return to a defined home position or resume a preset patrol scan after a user-specified timeout. The exact dwell time and return behaviour is set during commissioning and should be tuned to the site layout to avoid the camera dwelling on an empty location for extended periods.

Downloads & Resources

No downloads available for this product.
