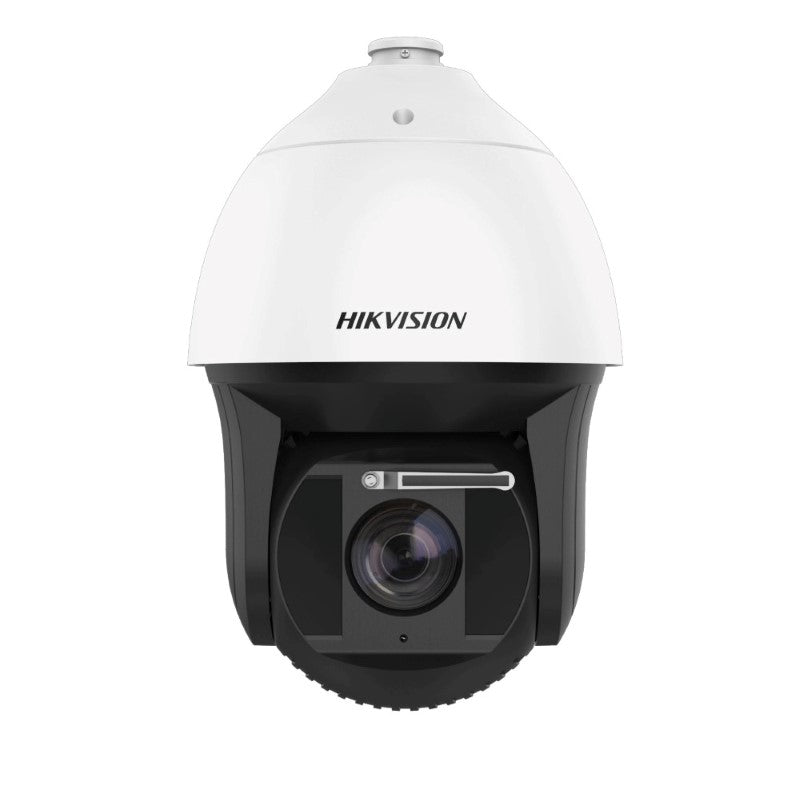

Hikvision DS-2DF8436IX-AEL 4MP Outdoor HFR PTZ Camera, WDR, 36x Zoom, IP66, 200m IR, HiPoE

Model: DS-2DF8436IXS-AEL

Who This Is For

When covering large outdoor areas with a single camera position is the priority, the Hikvision DS-2DF8436IX-AEL is a serious tool for the job. Designed for integrators and security managers working on sites where fixed cameras simply cannot cover the required ground - think perimeter fencing on industrial estates, open carparks, ports, transport hubs, and large commercial properties - this 4MP PTZ combines 36x optical zoom with 200m IR range and Smart Tracking to actively follow subjects across wide fields of view. The HiPoE power input means a single Cat6 cable handles both data and power without needing a separate power supply at the camera head. DarkFighter technology handles low-light conditions across that full zoom range, and the 360-degree endless pan combined with -20 to 90 degree tilt means there are no blind spots from rotation. This is a specification-led purchase for professional installations.

What This Camera Actually Does

Who Buys This Model

• Industrial Site Security Managers: Specifying perimeter coverage for large yards, manufacturing facilities, or logistics hubs where a single PTZ position with 200m IR and 36x zoom can replace multiple fixed cameras on a long fence line.
• Professional CCTV Integrators: Installing on pole mounts or rooftop positions where HiPoE simplifies the cabling design and a separate power feed to the camera head is not practical.
• Port and Transport Infrastructure Operators: Monitoring vehicle marshalling areas, dock approaches, or open yard movements where Smart Tracking can maintain a subject lock without continuous operator intervention.
• Council and Utilities Asset Managers: Deploying on elevated structures over large unlit open areas where the 200m IR range and DarkFighter performance justify the unit cost against running external lighting.

Honest Assessment

The DS-2DF8436IX-AEL does a specific job well: wide-area outdoor monitoring from a single elevated position with the ability to zoom in and track without losing image quality. The 36x optical zoom, 200m IR, DarkFighter technology, and Smart Tracking are a coherent combination for large sites. H.265+ compression also keeps storage and bandwidth manageable relative to the 4MP resolution and HFR output.

What it will not do is cover multiple distinct angles simultaneously - a PTZ can only look in one direction at a time, so for sites requiring continuous simultaneous coverage of several entry points, a multi-camera fixed layout or a panoramic multi-sensor unit will serve better. This camera also requires a HiPoE-capable switch or injector - standard 802.3bt or 802.3at PoE switches will not power it. Buyers comparing options in this category will find the full specification stocked by Security Australia alongside compatible HiPoE switching hardware.

Before You Buy

Quick Fit Check

• Good match if: You are covering a large open outdoor area - a yard, carpark, or perimeter fence - from an elevated pole or rooftop mount where the 36x optical zoom and 200m IR reach can do the work of multiple fixed cameras.
• Good match if: Your installation already has or can support HiPoE switching, and you need Smart Tracking to automatically follow subjects during perimeter events without continuous operator control.
• You may need a different model if: You need simultaneous continuous coverage of 2 or more distinct angles from the same mounting point - a multi-sensor panoramic camera or fisheye unit will cover multiple zones at once where a PTZ cannot.

Key Features & Technical Specifications

Real-World Scenarios

How It Compares

• Choose this if: You need a single camera to actively patrol and zoom into a large outdoor area, with Smart Tracking and 200m IR range as core requirements rather than optional extras.
• You may need a different model if: You need simultaneous multi-directional coverage from one mounting point - a multi-sensor panoramic camera covers 180 or 360 degrees continuously, whereas a PTZ covers only one direction at a time regardless of how fast it can move.
• Pairs well with: Fixed reference cameras covering entrances and exit points to complement the PTZ's wide-area patrol role, plus a HiPoE-capable managed PoE switch at the NVR head end to power this unit correctly.

Common Questions

1. Will a standard PoE switch power this camera?

   No. The DS-2DF8436IX-AEL requires HiPoE, which delivers higher wattage than standard IEEE 802.3bt (51 W) or 802.3at (30W) PoE. You will need either a HiPoE-capable managed switch with a HiPoE port, or a dedicated HiPoE injector at the camera end of the cable run. Running this camera from a standard PoE port will result in the unit failing to power on or operating in a degraded state.

2. What is the pan and tilt range of this PTZ?

   Pan is 360-degree endless rotation with no mechanical stop point. Tilt covers -20 to 90 degrees, which allows the camera to look slightly upward if needed and tilt almost vertically downward for overhead positions. The endless pan means the unit can continuously rotate in patrol mode without cable wind-up, which is a practical requirement for perimeter scanning on timer presets.

3. How does Smart Tracking behave after it locks on to a subject?

   Smart Tracking detects and follows a moving subject automatically across the camera's field of view, adjusting pan, tilt, and zoom to keep the subject in frame as they move. Once the subject leaves the frame or stops triggering the tracking algorithm, the camera returns to its configured home preset or resumes a preset patrol tour. The sensitivity thresholds and return behaviour are configurable through the camera's web interface or a connected compatible NVR - they are not preset to a fixed value out of the box.

4. Does this camera work for sites with bright light sources at night, such as vehicle headlights or floodlights?

   Yes. The DS-2DF8436IX-AEL includes WDR (Wide Dynamic Range) to handle scenes with simultaneous bright and dark areas. In outdoor environments where vehicle headlights, security floodlights, or streetlighting create harsh contrast against dark backgrounds, WDR allows the camera to retain detail in both the bright and shadow areas of the same frame rather than blowing out one or the other.

5. Will this camera work with non-Hikvision NVRs?

   Basic RTSP streaming will generally work with ONVIF-compatible recorders, but Smart Tracking configuration, HFR stream management, and full PTZ control including preset management and tracking event triggers are best supported through a Hikvision NVR. Third-party VMS platforms with full Hikvision driver support may also manage the camera correctly, but this should be verified with your VMS vendor before committing to the recorder selection. Available through Security Australia alongside compatible Hikvision NVR options.

6. How much storage does a 4MP HFR PTZ stream actually use?

   Significantly less than a comparable H.264 stream of the same resolution and frame rate, because this camera supports H.265+. H.265+ applies scene-adaptive compression that reduces bitrate on static portions of the frame, which on a PTZ panning a large open area can produce meaningful storage savings compared to standard H.265. Actual storage consumption depends on configured bitrate, frame rate, and how much motion the scene contains - most integrators calculate storage requirements at the configured recording bitrate rather than maximum theoretical output.

7. Is 200m IR range realistic at 36x optical zoom?

   The 200m IR range is the maximum distance at which the IR illuminator provides usable illumination - it is not dependent on zoom level. When the camera zooms in to 36x, the IR illuminator also narrows its beam to match the tighter angle of view, concentrating the IR output on the smaller zoomed field. This means the 200m IR performance is most effective when the camera is zoomed into a specific area rather than on a wide-angle shot where the IR beam is spread across the full field.
