| Camera | ||
|---|---|---|
| Image Sensor: | 2/3" progressive scan CMOS | |
| Effective Pixels: | 4096x2160 | |
| Signal System: | PAL/NTSC | |
| Minimum Illumination: | Color: 0.005 Lux @(F1.5, AGC ON)B/W: 0.0005 Lux @(F1.5, AGC ON) | |
| White Balance: | Auto/Manual/ATW (Auto-Tracking White Balance)/Indoor/Outdoor/Fluorescent Lamp/Sodium Lamp | |
| AGC: | Auto/Manual | |
| BLC: | ON/OFF | |
| HLC: | Support | |
| Smart defog: | Support | |
| WDR: | DWDR | |
| Shutter Time: | 50Hz: 1/1-1/30,000s60Hz: 1/1-1/30,000s | |
| Day& Night: | ICR | |
| Digital Zoom: | 16X | |
| Privacy Mask: | 24 programmable privacy masks; optional multiple colors and mosaics | |
| Auto Focus: | Auto / Semi-automatic / Manual | |
| Rapid Focus: | Yes | |
| Lens | ||
|---|---|---|
| Focal Length: | 7.5 mm to 187.5 mm, 25× optical zoom | |
| Zoom Speed: | Approx.6.4s(Optical Wide-Tele) | |
| Field of View: | Horizontal field of view: 56.1° to 3.0° (wide-tele)Vertical field of view: 33.4° to 1.7° (wide-tele)Diagonal field of view: 62.9° to 3.4° (wide-tele) | |
| Minimum Working Distance: | 10-1500mm(Wide-Tele) | |
| Aperture Range: | F1.5 to F4.0 | |
| Pan & Tilt | ||
|---|---|---|
| Pan Range: | 360°endless | |
| Pan Speed: | Configurable, from 0.1°/s to 350°/s, preset speed: 540°/s | |
| Tilt Range: | -20°~90°(Auto Flip) | |
| Tilt Speed: | Pan Manual Speed: 0.1° -240°/s,Pan Preset Speed: 400°/s | |
| Proportional Zoom: | Rotation speed can be adjusted automatically according to zoom multiples | |
| Number of Preset: | 300 | |
| Patrol: | 8 patrols, up to 32 presets per patrol | |
| Pattern: | 4 patterns, with the recording time not less than 10 minutes per pattern | |
| Power-off Memory: | Support | |
| Park Action: | Preset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan | |
| PTZ Position Display: | ON/OFF | |
| Smart-tracking: | Manual Tracking, Auto Tracking (support tracking specified target types such as human and vehicle), Event Tracking | |
| Alarm | ||
|---|---|---|
| Alarm Input: | 7 Inputs | |
| Alarm Output: | 2 | |
| Alarm Linkage: | Preset, patrol, pattern, SD/SDHC card recording, relay output, notifi cation on client | |
| Input & Output | ||
|---|---|---|
| Monitor Output: | 1.0Vp-p / 75Ω, NTSC (or PAL) composite, BNC | |
| Audio Input: | Audio input (LINE input), 2-2.4Vp-p; output impedance: 1KΩ, ±10% | |
| Audio Output: | Line level, impendance: 600Ω | |
| Network | ||
|---|---|---|
| Ethernet: | 10Base -T, /100Base-TX, RJ45 Connector | |
| Max.Image Resolution: | 4096 × 2160 | |
| Main Stream: | 50Hz: 25fps (4096 × 2160, 3840 × 2160, 3072 × 1728, 2560 × 1440, 2048 × 1536, 1920 × 1080, 1280 × 960, 1280 × 720) 60Hz: 30fps (4096 × 2160, 3840 × 2160, 3072 × 1728, 2560 × 1440, 2048 × 1536, 1920 × 1080, 1280 × 960, 1280 × 720) | |
| Sub Stream: | 50Hz: 25fps(704×576), 25fps (352×288), 25fps (176×144)60Hz: 30fps(704×480), 30fps (352×240), 30fps (176×120) | |
| Video Compression: | Main Stream: H.265+/H.265/H.264+/H.264Sub-Stream: H.265/H.264/MJPEGThird Stream: H.265/H.264/MJPEG | |
| ROI encoding: | Eight fixed region for each stream | |
| Audio Compression: | G.711alaw/G.711ulaw/G.722.1/G.726/MP2L2/PCM | |
| Protocols: | IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour | |
| Simultaneous Live View: | Up to 20 channels | |
| Three-Stream: | Support | |
| Storage: | Built-in memory card slot, support Micro SD/SDHC/SDXC, up to 256 GB | |
| Security Measures: | User authentication (ID and PW),Host authentication (MAC address)IP address filtering | |
| Client GUI | ||
|---|---|---|
| Camera Control: | Pan/Tilt, Zoom, Focus, Click centering, Zoom by mouse dragging, Iris, preset calling and programming, auto mode | |
| Date & Time Display: | Time: Week: Date, 6 formats on the Client | |
| Client: | iVMS-4200, iVMS-4500, iVMS-5200, Hik-Connect | |
| Web Browser: | IE 8 to 11, Chrome 31.0 to 44, Firefox 30.0 to 51 | |
| General | ||
|---|---|---|
| RS-485 Protocols: | HIKVISION, Pelco-P, Pelco-D, self-adaptive | |
| Language: | English | |
| Power Consumption: | 24 V, 2.5 A, 50/60Hz, AC (max. 60 W, including max.10 W for heater)Hi-PoE, 42.5-57 V, 0.75 A (max. 50 W, including max.10 W for heater) | |
| Working Temperature/Humidity: | -40°C to 70°C (-40°F to 158°F) | |
| Protection Level: | IP67, IK10, TVS 4,000V lightning protection, surge protection and voltage transient protection | |
| Material: | Aluminum alloy | |
| Dimensions: | Φ 231.1 mm × 355.6 mm (Φ 9.10" × 14") | |
| Weight (approx.): | Approx. 6 kg (13.23 lb) | |
All IP cameras and recording devices (NVR’s/DVR’s) are covered by a 3 year back-to-base manufacturer warranty.
Our warranty is limited to the replacement of faulty items or parts and does not include damage due to incorrect fitting of parts or accessories, or damage due to mishandling the equipment once out of the box. All faults are sent to the manufacturer for inspection and diagnosis before a replacement is sent out.
Read more about the Terms & Conditions here – https://www.securityaustralia.com.au/terms-and-conditions/
*Just spend over $100 to activate Fast Free Shipping!
Despatch Times: Products are despatched on the same day if the order was placed before 11am on any weekday, Monday - Friday. All other orders are processed and despatched within 24 hours or next business day.
Order Confirmation: Once you place an order, you will receive a confirmation email. This indicates that your order has been received in our system and is now being processed for dispatch. If your item is back-ordered or unavailable, we will notify you via email, and if we do not receive a response, we will attempt to contact you by phone as soon as possible. We value your time and strive to be prompt. If your item(s) are available for immediate shipment (within 2 days), we will process the charges and prepare the order for shipping.
Shipping Times: General shipping times for StarTrack, TNT and Allied couriers are between 1-3 working days from despatch. Longer delivery times may be caused by your package being held at your local courier depot that is beyond our control. Please contact us or the local post depot for confirmation.
Tracking Numbers: all tracking numbers will be emailed to you by our warehouse processing team within the day, after your order is despatched to our local courier.

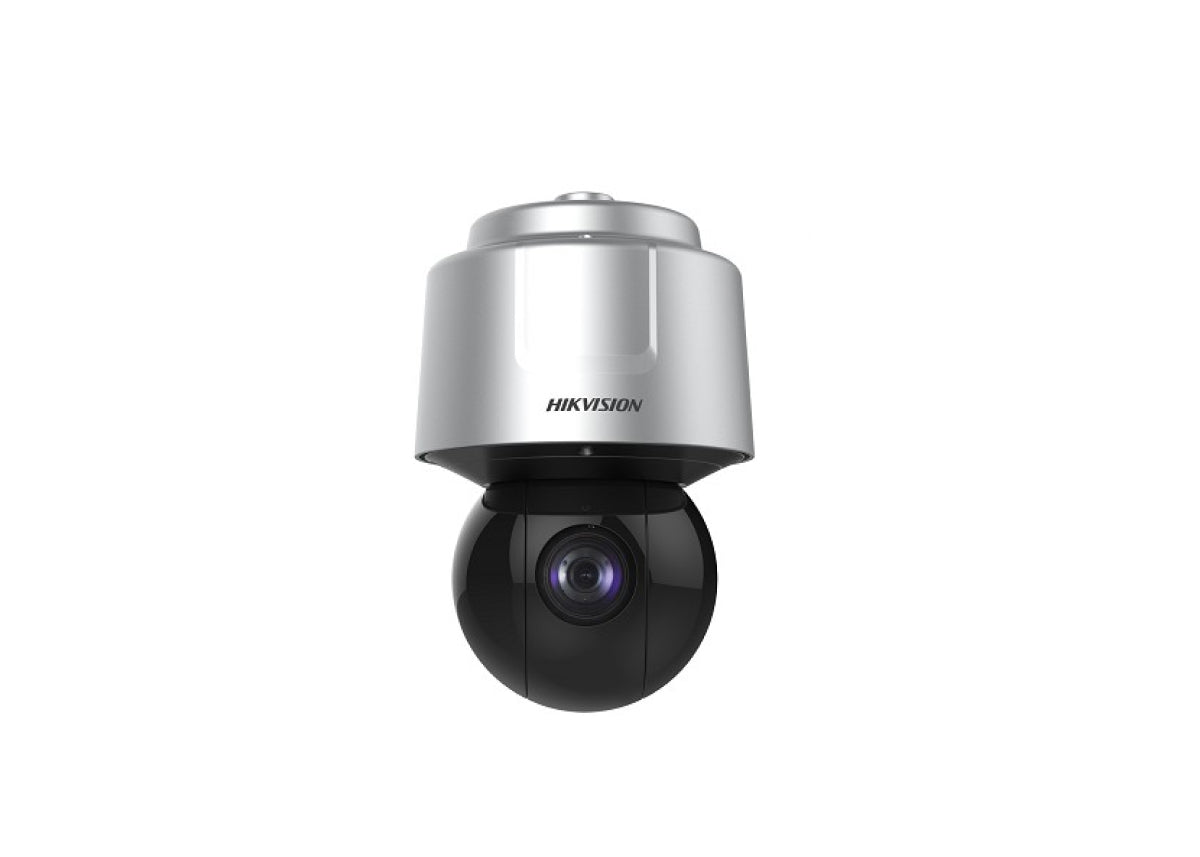

Hikvision DS-2DF6A825X-AEL 8MP 25× Network Speed Dome
