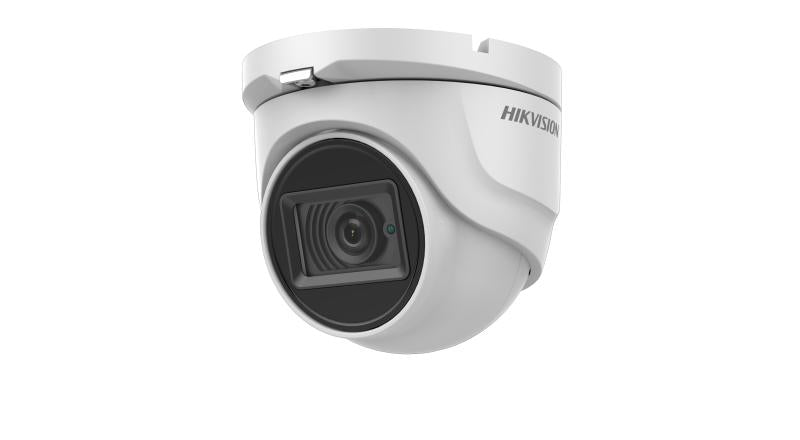

Hikvision DS-2CE76U7T-ITMF 8MP 4K Turbo HD Ultra-Low Light Turret Camera with 30m IR

Model: DS-2CE76U7T-ITMF

Who This Is For

When upgrading an existing coaxial infrastructure to true 4K resolution is the priority, the Hikvision DS-2CE76U7T-ITMF delivers 8MP image quality over the cabling that is already in the wall. This is the camera for installers and property owners who cannot justify a full IP network rip-and-replace but need a meaningful step up from the 2MP or 5MP cameras currently in place. The turret housing suits eave, soffit, and wall mounting across residential properties, small commercial sites, and light retail environments where a low-profile form factor matters. The ultra-low light sensor handles the mixed-lighting conditions common to carports, building entries, and covered outdoor areas, while the 30m Smart IR covers the distances typical of driveways and front approaches without washing out faces at close range. It transmits over standard RG59 or RG6 coaxial cable and is compatible with Hikvision TVI DVRs supporting TVI 4.0.

What This Camera Actually Does

Who Buys This Model

• Residential Upgraders with Existing Coax: Homeowners who had 1080p or 5MP analogue cameras installed and want 4K clarity without pulling new cable throughout the property.
• Small Business Owners on Coaxial DVR Systems: Retail shops, warehouses, and workshops running a Hikvision or compatible DVR who need sharper footage for identification purposes at entry and exit points.
• Installers Specifying Low-Light Outdoor Positions: Security installers who need a turret that performs in mixed or inadequate ambient lighting - covered car bays, rear laneways, and building entries - without recommending additional lighting works.
• Property Managers on Analogue Infrastructure: Strata and commercial property managers whose buildings have coaxial runs to each camera position and need a cost-effective path to 4K without a full IP system redesign.

Honest Assessment

The DS-2CE76U7T-ITMF does two things particularly well: it delivers genuine 8MP 4K resolution over existing coaxial infrastructure, and its ultra-low light sensor produces cleaner low-light images than a standard 4K coax camera at the same price point. The 30m Smart IR with EXIR 2.0 is a genuine step up from basic IR designs, and multi-format output makes it practical across mixed DVR environments. What it will not do is match the AI-driven features - such as perimeter intrusion detection, human and vehicle classification, or push notification filtering - available in current IP camera ranges. If those capabilities matter for your site, an IP turret on a PoE NVR system will serve you better. This camera is available through Security Australia and suits sites where the coaxial infrastructure is staying and image resolution is the primary upgrade goal.

Before You Buy

Quick Fit Check

• Good match if: You have working coaxial cable runs to each camera position and your DVR supports TVI 4.0 at 8MP - this camera upgrades image resolution to 4K without touching the existing infrastructure.
• Good match if: The installation position has inconsistent or poor ambient lighting - a covered driveway, rear entry, or underlit car bay - where the ultra-low light sensor will produce noticeably cleaner images than a standard 4K coax alternative.
• You may need a different model if: Your site requires smart AI detection - human and vehicle classification, perimeter line crossing alerts, or filtered push notifications - as these features are only available in IP-based camera and NVR systems, not analogue TVI platforms.

Key Features & Technical Specifications

Real-World Scenarios

How It Compares

• Choose this if: You have existing coaxial infrastructure and a TVI 4.0 compatible DVR, and your upgrade goal is higher image resolution with improved low-light performance rather than adding AI detection features.
• You may need a different model if: Your site requires AI-driven analytics such as human and vehicle classification, line crossing detection, or smart motion filtering - those capabilities require an IP camera paired with a compatible NVR, not a TVI coaxial system.
• Pairs well with: A Hikvision TVI 4.0 DVR with 8MP per-channel support, and a DC 12V multi-output power supply distribution box for clean, fused power to each camera position.

Common Questions

1. Will this camera work with my existing coaxial cables?

   Yes, in most cases. The DS-2CE76U7T-ITMF transmits its signal over standard RG59 or RG6 coaxial cable - the same type used in the vast majority of analogue camera installations. The critical check is cable run length: at 8MP TVI 4.0, keep runs within approximately 60m on RG59. Longer runs may need RG6 or a signal booster to maintain full 4K resolution reliably.

2. Does this camera record at 4K or does the DVR limit the resolution?

   The camera outputs at 8MP, but the recorded resolution is determined by your DVR. Your DVR must support TVI 4.0 at 8MP per channel to capture and store 4K footage. Older TVI 1.0, 2.0, or 3.0 DVRs will accept the signal but will record it at their maximum supported resolution - typically 5MP or lower. Check your DVR's specification sheet for per-channel TVI 4.0 support before purchasing.

3. Does this camera work with non-Hikvision DVRs?

   Yes, for compatible formats. The DS-2CE76U7T-ITMF supports TVI, AHD, CVI, and CVBS output, switchable through the on-screen display via the coaxial cable. If your existing DVR accepts AHD or CVI input, you can switch the camera to that mode. However, 8MP output is only available over TVI 4.0 - AHD and CVI modes may operate at lower maximum resolutions depending on the DVR's capability.

4. How does the ultra-low light sensor differ from a standard 4K coax camera?

   The ultra-low light sensor is designed to produce cleaner images at lower lux levels than a standard CMOS of the same resolution. In practical terms, this means positions with poor or inconsistent ambient lighting - covered bays, shaded entries, side paths - produce more usable detail without requiring additional lighting. The camera still has 30m IR for complete darkness, but in mixed or dim conditions the sensor itself does more of the work before IR is needed.

5. Will this camera work outdoors in Australian conditions?

   Yes. The DS-2CE76U7T-ITMF carries an IP67 ingress protection rating, meaning it is fully dust-sealed and protected against water immersion up to 1m. The operating temperature range of -40 degrees C to 60 degrees C covers the full range of Australian climates including hot, exposed roof eaves and cold highland installations. Standard eave and soffit mounting outdoors is within spec without requiring additional weather protection in most situations. This model is stocked by Security Australia for Australian market conditions.

6. Does the Smart IR prevent faces from being overexposed at close range?

   Yes. Smart IR automatically reduces the IR LED intensity when a subject is close to the camera, preventing the bright white-out effect that older fixed-intensity IR cameras produce at short distances. As a subject moves further from the camera, the IR intensity increases to maintain coverage out to 30m. The EXIR 2.0 design also distributes light more evenly across the frame rather than concentrating it in the centre.

7. Can this camera send motion alerts or push notifications?

   No, not independently. The DS-2CE76U7T-ITMF is an analogue TVI camera - it transmits a video signal only. Motion detection, alerts, and push notifications are functions of the DVR it is connected to, not the camera itself. AI-based smart detection such as human and vehicle classification is not available on TVI analogue systems. If push notifications with smart filtering are a requirement, an IP camera and NVR combination is the appropriate product type.
