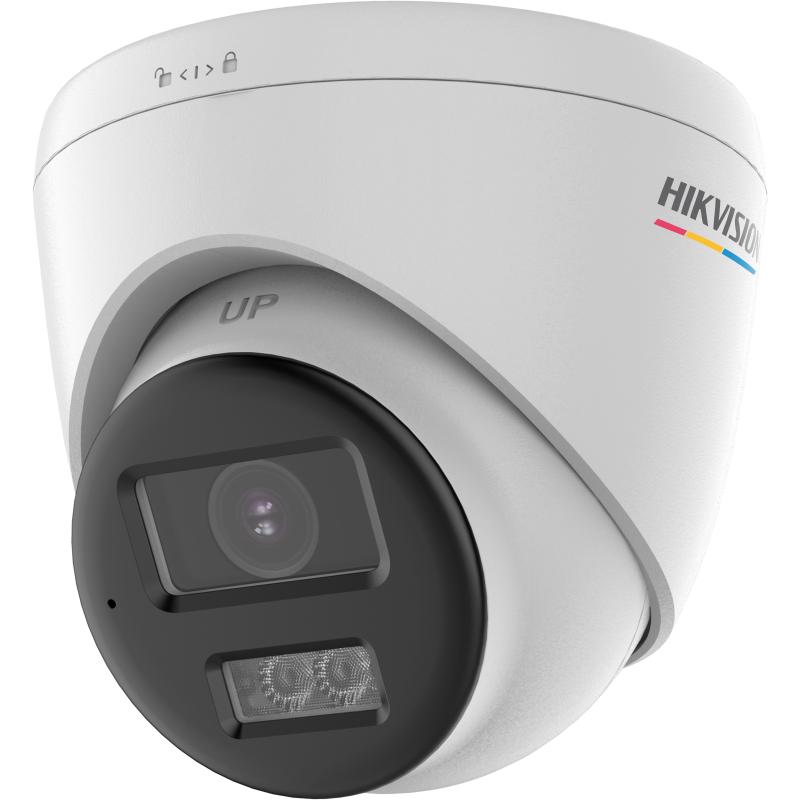

Hikvision DS-2CE72UF3T-LS TVI4.0 8MP 4K Smart Hybrid Light Turret TVI Camera
- Sku: DS-2CE78U7T-IT3F-1
- Vendor: SecurityAustralia
The Hikvision DS-2CE72UF3T-LS delivers 4K 8MP resolution over existing coaxial cable, making it an ideal upgrade path for sites with legacy TVI infrastructure that need sharper image quality without rewiring. Smart Hybrid Light technology combines colour and IR illumination to automatically adapt to ambient conditions, ensuring usable footage day and night. Requires a TVI 4.0-compatible DVR to unlock full 8MP output.
Why This Model
- 4K over coax: Delivers 8MP resolution through existing coaxial wiring, so sites can upgrade image quality without the cost and disruption of recabling.
- Smart Hybrid Light: Automatically switches between colour and IR modes based on available light, providing useful colour detail at night rather than defaulting straight to black-and-white IR.
- TVI 4.0 compatibility: Designed to integrate with TVI 4.0 DVRs, giving installers a straightforward high-resolution upgrade within the established Hikvision analogue ecosystem.
Free shipping - Enjoy free shipping when your order exceeds $100!
All orders are despatched within the next business day!
Best local support in Aus! We back all products with a 3 year manufacturer warranty.
Not sure if this suits your site?
Ask our team before ordering. We can help confirm lens choice, recorder compatibility, mounting accessories and project quantities.
Product Overview
Model: DS-2CE78U7T-IT3F-1
Who This Is For
When upgrading an existing coaxial infrastructure without rewiring is the priority, the Hikvision DS-2CE72UF3T-LS gives installers 8MP 4K resolution and Smart Hybrid Light colour night vision over a standard TVI 4.0 coax run. This is the camera for sites that already have coax in the walls - retail fitouts, residential properties, and small commercial buildings where pulling new Cat cable isn't practical or cost-effective. The turret housing suits eave, soffit, and wall mounting across a range of orientations, and the hybrid illumination means the camera delivers full-colour footage under low light without needing external lighting. If you're speccing a coax-based upgrade and need genuine 4K detail with switchable IR and white light in a compact housing, this is the model to shortlist.
What This Camera Actually Does
8MP 4K TVI Output
Transmits a full 4K image over your existing coaxial cable using TVI 4.0 protocol. No new cabling required. You get four times the resolution of a standard 1080p analogue camera on the same infrastructure, making object and face detail significantly more usable in recorded footage.
Smart Hybrid Light
Combines IR illumination and warm white light in the one housing. In hybrid mode the camera produces colour images in low-light conditions without relying on ambient lighting. IR mode is available where white light would be disruptive, giving you flexibility depending on the application.
Turret Housing Flexibility
The eyeball-style turret mount adjusts independently of the base, so you can aim the lens at an angle after the base is fixed to the surface. Useful for corner mounts, soffits, and installations where the camera can't be directly aimed during cable pull.
TVI 4.0 Protocol Compatibility
Operates on the TVI 4.0 standard, which is compatible with Hikvision TVI DVRs and hybrid DVRs that support TVI 4.0 input. The coax signal carries both video and camera control, so you can adjust settings from the DVR without running a separate control cable.
Compact Outdoor-Ready Form
The turret profile sits low against the mounting surface, making it less obtrusive than a bullet camera and harder to physically redirect. Suited to residential exteriors, small business entries, and covered outdoor areas where a discreet footprint matters.
Who Buys This Model
- Analogue System Upgraders: Property owners with existing coaxial runs who want 4K resolution and colour night vision without the cost and disruption of full recabling to IP.
- Residential Installers: Tradespersons speccing eave and soffit cameras for homes where the hybrid light eliminates the need to install separate outdoor lighting at the camera position.
- Small Retail Operators: Shop owners on leased premises who want high-resolution coverage at entry and checkout points using the existing coax that's already in the tenancy.
- DVR-Based System Owners: Sites running a Hikvision TVI 4.0-compatible DVR who need to add or replace individual cameras without changing the recording platform.
Honest Assessment
The DS-2CE72UF3T-LS does two things well: it delivers 4K resolution over coax infrastructure that would otherwise be limited to lower-resolution analogue output, and it produces colour night footage through its Smart Hybrid Light system without requiring a separate floodlight. For coax-based upgrade projects, this is a practical and cost-effective path to meaningful resolution improvement. Where it won't match an IP camera setup is in network integration - there's no onboard AI analytics, no direct NVR stream over Ethernet, and no remote configuration through a browser or app without a compatible TVI DVR acting as the bridge. If you need onboard perimeter detection, smart event filtering, or integration into an IP NVR system, a TVI camera is the wrong starting point regardless of resolution. Available through Security Australia, this model suits projects where the coax stays and the image quality needs to improve.
Before You Buy
DVR Compatibility Check: TVI 4.0 at 8MP requires a DVR that explicitly supports TVI 4.0 input at 8MP resolution. Older Hikvision DVRs may support TVI but cap out at TVI 3.0 (5MP) or lower. Check your DVR's channel input spec sheet before ordering - connecting an 8MP TVI 4.0 camera to a TVI 3.0 DVR will result in a downgraded or unsupported signal.
White Light Placement: The Smart Hybrid Light white illuminator is designed to activate in low-light conditions. If the camera is aimed directly at a sleeping area window or a neighbour's property, consider whether the white light output is appropriate for that position before installation, or configure the camera to operate in IR-only mode for that location.
Quick Fit Check
- Good match if: You have existing RG59 or RG6 coax runs and a TVI 4.0-compatible DVR, and you want to upgrade camera resolution to 4K without recabling.
- Good match if: The installation position has low ambient light and no external lighting, and you need full-colour night footage from a compact turret housing without adding a separate floodlight.
- You may need a different model if: Your site is new construction or already has Cat5e/Cat6 infrastructure - an IP turret camera will offer onboard AI analytics, remote configuration, and NVR integration that a TVI camera cannot provide regardless of resolution.
Key Features & Technical Specifications
Real-World Scenarios
How It Compares
- Choose this if: You have existing coaxial cabling and a TVI 4.0-compatible DVR, and the goal is maximum resolution improvement with minimum infrastructure change.
- You may need a different model if: Your site has Cat5e or Cat6 cabling, or you need onboard AI perimeter detection and smart event filtering - an IP turret camera in the Hikvision AcuSense range would be more appropriate for those requirements.
- Pairs well with: A Hikvision TVI 4.0 DVR with sufficient channel inputs to support 8MP per channel, and a 12V DC power supply distribution unit for multi-camera runs.
Common Questions
-
Will this camera work with my existing coaxial cabling?
Yes, provided your cabling is standard RG59 or RG6 coax with BNC connectors. The DS-2CE72UF3T-LS outputs a TVI 4.0 signal over coax, so the camera end is compatible with existing coaxial runs. The critical check is at the DVR - your recording device must support TVI 4.0 at 8MP input. An older TVI DVR may only accept the camera at a lower resolution or may not recognise the signal at all. -
Does this camera record in colour at night?
Yes. The Smart Hybrid Light system includes a white light illuminator that activates in low-light conditions, producing full-colour footage without ambient lighting. If you prefer not to use the white light - for example, to avoid disturbing a sleeping area or neighbouring property - the camera can be configured to operate in IR mode, which produces black-and-white night footage instead. -
Does this work with non-Hikvision DVRs?
It depends on the DVR brand's TVI 4.0 support. The camera outputs standard TVI 4.0, AHD, CVI, and CVBS signals. Many third-party hybrid DVRs accept TVI input but may not support the TVI 4.0 standard at 8MP - they may fall back to a lower resolution. For confirmed 8MP performance, a Hikvision TVI 4.0-compatible DVR is the safest pairing. -
What power supply does this camera need?
12V DC. Unlike IP cameras, TVI cameras do not receive power over the coaxial cable - you need a separate 12V DC power run to each camera. A multi-output 12V DC power distribution box is the standard approach for multi-camera coax installations. Check the camera's exact power draw in the Hikvision datasheet to size the supply correctly, particularly if you're running several cameras from a single distribution unit. -
Can I adjust camera settings remotely or through an app?
No, not directly. TVI cameras do not connect to a network independently - all configuration is done through the DVR menu using the UTC (Up the Coax) control signal. Remote access to camera footage is available through the DVR's app or web interface, but individual camera settings like illumination mode are adjusted locally at the DVR, not from the camera itself. This is a fundamental difference from IP cameras and is worth understanding before purchasing. The team at Security Australia can advise on compatible DVR platforms if you're unsure which recorder suits this camera. -
Is the turret housing suitable for outdoor installation?
Yes. The DS-2CE72UF3T-LS turret housing is designed for outdoor use and is rated for external installation under eaves, on soffits, and on exterior walls. The low-profile turret form sits close to the mounting surface, which reduces wind load and makes it less vulnerable to being physically redirected compared to a bullet-style camera. Confirm the IP rating in the Hikvision datasheet for your specific installation environment.
