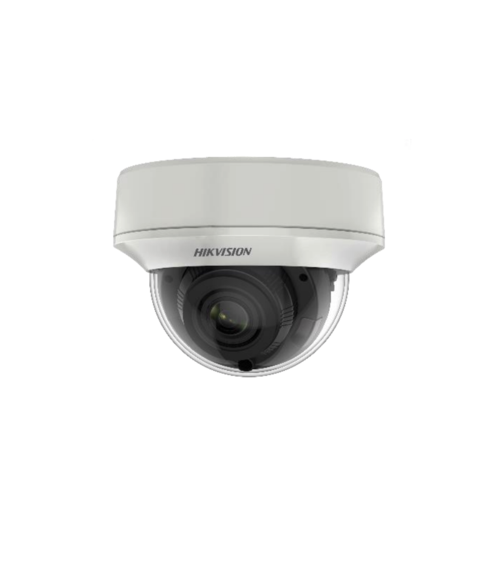

Hikvision DS-2CE56H8T-AITZF TVI4.0 5MP Indoor Dome Camera, 130dB WDR, 60m IR, 4 in 1, AC/DC, 2.7-13.5mm

Model: DS-2CE56H8T-AITZF

Who This Is For

When upgrading an existing analogue CCTV system without re-cabling is the priority, the Hikvision DS-2CE56H8T-AITZF is built for that exact scenario. This 5MP TVI 4.0 dome camera runs over coaxial cable and outputs TVI, AHD, CVI, or CVBS, so it drops straight into most legacy DVR systems already on-site. The motorised varifocal lens spanning 2.7 to 13.5mm lets installers dial in the field of view from the DVR or controller after the camera is mounted - no ladder trips to manually adjust the lens. With 130dB true WDR and EXIR night vision to 60m, it handles the lobby entrances, stairwells, retail floors, and covered car parks where mixed lighting or low-light conditions consistently cause problems for standard analogue cameras. Suited to integrators and facilities managers specifying a practical resolution upgrade across multi-camera analogue installations.

What This Camera Actually Does

Who Buys This Model

• CCTV Integrators Upgrading Analogue Sites: The 4-in-1 output and coaxial delivery make this a direct drop-in upgrade for existing DVR systems, letting installers add 5MP resolution without a full infrastructure rip-out.
• Retail Facilities Managers: The 130dB WDR addresses the overexposed entry frames and dark aisle footage that standard 1080p analogue cameras produce in shopfronts and mixed-light retail floors.
• Commercial Building Managers: Stairwells, car parks, and service corridors benefit from the 60m EXIR range and IP67 rating - areas that are often poorly lit and exposed to dust or moisture ingress over time.
• Multi-Brand DVR Environments: Sites running a mix of Dahua, Hikvision, or other analogue recorders use the switchable TVI/AHD/CVI/CVBS output to standardise on a single camera model across different recorder brands.

Honest Assessment

The DS-2CE56H8T-AITZF does a specific job well: it delivers a genuine 5MP resolution upgrade over existing coaxial cable, with a motorised varifocal lens that removes the need to physically access the camera for focus adjustment after installation. The 130dB WDR is among the stronger ratings in the analogue dome category and makes a measurable difference in entry and lobby applications. The IP67 rating and -40°C to +60°C operating range add resilience for installations in covered outdoor areas or harsh internal environments like warehouses or plant rooms. It will not replace an IP camera system for sites needing AI-based detection, high-frame-rate recording above 20fps at full resolution, or network-based features such as edge storage and remote configuration. For new builds or full infrastructure replacements, an IP PoE camera system from the Security Australia range would serve better. This is specifically the right camera when coaxial cable is already in place and the objective is maximum resolution per dollar without rewiring.

Before You Buy

Quick Fit Check

• Good match if: You are upgrading an existing coaxial analogue installation to 5MP and want to avoid rewiring - the 4-in-1 output and TVI 4.0 format are designed for exactly this scenario.
• Good match if: The install location involves challenging lighting - a lobby with glass walls, a cashier counter with overhead downlights, or a covered entry - where the 130dB true WDR will recover detail that standard analogue cameras lose to overexposure.
• You may need a different model if: The site is a new install with Cat5e or Cat6 already run, or if AI-based detection and edge analytics are a project requirement - an IP dome or turret camera with onboard analytics would be the more suitable product type.

Key Features & Technical Specifications

Real-World Scenarios

How It Compares

• Choose this if: Coaxial cable is already installed on-site and the goal is 5MP resolution without rewiring - the 4-in-1 TVI 4.0 output handles the format compatibility, and the motorised varifocal lens removes the need for physical lens adjustment post-installation.
• You may need a different model if: The project involves new cabling infrastructure or requires AI-based perimeter detection and event-based alerts - an IP dome or turret camera with onboard analytics is the more suitable product type for those requirements.
• Pairs well with: A TVI 4.0 compatible DVR with at least 5MP channel support - pairing this camera with an older or lower-spec recorder will reduce the output resolution below what this camera is capable of delivering.

Common Questions

1. Will this camera work with my existing analogue DVR?

   It depends on your recorder's TVI version. The DS-2CE56H8T-AITZF runs at full 5MP only on a DVR that supports TVI 4.0 at 5MP resolution. If your DVR supports TVI but is an older version (2.0 or 3.0), the camera will connect and produce an image, but the recorder will cap the channel at its maximum supported resolution - which may be 1080p or lower. Check your DVR specifications before ordering.

2. Does this camera support PoE?

   No. This is a coaxial analogue camera and does not use PoE. It requires a separate power supply of either AC24V or DC12V delivered to the camera location. On existing analogue installations power is typically distributed from a central power supply box - confirm voltage at the camera end of the cable run, particularly on runs longer than 30 metres where voltage drop can affect IR performance.

3. How does the motorised varifocal lens actually work on installation?

   The lens is adjusted remotely via the UTC (Up-the-Coax) control function on a compatible DVR, or through the OSD menu. Once the camera is physically mounted and cabled, the installer accesses the lens zoom and focus settings from the recorder without touching the camera again. The range is 2.7 to 13.5mm, giving a wide-angle view for open areas or a narrower zoomed view for longer corridors and approaches from a single camera position.

4. What does the 130dB WDR rating mean in practice?

   WDR (Wide Dynamic Range) processes bright and dark areas of the same frame separately so both are visible in the final image. At 130dB, this camera handles high-contrast scenes - such as a person walking through a door with bright sunlight behind them - without the figure being silhouetted or the background being overexposed. Standard analogue cameras typically operate at 60 to 100dB WDR; 130dB represents a meaningful improvement for entry, exit, and lobby positions.

5. Does this camera work for outdoor installation?

   Yes, with appropriate housing consideration. The IP67 rating means the camera is sealed against dust ingress and water jets, and the operating temperature range of -40°C to +60°C covers Australian conditions. It is listed as an indoor dome camera, but the IP67 rating makes it suitable for covered outdoor positions such as under eaves, in carports, or in semi-exposed commercial entries. It is not designed for fully exposed mounting where it would receive direct rain without overhead protection. Available through Security Australia, this model includes the metal housing that supports long-term performance in these environments.

6. Will this camera deliver 20fps at full 5MP resolution?

   Yes, 20fps is the confirmed frame rate at the full 5MP (2592 x 1944) resolution. For most CCTV applications including incident review and access monitoring, 20fps produces smooth enough motion. If the application specifically requires 25 or 30fps for fast-motion recording - such as high-traffic retail at peak hours or industrial conveyor monitoring - a higher frame rate IP camera would be the more appropriate choice, as TVI 4.0 at 5MP tops out at 20fps for this model.

Downloads & Resources

No downloads available for this product.
