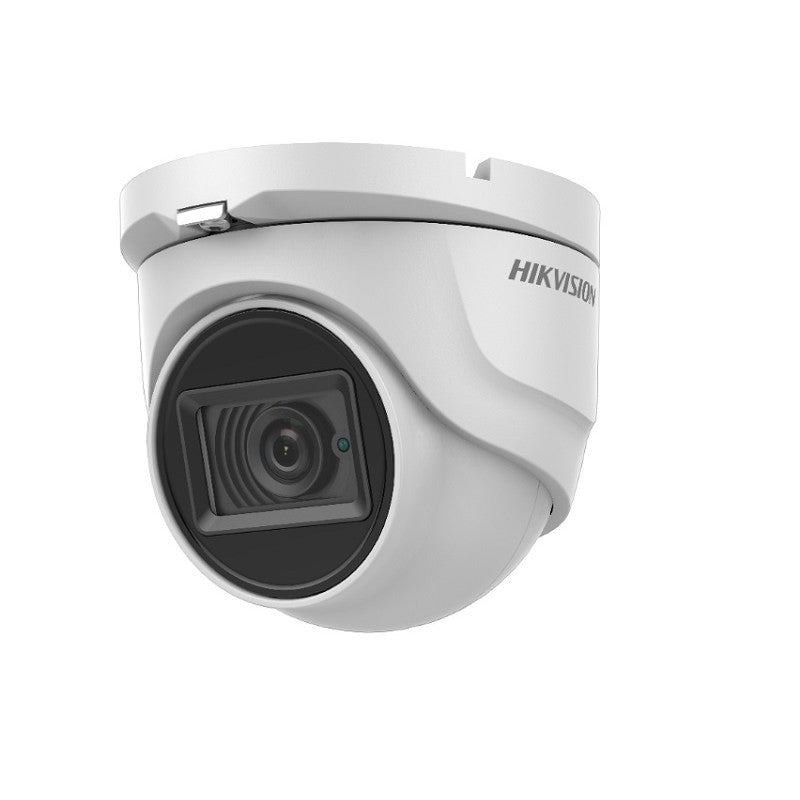

Hikvision DS-2CE76H8T-ITMF TVI4.0 Ultra Low Light 5MP Outdoor IR Turret Camera 2.8mm

Model: DS-2CE76H8T-ITMF

Who This Is For

When upgrading an existing coaxial cable installation without re-cabling is the priority, the Hikvision DS-2CE76H8T-ITMF delivers 5MP resolution over the same infrastructure already in the wall. This camera suits security installers and property owners who want a meaningful image quality step-up from legacy analogue systems - particularly at sites where pulling new Cat6 or fibre is impractical or cost-prohibitive. The 2.8mm fixed lens covers a 99-degree horizontal field, making it well suited to entrances, carparks, building perimeters, and outdoor corridors where wide coverage is needed from a single mounting point. The 0.003 Lux low-light sensitivity combined with 30m EXIR infrared range means this camera continues producing usable footage long after ambient light drops to near zero. Metal housing and IP67 weatherproofing make it a credible option for exposed outdoor positions across Australian conditions.

What This Camera Actually Does

Who Buys This Model

• Analogue system upgraders: Property owners who already have coaxial cabling throughout their site and want 5MP resolution without paying for full IP infrastructure replacement.
• Security installers on mixed-DVR sites: The switchable TVI/AHD/CVI/CVBS output removes format compatibility as a barrier when working with existing recorders from different manufacturers.
• Strata and commercial property managers: Outdoor turret form factor sits neatly on eaves, soffits, and wall brackets - clean enough for managed properties while the metal housing and IP67 rating handle extended outdoor exposure.
• Rural and remote site operators: The -40 to +60 degree operating range and 30m IR cover large properties and outdoor approaches where mains lighting is absent and temperature extremes are routine.

Honest Assessment

The DS-2CE76H8T-ITMF does the core job of a coax upgrade camera well: 5MP over existing cable, a wide 99-degree field from the 2.8mm lens, and night vision that holds up at 30m with noticeably more even illumination than standard IR designs. The 130dB WDR and 0.003 Lux sensitivity are genuine differentiators for a coax camera and address two of the most common complaints with older analogue systems - blown-out entrances in daylight and unusable black frames at night. Available through Security Australia, this is a practical step-up option where IP migration is not yet viable. What it will not do is match the video analytics, remote configuration flexibility, or network integration of an IP camera system. If your site is cabling from scratch, or if you need AI-based detection such as line crossing, intrusion zone alerts, or face recognition, an IP turret in the same resolution class will serve you better. The fixed 2.8mm lens also means there is no focal length adjustment - plan your mounting position before installation.

Before You Buy

Quick Fit Check

• Good match if: You have existing coaxial cabling and a 5MP-capable DVR and need a high-resolution outdoor camera that installs without re-cabling.
• Good match if: Your site has poorly lit outdoor areas at 40-30m from the mounting point where the EXIR infrared range and 0.003 Lux sensitivity need to carry the load overnight.
• You may need a different model if: You are cabling a new installation or need AI-based detection features - an IP turret camera would give you network flexibility and onboard analytics that a coax camera cannot provide.

Key Features & Technical Specifications

Real-World Scenarios

How It Compares

• Choose this if: Coaxial cabling is already in place and you want 5MP resolution with 30m IR and 130dB WDR without migrating to an IP system.
• You may need a different model if: You are running a new cable installation or need intelligent video analytics such as intrusion detection, line crossing, or object classification - an IP turret camera with onboard AI would serve that requirement.
• Pairs well with: A 5MP-capable TVI DVR with enough channels for your site, and a local 12V DC power distribution unit to centralise camera power management.

Common Questions

1. Will this camera work with my existing coaxial cabling?

   Yes. The DS-2CE76H8T-ITMF transmits video over standard coaxial cable using TVI 4.0 protocol, so existing RG59 or RG6 runs used by older analogue cameras carry the signal without modification. Power is separate via 12V DC, which is the standard arrangement on analogue coax installations.

2. Does this camera support PoE?

   No. The DS-2CE76H8T-ITMF is a coaxial camera powered by 12V DC only. PoE is an IP networking standard and does not apply to TVI/AHD/CVI cameras. Power must be supplied separately via a 12V DC adapter or power distribution board at or near each camera location.

3. What DVR do I need to get the full 5MP resolution?

   You need a DVR that supports 5MP TVI (or whichever output format you select). Many DVRs sold before 2019 cap out at 1080p or 4MP even when they accept a TVI signal. Check your recorder's channel resolution specifications before assuming the camera will record at 2560 x 1944. If your DVR is limited to 1080p, the camera will still work but will downscale to the recorder's maximum.

4. How does the switchable video output work in practice?

   The output format is changed via a physical OSD (on-screen display) menu accessed through the camera's cable connection, typically using a joystick controller or the DVR's PTZ control interface. You select TVI, AHD, CVI, or CVBS to match your recorder. The switch is done once during installation - it does not change automatically. Security Australia stocks OSD joystick controllers compatible with this process if your DVR does not support camera menu access.

5. Will this camera work for outdoor use in a harsh Australian climate?

   Yes. The IP67 rating means the housing is fully dust-sealed and protected against water immersion up to 1m, which covers direct rain and hose-down environments. The operating temperature range of -40 to +60 degrees C covers conditions from alpine sites in winter through to exposed metal structures in north Australian summer heat.

6. Does this camera produce colour footage at night?

   Only at very low ambient light levels - not in complete darkness. At 0.003 Lux, the sensor captures colour where trace light exists (street lighting, moonlight, spill light from buildings). In complete darkness, the camera switches to infrared illumination, which produces greyscale footage. Unlike full-colour night cameras that use white light emitters, this model relies on IR for zero-light operation.

7. Can I adjust the focal length if 2.8mm is too wide for my application?

   No. The 2.8mm lens is fixed and cannot be replaced or adjusted. The 99-degree horizontal field of view is set at manufacture. If you need a narrower angle for a longer corridor, gate approach, or specific detail capture at distance, you would need to select a different fixed-lens variant (typically 3.6mm or 6mm) or use a varifocal coax camera.
