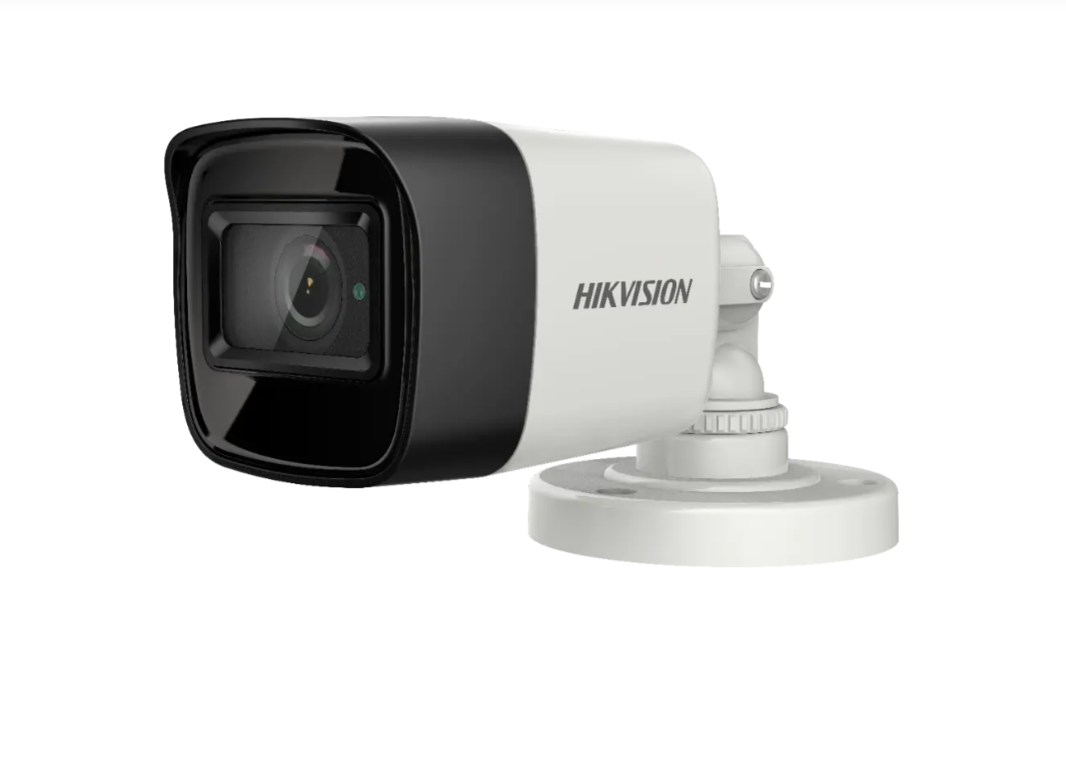

Hikvision DS-2CE16H8T-ITF TVI4.0 5MP Outdoor Mini Bullet, 130dB, WDR, 30m IR, 4 in 1, IP67, 12VDC, 2.8mm

Model: DS-2CE16H8T-ITF

Who This Is For

For security integrators and site owners who need a compact outdoor bullet camera that handles extreme backlighting without compromising resolution, the Hikvision DS-2CE16H8T-ITF is built around that exact brief. This is an analog 4-in-1 mini bullet running TVI 4.0 at 5MP, designed to drop into existing coaxial-cabled systems - TVI, AHD, CVI, or CVBS - without rewiring. The 130dB true WDR rating puts it well above the typical 120dB found on budget analog cameras, making it a practical choice for entry points, driveways, and car parks where harsh morning or afternoon sun creates difficult contrast. The 2.8mm fixed lens delivers a wide 105-degree horizontal field of view, suits shorter-range positions up to the 30-metre EXIR 2.0 IR range, and the IP67 housing handles Australian outdoor conditions year-round. Installers adding cameras to an existing analog DVR without migrating to IP will find the DS-2CE16H8T-ITF a direct, no-compromise upgrade path.

What This Camera Actually Does

Who Buys This Model

• Integrators upgrading existing analog systems: Sites already running coaxial cabling and a TVI or AHD DVR that want to step up to 5MP without a full IP migration use the 4-in-1 compatibility to swap cameras in place without touching the recorder or cabling.
• Car park and driveway installers: The 130dB WDR rating handles the sharp lighting contrast common at covered car park entries and sun-facing driveways where cheaper analog cameras produce unusable daytime footage.
• Small retail and warehouse owners: Sites with a coax-based DVR already in place that need a visible outdoor camera on a loading dock, roller door, or rear access path at a budget below IP equivalent cameras.
• Residential installers on analog DVR systems: Homeowners with an existing Hikvision or compatible TVI DVR who need an additional or replacement outdoor camera on a covered eave position within 30 metres of the installation point.

Honest Assessment

The DS-2CE16H8T-ITF does two things notably well for an analog camera: the 130dB true WDR is among the stronger ratings in the TVI 4.0 segment and makes a measurable difference at sun-facing positions, and the 5MP resolution gives more usable detail for post-incident review than the 2MP and 4MP cameras it commonly sits alongside. The 4-in-1 output also removes procurement risk in mixed-DVR environments. Where this camera has clear limits: it is an analog camera, so there is no onboard AI, no motion detection with human/vehicle classification, no remote access via a mobile app, and no PoE - it requires a 12VDC run to each camera position. The 2.8mm fixed lens suits wide-angle short-range positions but is not the right choice for a corridor, a long driveway, or any scene requiring object detail beyond 15-20 metres. If smart detection, remote monitoring, or a longer focal length are requirements, an IP camera from the Security Australia range would be more appropriate.

Before You Buy

Quick Fit Check

• Good match if: You are adding to or replacing cameras on an existing TVI, AHD, CVI, or CVBS coaxial DVR system and want to step up to 5MP resolution without rewiring or replacing the recorder.
• Good match if: The camera position faces direct sunlight, a bright exterior, or a scene with strong backlight contrast where the 130dB true WDR rating will recover detail that standard analog cameras cannot.
• You may need a different model if: Your installation requires smart motion detection with human or vehicle classification, remote mobile app viewing, or a PoE single-cable install - an IP bullet or turret camera would be the appropriate product type for those requirements.

Key Features & Technical Specifications

Real-World Scenarios

How It Compares

• Choose this if: You are working with an existing coaxial DVR system and need 5MP resolution with 130dB WDR at a backlit outdoor position - the 4-in-1 output means it connects to TVI, AHD, CVI, or CVBS recorders without additional hardware.
• You may need a different model if: Remote mobile viewing, AI-based human and vehicle detection, or single-cable PoE installation are requirements - an IP bullet or turret camera is the appropriate product type for those scenarios.
• Pairs well with: A TVI 4.0-compatible DVR with 5MP channel support and a local 12VDC power distribution board or individual power supplies at each camera position.

Common Questions

1. Will this camera work with my existing TVI DVR?

   Yes, but only at 5MP if your DVR supports TVI 4.0 at 5MP per channel. The DS-2CE16H8T-ITF outputs TVI, AHD, CVI, and CVBS signals and will connect to most analog DVRs. However, if your recorder's maximum channel resolution is 1080p or 4MP, the camera will down-sample to match the DVR's limit. Confirm your DVR's maximum resolution per channel in its specification sheet before purchasing.

2. Does this camera support PoE?

   No. The DS-2CE16H8T-ITF is an analog camera powered by 12VDC only. There is no PoE support. Each camera position requires a dedicated 12VDC power supply or a run from a central power distribution board. PoE is a feature of IP cameras and is not available on any 4-in-1 analog model in this range.

3. What does 130dB true WDR actually mean compared to digital WDR?

   True WDR captures 2 exposures simultaneously and merges them, whereas digital WDR (DWDR) applies post-processing to a single exposure. At 130dB, the DS-2CE16H8T-ITF handles significantly higher contrast ratios than standard DWDR cameras, which typically rate at 60-70dB equivalent. In practice, a sun-facing entry point or a scene with both interior and exterior light sources will produce far more usable footage with true WDR than with a DWDR camera at the same position.

4. Will this camera work outdoors in heavy rain or near a hose-down area?

   Yes. The IP67 rating confirms full dust ingress protection and the ability to withstand temporary water immersion. For practical purposes this covers heavy rain, direct hose spray, and high-pressure wash-down environments at a safe distance. The housing is suitable for year-round Australian outdoor conditions including coastal or high-humidity environments.

5. Does the 2.8mm lens work for number plate capture?

   Only at close range. The 2.8mm fixed lens produces a 105-degree horizontal field of view, which is optimised for wide-angle coverage rather than detail at distance. Number plate capture at a gate or boom bar directly below the camera at 3-6 metres is achievable at 5MP resolution. For dedicated ANPR at a distance or at vehicle speed, a longer focal length analog camera or a purpose-built IP ANPR camera would be the correct product type. This camera is available through Security Australia alongside varifocal and ANPR-specific options.

6. Does this camera have built-in motion detection or smart alerts?

   No. As an analog camera, the DS-2CE16H8T-ITF does not process video onboard for motion detection or AI classification. Motion detection for this camera, if required, must be configured on the connected DVR. There is no human or vehicle classification, no alert notifications to a mobile device from the camera itself, and no app connectivity - these are features of IP cameras, not analog 4-in-1 models.

Downloads & Resources

No downloads available for this product.
