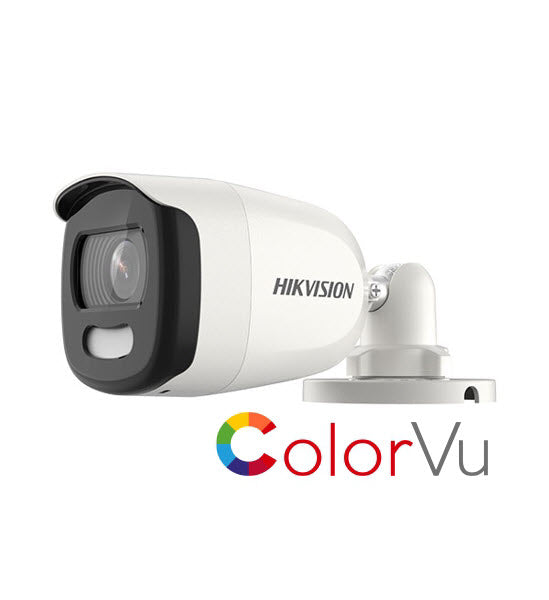

Hikvision DS-2CE10HFT-F28 ColorVu TVI Camera
The Hikvision DS-2CE10HFT-F28 ColorVu TVI Camera is a high-performance surveillance solution engineered for superior outdoor monitoring. Featuring a 5 MP resolution, this camera delivers outstanding image quality with vibrant colors, capturing clear footage in low-light conditions using its advanced ColorVu technology.
Key Features
Code/SKU: DS-2CE10HFT-F28
Quick Specs: Video Compression: H.265; H.264; Max IR Distance: 40m; Horizontal FOV: 99°; Vertical FOV: 61°; Operating Temperature: -30 °C to +60 °C.
| Camera | ||
|---|---|---|
| Image Sensor: | 5 megapixel progressive scan CMOS | |
| Signal System: | PAL/NTSC | |
| Effective Pixels: | 2560 (H) × 1440 (V) | |
| Min. Illumination: | Color: 0.003 Lux @ (F1.2, AGC ON), 0 Lux with IR | |
| Shutter Time: | 1/25(1/30) s to 1/50,000 s | |
| Lens: | 2.8 mm, 3.6 mm, 6 mm fixed lens | |
| Lens Mount: | M12 | |
| Adjustment Range: | Pan: 0° to 360°, Tilt:0° to 75°, Rotate: 0° to 360° | |
| Day& Night: | IR cut filter | |
| Video Frame Rate: | TVI: 2 MP@25fps, 2 MP@30fps, 4 MP@25fps, 4 MP@30fps, 5 MP@20fps;AHD: 4 MP@25fps, 4 MP@30fps, 5 MP@20fps;CVI: 4 MP@25fps, 4 MP@30fps;CVBS: PAL, NTSC | |
| Menu | ||
|---|---|---|
| 3D DNR (Digital Noise Reduction): | Level 1 to 9 | |
| D/N Mode: | Auto/Color/BW (Black and White) | |
| White Balance: | Auto / Manual | |
| BLC: | Support | |
| AGC: | Support | |
| WDR: | Yes | |
| Language: | English | |
| Function: | Brightness, Sharpness, DNR, Mirror, Smart IR | |
| Interface | ||
|---|---|---|
| Video Out: | 1 HD analog output | |
| General | ||
|---|---|---|
| Power Supply: | 12 VDC ±25% *You are recommended to use one power adapter to supply the power for one camera. | |
| Weather Proof: | IP67 | |
| IR Range: | Up to 30m | |
| Communication : | Up the coax, Protocol: HIKVISION-C (TVI output) | |
| Dimension: | Ø 109.82 mm × 91.03 mm (Ø 4.32" × 3.6" ) | |
| Weight: | Approx. 310 g (0.68 lb.) | |
All IP cameras and recording devices (NVR’s/DVR’s) are covered by a 3 year back-to-base manufacturer warranty.
Our warranty is limited to the replacement of faulty items or parts and does not include damage due to incorrect fitting of parts or accessories, or damage due to mishandling the equipment once out of the box. All faults are sent to the manufacturer for inspection and diagnosis before a replacement is sent out.
Read more about the Terms & Conditions here – https://www.securityaustralia.com.au/terms-and-conditions/
*Just spend over $100 to activate Fast Free Shipping!
Despatch Times: Products are despatched on the same day if the order was placed before 11am on any weekday, Monday - Friday. All other orders are processed and despatched within 24 hours or next business day.
Order Confirmation: Once you place an order, you will receive a confirmation email. This indicates that your order has been received in our system and is now being processed for dispatch. If your item is back-ordered or unavailable, we will notify you via email, and if we do not receive a response, we will attempt to contact you by phone as soon as possible. We value your time and strive to be prompt. If your item(s) are available for immediate shipment (within 2 days), we will process the charges and prepare the order for shipping.
Shipping Times: General shipping times for StarTrack, TNT and Allied couriers are between 1-3 working days from despatch. Longer delivery times may be caused by your package being held at your local courier depot that is beyond our control. Please contact us or the local post depot for confirmation.
Tracking Numbers: all tracking numbers will be emailed to you by our warehouse processing team within the day, after your order is despatched to our local courier.
Hikvision DS-2CE10HFT-F28 ColorVu TVI Camera 5MP, 2.8mm, 20m supplemental light
The Hikvision DS-2CE10HFT-F28 ColorVu TVI Camera (DS-PDTPH-E-WB) is a high-performance surveillance solution engineered for superior outdoor monitoring. It features a 1/2.9” 2 Megapixel progressive scan CMOS sensor, delivering exceptional image quality with a maximum resolution of 1920 x 1080 pixels. The camera supports advanced low-light performance capabilities, capturing clear footage even in challenging lighting conditions.
This camera includes dual illumination with both IR and supplemental white light, providing visibility up to 40 meters (131.2 ft) in complete darkness. Designed for versatility, it has a 3.6mm fixed lens that offers a wide angle of view (horizontal angle of 82.5°), making it suitable for various monitoring scenarios.
Equipped with H.265 and H.264 dual-stream video compression, the camera optimizes bandwidth and storage-use while ensuring high-quality video output at up to 25/30 fps. With features including day/night functionality, 3D noise reduction, and backlight compensation, it delivers reliable performance in diverse environments.
Its rugged design includes an IP67 rating, ensuring resistance to dust and water, making it ideal for outdoor installations. The camera can operate in extreme temperatures from –30° C to +60° C (-22° F to +140° F), and its durable housing helps protect against vandalism.
Features
Functions
Low Light Technology:
The camera’s advanced low-light capabilities ensure that secure areas are monitored effectively at night or in dim conditions, providing clarity and detail where it’s needed most.
Wide Dynamic Range:
This feature enhances image quality in scenes with stark lighting contrasts, ensuring both highlights and shadows are visible, which is essential for comprehensive surveillance.
Dual Illumination Technology:
The dual illumination system combines infrared (IR) and warm white light to enhance night visibility. The warm light activates upon detecting motion, capturing color video and providing detailed visuals in low-light conditions.
Flexible Installation Options:
The rugged design and multiple mounting options of the camera facilitate easy integration into various locations, making it adaptable for diverse installation scenarios.
Efficient Video Compression:
Equipped with H.265 and H.264 dual-stream video compression, the camera optimizes bandwidth and storage usage without compromising the quality of the video output.
Robust Outdoor Durability IP67 Rating:
The camera is IP67 rated, ensuring it is dust-tight and resistant to water, making it ideal for outdoor installations and capable of withstanding harsh environmental conditions.
Temperature Tolerance:
This camera operates efficiently in a wide temperature range from -30°C to +60°C (-22°F to +140°F), allowing it to function reliably in various climates.
Technical Specifications:
| Model | DS-2CE10HFT-F28 |
| Image Sensor | 5 MP CMOS |
| Resolution | 2560 (H) × 1944 (V) |
| Frame Rate | TVI: 5MP@20fps, 4MP@30fps, 1080p@30fps |
| Minimum Illumination | 0.0005 Lux @ (F1.0, AGC ON), 0 Lux with White Light |
| Lens Type | 2.8 mm fixed lens |
| Horizontal Field of View | Horizontal FOV: 99.7°, Vertical FOV: 72° |
| Operating Conditions | -40 °C to 60 °C (-40 °F to 140 °F), humidity 90% or less (non-condensing) |
| Power Supply | 12 VDC ± 25% |
| Protection Level | IP67 (Dust and water resistant) |
| Dimensions | 68 mm × 70 mm × 168.2 mm (2.68" × 2.76" × 6.62") |
| Weight | Approx. 350 g (0.77 lb) |
| White Light Range | Up to 20 m |
