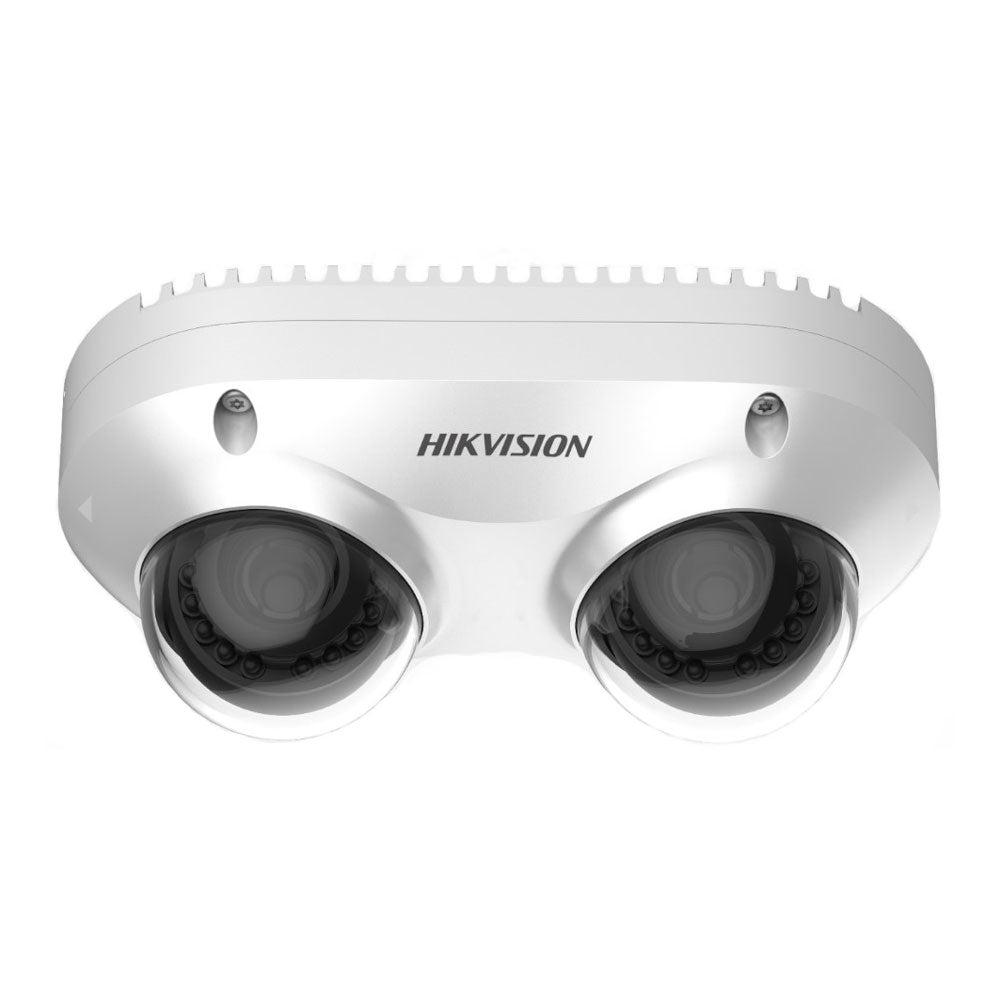

Hikvision DS-2CD6D52G0-IH(S) 5MP Dual Lens Panovu Camera, 2x 5MP Sensor

Model: DS-2CD6D52G0-IH(S)

Who This Is For

Property managers specifying wide-area outdoor surveillance who need genuine panoramic coverage from a single camera position will find the DS-2CD6D52G0-IH(S) a practical fit. This Hikvision Panovu camera runs 2 independent 5MP sensors simultaneously, delivering up to 180 degrees of horizontal field of view in a single housing. That makes it well suited to locations where multiple discrete cameras would otherwise be needed - car parks, building perimeters, public plazas, school grounds, and large retail forecourts. Installers working on sites where camera count is constrained by conduit runs, pole positions, or NVR channel budgets will appreciate the dual-sensor design. The IP66-rated housing handles exposed outdoor locations, and local MicroSD storage up to 256GB adds a redundancy layer independent of the network recorder. Two-way audio support rounds out the feature set for sites where intercom-style communication from a single mounting point is useful.

What This Camera Actually Does

Who Buys This Model

• Commercial Property Managers: Specifying coverage of large open car parks, building entries, or forecourts where a single well-positioned camera must cover both left and right without a gap between two separate fixed units.
• Education Facility Installers: Covering school grounds, playgrounds, and perimeter corridors where wide-area visibility is needed and minimising camera count is a practical constraint driven by conduit access and NVR channels.
• Public Space and Council Contractors: Deploying on poles at parks, pedestrian plazas, or transit stops where a single mounting point must monitor a broad arc and two-way audio capability is an asset for operator communication.
• Warehouse and Industrial Site Integrators: Monitoring loading areas, internal laneways, or yard entries where blind spots between adjacent fixed cameras are a known problem and channel reduction on the NVR has direct cost implications.

Honest Assessment

The DS-2CD6D52G0-IH(S) does its primary job well: two 5MP sensors in one outdoor-rated housing deliver up to 180 degrees of coverage with meaningful resolution from each lens. The 120dB True WDR handles the mixed-lighting situations that defeat cheaper wide-angle cameras, and the combination of PoE power, local MicroSD backup storage, and two-way audio makes this a self-contained unit that reduces the supporting hardware a typical wide-area installation requires. The IP66 rating is appropriate for exposed outdoor positions. Available through Security Australia, this model suits sites where reducing camera count and cabling complexity is a genuine priority. Where this camera is not the right fit: if you need a single unbroken panoramic image - for example a seamlessly stitched 360-degree overhead view of a retail floor - a fisheye or multi-sensor panoramic camera with built-in dewarping will serve that purpose more directly. This camera's 180-degree dual-sensor design is optimised for forward-facing wide-area coverage rather than full-surround overhead imaging.

Before You Buy

Quick Fit Check

• Good match if: You need to cover a wide outdoor entry, corner position, or open area from one mounting point and want 5MP resolution maintained across both sides of the coverage arc without blind spots between 2 cameras.
• Good match if: Your NVR channel count is limited and you want to reduce the number of cameras on a large site while keeping 120dB True WDR performance for mixed-lighting outdoor scenes.
• You may need a different model if: Your application requires full 360-degree overhead coverage with a single seamlessly dewarped image - a fisheye or multi-sensor panoramic model from the range at securityaustralia.com.au will be a better fit for that use case.

Key Features & Technical Specifications

Real-World Scenarios

How It Compares

• Choose this if: You need up to 180-degree horizontal outdoor coverage from a single housing with 5MP resolution maintained independently across 2 sensors, reducing camera count and NVR channel usage on large sites.
• You may need a different model if: Your application requires a full 360-degree overhead view with seamless image stitching - a fisheye or multi-sensor panoramic camera type will deliver the unbroken surround coverage that dual-lens forward-facing cameras are not designed to produce.
• Pairs well with: A PoE NVR with sufficient channel capacity and H.265 recording support, combined with a managed PoE switch that maintains consistent power delivery to multi-sensor outdoor units.

Common Questions

1. Does this camera use a single PoE connection for both sensors?

   Yes. The DS-2CD6D52G0-IH(S) connects via a single RJ-45 port and powers via IEEE 802.3af PoE, so one Cat5e or Cat6 cable carries both data and power for the entire unit regardless of the dual-sensor configuration. You do not need 2 separate network connections. Confirm that your PoE switch port meets the 802.3af standard under load before installation.

2. Will this camera work for monitoring a large open outdoor area without additional cameras?

   It depends on the area size and required detail level. The 180-degree horizontal field of view makes this camera well suited to wide forward-facing coverage from a single position - corners, entry points, and open forecourts. For very deep open areas requiring long-distance identification, a camera with a longer focal length will produce more usable facial or plate detail at range than a wide-angle dual-lens model.

3. How does the dual-sensor design differ from a single wide-angle lens at the same resolution?

   The key difference is resolution density per degree of view. A single wide-angle lens spreading 5MP across 180 degrees produces significantly fewer pixels per degree than 2 dedicated 5MP sensors each covering their own zone. With 2 independent sensors, each lens operates at its native 2560 x 1920 resolution within its coverage arc, giving more usable detail in each half of the scene compared to a single stretched wide-angle image.

4. Does this camera record locally if the network goes down?

   Yes. The built-in MicroSD slot supports cards up to 256GB, allowing the camera to continue recording independently if the network connection or NVR becomes unavailable. This is particularly relevant for outdoor installations on large sites where network continuity cannot always be guaranteed. The MicroSD card is not included and must be purchased separately.

5. What does the 120dB True WDR rating mean in a practical outdoor installation?

   120dB True WDR means the camera uses hardware-level multi-exposure processing - not purely software tone mapping - to recover detail in both bright and dark areas of the same frame. In practice this matters at covered car park entries, building exits, and shaded outdoor areas where a standard camera would either blow out the bright sky or lose detail in the shadow. The 120dB rating handles a wider contrast range than the 100dB or less figures common in budget cameras.

6. How does the panoramic dual-sensor image appear in the NVR viewer - as one joined image or 2 separate streams?

   The DS-2CD6D52G0-IH(S) supports multiple video streams and the dual sensors can be viewed and recorded as separate streams or combined depending on the NVR and client software configuration. Hikvision's own NVR and iVMS-4200 platform support this camera's multi-stream output. If you are integrating with a third-party VMS, confirm ONVIF compatibility and multi-channel stream support before purchasing - the team at Security Australia can advise on compatible recorder and software options.

7. What is the DORI performance of this camera - how far can it detect, observe, recognise, and identify?

   Specific DORI distance figures (Detection, Observation, Recognition, Identification) for the DS-2CD6D52G0-IH(S) are not published in the available specification data. DORI distances for dual-lens panoramic cameras are lens and field-of-view dependent and will differ between the 2 sensors and their respective coverage zones. For confirmed DORI figures relevant to your site layout and required identification distances, contact the supplier directly with your specific application details before specifying this model on a project.

Downloads & Resources

No downloads available for this product.
