Hikvision DS-2CD6425G0-C1 2MP Indoor Covert Pinhole Camera, 120dB WDR, 2m Cable, 3DDNR, 2.8mm

Model: DS-2CD6425G0-C1-1

Who This Is For

Property managers specifying surveillance for environments where visible cameras are either impractical or counterproductive - interview rooms, retail loss prevention positions, reception areas, or corporate spaces with aesthetic constraints - will find the Hikvision DS-2CD6425G0-C1 worth serious consideration. The separate sensor-and-body design means the small pinhole sensor can be positioned independently from the recording hardware, allowing it to be concealed within ceilings, walls, or fixtures without any recognisable camera profile. At 1080p Full HD with 120dB true WDR and a 2.8mm lens delivering approximately 100 degrees horizontal coverage, it captures usable detail across high-contrast scenes - entrances with bright backlighting, for example - where standard cameras produce silhouetted subjects. The 2-metre connecting cable gives enough flexibility for most ceiling cavity or wall-void installations.

What This Camera Actually Does

Who Buys This Model

• Retail loss prevention teams: Installers mounting covert observation positions above fitting rooms, stockrooms, or cash-handling areas where a visible dome would alter staff or customer behaviour.
• Corporate security managers: Specifying discreet monitoring in boardrooms, server rooms, or reception areas where standard cameras conflict with architectural requirements or confidentiality protocols.
• Interview room operators: Law enforcement support facilities, HR departments, and insurance assessors who need unobtrusive 1080p recording in constrained spaces without the subject being distracted by camera hardware.
• Hikvision system integrators: Adding a covert channel to an existing Hikvision NVR deployment where visible cameras already cover perimeter and public areas but a concealed position is required for a specific internal zone.

Honest Assessment

The DS-2CD6425G0-C1 does its primary job well: the separated sensor-and-body design is genuinely suited to concealed indoor installations where no conventional camera housing will work. The 120dB WDR is a meaningful spec for backlit entry points, and 0.01 Lux sensitivity means it functions in low-ambient-light indoor environments without an IR emitter that would reveal the camera position. 1080p at real-time frame rates gives reviewable detail for evidentiary purposes. This camera is available through Security Australia as part of the broader Hikvision covert range. Where it will not serve: it has no IR illumination, so in total darkness it produces nothing - this is not a universal low-light solution. The fixed 2.8mm lens limits the field of view to approximately 100 degrees horizontal, meaning narrow corridors or longer focal distances are not well served. It is also strictly an indoor-only device with no weather resistance rating, and the covert design is not a substitute for a rated vandal-resistant housing in accessible locations.

Before You Buy

Quick Fit Check

• Good match if: You need a camera concealed inside a ceiling, wall fitting, or piece of furniture in an indoor environment where the sensor body can sit within a 2-metre cable run of the lens opening.
• Good match if: The monitored scene has strong backlighting or high contrast - such as a counter facing a bright window - and you need 120dB WDR to maintain subject detail in both the bright and shadowed areas of the frame.
• You may need a different model if: The installation is outdoors, in a weathered or dusty environment, or requires IR night vision in total darkness - a rated outdoor turret or bullet camera with built-in IR illumination would be the appropriate product type for those conditions.

Key Features & Technical Specifications

Real-World Scenarios

How It Compares

• Choose this if: You need a network camera that can be genuinely concealed - not just small - with the sensor physically separated from the body so only a pinhole-sized opening is visible at the monitored position.
• You may need a different model if: The location requires night vision in complete darkness - a standard indoor dome or turret camera with built-in IR illumination will deliver usable footage where ambient light drops to zero, which this camera cannot.
• Pairs well with: A Hikvision PoE NVR with local storage, allowing the covert camera to be integrated alongside visible perimeter cameras on a single recording platform with unified management.

Common Questions

1. Does this camera work in complete darkness without any ambient light?

   No. The DS-2CD6425G0-C1 has no built-in IR illuminator and produces no usable image in total darkness. It operates down to 0.01 Lux, which covers very dim ambient light conditions - emergency exit lighting, standby lighting, or minimal fluorescent spillage - but if a space is fully unlit at any monitoring period, this camera will not capture footage. Plan for a retained low-level light source if after-hours monitoring in darkness is required.

2. Will this camera work with a non-Hikvision NVR?

   Yes, in most cases. The DS-2CD6425G0-C1 is a standard network IP camera and connects via RTSP or ONVIF to compatible third-party NVR platforms. However, Hikvision-specific features such as smart event integration, remote configuration via Hik-Connect, and advanced codec settings perform most reliably when paired with a Hikvision NVR. If your existing recorder is ONVIF Profile S compliant, basic live view and recording will function.

3. What does the 120dB WDR actually change in practice for an indoor install?

   It maintains subject detail in high-contrast scenes that would otherwise produce either a blown-out background or a silhouetted foreground. In practice this matters most at entry points where a bright window or open door sits behind the subject - a reception desk, a lobby facing outside, or a doorway to a sunlit area. Standard WDR cameras at lower dB ratings struggle to expose for both zones simultaneously; 120dB true WDR processes them independently within the sensor itself.

4. Is the 2-metre cable between the sensor and body fixed, or can it be extended?

   The 2-metre cable supplied with this SKU is the fixed connection between the pinhole sensor head and the camera body. Extension of this proprietary cable is not a supported configuration and risks signal degradation or voiding the device warranty. If your ceiling void depth or routing path requires more separation, the 3-metre cable variant should be selected at time of ordering. This is the most important physical constraint to verify before committing to an install position.

5. Does this camera have audio - built-in microphone or speaker?

   Audio capability is not confirmed in the available specification data for the DS-2CD6425G0-C1. If audio recording is a requirement for your application - interview rooms or compliance monitoring, for example - verify this directly with the supplier before ordering. The team at Security Australia can confirm whether audio input or output is supported on this model.

6. Can the sensor head be mounted in different orientations, and does the image rotate to compensate?

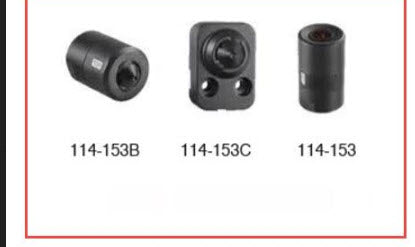

   Yes. The multiple sensor shape options - cylindrical, block, fixed focal, and ball - are designed for different mounting orientations and concealment contexts. The ball-type sensor allows angular adjustment after mounting, while the cylindrical type suits flush ceiling or wall penetrations. Image rotation and corridor mode settings can be adjusted in the camera's web interface to compensate for non-standard mounting angles, ensuring the recorded image is correctly oriented regardless of how the sensor head is positioned physically.
