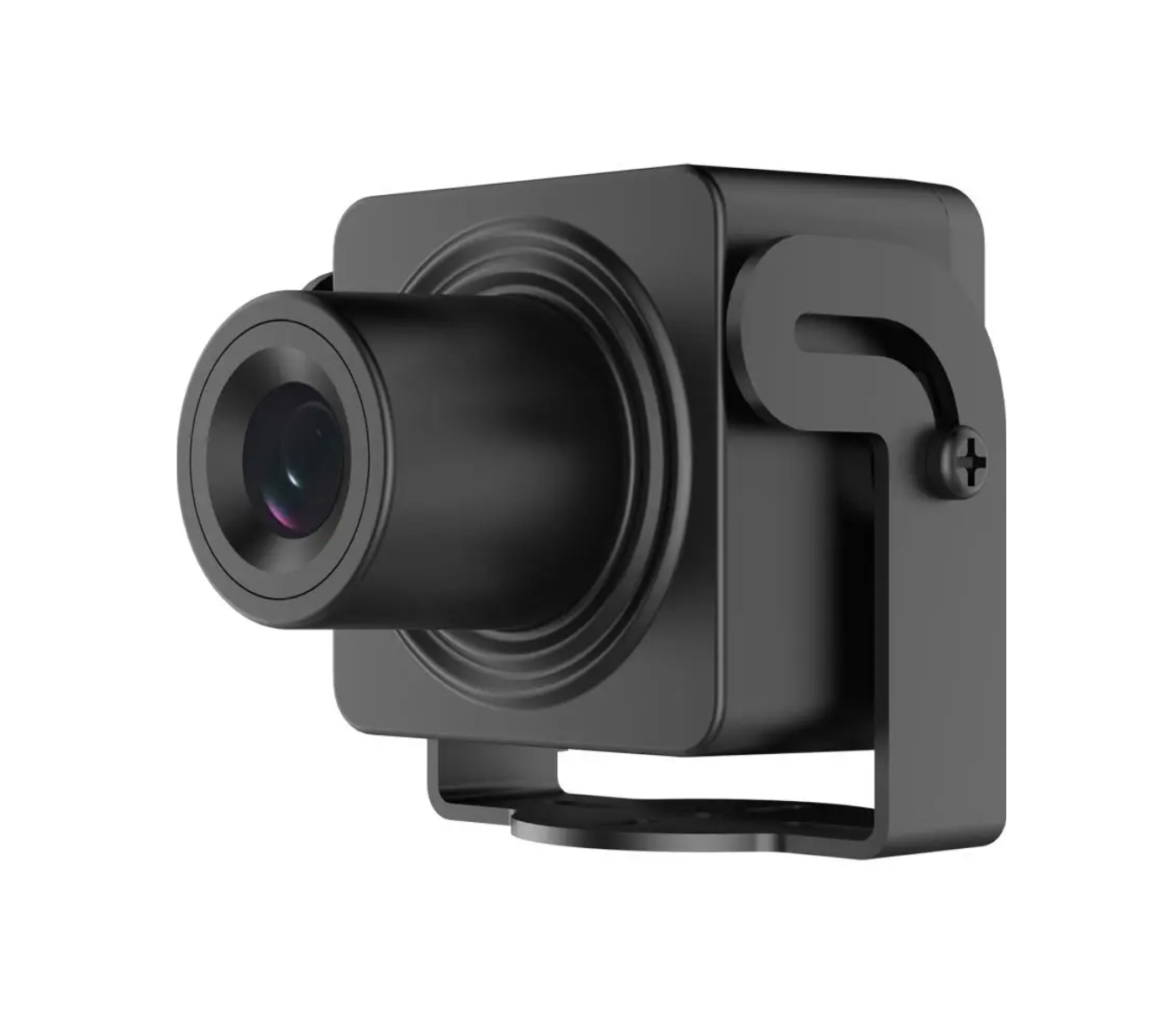

Hikvision DS-2CD2D25G1/M-D/NF Covert Network Camera

Model: DS-2CD2D25G1/M-D/NF

Who This Is For

For investigators, loss prevention specialists, and security integrators who need a fully functional network camera that stays invisible to the people being monitored, the Hikvision DS-2CD2D25G1/M-D/NF is built around that single requirement. The body measures just 31.5 mm x 31.5 mm x 49.6 mm - small enough to conceal inside a ceiling tile, a wall cavity, or a purpose-built enclosure - while still delivering 2MP 1080p footage with 120 dB WDR and smart event detection. Typical deployments include retail loss prevention rooms, interview and consultation spaces, corporate offices where overt cameras are aesthetically unacceptable, and residential settings where a covert camera is required by a court order or investigation. The camera accepts a 2.8 mm or 4 mm fixed lens depending on how wide a field of view the concealment method allows, and angle adjustment (pan, tilt, rotate) enables precise framing after the housing is already fixed in place.

What This Camera Actually Does

Who Buys This Model

• Retail loss prevention teams: Installing covert cameras inside ceiling voids or display fixtures above suspected shoplifting hotspots, using the 2.8 mm wide-angle lens to cover a full aisle without revealing the camera position.
• Corporate security managers: Deploying discreet monitoring in interview rooms, HR suites, or server rooms where visible cameras would alter behaviour or conflict with interior design requirements.
• Licensed investigators and PI firms: Integrating into purpose-built covert housings for short-term or long-term surveillance operations where the 12 VDC low-power draw (max 1.5 W) allows battery or regulated DC supply rigs.
• Security integrators building custom enclosures: Using the 31.5 mm square body as a module inside branded or specialised housings - clocks, smoke detectors, signage panels - for client-specific covert builds.

Honest Assessment

The DS-2CD2D25G1/M-D/NF genuinely earns its place in professional covert builds. The combination of a sub-50 mm body, 0.002 Lux colour sensitivity, 120 dB WDR, and smart event detection in a single network camera unit is not common at this size. For scenarios where the camera must not be seen, it does the core job well and produces footage at a resolution and frame rate that holds up evidentially. Available through Security Australia, it suits integrators who need a reliable module rather than a finished product. That said, this camera has no built-in IR illumination - it relies entirely on ambient light, so environments that drop to complete darkness will need a separate, carefully placed light source that does not reveal the installation. It also runs on 12 VDC only with no PoE support, which limits cabling flexibility. If a standard visible IP camera with PoE and onboard IR is what the project actually requires, a different model will be a more straightforward fit.

Before You Buy

Quick Fit Check

• Good match if: You are building a covert housing or concealed installation where the camera body must be invisible, and the location retains some ambient light - the 31.5 mm x 31.5 mm footprint and 0.002 Lux sensitivity are suited to this exactly.
• Good match if: Your installation faces strong backlit conditions - such as a counter facing a window or a doorway - and you need subjects to remain clearly identifiable; the 120 dB WDR addresses this directly.
• You may need a different model if: Your site requires PoE cabling, built-in IR for complete darkness operation, or a weatherproof outdoor-rated housing - a standard IP turret or bullet camera would be a more appropriate product type for those requirements.

Key Features & Technical Specifications

Real-World Scenarios

How It Compares

• Choose this if: Your primary requirement is concealment - the 31.5 mm x 31.5 mm body, no visible IR LEDs, and post-installation angle adjustment make this the right choice when the camera must not be detectable by the people being monitored.
• You may need a different model if: Your installation is in a location with complete darkness, needs PoE cabling, or requires an IP67-rated outdoor housing - a standard IP dome or bullet camera with onboard IR would be a more suitable product type for those conditions.
• Pairs well with: A dedicated NVR with smart event support and local 12 VDC power distribution, or a PoE NVR paired with a PoE-to-12VDC splitter at the camera end to simplify cabling infrastructure.

Common Questions

1. Does this camera support PoE?

   No. The DS-2CD2D25G1/M-D/NF runs on 12 VDC (±20%) only, with a maximum draw of 1.5 W. It does not have a PoE input. If your installation uses a PoE switch, you will need a PoE splitter that outputs 12 VDC to power this camera from that infrastructure. Plan your power supply before finalising the cable run.

2. Does this camera have built-in IR night vision?

   No. There are no onboard IR illuminators. The camera uses Auto Day and Night switching and achieves 0.002 Lux colour sensitivity at F1.2, which handles very dim ambient light well. However, in complete darkness it will not produce a usable image. If your monitored area has zero ambient light after hours, a separate covert IR illuminator will be required.

3. Will this camera work for evidential footage in an interview room?

   Yes, provided lighting conditions are adequate. The 4 mm lens provides an identification-quality DORI distance of 5.5 m, meaning a person within that range will be identifiable in the recorded image. The 120 dB WDR handles backlit scenes such as windows behind a subject. Recording at 50 fps with H.265 compression produces smooth, storage-efficient footage appropriate for evidential purposes.

4. What is the difference between the 2.8 mm and 4 mm lens options?

   The 2.8 mm lens gives a wider 107.8° horizontal field of view but a shorter identification range of 4.3 m. The 4 mm lens narrows to 82.8° horizontal but extends the identification distance to 5.5 m. For rooms where you need to cover a wide area at close range, choose 2.8 mm. For a focused view down a corridor or across a larger counter, the 4 mm will deliver better subject detail at distance.

5. Does this camera support two-way audio?

   No. The DS-2CD2D25G1/M-D/NF has no built-in microphone and no built-in speaker. Two-way audio is not available on this unit. If audio recording is required for your application, you will need an NVR or VMS that accepts an external audio input, with a separately wired microphone connected at the recording end.

6. How much storage will this camera use?

   H.265 compression significantly reduces file size compared to older codecs. At 1080p and 50 fps continuous recording, exact bitrate depends on scene complexity, but H.265 typically halves the storage requirement of H.264 at equivalent quality. For accurate storage planning across a multi-camera system, Security Australia recommends using Hikvision's published storage calculator with your confirmed channel count, resolution, and retention period before selecting NVR and HDD capacity.

7. Can the angle be adjusted after the camera is installed inside a housing?

   Yes. Pan (-30° to 30°), tilt (0° to 75°), and rotate (-180° to 180°) adjustments can be made to the camera module after the housing is fixed in position. This is an important practical feature for covert installations where reopening or repositioning the enclosure post-installation is not straightforward. Set the housing position first, then fine-tune the frame using the camera's internal adjustments.

Downloads & Resources

No downloads available for this product.
