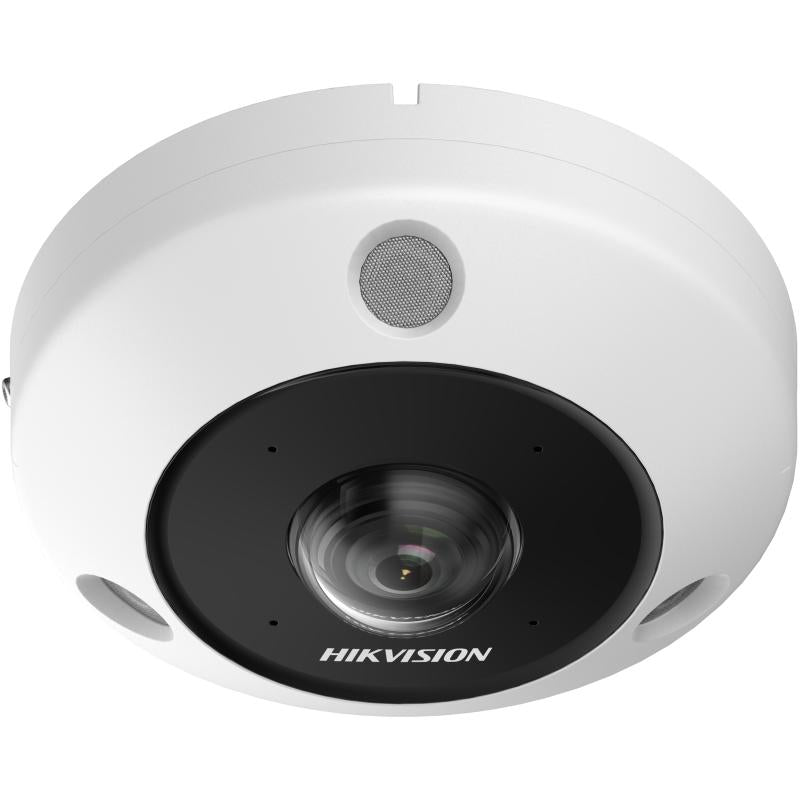

Hikvision DS-2CD63C5G1-IVS 12MP Outdoor Fisheye Camera, Immervision Lens, 15m IR, Built-in Mic, IP66, 1.29mm

Model: DS-2CD63C5G1-IVS

Who This Is For

For security installers and facilities managers who need genuine single-camera 360-degree outdoor coverage without the blind spots that come from trying to stitch multiple fixed cameras together. The DS-2CD63C5G1-IVS is built around an Immervision 1.29mm fisheye lens that delivers a full 180-degree horizontal and vertical field of view from one mounting point, resolving the scene at 12MP across 3504 x 3504 pixels. That resolution headroom matters when you're dewarping the image into multiple virtual views - there's enough pixel density to produce usable detail in each segment. The IK10 vandal resistance and IP66 weatherproofing make it a practical choice for exposed outdoor positions: building entrances, open car parks, forecourts, and covered outdoor areas where a conventional camera would require 3 or 4 units to achieve the same coverage. The built-in IR illumination extends to 15 metres, keeping the camera functional after dark without external lighting.

What This Camera Actually Does

Who Buys This Model

• Retail and Hospitality Managers: Installing at a central ceiling or wall point above a sales floor, lobby, or dining area to cover the entire space in one camera and use the built-in heatmap analytics to understand foot traffic patterns without additional software.
• Commercial Property Installers: Specifying a single camera for building entry points, foyer areas, or lift lobbies where a 360-degree view is needed and cabling runs to multiple positions is impractical or cost-prohibitive.
• Facilities and Operations Teams: Using the HEOP 2.0 open platform support to integrate the camera into customised building management or occupancy monitoring workflows beyond standard VMS recording.
• Security Integrators on Outdoor Projects: Mounting on a soffit, eave, or wall at a car park entry, forecourt, or exposed outdoor gathering area where both IK10 impact resistance and IP66 weatherproofing are required alongside panoramic coverage.

Honest Assessment

The DS-2CD63C5G1-IVS does the core fisheye job well: 12MP resolution across a full 360-degree capture means the dewarped views hold usable detail rather than dissolving into blur. The onboard heatmap and people-counting analytics add genuine operational value for retail and venue applications, and the IK10 plus IP66 combination makes outdoor mounting practical without a separate protective enclosure. Two-way audio from a single outdoor camera is a useful addition for entry-point applications. What this camera will not do is provide the long-range recognition distances that a fixed telephoto or PTZ delivers - fisheye optics with a 1.29mm lens are designed for wide coverage close-in, not identifying subjects at 30 or 40 metres. For perimeter monitoring of long approaches, driveways, or property boundaries, a bullet or PTZ camera from the Security Australia range will be more appropriate. Storage planning also warrants attention: 12MP continuous recording generates significant file sizes, so NVR storage capacity should be calculated before installation.

Before You Buy

Quick Fit Check

• Good match if: You need a single outdoor-rated camera to cover a compact open area - car park entrance, building foyer, or retail floor - and want 360-degree coverage without running cable to multiple positions.
• Good match if: You're installing for a retail or hospitality client who needs both security recording and onboard heatmap or people-counting analytics from the same camera, without additional analytics hardware.
• You may need a different model if: Your primary requirement is identifying subjects at distances beyond 15 metres, or monitoring a long perimeter approach - a bullet or PTZ camera with a telephoto lens will deliver far better recognition distances for those scenarios.

Key Features & Technical Specifications

Real-World Scenarios

How It Compares

• Choose this if: You need a single outdoor-rated camera to deliver 360-degree coverage of a compact open area, with onboard analytics and IK10 impact resistance included in the one unit.
• You may need a different model if: Your site requires identification of subjects at distances beyond 15-20 metres - a multi-sensor panoramic camera or PTZ with optical zoom will provide far better recognition distances across large open areas or perimeter lines.
• Pairs well with: A compatible Hikvision NVR with fisheye dewarping support, ensuring the 360-degree image can be viewed in panoramic or multi-region virtual PTZ modes directly from the recorder interface.

Common Questions

1. Does the DS-2CD63C5G1-IVS work as a true outdoor camera, or does it need a protective housing?

   Yes, this camera is rated for outdoor installation without an additional enclosure. The IP66 weatherproofing protects against dust ingress and sustained water jets, and the IK10 vandal resistance rating means the housing withstands significant impact. The operating temperature range of -10°C to +55°C covers typical Australian outdoor conditions across most climates without modification.

2. What does the Immervision lens actually do differently compared to a standard fisheye lens?

   The Immervision lens is an engineered optic designed to distribute image resolution more evenly across the full circular frame. Standard fisheye lenses typically concentrate resolution towards the centre and lose sharpness at the edges - which becomes a significant problem when you dewarp the outer sections. The Immervision design maintains more consistent sharpness across the 180-degree field, which matters on a 12MP sensor where you're relying on edge-of-frame resolution to produce usable dewarped views.

3. Will this camera work for facial or subject recognition across a large area?

   No, not at long range. The 1.29mm fisheye lens is designed for wide-area situational awareness, not long-distance recognition. DORI (Detection, Observation, Recognition, Identification) distances on a fisheye camera are significantly shorter than a telephoto fixed camera or PTZ due to the extreme wide-angle optic distributing the 12MP sensor across the entire 360-degree scene. This camera is best used for detecting and observing movement across a compact zone - for identification at distances beyond 8-10 metres, a PTZ or fixed camera with a longer focal length is the appropriate tool.

4. Does the fisheye dewarping happen in the camera, or does the NVR need to process it?

   Both are possible, but NVR-side dewarping is the most common approach. The camera outputs the raw circular fisheye image and the connected NVR or VMS applies the dewarping algorithm to convert it into panoramic, 180-degree, quad-view, or virtual PTZ display modes. Not all NVRs support fisheye dewarping natively - confirm your recorder explicitly supports Hikvision fisheye dewarping before purchasing. Some Hikvision NVR models also support on-camera dewarping where the camera itself processes and outputs a pre-dewarped stream, which reduces load on the NVR but requires compatible firmware on both devices.

5. How does the heatmap analytics feature actually work on this camera?

   The deep learning processor built into the DS-2CD63C5G1-IVS analyses the video stream directly on the camera and tracks where people spend time within the scene. Over a defined period, it generates a colour-coded heatmap overlay showing high-traffic zones (warmer colours) and low-traffic areas (cooler colours). The camera also performs people counting independently. This data is accessible through a compatible VMS or Hikvision management platform - it is generated and stored at the camera, so the NVR itself does not need built-in analytics capability to use this feature. Available through Security Australia, the camera is one of the few outdoor fisheye models in this resolution class with onboard heatmap generation included at no additional licence cost.

6. What is the HEOP 2.0 open platform support, and does it matter for a standard installation?

   For most standard security installations, HEOP 2.0 is not a factor - it is relevant for integrators building custom applications. HEOP (Hikvision Embedded Open Platform) allows third-party software developers to deploy custom apps directly onto the camera hardware, running on the camera's onboard processor rather than on an external server. This is used for custom occupancy dashboards, retail analytics integrations, or building management system tie-ins. For a standard CCTV recording installation, it has no practical impact on day-to-day operation.

7. How much storage does a 12MP fisheye camera like this actually use?

   Significantly more than a standard 4MP or 8MP camera. Recording at full 3504 x 3504 resolution continuously will consume substantial NVR storage - roughly 3 to 5 times the storage of a comparable 4MP camera depending on codec (H.265+ versus H.264) and scene complexity. Most installers configure the DS-2CD63C5G1-IVS with H.265+ encoding and a reduced frame rate (12fps rather than 25fps) for general recording, switching to full frame rate only on motion events. Calculate your storage requirements carefully before specifying the NVR - an underconfigured recorder will result in short retention periods at this resolution.

Downloads & Resources

No downloads available for this product.
