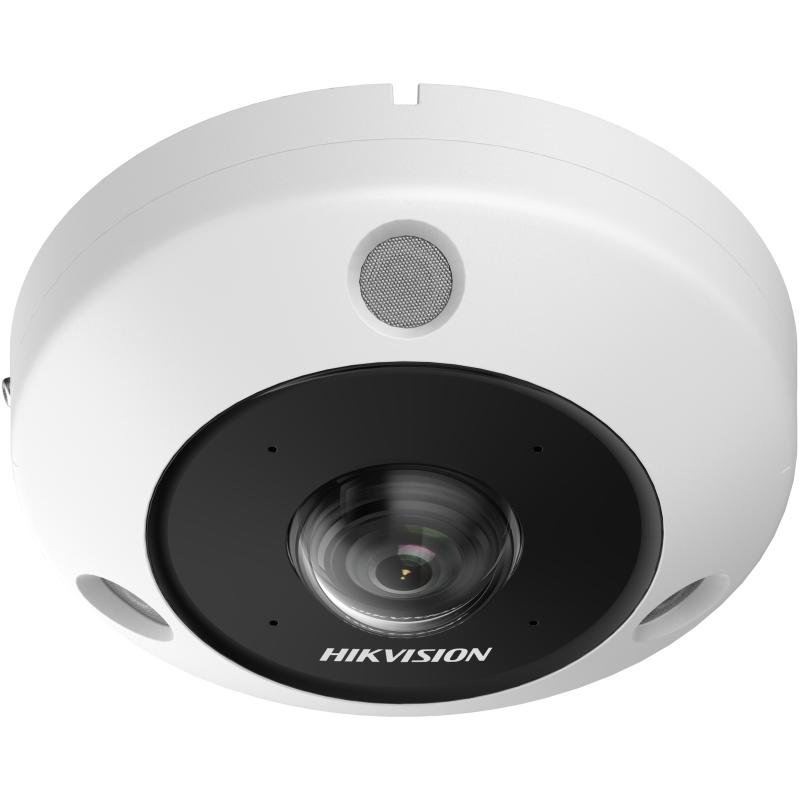

6 MP DeepinView Fisheye Network Camera
The camera supports two-way audio communication with a built-in microphone and speaker, making it ideal for real-time monitoring and response. It is designed for versatile applications, including both indoor and outdoor use, as it is rated IP66 for weather resistance and IK10 for vandal resistance. Furthermore, it offers multiple live view display modes and supports H.265+ video compression to optimize bandwidth and storage.
Key Features
Code/SKU: DS-2CD6365G1-IVS
Quick Specs:
| Camera | 1/1.8" Progressive Scan CMOS |
| Max. Resolution | 2560 × 2560 |
| Min. Illumination | Color: 0.01 Lux @ (F2.25, AGC ON), B/W: 0.005 Lux @ (F2.25, AGC ON), B/W: 0 Lux with IR |
| Shutter Time | 1 s to 1/100,000 s |
| Day & Night | IR cut filter |
| Lens Type | Fixed focal lens, 1.16 mm |
| Focal Length & FOV | 1.16 mm, horizontal FOV 180°, vertical FOV 180° |
| Iris Type | Fixed |
| Aperture | F2.25 |
| Depth of Field | 0.2 m to ∞ |
| DORI | D: 23.2 m, O: 9.2 m, R: 4.6 m, I: 2.3 m |
| Supplement Light Type | IR |
| Supplement Light Range | Up to 15 m |
| Supplement Light Number | 3 |
| IR Wavelength | 850 nm |
| Smart Supplement Light | Yes |
| HEOP Open Resources | Memory: 60 MB, Smart RAM: 800 MB, eMMC: 2 GB |
| Computing Power | 2 TOPS |
| Open Capability | HEOP 2.0 OpendevSDK |
| Deep Learning Structure | Caffe, TensorFlow, PyTorch |
| Programming Language | C, C++ |
| Main Stream | 50 Hz: 25 fps/60 Hz: 30 fps, Fisheye View: 2560 × 2560, 2048 × 2048, 1280 × 1280 |
| Sub-Stream | 50 Hz: 25 fps/60 Hz: 30 fps, Fisheye View: 720 × 720, 480 × 480 |
| Video Compression | H.265+/H.265/H.264+/ H.264 |
| Video Bit Rate | 32 Kbps to 16 Mbps |
| H.264 Type | Baseline Profile, Main Profile, High Profile |
| H.265 Type | Main Profile |
| Bit Rate Control | CBR, VBR |
| Scalable Video Coding (SVC) | H.264 and H.265 encoding |
| Region of Interest (ROI) | 4 fixed regions for each stream |
| Mount Type | Support wall/table/ceiling mounting |
| Decoding Mode | Support hardware decoding and software decoding |
| Display Mode | 20 display modes in total |
| Audio Compression | G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC |
| Audio Bit Rate | 64 Kbps (G.711ulaw/G.711alaw), 16 Kbps (G.722.1), 16 Kbps (G.726) |
| Audio Sampling Rate | 8 kHz/16 kHz/32 kHz/48 kHz |
| Environment Noise Filtering | Yes |
| Protocols | TCP/IP, ICMP, HTTP, HTTPS, FTP, SFTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, ISUP, ARP, WebSocket, WebSockets, SIP |
| Simultaneous Live View | Up to 20 channels |
| API | Open Network Video Interface (Profile S, Profile G, Profile T), ISAPI, SDK, ISUP, SIP |
| User/Host | Up to 32 users |
| Security | Password protection, HTTPS encryption, IP address filter, security audit log, TLS 1.2, host authentication |
| Network Storage | NAS (NFS, SMB/CIFS), Auto Network Replenishment (ANR) |
| Client | iVMS-4200, iVMS-4500, iVMS-5200, Hik-Connect |
| Web Browser | Plug-in required live view: IE 10, IE 11 |
| Image Parameters Switch | Yes |
| Image Settings | Saturation, brightness, contrast, sharpness, white balance, AGC |
| Day/Night Switch | Day, Night, Auto, Schedule, Alarm Trigger |
| Wide Dynamic Range (WDR) | Digital WDR |
| Image Enhancement | BLC, HLC, 3D DNR, Distortion Correction, Defog |
| Privacy Mask | 8 programmable polygon privacy masks |
| Picture Overlay | LOGO picture can be overlaid on video |
| Ethernet Interface | 1 RJ45 10 M/100 M/1000 M self-adaptive Ethernet port |
| On-Board Storage | Supports microSD card up to 256 GB |
| Built-in Microphone | Yes, 4 built-in microphones |
| Built-in Speaker | Yes, 1 built-in speaker |
| Audio Input/Output | 1 input (line in), 1 output (line out), 3.5 mm connector |
| Alarm | 2 inputs, 2 outputs (max. 24 VDC, 1 A) |
| RS-485 | 1 RS-485 (Half duplex, HIKVISION, Pelco-P, Pelco-D) |
| Reset Key | 1 Reset Key |
| Basic Event | Motion detection, video tampering alarm, alarm input and output |
| Smart Event | Line crossing detection, intrusion detection, audio exception detection |
| Linkage | Upload to FTP/NAS/memory card, notify surveillance center |
| Deep Learning Function | People counting, queue management, heat map |
| Power | 12 VDC ± 20%, 1 A, max. 11.5 W, PoE: IEEE 802.3af, Class 3 |
| Material | Metal |
| Dimension | Ø140.3 mm × 59.4 mm (Ø5.5" × 2.3") |
| Weight | Approx. 715 g (1.58 lb.) |
| Storage Conditions | -40 °C to 60 °C (-40 °F to 140 °F) |
| Startup and Operating Conditions | -40 °C to 60 °C (-40 °F to 140 °F) |
| Language | 33 languages |
| General Function | Heartbeat, flash log, password reset via email |
| Heater | Yes |
| Cable Length | 0.31 m (1.02 ft.) |
| Approval | EMC: CE-EMC, RCM: AS/NZS CISPR 32: 2015 |
| Safety | UL: UL 62368-1, CE-LVD: EN 62368-1 |
| Environment | CE-RoHS: 2011/65/EU, WEEE: 2012/19/EU |
| Protection | IP67: IEC 60529-2013, IK10: IEC 62262:2002 |
All IP cameras and recording devices (NVR’s/DVR’s) are covered by a 3 year back-to-base manufacturer warranty.
Our warranty is limited to the replacement of faulty items or parts and does not include damage due to incorrect fitting of parts or accessories, or damage due to mishandling the equipment once out of the box. All faults are sent to the manufacturer for inspection and diagnosis before a replacement is sent out.
Read more about the Terms & Conditions here – https://www.securityaustralia.com.au/terms-and-conditions/
*Just spend over $100 to activate Fast Free Shipping!
Despatch Times: Products are despatched on the same day if the order was placed before 11am on any weekday, Monday - Friday. All other orders are processed and despatched within 24 hours or next business day.
Order Confirmation: Once you place an order, you will receive a confirmation email. This indicates that your order has been received in our system and is now being processed for dispatch. If your item is back-ordered or unavailable, we will notify you via email, and if we do not receive a response, we will attempt to contact you by phone as soon as possible. We value your time and strive to be prompt. If your item(s) are available for immediate shipment (within 2 days), we will process the charges and prepare the order for shipping.
Shipping Times: General shipping times for StarTrack, TNT and Allied couriers are between 1-3 working days from despatch. Longer delivery times may be caused by your package being held at your local courier depot that is beyond our control. Please contact us or the local post depot for confirmation.
Tracking Numbers: all tracking numbers will be emailed to you by our warehouse processing team within the day, after your order is despatched to our local courier.
Hikvision DS-2CD6365G1-IVS 6MP Outdoor Fisheye Camera, Built-in Mic, 15m IR, Panoramic, 1.16mm
The Hikvision DS-2CD6365G1-IVS 6 MP DeepinView Fisheye Network Camera provides advanced surveillance features. With a 360-degree panoramic view and a high-resolution 6 MP image sensor (2560x2560), this camera captures detailed images. It supports multiple dewarping modes, allowing users to view the fisheye images as normal perspectives, enhancing the viewing experience. The built-in IR illuminator ensures clear images even in low-light conditions, with an infrared range of up to 15 meters.
One of its standout features is the heatmap capability, powered by deep learning algorithms, which helps count people and visualize data intuitively. The camera also supports two-way audio communication with a built-in microphone and speaker, making it ideal for real-time monitoring and response. It is designed for versatile applications, including both indoor and outdoor use, as it is rated IP66 for weather resistance and IK10 for vandal resistance. Furthermore, it offers multiple live view display modes and supports H.265+ video compression to optimize bandwidth and storage.
