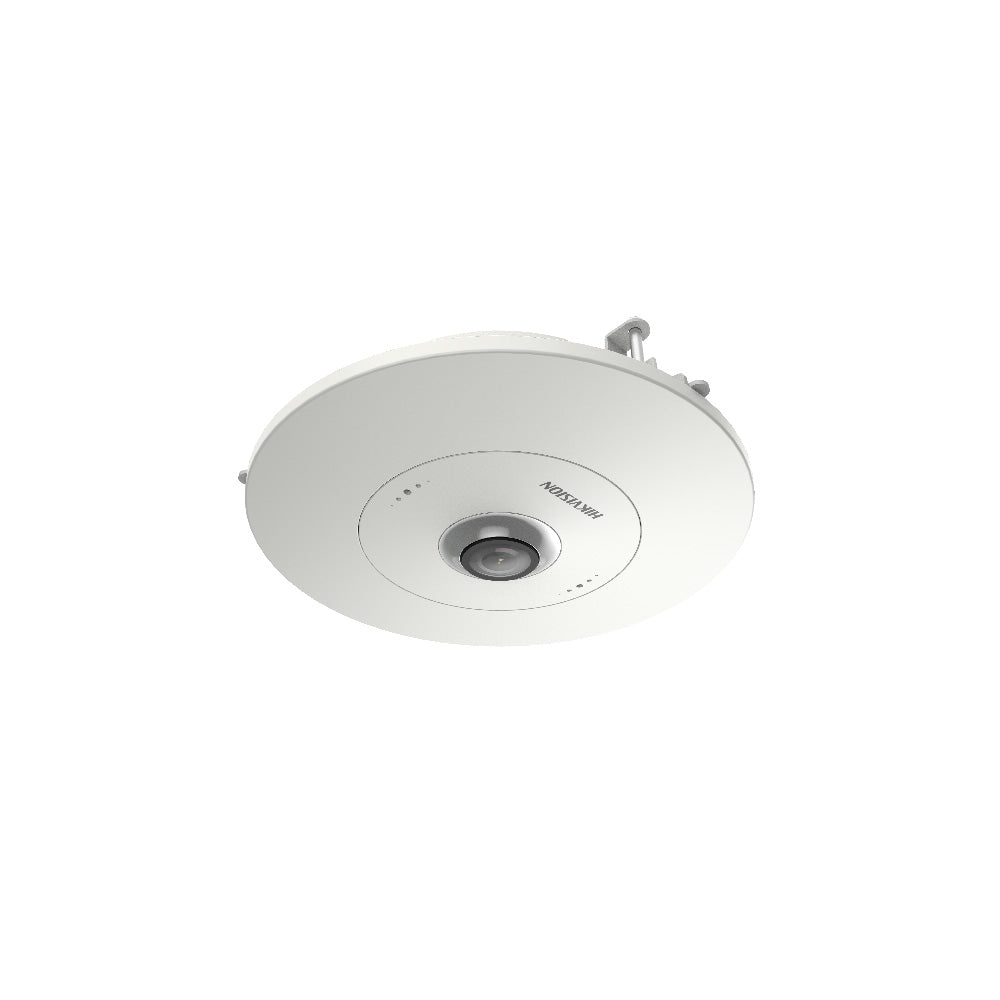

Hikvision DS-2CD6365G0E 6MP Fisheye 360 degree In-Ceiling Camera NO IR

Model: DS-2CD6365G0-IVS-1

Who This Is For

When single-camera coverage of an entire room is the priority, the Hikvision DS-2CD6365G0E 6MP Fisheye 360 Degree In-Ceiling Camera is the model most installers reach for. Specifiers working on retail floors, open-plan offices, childcare rooms, hotel lobbies, and casino gaming areas use this camera to eliminate the multi-camera layouts that would otherwise be required to cover the same footprint. A single flush ceiling mount captures a full 360-degree view at 6MP resolution, and the built-in dewarping engine produces up to 14 display modes so operators can choose panoramic, corridor, quad, or PTZ-style views from a single feed. The DS-2CD6365G0E suits projects where a clean ceiling aesthetic matters and where the brief calls for behaviour analytics - the camera runs 6 behaviour analysis types without a separate analytics server. This is an indoor-focused model with no IR illuminator, so it requires adequate ambient or artificial lighting to perform.

What This Camera Actually Does

Who Buys This Model

• Retail Loss Prevention Teams: A single DS-2CD6365G0E mounted in the centre of a shopfloor replaces 3 or 4 conventional dome cameras, covering every aisle from one position while the onboard behaviour analytics flag loitering and zone intrusion automatically.
• Hotel and Hospitality Operators: Lobby managers and venue operators use this camera for its flush ceiling profile - guests see a minimal lens footprint rather than a bank of visible domes, while operators get full room coverage with virtual PTZ replay capability.
• Childcare and Education Facility Managers: The 360-degree view means no corner of a classroom or play area is outside the camera's view. The in-ceiling mount keeps the camera out of reach and out of the visual field of children.
• Open-Plan Office and Co-Working Spaces: IT and facilities managers specifying surveillance for large open floors use this model to reduce camera counts, simplify cabling, and cover meeting rooms and shared areas from a single structured ceiling position.
• Systems Integrators Running Hikvision Platforms: Installers already working within the Hikvision ecosystem use the DS-2CD6365G0E because the onboard analytics and dewarping integrate directly with compatible NVRs and VMS platforms without additional licensing overhead.

Honest Assessment

The DS-2CD6365G0E does one thing better than almost any other camera form factor: it covers an entire room from a single ceiling position. The 6MP sensor provides enough resolution that the dewarped views remain useful for identification at reasonable room depths, and the 14 display modes give operators and VMS users genuine flexibility in how they review footage. The onboard behaviour analytics remove the need for a separate analytics appliance on smaller deployments, which is a meaningful cost and complexity saving for integrators. What this camera will not do is perform in darkness - there is no IR illuminator, so it relies entirely on the room's ambient or installed lighting. It is also an indoor-only design; for outdoor 360-degree coverage, a different housing and sensor type is needed. Buyers comparing fisheye models will find the full range of options available through Security Australia, including models with IR illumination for mixed-light environments.

Before You Buy

Quick Fit Check

• Good match if: You need to cover an entire room from a single ceiling mount point and the space has reliable ambient or installed lighting throughout the monitoring period.
• Good match if: Your project brief includes behaviour analytics - line crossing, intrusion, or loitering detection - and you want those functions to run on-camera without a separate analytics appliance or additional licensing.
• You may need a different model if: The installation involves low-light or after-hours monitoring without guaranteed artificial lighting - a fisheye model with a built-in IR illuminator would be more appropriate for that scenario.

Key Features & Technical Specifications

Real-World Scenarios

How It Compares

• Choose this if: You need a single camera to cover an entire room with onboard analytics, a flush ceiling profile, and your recording platform supports fisheye dewarping.
• You may need a different model if: The installation area has low or intermittent lighting after hours - a fisheye model with a built-in IR illuminator would maintain image quality where this model cannot.
• Pairs well with: A Hikvision-compatible NVR with fisheye dewarping support and sufficient channel bandwidth to handle a continuous 6MP H.265 stream.

Common Questions

1. Does this camera work in the dark or in areas with no lighting at night?

   No. The DS-2CD6365G0E has no IR illuminator, so it cannot produce a usable image without ambient or artificial light. This is an important distinction from fisheye models that include built-in IR. If your site has security lighting, exit signs, or maintained ambient light throughout the monitoring period, the camera will perform normally. If the area goes dark after hours, image quality will degrade significantly. For mixed-light or after-hours scenarios, a fisheye model with IR illumination is the more appropriate choice.

2. What are the 14 display modes and do I need special software to use them?

   Yes, you need a compatible platform to access all 14 modes. The DS-2CD6365G0E stores the raw 360-degree fisheye image, and the dewarping into display modes - such as panoramic, corridor, quad split, and virtual PTZ - is processed either on the camera itself during live view or by the connected NVR or VMS. A Hikvision-compatible NVR or a VMS with fisheye dewarping support is required to access the full range of display modes. Basic fisheye live view is available through a browser, but full dewarping functionality depends on your recording platform's capabilities.

3. Will this camera work with a standard PoE switch, or does it need PoE+?

   Standard 802.3af PoE is sufficient. The DS-2CD6365G0E supports IEEE 802.3af, which is the standard PoE specification delivered by most managed and unmanaged PoE switches. You do not need an 802.3at (PoE+) switch for this camera. A single Cat5e or Cat6 cable carries both power and data, which simplifies installation in ceilings where running separate power is impractical.

4. What behaviour analytics does this camera actually run onboard, and how are alerts triggered?

   The camera runs 6 behaviour analysis types and 1 exception detection function directly on the hardware. The behaviour types include common functions such as line crossing and intrusion detection - alerts are triggered when detected events meet the configured rules, and the camera sends those events to the connected NVR or VMS without requiring a separate analytics server. This is particularly relevant for smaller deployments where adding a dedicated analytics appliance would not be cost-effective. Configuration of analytics zones and rules is done through the camera's web interface or through a compatible Hikvision VMS.

5. How does the fisheye dewarping affect the effective DORI distances from a single ceiling mount?

   The usable identification distance depends on mounting height, room size, and the display mode selected. A fisheye camera by design captures the full horizontal plane, which means the 6MP resolution is distributed across the entire 360-degree field simultaneously. At typical commercial ceiling heights of 2.7m to 3.5m, the camera provides strong observation and recognition capability for people within approximately 3m to 5m of the mount point. At greater distances from the lens - such as the perimeter of a large room - pixel density in dewarped views decreases, and the camera is better suited to detection and observation rather than positive facial identification. Security Australia stocks fisheye and multi-sensor panoramic options if tighter identification distances at longer ranges are required.

6. Does the built-in microphone support two-way audio or is it receive-only?

   The confirmed specification is a built-in microphone only. A built-in speaker is not listed in the confirmed specification data for this model. This means the camera can capture audio from the monitored space, but two-way communication - where an operator speaks through the camera - is not confirmed as a built-in capability. If two-way audio is a requirement for your application, confirm speaker support before purchase or evaluate a camera model where both microphone and speaker are explicitly confirmed.

7. Does the in-ceiling mount require a specific ceiling thickness or tile type?

   The camera is designed for flush in-ceiling installation, which typically requires a standard suspended ceiling tile or plasterboard ceiling cut-out. The exact cut-out diameter and minimum ceiling void depth should be confirmed against the Hikvision installation guide for this model before cutting. Suspended tile ceilings are the most common installation scenario. Solid plasterboard or concrete ceilings can also be used, but require appropriate anchoring and a clear void above for cable routing. Confirm the ceiling construction type during site survey before ordering.
