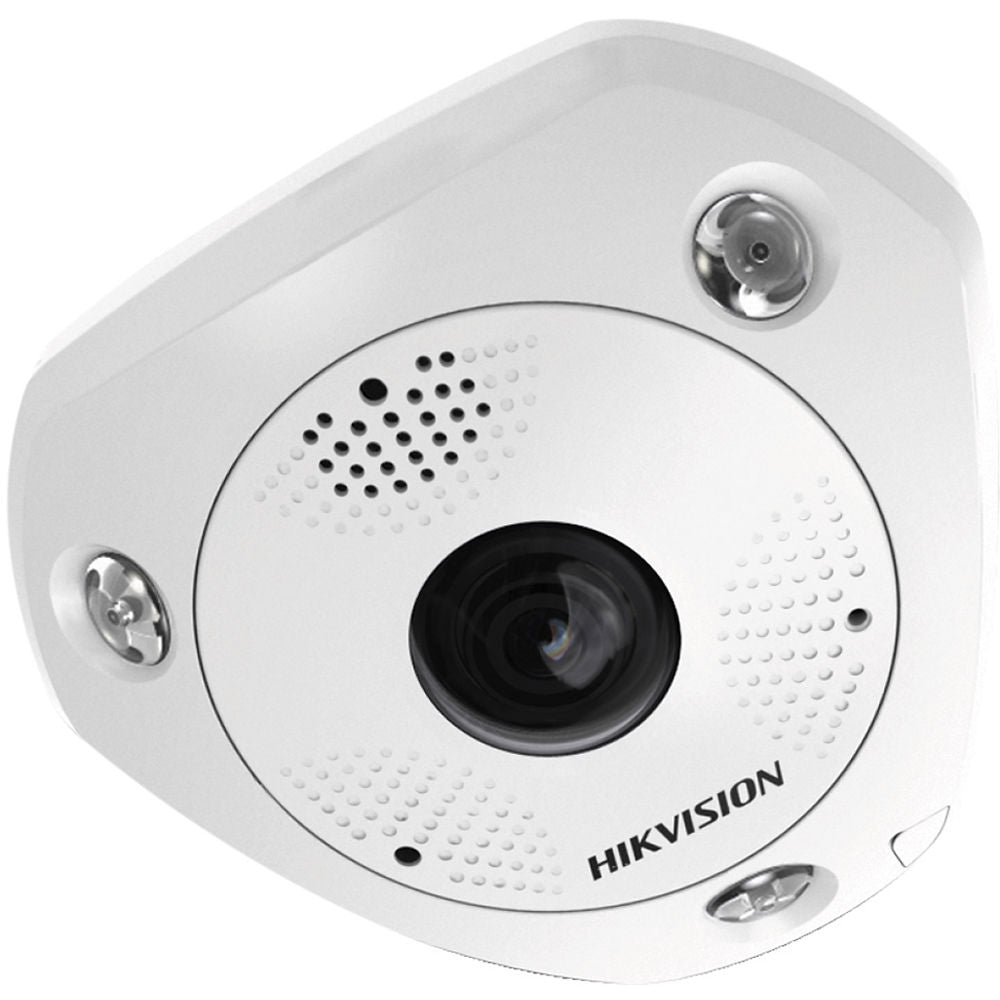

Hikvision DS-2CD6332FWD-IV Camera
This product has been discontinued.
Please check out the 6MP variant (click below)
https://www.securitywholesalers.com.au/product/hikvision-ds-2cd6362f-iv-6mp-fisheye-360-2/Need help choosing?
Click to ask a question - same day response (~2 hours during business hours)
Product Overview
- 1/3” progressive scan CMOS
- 3 megapixel image sensor
- True WDR, up to 120dB
- Up to 2048*1536 resolution, real-time streaming
- 360°view angle
- Multiple viewing modes
- Multiple ePTZ streams with preset and patrol functions
- Ceiling, Wall or Table mount modes
- Up to 15m IR range
- Built-in microphone & speaker
- Audio/Alarm I/O / RS485(-S model)
- IP66(-V model)
- IK10 vandal proof(-V model)
| Camera | Image Sensor: | 1/3" Progressive Scan CMOS |
| Min. Illumination: | 0.1Lux @ (F1.2,AGC ON) | |
| 0.28Lux @ (F2.0,AGC ON ) | ||
| 0 lux with IR | ||
| Shutter time: | 1/25 (1/30)s ~ 1/100,000s | |
| Lens: | 1.19mm @F2.0, angle of view: 360° | |
| Lens Mount: | M12 | |
| Day& Night: | IR cut filter with auto switch | |
| Wide Dynamic Range: | 120 dB | |
| Digital noise reduction: | 3D DNR | |
| Compression Standard | Video Compression: | H.264/M-JPEG |
| Bit Rate: | 32 Kbps ~ 16 Mbps | |
| Audio Compression: | G.711/G.726/MP2L2 | |
| Image | Max. Image Resolution: | 2048×1536 |
| Frame Rate: | High-frame Mode: support | |
| 50Hz: 1 x fisheye (2048 x 1536, 25fps) or (1536 x 1536, 25fps) or 4 x PTZ (800 x 600, 25fps) | ||
| 60Hz: 1 × fisheye (2048*1536, 25fps) or (1536 × 1536, 30fps) or 4 × PTZ (800 × 600, 30fps) | ||
| Multi-channel Mode: support | ||
| 50Hz: 1 x fisheye (1536 × 1536, 20fps) and 1 x panoramic (1600 x 1200, 20fps) and 3 x PTZ (800 x 600, 20fps) | ||
| 60Hz: 1 x fisheye (1536 × 1536, 20fps) and 1 x panoramic (1600 x 1200, 20fps) and 3 x PTZ (800 x 600, 20fps) | ||
| HLC: | Support | |
| Network | Alarm Trigger: | Motion detection, Dynamic Analysis, Tampering alarm, Network disconnect, IP address conflict, Storage exception |
| Protocols: | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour | |
| Security: | User Authentication, Watermark, IP address filtering, anonymous access | |
| System Compatibility: | ONVIF, PSIA, CGI, ISAPI | |
| Interface | On-board storage: | Built-in Micro SD/SDHC/SDXC card slot, up to 64 GB |
| General | Operating Conditions: | -30 °C ~ 60 °C (-22 °F ~ 140 °F) |
| Humidity 95% or less (non-condensing) | ||
| Power Supply: | 12 VDC ± 10%, PoE (802.3af) | |
| Power Consumption: | Max. 12W | |
| IR Range: | 15 meters | |
| Dimensions: | 164x152.8x43.8mm(6.46”x6.02”x1.72”) | |
| Weight: | 1400g |
