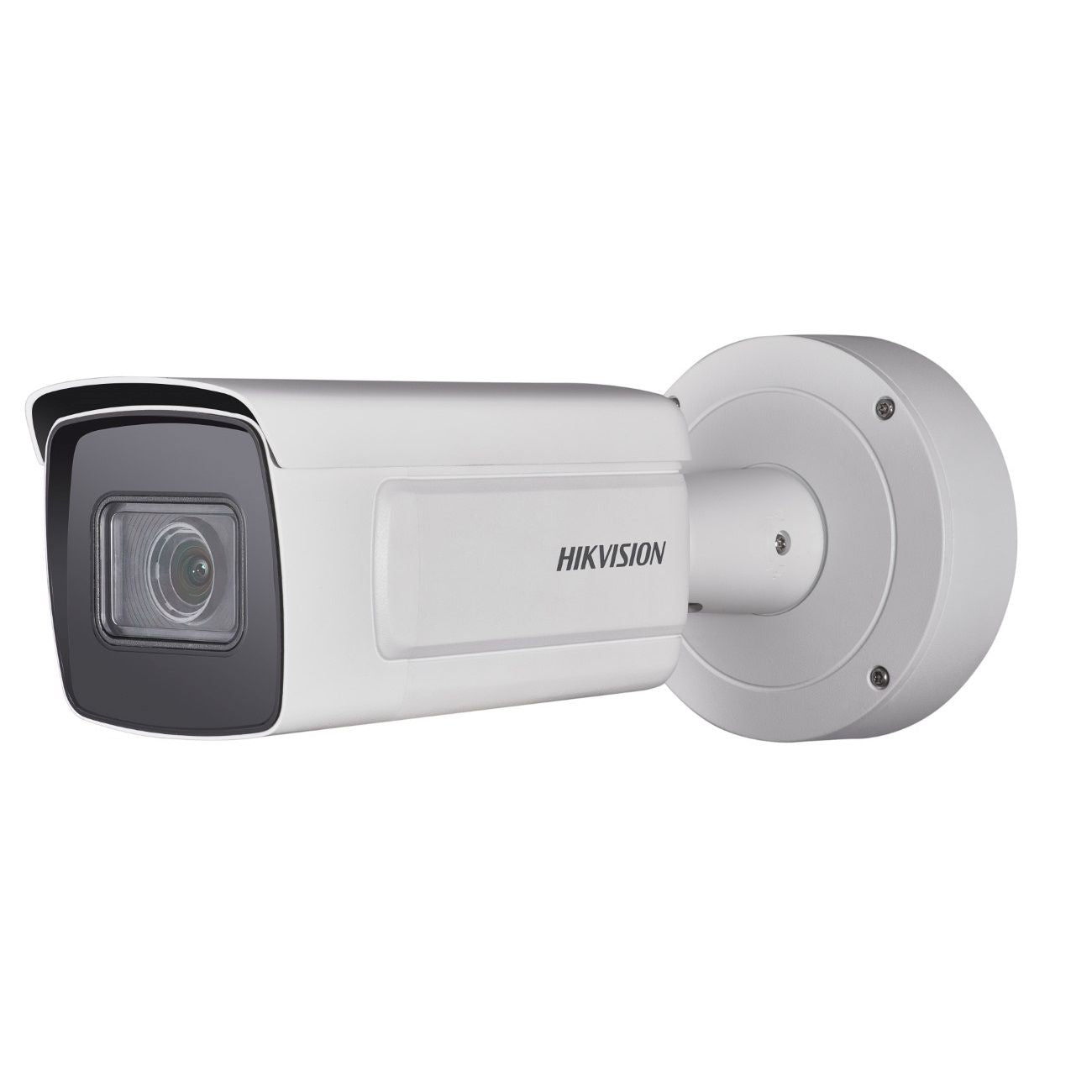

Hikvision DS-2CD5A85G0-IZ 8MP Motorised DarkFighter / Lightfighter Bullet Network Camera
4K Moto Varifocal Bullet Network Camera
The DS-2CD5A85G0-IZ(H)S supports H.265+ video compression, optimizing storage efficiency while maintaining high-quality video. It also includes features like intrusion detection and line crossing detection, which enhance security by alerting users to potential threats. The camera's user-friendly interface allows for easy configuration and monitoring via Hikvision’s software. Built with PoE (Power over Ethernet) support, it simplifies installation by reducing the need for additional power cables. Additionally, its network capabilities ensure seamless integration with existing security systems.
Key Features
Code/SKU: DS-2CD5A85G0-IZ(H)S
Quick Specs:
| Camera | |
|---|---|
| Image Sensor | 1/1.8″ Progressive Scan CMOS |
| Min. Illumination | Color: 0.007 Lux @ (F1.2, AGC ON), 0 Lux with IR |
| Shutter Speed | 1 s to 1/100,000 s |
| Slow Shutter | Yes |
| Wide Dynamic Range | 120 dB |
| Day & Night | IR Cut Filter |
| Angle Adjustment | Bracket, pan: 0° to 355°, tilt: 0° to 90°, rotate: 0° to 360° |
| Lens | |
| Focus | Auto, semi-auto, manual |
| Lens Type | 2.8 to 12 mm |
| FOV | 2.8 to 12 mm, horizontal FOV 112.4° to 41°, vertical FOV 58° to 23°, diagonal FOV 137° to 47° |
| Aperture | F1.2 |
| Lens Mount | Integrated |
| Illuminator | |
| IR Range | Up to 50 m |
| Wavelength | 850 nm |
| Video | |
| Max. Resolution | 3840 × 2160 |
| Main Stream | 50Hz: 25fps (3840 × 2160, 3200 × 1800, 2560 × 1440, 1920 × 1080, 1280 × 720), 60Hz: 30fps (3840 × 2160, 3200 × 1800, 2560 × 1440, 1920 × 1080, 1280 × 720) |
| Sub-Stream | 50Hz: 25fps (704 × 576, 640 × 480), 60Hz: 30fps (704 × 480, 640 × 480) |
| Third Stream | 50Hz: 25fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480), 60Hz: 30fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480) |
| Fourth Stream | 50Hz: 25fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480), 60Hz: 30fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480) |
| Fifth Stream | 50Hz: 25fps (704 × 576, 640 × 480), 60Hz: 30fps (704 × 480, 640 × 480) |
| Custom Stream | 50Hz: 25fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480), 60Hz: 30fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480), Up to 5 custom streams are supported |
| Video Compression | Main stream: H.265/H.264/H.265+/H.264+, Sub stream/third stream/fourth stream/fifth stream/custom stream: H.265/H.264/MJPEG |
| Video Bit Rate | 32 Kbps to 16 Mbps |
| H.264 Type | Baseline Profile/Main Profile/High Profile |
| H.265 Type | Main Profile |
| H.264+ | Main stream supports |
| H.265+ | Main stream supports |
| Scalable Video Coding (SVC) | H.264 and H.265 encoding |
| Region of Interest (ROI) | 4 fixed regions for main stream, sub stream, third stream, fourth stream, and fifth stream, and dynamic face tracking |
| Audio | |
| Environment Noise Filtering | No |
| Audio Sampling Rate | No |
| Audio Compression | No |
| Audio Bit Rate | No |
| Network | |
| Simultaneous Live View | Up to 20 channels |
| API | ONVIF (PROFILE S, PROFILE G), ISAPI, SDK |
| Protocols | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour |
| User/Host | Up to 32 users. 3 user levels: administrator, operator and user |
| Security | Password protection, HTTPS encryption, IEEE 802.1x port-based network access control, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for ONVIF |
| Network Storage | microSD/SDHC/SDXC card (256 GB), local storage and NAS (NFS, SMB/CIFS), ANR |
| Client | iVMS-4200, Hik-Connect, iVMS-5200, Hik-Central |
| Web Browser | Plug-in required live view: IE8-11, Chrome 41-44, Mozilla Firefox30.0-51, Safari8.0+, Plug-in free live view: Chrome 45+, Mozilla Firefox52+ |
| Alarm Trigger | Motion detection, video tampering alarm, network disconnected, IP address conflict, illegal login, HDD full, HDD error |
| Image | |
| Day/Night Switch | Day/Night/Auto/Schedule/Triggered by Alarm In |
| Target Cropping | Yes |
| DNR | 3D DNR |
| Picture Overlay | LOGO picture can be overlaid on video with 128 × 128 24bit bmp format |
| Image Enhancement | BLC, HLC, 3D DNR, Defog, EIS |
| Image Settings | Rotate mode, saturation, brightness, contrast, sharpness, AGC, and white balance are adjustable by client software or web browser |
| Interface | |
| Audio | No |
| Alarm | 2 inputs, 2 outputs (up to 24 VDC 1A or 110 VAC 500 mA) |
| Video Output | 1 BNC: CVBS analog output (4CIF resolution), internal, 1Vp-p composite output (75 Ω/CVBS) |
| On-board Storage | Built-in microSD/SDHC/SDXC slot, up to 256 GB |
| Hardware Reset | Yes |
| Communication Interface | 1 RJ45 10M/100M/1000M Ethernet port |
| Heater | -H: yes |
| Event | |
| Smart Event | Line crossing detection, intrusion detection, region entrance detection, region exiting detection, unattended baggage detection, object removal detection |
| Counting | Face Detection |
| Exception Detection | Scene change detection, defocus detection |
| General | |
| Firmware Version | 5.5.80 |
| General Function | One-key reset, anti-flicker, 5 streams and up to 5 custom streams, heartbeat, password protection, privacy mask, watermark, IP address filter |
| Startup and Operating Conditions | -30 °C to 65 °C (-22 °F to 149 °F), -H: -40 °C to 65 °C (-40 °F to 149 °F), Humidity 95% or less (non-condensing) |
| Power Supply | 12 VDC ± 20%, two-core terminal block, PoE (802.3at, class 4) |
| Power Consumption and Current | -IZS: 12 VDC, 1.0 A, max. 12 W; PoE (802.3at, 42.5 V to 57 V), 0.3 A to 0.2 A, -IZHS: 12 VDC, 1.3 A, max. 15 W; PoE (802.3at, 42.5 V to 57 V), 0.4 A to 0.3 A |
| Camera Dimension | Camera: Φ144 × 347 mm (Φ5.7″ × 13.7″), With package: 405 × 190 × 180 mm (15.9″ × 7.5″ × 7.1″) |
| Camera Weight | Camera: approx. 2.45 kg (5.40 lb.), With package: approx. 2.7 kg (5.95 lb.) |
| Approval | |
| EMC | RCM: AS/NZS CISPR 32: 2015, IC: IC-VoC(ICES-003 Issue 7:2020), FCC: FCC-SDoC(ANSI C63.4,FCC Part15 sub B), KC: KN32:2015, KN35:2015, CE: CE-EMC(EN 50130-4:2011+A1:2014, EN 55032:2015, EN 61000-3-2:2014, EN 61000-3-3:2013) |
| Safety | CB: IEC 60950-1, UL: UL 60950-1:2014, CAN/CSA C22.2 No. 60950-1-07:2014, LOA: SANS IEC60950-1, BIS: IS 13252(Part 1)2010+A1:2013+A2:2015, CE: CE-LVD(EN 60950-1:2006+A11:2009+A1:2010+A12:2011+A2:2013) |
| Environment | CE: CE-RoHS(RoHS Directive 2011/65/EU+2015/863), REACH SVHC: Regulation (EC) No 1907/2006 |
| Protection | IK10 (IEC 62262:2002), IP67 (IEC 60529-2013) |
All IP cameras and recording devices (NVR’s/DVR’s) are covered by a 3 year back-to-base manufacturer warranty.
Our warranty is limited to the replacement of faulty items or parts and does not include damage due to incorrect fitting of parts or accessories, or damage due to mishandling the equipment once out of the box. All faults are sent to the manufacturer for inspection and diagnosis before a replacement is sent out.
Read more about the Terms & Conditions here – https://www.securityaustralia.com.au/terms-and-conditions/
*Just spend over $100 to activate Fast Free Shipping!
Despatch Times: Products are despatched on the same day if the order was placed before 11am on any weekday, Monday - Friday. All other orders are processed and despatched within 24 hours or next business day.
Order Confirmation: Once you place an order, you will receive a confirmation email. This indicates that your order has been received in our system and is now being processed for dispatch. If your item is back-ordered or unavailable, we will notify you via email, and if we do not receive a response, we will attempt to contact you by phone as soon as possible. We value your time and strive to be prompt. If your item(s) are available for immediate shipment (within 2 days), we will process the charges and prepare the order for shipping.
Shipping Times: General shipping times for StarTrack, TNT and Allied couriers are between 1-3 working days from despatch. Longer delivery times may be caused by your package being held at your local courier depot that is beyond our control. Please contact us or the local post depot for confirmation.
Tracking Numbers: all tracking numbers will be emailed to you by our warehouse processing team within the day, after your order is despatched to our local courier.
Hikvision DS-2CD5A85G0-IZ 8MP Motorised DarkFighter / Lightfighter Bullet Network Camera
Hikvision DS-2CD5A85G0-IZ 8MP Motorised DarkFighter / Lightfighter Bullet Network Camera
The Hikvision DS-2CD5A85G0-IZ is a cutting-edge 8MP Motorised Bullet Network Camera designed for exceptional performance in diverse surveillance environments. With its advanced DarkFighter and Lightfighter technologies, this camera offers stunning 4K video quality while maintaining clarity in challenging lighting conditions. Ideal for a variety of applications, including critical infrastructure and public spaces, the DS-2CD5A85G0-IZ ensures reliable monitoring across both bright and low-light scenarios.
Equipped with a motorized varifocal lens that ranges from 2.8mm to 12mm, this camera allows users to adjust the focal length easily for both wide coverage and detailed observations. The integrated infrared technology provides clear night vision up to 50 meters, ensuring comprehensive surveillance coverage 24/7. Crafted with a robust and weather-resistant housing, the camera is rated IP67, making it suitable for both indoor and outdoor installations under varying conditions.
Designed for user-friendly operation, the DS-2CD5A85G0-IZ includes a variety of smart features such as intelligent video analytics and advanced streaming technology. With support for H.265+ compression, this camera optimizes bandwidth and storage utilization while delivering high-quality video streams, ensuring effective performance in modern surveillance systems.
Features:
Functions:
Comprehensive Surveillance Coverage:
The advanced motorized lens and robust zoom capabilities allow the camera to monitor extensive areas effectively, ensuring no critical activity is overlooked.
Reliable Night Vision:
With exceptional infrared capability, this camera guarantees clear visibility during nighttime surveillance, maintaining operational efficiency in low-light environments and complete darkness.
Real-Time Alerting:
Advanced analytics allow for immediate notifications based on detected movements or activities, ensuring security personnel can respond quickly to potential threats.
Flexible Monitoring Options:
The varifocal zoom lens allows for customizable adjustments to the camera’s view, enabling operators to focus on specific areas of interest easily.
User-Friendly Interface:
The intuitive design simplifies camera setup and management, allowing users to access features and configure settings without extensive training.
Seamless Integration:
This camera is compatible with a range of Hikvision devices, ensuring effortless integration into existing security infrastructures to enhance system functionality.
Technical Specifications
| Model | DS-2CD5A85G0-IZ |
| Image Sensor | 1/1.8" Progressive Scan CMOS |
| Resolution | 8 MP (3840 x 2160) |
| Min. Illumination | Color: 0.007 Lux @(F1.2, AGC ON); 0 Lux with IR |
| IR Distance | Up to 50 meters (EXIR 2.0 technology) |
| Shutter Speed | 1 s to 1/100,000 s |
| Slow Shutter | Yes |
| Wide Dynamic Range (WDR) | 120 dB True WDR |
| Lens Type | Motorized Varifocal Lens (2.8-12 mm or 8-32 mm) |
| Optical Zoom | Motorized, up to 25x (depending on lens type) |
| Video Compression | H.265+/H.265/H.264+/H.264/MJPEG |
| Frame Rate | Up to 60 fps at 1080p |
| Day & Night Functionality | IR Cut Filter |
| Protection Rating | IP66, IK10 (vandal resistant) |
| Power Supply | 12V DC / PoE (802.3at) |
| Operating Temperature | -40 °C to +60 °C (-40 °F to +140 °F) |
