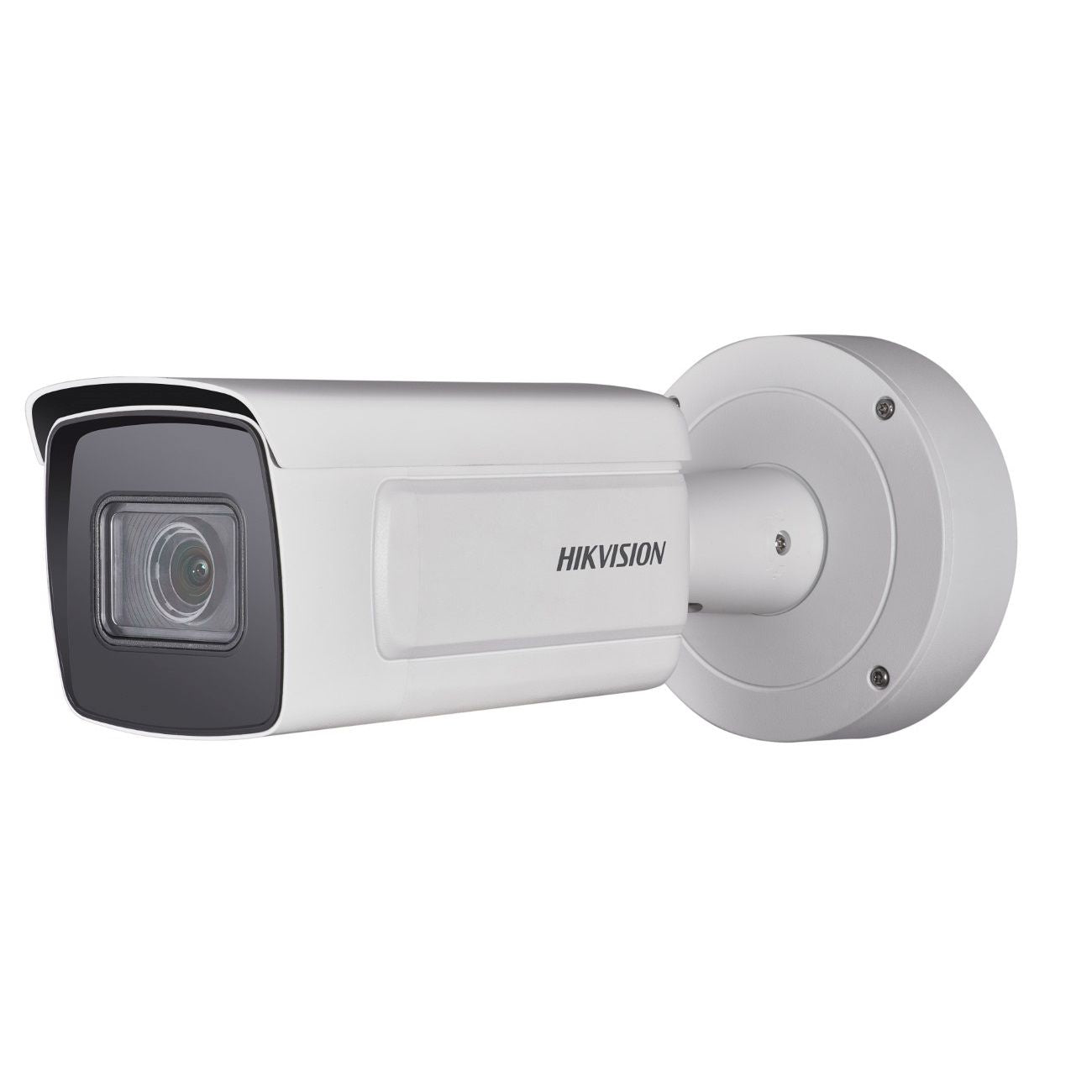

Hikvision DS-2CD5A46G0-IZS Darkfighter 4MP Outdoor Bullet Camera 50m IR, 2.8-12mm

$1,152.00 AUD
 per
Tax included.
Shipping calculated at checkout.
In stock!
Spend $100.00 to FREE SHIPPING

Free shipping - Enjoy free shipping when your order exceeds $100!

All orders are despatched within the next business day!

Best local support in Aus! We back all products with a 3 year manufacturer warranty.

Hikvision DS-2CD5A46G0-IZS Darkfighter 4MP Outdoor Bullet Camera 50m IR, 2.8-12mm

The HIK-2CD5A46G0IZS is an outdoor, motorised varifocal IR bullet camera that produces an exceptional 4MP high-resolution video at 30fps. Powered by both Hikvision's Darkfighter and Lightfighter technology, it can produce an incredibly well-balanced image both under ultra-low light and extreme backlighting conditions.

Key Features

  • High-Resolution Video: Produces 4MP high-resolution video at 30fps for clear surveillance footage.
  • Advanced Imaging Technology: Utilizes Darkfighter and Lightfighter technology for optimal performance in low-light conditions.
  • Efficient Video Compression: Supports H.265 and H.265+ encoding, reducing bandwidth and storage requirements by up to 50% and 80%, respectively.
  • Wide Dynamic Range: 140dB true WDR ensures improved visibility in highly contrasted lighting environments.
  • Audio/Alarm I/O: Integrated audio and alarm interfaces for enhanced monitoring capabilities.
  • Infrared Technology: Built-in EXIR 2.0 technology provides up to 50m infrared visibility at night.
  • Motorised Varifocal Lens: 2.8-12mm lens offers flexibility in viewing angles for varied installation needs.

Code/SKU: DS-2CD5A46G0-IZS
Quick Specs:

  • Max Resolution: 4MP for high-quality imaging.
  • IR Distance: Up to 50m for effective night surveillance.
  • Dynamic Range: 140dB WDR for capturing details in challenging lighting.

This camera is ideal for outdoor environments requiring high-quality surveillance with advanced image processing capabilities and flexible lens options.

Addons

Specifications

Image Sensor:1/1.8" Progressive Scan CMOS
Signal System:PAL/NTSC
Min. Illumination:Color: 0.002 Lux @ (F1.2, AGC ON), 0.005 Lux @ (F1.8, AGC ON), 0 Lux with IR
Shutter time:1 s to 1/100,000 s
Slow shutter:Yes
Lens:2.8 to 12 mm
Lens Mount:Integrated
Auto Iris:DC drive, P-iris
Adjustment Range:Bracket, pan: 0° to 355°, tilt: 0° to 90°, rotate: 0° to 360°
Day& Night:IR Cut Filter
Wide Dynamic Range:140dB
Focus:Auto, semi-auto, manual
Compression Standard
Video Compression:H.265+/H.265/H.264+/H.264/MJPEG
H.264 code profile:Baseline Profile/Main Profile/High Profile
Video bit rate:256Kbps~16Mbps
Dual Stream:Yes
Triple Streams:Yes
Max. Image Resolution:2560 × 1440
Sub Stream:50Hz: 25fps (704 × 576, 640 × 480)60Hz: 30fps (704 × 480, 640 × 480)
Third Stream:50Hz: 25fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480)60Hz: 30fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480)
Image Enhancement:BLC, HLC, 3D DNR, Defog, EIS
Image Settings:Rotate mode, saturation, brightness, contrast, sharpness, AGC, and white balance are adjustable by client software or web browser
Target Cropping:Yes
BLC:Support
HLC:Support
Smart Defog:Support
EIS:Support
3D DNR:Support
Picture Overlay:LOGO picture can be overlaid on video with 128 × 128 24bit bmp format
Day/Night Switch:Day/Night/Auto/Schedule/Triggered by Alarm In
Network
Security:Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for ONVIF, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.2, TLS1.0, TLS1.1
Network Storage:Support microSD/SDHC/SDXC card (256 GB) local storage and NAS (NFS,SMB/CIFS), ANR
Alarm Trigger:Motion detection, video tampering alarm, network disconnected, IP address conflict, illegal login, HDD full, HDD error
Protocols:TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour
General Function:Anti-flicker, 5 streams and up to 5 custom streams, heartbeat, mirror, privacy masks, flash log, password reset via e-mail, pixel counter, HTTP listening
System Compatibility:ONVIF (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK, Ehome
Intelligent
Behavior analysis:Line crossing detection, intrusion detection, region entrance detection, region exiting detection, unattended baggage detection, object removal detection
Interface
Communication Interface:1 RJ45 10M/100M/1000M Ethernet port
Alarm:2 inputs, 2 outputs (up to 24 VDC 1A or 110 VAC 500 mA)
Alarm Input:2
Alarm Output:2
Video Output:1Vp-p composite output (75 Ω/CVBS)
On-board storage:Built-in micro SD/SDHC/SDXC slot, up to 256 GB
Reset Button:Yes
Smart Feature-set
Behavior Analysis:Line crossing detection, Intrusion detection, Region entrance, Region exiting, Unattended baggage, Object removal
Line Crossing Detection:Cross a pre-defined virtual line
Intrusion Detection:Enter and loiter in a pre-defined virtual region
Region Entrance:Enter a pre-defined virtual region from the outside place
Region Exiting:Exit from a pre-defined virtual region
Unattended Baggage:Objects left over in the pre-defined region such as the baggage, purse, dangerous materials
Object Removal:Objects removed from the pre-defined region, such as the exhibits on display.
Exception Detections:Scene change detection, defocus detection
Recognition:Face Detection
Statistics:Object Counting (Entrance and Exit object number is accounted and showed on screen in real time)
General
IR Range:Up to 50 m
Operation Condition:-30 °C to 65 °C (-22 °F to 149 °F), -H: -40 °C to 65 °C (-40 °F to 149 °F)Humidity 95% or less (non-condensing)
Power Supply:12 V DC ± 20%, PoE (802.3at, class 4)
Power Consumption:-IZS: 12 VDC, 1.08 A, max. 13 W; PoE (802.3at, 42.5 V to 57 V), 0.31 A to 0.23 A, max. 13 W-IZHS: 12 VDC, 1.13 A, max. 13.5 W; PoE (802.3at, 42.5 V to 57 V), 0.42 A to 0.32 A, max. 18 W
Impact Protection:IK10
Weather Proof:IP67
Dimensions:Camera: Φ144 × 347 mm (Φ5.7″ × 13.7″)With package: 405 × 190 × 180 mm (15.9″ × 7.5″ × 7.1″)
Weight:Camera: approx. 2.45 kg (5.40 lb.)With package: approx. 2.7 kg (5.95 lb.)

Documentation

3 Years Manufacturer Warranty

All IP cameras and recording devices (NVR’s/DVR’s) are covered by a 3 year back-to-base manufacturer warranty.

Our warranty is limited to the replacement of faulty items or parts and does not include damage due to incorrect fitting of parts or accessories, or damage due to mishandling the equipment once out of the box. All faults are sent to the manufacturer for inspection and diagnosis before a replacement is sent out.

Read more about the Terms & Conditions here – https://www.securityaustralia.com.au/terms-and-conditions/

Trusted Brand Partner & Security Equipment Wholesaler

Authorised Brand Partner with Responsive & Fast Aussie Sales Support Team ★★★★★
Best After-Sales Support and Troubleshooting Team with Years of Installation Experience.

Free Delivery* & Despatch Time

*Just spend over $100 to activate Fast Free Shipping!

Despatch Times: Products are despatched on the same day if the order was placed before 11am on any weekday, Monday - Friday. All other orders are processed and despatched within 24 hours or next business day.

Order Confirmation: Once you place an order, you will receive a confirmation email. This indicates that your order has been received in our system and is now being processed for dispatch. If your item is back-ordered or unavailable, we will notify you via email, and if we do not receive a response, we will attempt to contact you by phone as soon as possible. We value your time and strive to be prompt. If your item(s) are available for immediate shipment (within 2 days), we will process the charges and prepare the order for shipping.

Shipping Times: General shipping times for StarTrack, TNT and Allied couriers are between 1-3 working days from despatch. Longer delivery times may be caused by your package being held at your local courier depot that is beyond our control. Please contact us or the local post depot for confirmation.

Tracking Numbers: all tracking numbers will be emailed to you by our warehouse processing team within the day, after your order is despatched to our local courier.

View full details

Hikvision DS-2CD5A46G0-IZS Darkfighter 4MP Outdoor Bullet Camera 50m IR, 2.8-12mm

Discover Advanced Surveillance with the Hikvision DS-2CD5A46G0-IZS

Part of Hikvision's new Enterprise range of network cameras, the DS-2CD5A46G0-IZS is an outdoor motorised varifocal IR bullet camera designed to deliver exceptional 4MP high-resolution video quality. Utilizing Hikvision's Darkfighter and Lightfighter technology, this camera ensures well-balanced images in both ultra-low light and extreme backlighting conditions, making it suitable for various demanding surveillance applications.

Featuring a motorised varifocal lens with a range of 2.8-12mm, the camera provides the flexibility to adjust its field of view, enabling quick and efficient configuration according to specific monitoring needs. Additionally, the camera supports advanced video compression standards, such as H.265 and H.265+, ensuring efficient video storage and transmission while maintaining high image quality.

With an IP67 rating for weather resistance and an IK10 rating for vandal resistance, this Hikvision camera guarantees durability in outdoor environments. It is rigorously tested to ensure reliable, 24/7 video surveillance with outstanding clarity and performance.

Key Features:

  • High-Resolution Imaging: Provides a resolution of 2560 x 1440 pixels at 30 frames per second, ensuring high-quality video capturing essential for effective surveillance across various settings and lighting conditions.
  • Motorised Varifocal Lens: The 2.8-12mm lens enables flexible adjustment of the field of view, allowing users to tailor the camera's focus according to the specific layout and coverage requirements.
  • Low Light Performance: With a minimum illumination of 0.002 lux, this camera excels in low-light conditions, providing clear color images in darkness and elevating overall night surveillance quality.
  • Advanced Video Compression: Supports H.265, H.265+, H.264, and H.264+ compression technologies, optimizing bandwidth usage and storage efficiency without compromising video quality, allowing for longer recording durations.
  • Wide Dynamic Range: 140dB True WDR technology enhances clarity in scenes with significant light variations, capturing detailed images in bright and dark areas simultaneously, which is beneficial for outdoor applications.
  • 3D Digital Noise Reduction: This feature reduces noise in video footage, improving image quality and ensuring clear visuals during challenging lighting scenarios, keeping surveillance feeds clean and usable.
  • IR Range: Up to 50 meters of infrared illumination ensures reliable night vision capabilities, making it effective for continuous monitoring during low-light conditions or nighttime scenarios.
  • Rugged Construction: Rated IP67 for weatherproofing and IK10 for impact resistance, this camera is designed to withstand harsh environmental conditions, ensuring dependable and uninterrupted outdoor surveillance capabilities.

Functions:

AcuSense Technology:
This camera’s advanced analytics differentiate between human and vehicle targets effectively, reducing false alarms significantly and providing accurate alerts when actual threats are detected in monitored areas.

Efficient Night Time Surveillance:
With Darkfighter technology, it ensures effective night vision performance, producing clear and detailed images even in complete darkness, enhancing security during nighttime hours and low-light situations.

Seamless Integration:
Compatible with a variety of existing surveillance systems, this camera can be integrated into current infrastructures easily, enhancing monitoring capabilities without extensive modifications or additional setup requirements.

Real-Time Alerts:
Provides instant notifications on detected events, enabling rapid response from security personnel, thus enhancing overall security measures and allowing for effective incident management.

Customizable User Interface:
The interface allows users to configure various settings easily, making it straightforward to manage camera operations and adapt functionalities based on specific surveillance needs.

Storage Flexibility:
Supports on-board storage up to 256GB, providing ample space for video recordings while enabling easy retrieval of footage for review and analysis as needed.

Intelligent Video Analytics:
Capable of performing tasks such as face detection and object counting, this feature enhances efficiency by allowing users to filter relevant footage for incident assessment quickly.

Technical Specifications

Model DS-2CD5A46G0-IZS
Image Sensor 1/1.8 inch Progressive Scan CMOS
Resolution 2560 x 1440 (4MP) at 30 fps
Minimum Illumination Color: 0.002 Lux @(F1.2, AGC ON); 0 Lux with IR
Lens Motorised Varifocal Lens (2.8-12mm)
Wide Dynamic Range (WDR) 140 dB
IR Range Up to 50 meters with EXIR technology
Video Compression H.265, H.265+, H.264, H.264+
3D Digital Noise Reduction (DNR) Yes
Storage Support microSD/SDHC/SDXC card slot, up to 256GB
Alarm I/O Yes
Protection Rating IP67 (Weatherproof), IK10 (Vandal-resistant)
Power Supply 12V DC / PoE (802.3af)
Operating Temperature -40 °C to +60 °C (-40 °F to +140 °F)
Weight Approx. 1.3 kg (2.87 lb)
Dimensions Diameter: 110 mm, Height: 100 mm (4.33" x 3.94")
Smart Features Intrusion Detection, Line Crossing Detection, Face Detection
