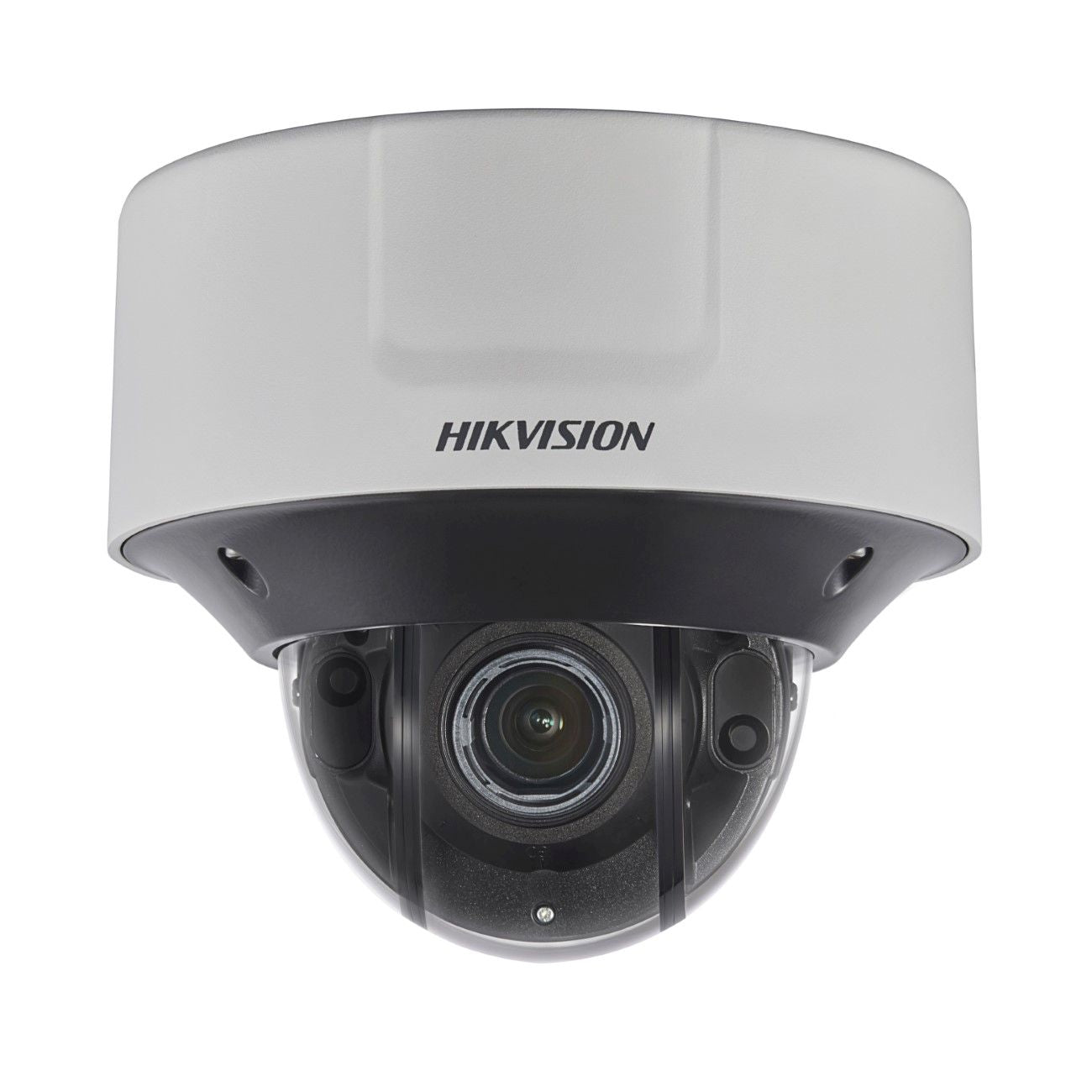

Hikvision DS-2CD5526G0-IZS 2MP Outdoor Darkfighter Dome Camera, 140dB WDR, IR, VCA, 60fps, 2.8-12m
Part of Hikvision's enterprise range of network cameras, the DS-2CD5526G0-IZS is an outdoor motorized varifocal IR dome camera that produces exceptional 2MP high-resolution video. Powered by Darkfighter and Lightfighter technology, this camera can produce clear and crisp images in environments with extreme background lighting or in ultra-low light situations.
The HIK-2CD5526GIZS2 includes an ideal combination of smart features for its affordable price such as 140dB true wide dynamic range (WDR), image sensor technology, a high definition image processing chipset, audio/alarm IO, smart video content analytics (VCA), and built-in EXIR 2.0 infrared technology providing up to 30m visibility at night. Additionally, this camera supports H.265 and H.265+ intelligent video compression, which reduces bandwidth/storage requirements by up to 50 percent and 80 percent, respectively. With a 2.8-12mm motorized varifocal lens, this camera offers great flexibility.
Key Features
Code/SKU: DS-2CD5526G0-IZS
Quick Specs:
| Image Sensor: | 1/1.8" Progressive Scan CMOS | |
| Signal System: | PAL/NTSC | |
| Min. Illumination: | Color: 0.002 Lux @ (F1.2, AGC ON), 0.004 Lux @ (F1.6, AGC ON), 0 Lux with IR | |
| Shutter time: | 1 s to 1/100,000 s | |
| Slow shutter: | Yes | |
| Lens: | 2.8 to 12 mm,8 to 32 mm | |
| Lens Mount: | Integrated | |
| Auto Iris: | DC drive, P-iris | |
| Adjustment Range: | Pan: 0° to 355°, tilt: 0° to 75°, rotate: 0° to 355° | |
| Day& Night: | IR Cut Filter | |
| Wide Dynamic Range: | 140dB | |
| Digital noise reduction: | 3D DNR | |
| Focus: | Auto, semi-auto, manual |
| Compression Standard | ||
|---|---|---|
| Video Compression: | H.265+/H.265/H.264+/H.264/MJPEG | |
| H.264 code profile: | Baseline Profile/Main Profile/High Profile | |
| Video bit rate: | 32Kbps~16Mbps | |
| Audio Compression: | G.711/G.722.1/G.726/MP2L2/PCM/MP3 | |
| Audio bit rate: | 64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2)/32Kbps(PCM)/ 8-320Kbps(MP3) | |
| Dual Stream: | Yes | |
| Triple Streams: | Yes | |
| Image | ||
|---|---|---|
| Max. Image Resolution: | 1920 x 1080 | |
| Frame Rate: | 50Hz: 50fps (1920 × 1080, 1280 × 960, 1280 × 720)60Hz: 60fps (1920 × 1080, 1280 × 960, 1280 × 720) | |
| Sub Stream: | 50Hz: 25fps (704 × 576, 640 × 480)60Hz: 30fps (704 × 480, 640 × 480) | |
| Third Stream: | 50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480)60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480) | |
| Image Enhancement: | BLC, HLC, 3D DNR, Defog, EIS, distortion correction | |
| Image Settings: | Rotate Mode, Saturation, Brightness, Contrast, Sharpness adjustable by client software or web browser | |
| Automatic gain control: | Support | |
| Automatic white balance: | Support | |
| BLC: | Support | |
| HLC: | Support | |
| Smart Defog: | Support | |
| EIS: | Support | |
| 3D DNR: | Support | |
| Picture Overlay: | LOGO picture can be overlaid on video with 128 × 128 24bit bmp format | |
| Day/Night Switch: | Auto/Schedule/Day/Night/Triggered by Alarm In | |
| Network | ||
|---|---|---|
| Network Storage: | Support microSD/SDHC/SDXC card (256 GB) local storage and NAS (NFS,SMB/CIFS), ANR | |
| Alarm Trigger: | Motion detection, video tampering alarm, network disconnected, IP address conflict, illegal login, HDD full, HDD error | |
| Protocols: | TCP/IP, ICMP, HTTP, HTTPS, FTP, SFTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS | |
| General Function: | One-key reset, anti-flicker, five streams and up to 5 custom streams, heartbeat, password protection, privacy mask, watermark, IP address filter | |
| System Compatibility: | ONVIF (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK, Ehome | |
| Intelligent | ||
|---|---|---|
| Behavior analysis: | Line crossing detection, intrusion detection, region entrance detection, region exiting detection, unattended baggage detection, object removal detection | |
| Interface | ||
|---|---|---|
| Communication Interface: | 1 RJ45 10M/100M/1000M Ethernet port | |
| Audio: | 1-ch 3.5 mm input (line in), 1-ch 3.5mm output, mono | |
| Alarm: | 1 input, 1 output (max. 24 VDC/VAC, 1A max.) | |
| Alarm Input: | 1 | |
| Alarm Output: | 1 | |
| Video Output: | 1Vp-p composite output (75 Ω/BNC) (For adjustment only) | |
| On-board storage: | Built-in micro SD/SDHC/SDXC slot, up to 256 GB | |
| Reset Button: | Yes | |
| Audio | ||
|---|---|---|
| Environment Noise Filtering: | Support | |
| Audio Sampling Rate: | 8 kHz/16 kHz/32 kHz/44.1 kHZ/48 kHz | |
| Smart Feature-set | ||
|---|---|---|
| Behavior Analysis: | Line crossing detection, Intrusion detection, Region entrance, Region exiting, Unattended baggage, Object removal | |
| Exception Detections: | Scene change detection, Sudden audio increase/decrease detection, Audio loss detection, Defocus detection | |
| Recognition: | Face Detection | |
| Statistics: | Object Counting (Entrance and Exit object number is accounted and showed on screen in real time) | |
| General | ||
|---|---|---|
| IR Range: | 2.8 to 12 mm lens: IR range up to 30 m, 8 to 32 mm lens: IR range up to 50 m | |
| Operation Condition: | -IZS: -30 °C to 65 °C (-22 °F to 149 °F), humidity 95% or less (non-condensing)-IZHS: -40 °C to 65 °C (-40 °F to 149 °F), humidity 95% or less (non-condensing) | |
| Power Supply: | 12 VDC is recommended, 10 to 48 VDC, two-core terminal block, reverse polarity protection,PoE (802.3at, class 4) | |
| Power Consumption: | -IZS:With extra load: 12 VDC, 1.1 A, max. 12 W; PoE (802.3at, 42.5 V to 57 V), 0.3 A to 0.2 A, class 4Without extra load: 12 VDC, 0.95 A, max. 10 W; PoE (802.3at, 42.5 V to 57 V), 0.3 A to 0.2 A, class 4-IZHS:With extra load: 12 VDC, 1.4 A, max. 17 W; PoE (802.3at, 42.5 V to 57 V), 0.4 A to 0.3 A, class 4Without extra load: 12 VDC, 1.2 A, max. 15 W; PoE (802.3at, 42.5 V to 57 V), 0.4 A to 0.3 A, class 4"with extra load" means that an extra device is connected to and powered by the camera. | |
| Impact Protection: | IK10 | |
| Weather Proof: | IP67 | |
| Dimensions: | Camera: Φ162 × 140.3 mm (Φ6.4″ × 5.5″)With package: 251 × 215 × 189 mm (9.9″ × 8.5″ × 7.4″) | |
| Weight: | Camera: 1450 g (3.20 lb.)With package: 1950 g (4.30 lb.) | |
All IP cameras and recording devices (NVR’s/DVR’s) are covered by a 3 year back-to-base manufacturer warranty.
Our warranty is limited to the replacement of faulty items or parts and does not include damage due to incorrect fitting of parts or accessories, or damage due to mishandling the equipment once out of the box. All faults are sent to the manufacturer for inspection and diagnosis before a replacement is sent out.
Read more about the Terms & Conditions here – https://www.securityaustralia.com.au/terms-and-conditions/
*Just spend over $100 to activate Fast Free Shipping!
Despatch Times: Products are despatched on the same day if the order was placed before 11am on any weekday, Monday - Friday. All other orders are processed and despatched within 24 hours or next business day.
Order Confirmation: Once you place an order, you will receive a confirmation email. This indicates that your order has been received in our system and is now being processed for dispatch. If your item is back-ordered or unavailable, we will notify you via email, and if we do not receive a response, we will attempt to contact you by phone as soon as possible. We value your time and strive to be prompt. If your item(s) are available for immediate shipment (within 2 days), we will process the charges and prepare the order for shipping.
Shipping Times: General shipping times for StarTrack, TNT and Allied couriers are between 1-3 working days from despatch. Longer delivery times may be caused by your package being held at your local courier depot that is beyond our control. Please contact us or the local post depot for confirmation.
Tracking Numbers: all tracking numbers will be emailed to you by our warehouse processing team within the day, after your order is despatched to our local courier.
Hikvision DS-2CD5526G0-IZS 2MP Outdoor Darkfighter Dome Camera, 140dB WDR, IR, VCA, 60fps, 2.8-12m
Hikvision DS-2CD5526G0-IZS 2MP Outdoor Darkfighter Dome Camera
The Hikvision DS-2CD5526G0-IZS is a high-performance outdoor dome camera designed to provide exceptional surveillance capabilities in various environments. Utilizing advanced Darkfighter and Lightfighter technology, this camera delivers superior image quality even in low-light situations, making it ideal for 24/7 surveillance. With its 2MP high-resolution capability, users can expect clear and detailed footage, ensuring accuracy in monitoring critical areas.
Equipped with a motorized varifocal lens that ranges from 2.8mm to 12mm, the DS-2CD5526G0-IZS offers flexible installation options and customizable fields of view to suit specific surveillance needs. The camera features comprehensive technologies, such as 140dB true wide dynamic range, which optimizes image clarity, even in environments with challenging lighting conditions. Built to withstand outdoor elements with an IP67 rating, this camera guarantees reliable operation regardless of weather variables.
Designed for ease of use, the DS-2CD5526G0-IZS supports intelligent video content analysis (VCA) capabilities, adding layers of functionality for efficient surveillance management, including face detection and object counting. This makes it not only a reliable tool but also an intelligent solution for modern security applications.
Features:
Functions:
Comprehensive Surveillance Coverage:
This camera’s motorized lens allows for wide area monitoring while enabling users to focus on significant details, enhancing overall security efficiency across monitored sites.
Reliable Night Vision:
With enhanced infrared capabilities, it ensures that clear imagery is captured during low-light hours, allowing for continued surveillance around the clock.
Proactive Security Management:
The intelligent video analytics functionality enables the camera to detect defined behaviors, sending alerts for any suspicious activities detected around the monitored areas.
Flexible Configuration:
The adjustable lens allows for quick changes in perspective, making it easy for users to set up specific monitoring angles based on situational needs.
Remote Manageability:
Enables users to access live video feeds and recorded footage remotely through mobile applications, enhancing flexibility for security personnel in responding to incidents.
Seamless Network Integration:
Compatible with a wide array of Hikvision devices, ensuring smooth integration into existing security systems while enhancing overall functional performance.
Efficient Adaptive Compression:
Supports advanced compression techniques, including H.265+, allowing for reduced storage requirements and bandwidth usage while maintaining high video clarity.
Technical Specifications
| Model | DS-2CD5526G0-IZS |
| Image Sensor | 1/1.8 inch Progressive Scan CMOS |
| Resolution | 1920 x 1080 at up to 60fps |
| Minimum Illumination | Colour: 0.002 lux (F1.2, AGC ON) |
| Lens | 2.8-12mm Motorised Varifocal |
| Compression | H.265, H.265+, H.264, H.264+ |
| Wide Dynamic Range (WDR) | 140dB |
| IR Distance | Up to 30m |
| Video Content Analytics (VCA) | Face detection, Object counting |
| Protection Rating | IK10, IP67 |
| Power Options | 12VDC or PoE |
| Storage | Supports on-board storage up to 256 GB |
