| Image Sensor: | 1/1.8" Progressive Scan CMOS | |
| Min. Illumination: | 0.01 Lux @(F1.2,AGC ON), 0.014 Lux @(F1.4,AGC ON), 0 Lux with IR | |
| Shutter time: | 1s ~ 1/100,000s | |
| Slow shutter: | Support | |
| Lens: | 2.8-12mm @ F1.4, 94.5°~30.5° | |
| Auto Iris: | DC drive | |
| Day& Night: | IR cut filter with auto switch | |
| Wide Dynamic Range: | Digital WDR |
| Compression Standard | ||
|---|---|---|
| Video Compression: | H.264+/H.264/MJPEG | |
| H.264 code profile: | Baseline Profile / Main Profile / High Profile | |
| Video bit rate: | 32Kbps~16Mbps | |
| Audio Compression: | G.711/G.722.1/G.726/MP2L2 | |
| Audio bit rate: | 64Kbps(G.711) / 16Kbps(G.722.1) / 16Kbps(G.726) / 32-128Kbps(MP2L2) | |
| Image | ||
|---|---|---|
| Max. Image Resolution: | 3072 x 2048 | |
| Frame Rate: | 50Hz: 24fps (3072 × 2048), 25fps (3072 × 1728, 2560 × 2048, 2560 × 1920, 2048 × 1536, 1920 × 1080, 1280 x 720)60Hz: 24fps (3072 × 2048), 30fps (3072 × 1728, 2560 × 2048, 2560 × 1920, 2048 × 1536, 1920 × 1080, 1280 x 720 ) | |
| Third Stream: | Independent with Main Stream and Sub Stream, up to50/60Hz: 10fps@4CIF | |
| Image Enhancement: | BLC/3D DNR/ROI/Defog | |
| Image Settings: | Saturation, brightness, contrast adjustable through client software or web browser | |
| Target Cropping: | Support | |
| Picture Overlay: | LOGO picture can be overlaid on video with 128x128 24bit bmp format | |
| Day/Night Switch: | Auto/Schedule/Triggered by Alarm In | |
| Network | ||
|---|---|---|
| Network Storage: | NAS (Support NFS,SMB/CIFS), ANR | |
| Alarm Trigger: | Motion detection, tampering alarm, network disconnect , IP address conflict, storage exception | |
| Protocols: | TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour | |
| General Function: | User Authentication, Watermark, IP address filtering | |
| System Compatibility: | ONVIF (Profile S, Profile G),ISAPI | |
| Interface | ||
|---|---|---|
| Audio: | 1-ch audio in, Mic in/Line in;1-ch audio out | |
| Communication Interface: | 1 RJ45 10M/100M/1000M Ethernet port, 1 RS-485 interface | |
| Alarm: | 1 input, 1 output (up to DC24V 1A or AC110V 500mA ) | |
| Video Output: | 1Vp-p Composite Output (75 Ω, BNC) | |
| On-board storage: | Built-in Micro SD/SDHC/SDXC slot, up to 128 GB | |
| Reset Button: | Yes | |
| Audio | ||
|---|---|---|
| Environment Noise Filtering: | Support | |
| Audio I/O: | Support dual audio track, stereo | |
| Audio Sampling Rate: | 16kHz / 32kHz / 44.1kHz / 48kHz | |
| Smart Feature-set | ||
|---|---|---|
| Behavior Analysis: | Line crossing detection, Intrusion detection, Region entrance, Region exiting, Unattended baggage, Object removal | |
| Line Crossing Detection: | Cross a pre-defined virtual line | |
| Intrusion Detection: | Enter and loiter in a pre-defined virtual region | |
| Region Entrance: | Enter a pre-defined virtual region from the outside place | |
| Region Exiting: | Exit from a pre-defined virtual region | |
| Unattended Baggage: | Objects left over in the pre-defined region such as the baggage, purse, dangerous materials | |
| Object Removal: | Objects removed from the pre-defined region, such as the exhibits on display. | |
| Exception Detections: | Scene change detection, Sudden audio increase/decrease detection, Audio loss detection, Defocus detection | |
| Recognition: | Face detection recognition | |
| Statistics: | Object Counting (Entrance and Exit object number is accounted and showed on screen in real time) | |
| General | ||
|---|---|---|
| Operating Conditions: | -30 °C ~ 60 °C (-22 °F ~ 140 °F)Humidity 95% or less (non-condensing) | |
| Power Supply: | DC12V/AC24V/PoE(802.3af) , -H: DC12V/AC24V/PoE(802.3at) | |
| Power Consumption: | Max. 12 W; -H (Smart Heater): 17W | |
| Impact Protection: | IK10 | |
| Weather Proof: | IP66 | |
| IR Range: | Up to 40m | |
| Dimensions: | Φ164.9 × 127 mm (Φ6.49” ×5”) | |
| Weight: | 2100g (4.62lbs) | |
All IP cameras and recording devices (NVR’s/DVR’s) are covered by a 3 year back-to-base manufacturer warranty.
Our warranty is limited to the replacement of faulty items or parts and does not include damage due to incorrect fitting of parts or accessories, or damage due to mishandling the equipment once out of the box. All faults are sent to the manufacturer for inspection and diagnosis before a replacement is sent out.
Read more about the Terms & Conditions here – https://www.securityaustralia.com.au/terms-and-conditions/
*Just spend over $100 to activate Fast Free Shipping!
Despatch Times: Products are despatched on the same day if the order was placed before 11am on any weekday, Monday - Friday. All other orders are processed and despatched within 24 hours or next business day.
Order Confirmation: Once you place an order, you will receive a confirmation email. This indicates that your order has been received in our system and is now being processed for dispatch. If your item is back-ordered or unavailable, we will notify you via email, and if we do not receive a response, we will attempt to contact you by phone as soon as possible. We value your time and strive to be prompt. If your item(s) are available for immediate shipment (within 2 days), we will process the charges and prepare the order for shipping.
Shipping Times: General shipping times for StarTrack, TNT and Allied couriers are between 1-3 working days from despatch. Longer delivery times may be caused by your package being held at your local courier depot that is beyond our control. Please contact us or the local post depot for confirmation.
Tracking Numbers: all tracking numbers will be emailed to you by our warehouse processing team within the day, after your order is despatched to our local courier.

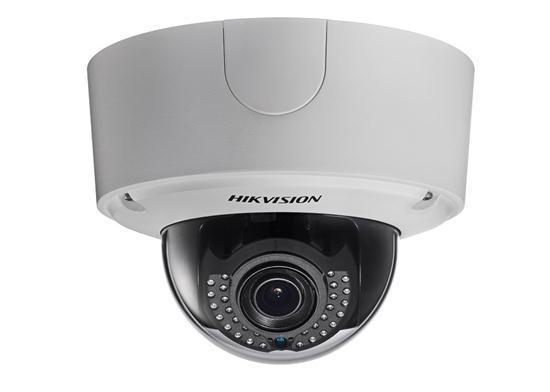

HikVision DS-2CD4565F-IZ 6MP Motorised Camera
Hikvision's 6MP Ultra HD Network Camera range offers advanced high definition technology, with more pixels and detail than ever before, resulting in crystal clear surveillance footage. Features:
| Image Sensor: | | | 1/1.8" Progressive Scan CMOS |
| Min. Illumination: | | | Color: 0.02 Lux @ (F1.2, AGC ON) B/W: 0.001 Lux @ (F1.2, AGC ON) |
| Shutter time: | | | 1 s to 1/100,000 s |
| Slow shutter: | | | Support |
| Lens: | | | 2.8-12mm @ F1.4 |
| Auto Iris: | | | DC drive |
| Adjustment Range: | | | Pan:0° - 355°, Tilt: 0° - 75°, Rotation: 0° - 355° |
| Day& Night: | | | IR cut filter with auto switch |
| Wide Dynamic Range: | | | Support |
| Digital noise reduction: | | | 3D DNR |
| Compression Standard | ||
| Video Compression: | | | H.264/MJPEG |
| H.264 code profile: | | | Baseline Profile / Main Profile / High Profile |
| Video bit rate: | | | 32Kbps~16Mbps |
| Audio Compression: | | | G.711/G.722.1/G.726/MP2L2 |
| Audio bit rate: | | | 64Kbps(G.711) / 16Kbps(G.722.1) / 16Kbps(G.726) / 32-128Kbps(MP2L2) |
| Image | ||
| Max. Image Resolution: | | | 3072 x 2048 |
| Main Stream: | | | 50Hz: 25fps (3072×2048,3072×1728,2560×2048,2560×1920,2048×1536,1920×1080,1280×720) 60Hz: 25fps (3072×2048),30fps(3072×1728,2560×2048,2560×1920,2048×1536,1920×1080,1280×72 0) |
| Third Stream: | | | Independent with Main Stream and Sub Stream, up to 50Hz: 25fps(1280 × 720) 60Hz: 30fps (1280 × 720) |
| Image Settings: | | | Saturation, brightness, contrast adjustable through client software or web browser |
| BLC: | | | Support |
| Smart Defog: | | | Support |
| ROI: | | | Support |
| Day/Night Switch: | | | Auto/Schedule/Triggered by Alarm In |
| Network | ||
| Network Storage: | | | NAS (Support NFS,SMB/CIFS) |
| Alarm Trigger: | | | Intrusion detection, Defocus detection, Motion detection, Face detection, line crossing detection, Dynamic analysis, Tampering alarm, Network disconnect, IP address conflict, Storage exception |
| Protocols: | | | TCP/IP,ICMP,HTTP,HTTPS,FTP,DHCP,DNS,DDNS,RTP,RTSP,RTCP, PPPoE,NTP,UPnP,SMTP,SNMP,IGMP,802.1X,QoS,IPv6,Bonjour |
| Security: | | | User Authentication, Watermark, IP address filtering, Anonymous access |
| System Compatibility: | | | ONVIF, PSIA, CGI, ISAPI |
| Interface | ||
| Audio Input: | | | 1-ch 3.5 mm audio interface, Mic in/Line in. 1 built-in Microphone |
| Audio Output: | | | 1-ch 3.5mm audio interface |
| Communication Interface: | | | 1 RJ45 10M/100M Ethernet port, 1 RS-485 interface and 1 RS-232 interface |
| Alarm Input: | | | 1 |
| Alarm Output: | | | 1 |
| Video Output: | | | 1Vp-p Composite Output (75 Ω, BNC) |
| On-board storage: | | | Built-in Micro SD/SDHC/SDXC card slot, up to 64 GB |
| Reset Button: | | | Yes |
| General | ||
| Protection Level | IP66 | |
| Operating conditions | -30 °C – 60 °C Humidity 95% or less (non-condensing) -H: -40 °C – 60 °C | |
| Power Supply | DC12V/AC24V/PoE(802.3af) , -H: DC12V/AC24V/PoE(802.3at) | |
| IR Distance | Up to 30m (8-32mm to 50m) | |
| Power Consumption | Max: 12W -H: 17W | |
| Dimensions | Φ 164.9 × 127 mm(Φ 6.49” ×5”) | |
| Weight | 2100g (4.62lbs) | |
