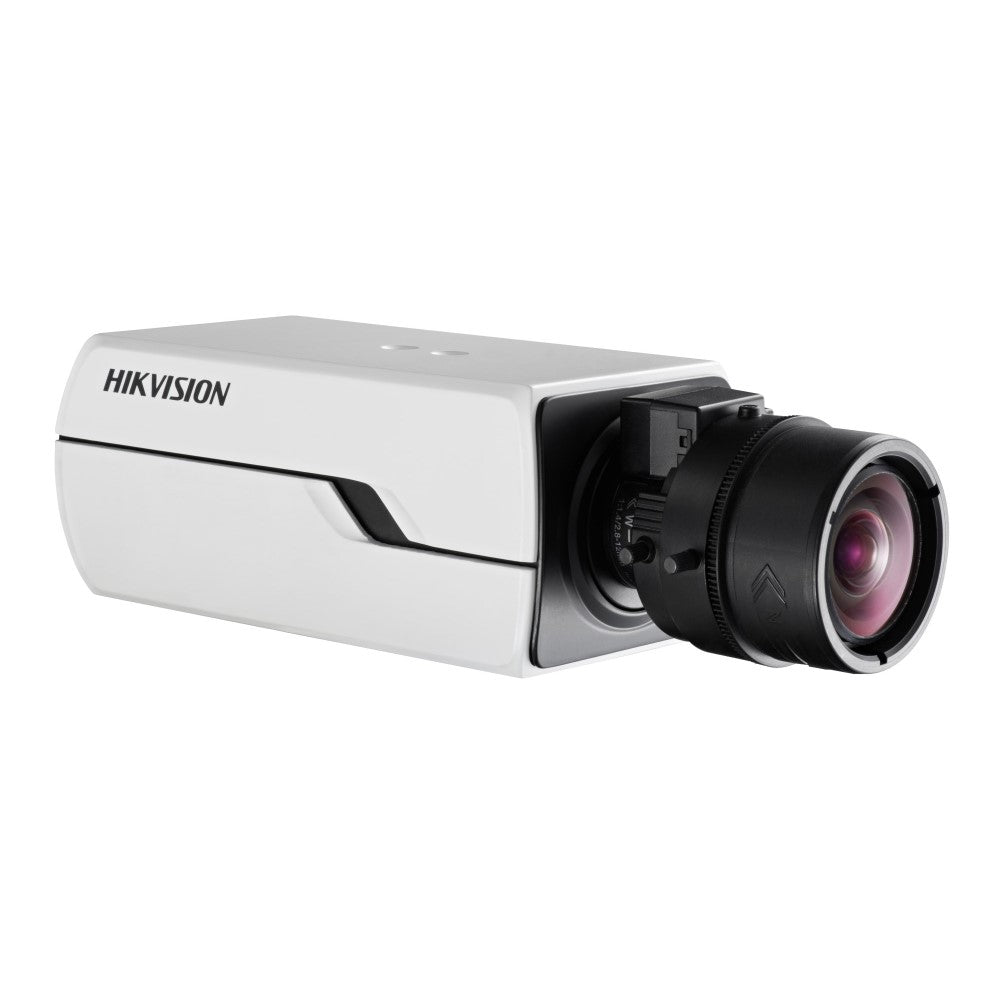

6MP Smart IP Box Camera
Hikvision's 6MP Ultra HD Network Camera range offers advanced high definition technology, with more pixels and detail than ever before, resulting in crystal clear surveillance footage. With its immense field of view, one 6MP Ultra HD covers the area of several conventional cameras. It is capable of real-time images at 25fps, delivering razor sharp images in each frame for a smooth viewing experience.
Key Features
Smart
System
Interface
Security
Code/SKU: DS-2CD4065F-(A)(P)
Quick Specs:
| Camera | |
|---|---|
| Image Sensor | 2.54cm (1/1.8inch) Progressive Scan CMOS |
| Min. Illumination | Color: 0.01 Lux @ (F1.2, AGC ON), B/W: 0.001 Lux @ (F1.2, AGC ON) |
| Shutter Speed | 1s ~ 1/100,000s |
| Slow Shutter | Support |
| Lens Mount | C/CS mount |
| Auto-iris | DC drive |
| Day & Night | IR cut filter with auto switch |
| WDR | DWDR |
| Focus | A: support ABF |
| Compression Standard | |
| Video Compression | H.264+/H.264/MJPEG |
| H.264 Type | Baseline Profile / Main Profile / High Profile |
| Video Bit Rate | 32 Kbps – 16 Mbps |
| Audio Compression | G.711/G.722.1/G.726/MP2L2 |
| Audio Bit Rate | 64Kbps(G.711) / 16Kbps(G.722.1) / 16Kbps(G.726) / 32-128Kbps(MP2L2) |
| Image | |
| Max. Resolution | 3072 x 2048 |
| Frame Rate | 50Hz: 20fps (3072 × 2048), 25fps (3072 × 1728, 2560 × 2048, 2560 × 1920, 2048 × 1536, 1920 × 1080, 1280 x 720) 60Hz: 20fps (3072 × 2048), 30fps (3072 × 1728, 2560 × 2048, 2560 × 1920, 2048 × 1536, 1920 × 1080, 1280 x 720) |
| Third Stream | Independent with Main Stream and Sub Stream, up to 50/60Hz: 10fps@4CIF |
| Image Enhancement | BLC/HLC/3D DNR/ROI/Defog |
| Image Setting | Saturation, Brightness, Contrast adjustable by client software or web browser |
| Regional Cropping | Support |
| Distortion Correction | Support |
| Day/Night Switch | Auto/Schedule/Triggered by Alarm In |
| Picture Overlay | LOGO picture can be overlaid on video with 128x128 24bit bmp format |
| Network | |
| Network Storage | NAS (Support NFS, SMB/CIFS), ANR |
| Alarm Trigger | Motion detection, Tampering alarm, Network disconnect, IP address conflict, Storage exception |
| Protocols | TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour |
| Security | User Authentication, Watermark, IP address filtering, Anonymous access |
| Standard | ONVIF (PROFILE S, PROFILE G), ISAPI |
| Interface | |
| Audio | 1-ch 3.5 mm audio in (Mic in/Line in) / out interface |
| Communication Interface | 1 RJ45 10M/100M/1000M Ethernet port |
| Alarm | 1 input, 1 output (up to DC24V 1A or AC110V 500mA) |
| Video Output (-S) | 1Vp-p composite output (75 Ω/BNC) |
| On-board Storage | Built-in Micro SD/SDHC/SDXC slot, up to 128 GB |
| Reset Button | Yes |
| Audio | |
| Environment Noise Filtering | Support |
| Audio I/O | Support dual audio track, stereo |
| Audio Sampling Rate | 16kHz / 32kHz / 44.1kHz / 48kHz |
| Smart Feature-set | |
| Behavior Analysis | Line crossing detection, Intrusion detection, Region entrance, Region exiting, Unattended baggage, Object removal |
| Line Crossing Detection | Cross a pre-defined virtual line |
| Intrusion Detection | Enter and loiter in a pre-defined virtual region |
| Region Entrance | Enter a pre-defined virtual region from the outside place |
| Region Exiting | Exit from a pre-defined virtual region |
| Unattended Baggage | Objects left over in the pre-defined region such as the baggage, purse, dangerous materials |
| Object Removal | Objects removed from the pre-defined region, such as the exhibits on display |
| Exception Detections | Scene change detection, Sudden audio increase/decrease detection, Audio loss detection, Defocus detection |
| Recognition | Face detection recognition |
| Statistics | Object Counting (Entrance and Exit object number is accounted and showed on screen in real time) |
| Heat Map | Support |
| General | |
| Operating Conditions | -30 °C – 60 °C (-22 °F – 140 °F), Humidity 95% or less (non-condensing) |
| Power Supply | 24 V AC ± 10%, 12 V DC ± 10%, PoE (802.3af) |
| Power Consumption | Max. 6 W (Max. 9W with IR cut filter on) |
| Dimensions | 69.8×58×145 mm (2.75inch× 2.28inch× 5.71inch) |
| Weight | 830 g (1.83 lbs) |
All IP cameras and recording devices (NVR’s/DVR’s) are covered by a 3 year back-to-base manufacturer warranty.
Our warranty is limited to the replacement of faulty items or parts and does not include damage due to incorrect fitting of parts or accessories, or damage due to mishandling the equipment once out of the box. All faults are sent to the manufacturer for inspection and diagnosis before a replacement is sent out.
Read more about the Terms & Conditions here – https://www.securityaustralia.com.au/terms-and-conditions/
*Just spend over $100 to activate Fast Free Shipping!
Despatch Times: Products are despatched on the same day if the order was placed before 11am on any weekday, Monday - Friday. All other orders are processed and despatched within 24 hours or next business day.
Order Confirmation: Once you place an order, you will receive a confirmation email. This indicates that your order has been received in our system and is now being processed for dispatch. If your item is back-ordered or unavailable, we will notify you via email, and if we do not receive a response, we will attempt to contact you by phone as soon as possible. We value your time and strive to be prompt. If your item(s) are available for immediate shipment (within 2 days), we will process the charges and prepare the order for shipping.
Shipping Times: General shipping times for StarTrack, TNT and Allied couriers are between 1-3 working days from despatch. Longer delivery times may be caused by your package being held at your local courier depot that is beyond our control. Please contact us or the local post depot for confirmation.
Tracking Numbers: all tracking numbers will be emailed to you by our warehouse processing team within the day, after your order is despatched to our local courier.
HikVision DS-2CD4065F-AP Full Body Camera
The Hikvision DS-2CD4065F-(A)(P) 6MP Smart IP Box Camera is designed for high-resolution surveillance in various environments. Featuring a 6MP sensor, it delivers detailed Ultra HD images, making it suitable for monitoring expansive areas. This model supports advanced features like wide dynamic range (WDR) for enhanced image clarity in contrasting light conditions. It also includes intelligent analytics such as intrusion detection and line crossing detection, ensuring proactive security. The camera supports H.264+ video compression for efficient bandwidth usage and storage savings, and it has flexible installation options.
Features
| Compression Standard | |
|---|---|
| Video Compression | H.264+/H.264/MJPEG |
| H.264 Type | Baseline Profile / Main Profile / High Profile |
| Video Bit Rate | 32 Kbps – 16 Mbps |
| Audio Compression | G.711/G.722.1/G.726/MP2L2 |
| Audio Bit Rate | 64Kbps(G.711) / 16Kbps(G.722.1) / 16Kbps(G.726) / 32-128Kbps(MP2L2) |
| Image | |
| Max. Resolution | 3072 x 2048 |
| Frame Rate | 50Hz: 20fps (3072 × 2048), 25fps (3072 × 1728, 2560 × 2048, 2560 × 1920, 2048 × 1536, 1920 × 1080, 1280 x 720) 60Hz: 20fps (3072 × 2048), 30fps (3072 × 1728, 2560 × 2048, 2560 × 1920, 2048 × 1536, 1920 × 1080, 1280 x 720) |
| Third Stream | Independent with Main Stream and Sub Stream, up to 50/60Hz: 10fps@4CIF |
| Image Enhancement | BLC/HLC/3D DNR/ROI/Defog |
| Image Setting | Saturation, Brightness, Contrast adjustable by client software or web browser |
| Regional Cropping | Support |
| Distortion Correction | Support |
| Day/Night Switch | Auto/Schedule/Triggered by Alarm In |
| Picture Overlay | LOGO picture can be overlaid on video with 128x128 24bit bmp format |
| Network | |
| Network Storage | NAS (Support NFS, SMB/CIFS), ANR |
| Alarm Trigger | Motion detection, Tampering alarm, Network disconnect, IP address conflict, Storage exception |
| Protocols | TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour |
| Security | User Authentication, Watermark, IP address filtering, Anonymous access |
| Standard | ONVIF (PROFILE S, PROFILE G), ISAPI |
| Interface | |
| Audio | 1-ch 3.5 mm audio in (Mic in/Line in) / out interface |
| Communication Interface | 1 RJ45 10M/100M/1000M Ethernet port |
| Alarm | 1 input, 1 output (up to DC24V 1A or AC110V 500mA) |
| Video Output (-S) | 1Vp-p composite output (75 Ω/BNC) |
| On-board Storage | Built-in Micro SD/SDHC/SDXC slot, up to 128 GB |
| Reset Button | Yes |
| Audio | |
| Environment Noise Filtering | Support |
| Audio I/O | Support dual audio track, stereo |
| Audio Sampling Rate | 16kHz / 32kHz / 44.1kHz / 48kHz |
