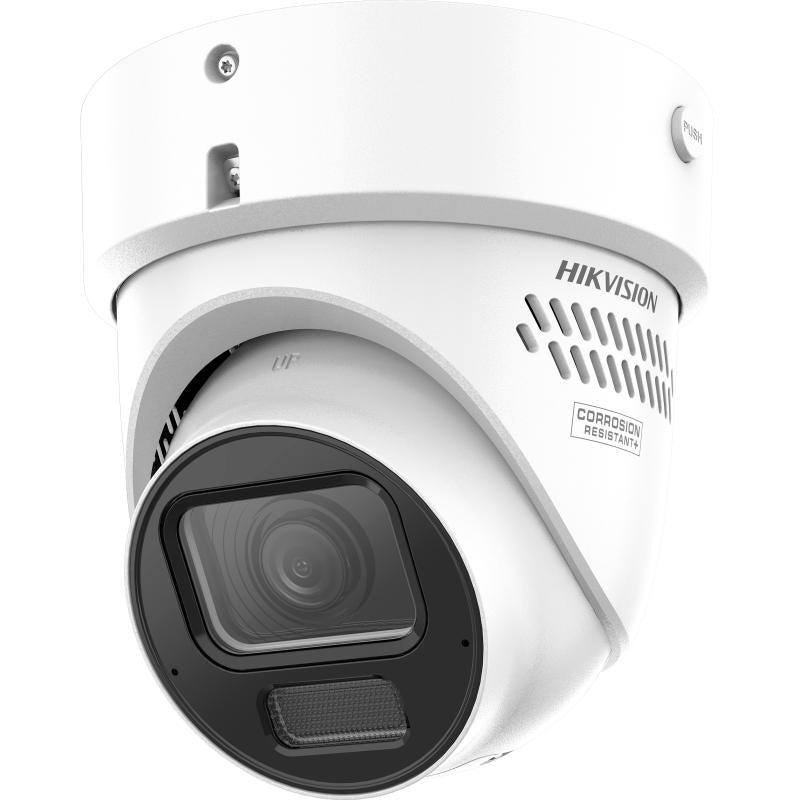

Hikvision DS-2CD3H86G3-LIZSU(Y)/SL 8MP Dual Illumination Motorised Turret Camera with Strobe, Siren

Model: DS-2CD3H86G2H-LIZSUY-SL

Who This Is For

For property managers and security integrators who need active deterrence built into a single outdoor turret rather than relying on a separate siren or floodlight, the DS-2CD3H86G2H-LIZSUY-SL delivers 8MP dual-illumination imaging alongside an onboard strobe and siren. The motorised varifocal lens makes it practical across a wide range of mounting distances - driveways, car parks, retail forecourts, and yard perimeters where the exact focal point cannot be confirmed until the camera is on the wall. The ColorVu 3.0 white-light illuminator produces full-colour footage after dark without a second floodlight, and when the AI classification engine detects a genuine human or vehicle intrusion, the strobe and siren fire automatically to interrupt the event before it escalates. Installers working on sites where the client wants visible, audible response without complex integration will find this camera covers both imaging and deterrence from a single mounting point.

What This Camera Actually Does

Who Buys This Model

• Retail and hospitality operators: Car parks and forecourts where full-colour footage is needed to identify vehicles involved in drive-offs or damage incidents, and where the strobe-siren deters loitering after hours without deploying security personnel.
• Residential security integrators: Clients with gated driveways or side-access gates who want a single camera that handles monitoring, colour night imaging, and active deterrence in one unit rather than separate camera, floodlight, and siren.
• Warehouse and logistics managers: Yard perimeters and loading dock approaches where vehicle classification triggers deterrence automatically during out-of-hours activity, and where the motorised lens allows focal adjustment to match the specific approach distance after install.
• School and childcare facility managers: Perimeter coverage requiring both full-colour identification and an audible deterrent for after-hours intrusion, where a single all-in-one unit keeps the installation straightforward and reduces maintenance points.

Honest Assessment

The DS-2CD3H86G2H-LIZSUY-SL does three things well together: it records 8MP footage in full colour at night via the dual-illumination system, it classifies targets accurately enough to trigger the strobe and siren only on humans and vehicles, and the motorised lens makes post-install focus adjustment realistic on awkward mounting positions. For sites where the brief is to deter as well as document, this is a single-unit answer that avoids wiring a separate alarm siren or floodlight. Where it will not serve as well: if the installation needs covert monitoring, the strobe and white light make this camera visible by design and the active deterrence cannot be fully suppressed. It is also not an ANPR camera - number plates may be readable in optimal conditions at 8MP but the camera is not optimised for vehicle plate recognition at speed. Security Australia stocks compatible Hikvision NVRs that support the full AI event handling and deterrence configuration this camera requires.

Before You Buy

Quick Fit Check

• Good match if: You need full-colour night footage and an active deterrence response from a single outdoor turret on a driveway, yard entry, or car park approach, without running wiring to a separate floodlight or alarm siren.
• Good match if: The mounting height or position makes post-install lens access impractical and the motorised zoom allows the field of view to be set remotely once the camera is fixed in place.
• You may need a different model if: Your primary requirement is dedicated vehicle number plate capture at speed - a purpose-built ANPR camera with a longer fixed focal length and specialised exposure settings will deliver more consistent plate reads than a general-purpose turret at 8MP.

Key Features & Technical Specifications

Real-World Scenarios

How It Compares

• Choose this if: You need full-colour 8MP night imaging, AI-triggered active deterrence, and remote lens adjustment in a single outdoor turret without wiring separate devices for each function.
• You may need a different model if: The site requires covert or discreet monitoring where visible strobing and audible deterrence would be counterproductive - a standard fixed turret without active deterrence hardware would be more appropriate.
• Pairs well with: A Hikvision AcuSense-compatible NVR that supports TiOC event handling, allowing centrally managed deterrence schedules, target class configuration, and alert routing across multiple cameras on the same system.

Common Questions

1. Does the strobe and siren fire on every motion event, or only on confirmed targets?

   Only on confirmed targets. The AI classification engine must identify a human or vehicle before the strobe and siren activate. General motion - wind-blown foliage, small animals, lighting changes - does not trigger the deterrence response. This is the key practical difference between this camera and a basic motion-triggered floodlight alarm, and it significantly reduces nuisance activations on sites with environmental movement.

2. Will this camera work on a standard 802.3af PoE port?

   It may, but check the power draw specification carefully before assuming compatibility. Standard 802.3af PoE delivers up to 15.4W at the switch port. With 8MP imaging, dual illuminators, strobe, siren, and audio all drawing from the same PoE budget simultaneously, the combined load can approach or exceed that limit during active deterrence events. Using an 802.3at (PoE+) port rated to 30W removes this risk and is the recommended approach for a camera with this feature set.

3. Can the strobe and siren be scheduled so they don't activate during business hours?

   Yes. Deterrence schedules are configured through a compatible Hikvision NVR or Hik-Connect platform, allowing the active deterrence response to be enabled only during specified time windows - such as after closing or on weekends - while the camera continues to record and generate standard alerts during business hours without triggering the strobe or siren.

4. Does this camera support two-way audio?

   The camera includes a built-in microphone for audio recording. For two-way communication, confirm whether the specific unit includes an integrated speaker in addition to the microphone - the siren hardware is distinct from a two-way audio speaker. Check the published datasheet for speaker confirmation before specifying this camera for intercom or remote-voice-down applications.

5. How does the motorised lens adjustment work in practice?

   Once the camera is physically mounted and connected, the focal length and focus are adjusted remotely using the NVR's PTZ or lens control menu - no physical access to the camera is required. The motorised mechanism moves the lens elements electronically in response to commands. This is practically useful on eave or high-wall mounts where repositioning a ladder for lens adjustment post-installation adds unnecessary cost and time.

6. Will this camera record in colour all night, or does it switch to black and white?

   It records in colour at night using the white-light illuminator under the ColorVu 3.0 system. The dual-illumination design means the camera can use infrared for extended range imaging or white light for full-colour imaging depending on the scene and configuration. In full ColorVu mode, colour footage is produced throughout the night - there is no automatic switch to greyscale as occurs with standard IR-only cameras.

7. What NVR is needed to get full use of the AI deterrence features?

   A Hikvision NVR that supports AcuSense event types and TiOC-style deterrence management is required to configure and manage the strobe, siren, and AI classification functions properly. Entry-level or third-party NVRs may record the video stream but will not expose the deterrence configuration, target class filtering, or AI event handling that this camera is built around. Available through Security Australia are compatible Hikvision NVRs confirmed to support this feature set.
