Hikvision DS-2CD2T66G2-2I Acusense 6MP EXIR Outdoor Bullet CCTV Camera Up to 60m IR

$323.00 AUD
 per
In stock!
Spend $100.00 to FREE SHIPPING

The Hikvision DS-2CD2T66G2-21 is a 6MP outdoor AcuSense Gen 2 bullet camera. Empowered by deep learning algorithms, Hikvision's AcuSense technology can distinguish people and vehicles from other moving objects, such as falling leaves or small animals. Originally created to prevent false alarms, AcuSense technology offers several other key benefits such as advanced analytics, active deterrence, and timely alerts. The analytic alert feature generates alarm events that are searchable when reviewing recorded footage for specific incidents, saving time and money.


Code/SKU: DS-2CD2T66G2-2I
Quick Specs: H.265+, IR 60m, IP67
Lens Options:
  • 2.8mm: Horizontal FOV: 99°, Vertical FOV: 74°, Diagonal FOV: 128°
  • 4mm: Horizontal FOV: 79°, Vertical FOV: 44°, Diagonal FOV: 93°

Key Features:

  • Image Sensor: 6MP 1/2.9" Progressive Scan CMOS
  • Resolution: 3072 × 2048 @20 fps
  • IR Distance: 60m
  • Lens: 2.8mm fixed lens, Horizontal FOV: 99°, Vertical FOV: 74°, Diagonal FOV: 128°
  • Video Compression: H.265+/H.265/H.264+/H.264
  • Smart Features: AcuSense for human/vehicle classification, intrusion detection, line crossing detection
  • Protection: IP67 weatherproof rating

This camera offers exceptional surveillance capabilities with advanced motion detection and a 60m infrared range. Suitable for both residential and commercial environments, it provides reliable and accurate monitoring.

Specifications

DS-2CD2386G2 Camera Specification

DS-2CD2386G2 Camera Specification

Camera
Image Sensor 1/2.4" Progressive Scan CMOS
Max. Resolution 3200 × 1800
Min. Illumination Color: 0.003 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR
Shutter Time 1/3 s to 1/100,000 s
Day & Night IR cut filter
Angle Adjustment Pan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360°
Lens
Lens Type Fixed focal lens, 2.8, 4, and 6 mm optional
Focal Length & FOV 2.8 mm, horizontal FOV 105°, vertical FOV 55°, diagonal FOV 127°
4 mm, horizontal FOV 78°, vertical FOV 38°, diagonal FOV 96°
6 mm, horizontal FOV 51°, vertical FOV 26°, diagonal FOV 59°
Lens Mount M12
Iris Type Fixed
Aperture F1.6
DORI
DORI 2.8 mm: D: 76 m, O: 30 m, R: 15 m, I: 7 m
4 mm: D: 115 m, O: 45 m, R: 23 m, I: 11 m
6 mm: D: 164 m, O: 65 m, R: 32 m, I: 16 m
Illuminator
Supplement Light Type IR
Supplement Light Range -2I: up to 60 m; -4I: up to 80 m
Smart Supplement Light Yes
IR Wavelength 850 nm
Video
Main Stream 50 Hz: 25 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
60 Hz: 30 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
Sub-Stream 50 Hz: 25 fps (1280 x 720, 640 × 480, 640 × 360)
60 Hz: 30 fps (1280 x 720, 640 × 480, 640 × 360)
Third Stream 50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
*Third stream is supported under certain settings.
Video Compression Main stream: H.265+/H.265/H.264+/H.264
Sub-stream: H.265/H.264/MJPEG
Third stream: H.265/H.264
*Third stream is supported under certain settings.
Video Bit Rate 32 Kbps to 16 Mbps
H.264 Type Baseline Profile, Main Profile, High Profile
H.265 Type Main Profile
Bit Rate Control CBR, VBR
Scalable Video Coding (SVC) H.264 and H.265 encoding
Region Of Interest (ROI) 1 fixed region(s) for main stream and sub-stream
Network
Protocols TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, ARP, WebSocket, WebSockets, SRTP, SFTP
Simultaneous Live View Up to 6 channels
API Open Network Video Interface (Profile S, Profile G, Profile T), ISAPI, SDK, ISUP
User/Host Up to 32 users, 3 user levels: administrator, operator, and user
Security Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.1/1.2/1.3, host authentication (MAC address)
Network Storage NAS (NFS, SMB/CIFS), Auto Network Replenishment (ANR), Together with high-end Hikvision memory card, memory card encryption and health detection are supported.
Client
Client iVMS-4200, Hik-Connect, Hik-Central
Web Browser Plug-in required live view: IE 10+, Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Local service: Chrome 57.0+, Firefox 52.0+
Image Parameters Switch Yes
Image Settings Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance, adjustable by client software or web browser
Day/Night Switch Day, Night, Auto, Schedule
Wide Dynamic Range (WDR) 120 dB
SNR ≥ 52 dB
Image Enhancement BLC, HLC, 3D DNR
Privacy Mask 4 programmable polygon privacy masks
Interface
Ethernet Interface 1 RJ45 10 M/100 M self-adaptive Ethernet port
On-Board Storage Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
Reset Key Yes
Event
Basic Event Motion detection (support alarm triggering by specified target types (human and vehicle)), video tampering alarm, exception
Smart Event Line crossing detection, intrusion detection, region entrance detection, region exiting detection (support alarm triggered by specified target types (human and vehicle)), Scene change detection
Linkage Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger recording, trigger capture
Deep Learning Function
Face Capture Yes
General
Power -2I: 12 VDC, 0.63 A, max. 7.5 W, Ø5.5 mm coaxial power plug, reverse polarity protection, PoE: IEEE 802.3af, max. 9 W
-4I: 12 VDC, 0.88 A, max. 10.5 W, Ø5.5 mm coaxial power plug, reverse polarity protection, PoE: IEEE 802.3af, max. 12 W

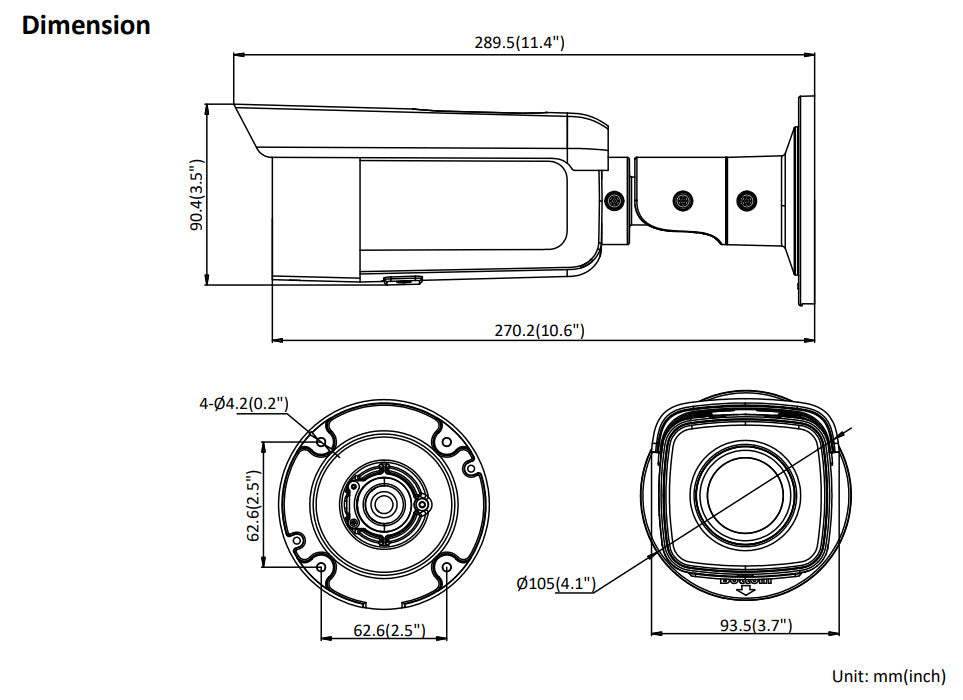

Dimension Ø105 mm × 290 mm (Ø4.1" × 11.4")
Package Dimension 386 mm × 156 mm × 155 mm (15.2" × 6.1" × 6.1")
Weight Approx. 1085 g (2.4 lb.)
With Package Weight Approx. 1604 g (3.5 lb.)
Storage Conditions -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Startup And Operating Conditions -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Language 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
General Function Heartbeat, mirror, flash log, password reset via email, pixel counter, anti-flicker
Approval
EMC FCC: 47 CFR Part 15, Subpart B
CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014
RCM: AS/NZS CISPR 32: 2015
KC: KN32: 2015, KN35: 2015
Safety UL: UL 62368-1, CB: IEC 62368-1: 2014+A11, CE-LVD: EN 62368-1: 2014/A11: 2017
Environment CE-RoHS: 2011/65/EU, WEEE: 2012/19/EU, Reach: Regulation (EC) No 1907/2006
Protection IP67: IEC 60529-2013

Documentation

3 Years Manufacturer Warranty

All IP cameras and recording devices (NVR’s/DVR’s) are covered by a 3 year back-to-base manufacturer warranty.

Our warranty is limited to the replacement of faulty items or parts and does not include damage due to incorrect fitting of parts or accessories, or damage due to mishandling the equipment once out of the box. All faults are sent to the manufacturer for inspection and diagnosis before a replacement is sent out.

Read more about the Terms & Conditions here – https://www.securityaustralia.com.au/terms-and-conditions/

Trusted Brand Partner & Security Equipment Wholesaler

Authorised Brand Partner with Responsive & Fast Aussie Sales Support Team ★★★★★
Best After-Sales Support and Troubleshooting Team with Years of Installation Experience.

Free Delivery* & Despatch Time

*Just spend over $100 to activate Fast Free Shipping!

Despatch Times: Products are despatched on the same day if the order was placed before 11am on any weekday, Monday - Friday. All other orders are processed and despatched within 24 hours or next business day.

Order Confirmation: Once you place an order, you will receive a confirmation email. This indicates that your order has been received in our system and is now being processed for dispatch. If your item is back-ordered or unavailable, we will notify you via email, and if we do not receive a response, we will attempt to contact you by phone as soon as possible. We value your time and strive to be prompt. If your item(s) are available for immediate shipment (within 2 days), we will process the charges and prepare the order for shipping.

Shipping Times: General shipping times for StarTrack, TNT and Allied couriers are between 1-3 working days from despatch. Longer delivery times may be caused by your package being held at your local courier depot that is beyond our control. Please contact us or the local post depot for confirmation.

Tracking Numbers: all tracking numbers will be emailed to you by our warehouse processing team within the day, after your order is despatched to our local courier.

View full details

Hikvision DS-2CD2T66G2-2I Acusense 6MP EXIR Outdoor Bullet CCTV Camera Up to 60m IR

Hikvision DS-2CD2T66G2 6MP Outdoor AcuSense Gen 2 Bullet Camera

Enhance your security with the Hikvision DS-2CD2T66G2, a 6MP outdoor bullet camera featuring the latest AcuSense Gen 2 technology. This advanced camera leverages deep learning algorithms to distinguish between people and vehicles, significantly reducing false alarms triggered by irrelevant movements like falling leaves or small animals. Perfect for both residential and commercial properties, the DS-2CD2T66G2 offers robust surveillance capabilities with its high-resolution imaging, powerful IR night vision, and comprehensive weatherproofing.

Enhanced Analytics and Alerts

The DS-2CD2T66G2 not only reduces false alarms but also provides advanced analytics, active deterrence, and timely alerts. Stay informed of critical events with precise notifications, ensuring a more efficient security system.

Exceptional Low-Light Performance

Experience superior performance in low-light conditions with DarkFighter technology. The camera's advanced imaging sensor and up to 60m IR range deliver clear and detailed images even in minimal light, ensuring reliable nighttime surveillance.

Comprehensive Features

This camera is equipped with H.265+ compression technology, infrared illumination, 120dB wide dynamic range, and edge video analytics, making it versatile and cost-effective for various security applications.

Wide Viewing Angles

The 2.8 mm lens provides a horizontal FOV of 105.1°, vertical FOV of 53.4°, and diagonal FOV of 128.6°, ensuring extensive coverage and minimizing blind spots.

Functions:

AcuSense Technology

Utilizes deep learning algorithms to focus on human and vehicle detection, significantly reducing false alarms from non-threatening moving objects.

High Efficiency Video Coding (H.265+)

Reduces bandwidth and storage requirements while maintaining high video quality, making it efficient and cost-effective.

Wide Dynamic Range (WDR)

120 dB WDR technology ensures clear images in environments with strong lighting contrasts, enhancing overall image quality.

IP67 Protection

Designed to be dust-tight and withstand powerful water jets, ensuring reliable performance in harsh outdoor conditions.

Key Features:

  • Up to 6MP high resolution
  • Max. 3072 x 2048 at 20fps
  • 2.8mm lens
  • H.265, H.265+, H.264+, H.264
  • 120dB WDR
  • Powered by DarkFighter
  • 12 VDC & PoE (802.3af, class 3)
  • Support on-board storage, up to 128GB
  • IP67 rated
  • Up to 60m IR
  • BLC/3D DNR/ROI/HLC
  • Colour: 0.003 Lux at (F1.6, AGC ON), 0.0 with IR

Technical Specifications

  • Image Sensor: 1/1.8" Progressive Scan CMOS
  • Min. Illumination: Color: 0.003 Lux @ (F1.6, AGC ON)
  • Shutter Speed: 1/3 s to 1/100,000 s
  • Slow Shutter: Yes
  • P/N: P/N
  • Wide Dynamic Range: 120 dB
  • Day & Night: ICR Cut
  • Angle Adjustment: Pan: 0° to 360°, tilt: 0° to 75°, rotate: 0° to 360°

Illuminator

  • IR Range: Up to 60 m
  • Wavelength: 850 nm
  • Smart Supplement Light: Yes
  • Visual Alarm: Yes

Invest in the Hikvision DS-2CD2T66G2 6MP Outdoor AcuSense Gen 2 Bullet Camera today and secure your property with advanced surveillance technology. Ensure peace of mind with reliable performance and comprehensive coverage.
