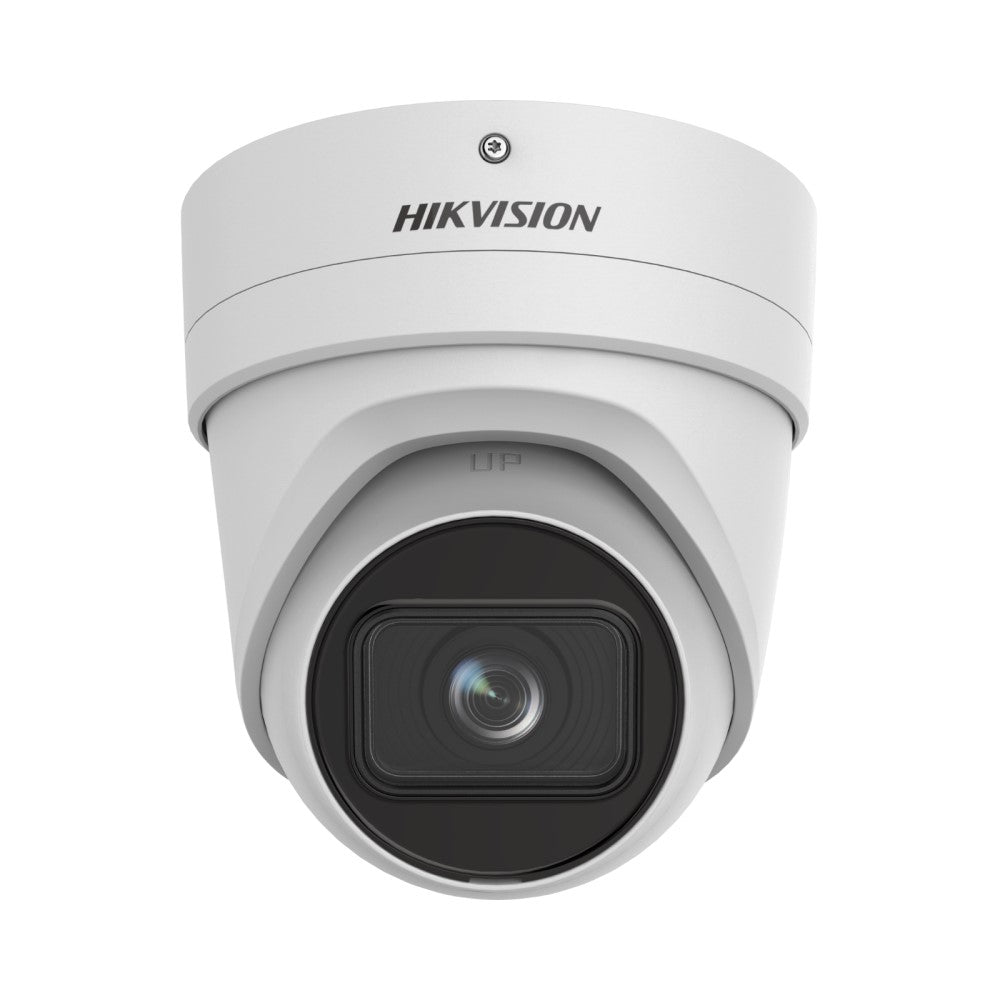

Hikvision DS-2CD2H66G2T-IZS 6MP Outdoor Motorised VF Turret CCTV Camera 2.8-12mm with Acusense

Model: DS-2CD2H66G2T-IZS

Who This Is For

When getting the right framing from a fixed lens simply is not an option, the DS-2CD2H66G2T-IZS gives installers a 2.8-12mm motorised varifocal range to dial in the exact field of view after the camera is mounted. That flexibility makes it a practical fit for eave and soffit installs on commercial premises, driveways with longer approach distances, car parks, and smaller industrial yards where a fixed-lens turret would either overshoot or underframe the target zone. The 6MP sensor resolves fine detail across that adjustable angle, while AcuSense Gen2 filters detections down to confirmed human and vehicle targets - cutting nuisance alerts from trees, animals, and passing headlights. At IK10 and IP67, it handles physical contact and weather exposure without needing an additional housing. A solid choice for security integrators and small-to-medium business owners who want one camera model that adapts to varied mounting positions across a single site.

What This Camera Actually Does

Who Buys This Model

• Security integrators on mixed-site installs: The motorised varifocal range solves framing problems across varying mounting heights and standoff distances without stocking multiple fixed-lens models.
• Small business owners in retail or light industrial settings: AcuSense Gen2 keeps push notification volumes manageable on sites where foot traffic and vehicle movement are frequent throughout the day.
• Property managers on commercial or mixed-use sites: IK10 and IP67 ratings allow installation on exposed external walls and car park columns without the cost of a separate protective enclosure.
• Installers specifying cameras for poorly lit driveways or yards: DarkFighter performance at 0.003 Lux extends usable colour imaging further into low-light conditions than standard sensors before IR-only mode is needed.

Honest Assessment

The DS-2CD2H66G2T-IZS performs well where a fixed-lens turret creates framing compromises. The motorised 2.8-12mm range is a genuine installer advantage - remote adjustment via NVR saves time on commissioning and avoids remounting. AcuSense Gen2 delivers real-world false alarm reduction that makes a measurable difference on sites with background motion, and the 6MP sensor provides enough resolution to identify individuals and read number plates at appropriate distances with the lens optimised. DarkFighter low-light sensitivity and 40m IR extend night-time usefulness across most residential and light commercial scenarios. Where this camera does not fit: if wide-area coverage from a single point is the priority, a panoramic or multi-sensor camera will cover more ground with fewer blind spots. If active deterrent lighting and built-in siren are required at the camera itself, a TiOC-equipped model is the more appropriate choice. The DS-2CD2H66G2T-IZS is available through Security Australia for installers and end users.

Before You Buy

Quick Fit Check

• Good match if: You need to cover a driveway, car park entry, or gate at varying standoff distances and a fixed 2.8mm or 4mm lens would either lose too much detail or miss the target zone entirely - the 2.8-12mm motorised range gives you control after the camera is mounted.
• Good match if: The install location is publicly accessible or exposed to weather and you need IK10 impact protection and IP67 sealing without adding a separate external housing to the bill of materials.
• You may need a different model if: You need built-in active deterrence with integrated strobe and siren at the camera level - a TiOC-type camera provides that capability as a single unit and may be a better fit for the Security Australia range.

Key Features & Technical Specifications

Real-World Scenarios

How It Compares

• Choose this if: You need post-install lens adjustment flexibility across multiple mounting positions or standoff distances - the motorised 2.8-12mm range removes the need to pre-commit to a fixed focal length before the camera goes up.
• You may need a different model if: Your brief requires a camera that actively deters intruders with integrated strobe lighting and a built-in siren at the camera level - a TiOC-type turret provides those active deterrence features as a self-contained unit.
• Pairs well with: An 802.3at-capable PoE NVR with AcuSense event handling, ensuring human and vehicle classified alerts route correctly to your monitoring interface or mobile app.

Common Questions

1. Does this camera work with a standard 802.3af PoE switch?

   No. The DS-2CD2H66G2T-IZS requires 802.3at PoE (Class 4), which delivers up to 30W per port. A standard 802.3af switch is limited to 15.4W and will not power this camera correctly. Confirm your NVR, PoE switch, or injector is 802.3at rated before installation. Alternatively, it can be powered by a 12VDC supply.

2. Will this camera reduce false alarm notifications on a busy site?

   Yes, meaningfully. AcuSense Gen2 uses deep learning to classify detected objects as human or vehicle before triggering an alert. Motion from animals, foliage, vehicle headlight sweep, or rain does not generate alarm events. On sites with consistent background movement, the reduction in notification volume compared to standard motion detection is significant.

3. How is the varifocal lens adjusted - do I need to climb back up to the camera?

   No. The motorised varifocal lens is adjusted remotely through the camera's web interface or a compatible Hikvision NVR. You can change zoom level and trigger autofocus from a laptop or mobile device connected to the same network. This is particularly useful for fine-tuning framing during commissioning or if the scene requirements change after installation.

4. What does the IK10 rating mean for this camera in practice?

   IK10 is the highest impact protection classification under the IEC 62262 standard, rated to withstand 20 joules of impact force. In practical terms, it means the camera housing resists deliberate strikes, thrown objects, and incidental contact from equipment or vehicles in proximity to the mount point. It does not replace common sense in placement, but it removes the need for a separate vandal-resistant enclosure in most commercial applications.

5. Does this camera have built-in two-way audio?

   No. The DS-2CD2H66G2T-IZS includes an audio and alarm interface for connecting external speakers, microphones, or alarm devices - it does not have a built-in speaker or built-in microphone. If two-way audio at the camera is required, a model with integrated audio hardware is needed. The alarm interface does support triggering external audio or visual deterrence devices when an AcuSense event is detected.

6. Does H.265+ compression make a noticeable difference to storage requirements?

   Yes. H.265+ applies intelligent encoding that significantly reduces file size compared to H.264 for the same image quality, particularly in scenes with large areas of static background - walls, pavement, sky. On a 6MP camera running continuously, the storage saving compared to H.264 is substantial and can extend the retention period on a given NVR storage capacity without reducing resolution. Stocked by Security Australia, this camera is designed to work within Hikvision's NVR ecosystem where H.265+ is natively supported.

7. Will this camera perform in a completely unlit outdoor area at night?

   Yes, in monochrome. The camera's IR illuminator provides up to 40m of coverage in total darkness, recording clear black-and-white detail with 0 Lux minimum illumination when IR is active. In conditions with minimal ambient light - a dim street lamp, reflected signage - DarkFighter technology at 0.003 Lux allows the camera to retain colour imaging before switching to IR-only mode.
