Hikvision DS-2CD2E43G2-U 4MP AcuSense Gen 2 Mini Dome Camera, In-Ceiling, H.265+, WDR, 2.8mm

Model: DS-2CD2E43G2-U

Who This Is For

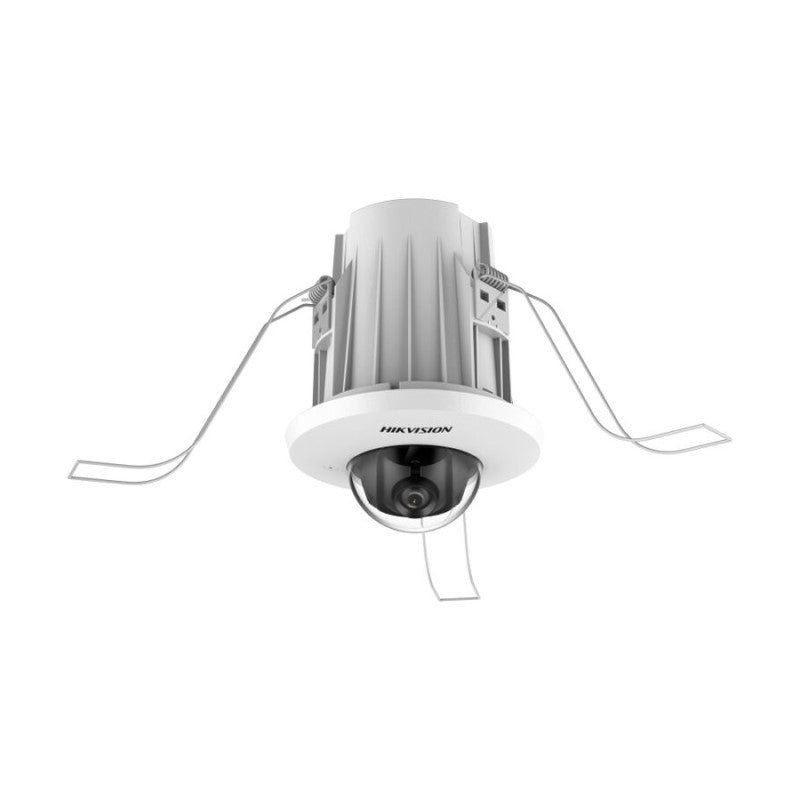

When keeping a clean ceiling profile without sacrificing image intelligence is the priority, the Hikvision DS-2CD2E43G2-U is the camera installers reach for. This in-ceiling mini dome sits flush into a standard ceiling tile or plasterboard cutout, making it a strong fit for offices, retail floors, childcare centres, hotel corridors, and medical reception areas where a low-profile footprint matters as much as performance. At 105 x 105 x 43.5 mm and 300 g, it disappears into the ceiling while delivering 4MP resolution with AcuSense Gen 2 deep learning that classifies humans and vehicles separately from background movement. The fixed 2.8 mm lens gives a wide field of view suited to rooms and corridors at typical ceiling heights. IP67 weather resistance and a -30 to 60 degree operating range also make it viable in covered outdoor ceiling applications such as undercover car parks and building entry canopies.

What This Camera Actually Does

Who Buys This Model

• Retail store managers: Installing across a shopfloor ceiling grid where a low-profile camera that won't distract from the retail environment is needed, while still getting 4MP detail for shrinkage review.
• Office fitout installers: Specifying cameras for open-plan workspaces, reception areas, and meeting room corridors where a flush ceiling mount integrates cleanly into a professional interior.
• Childcare and aged care operators: Deploying indoor cameras in rooms where the compact form factor reduces visual intrusion while AcuSense classification helps manage alert fatigue on multi-camera systems.
• Body corporate and strata managers: Covering basement car parks, lift lobbies, and undercover walkways where the IP67 rating handles moisture and the ceiling mount deters tampering from ground level.

Honest Assessment

The DS-2CD2E43G2-U does a specific job well: it delivers 4MP AcuSense Gen 2 intelligence in a form factor small enough to sit flush in a ceiling without dominating the space. The 120 dB WDR handles the entry-point lighting challenge that trips up lower-spec cameras, and H.265+ compression keeps storage costs manageable across multi-camera deployments. The fixed 2.8 mm lens covers wide areas at standard room heights, which suits most indoor applications this camera is sized for. What it will not do is provide optical zoom for reading fine detail at distance, cover large open yards or long perimeter runs where a bullet or PTZ camera would serve better, or deliver two-way audio - there is no built-in speaker, only the microphone. For sites requiring active deterrence with strobe or audio warnings, a TiOC model would be more appropriate. Available through Security Australia, this camera is well suited to clean indoor installs where intelligence and profile matter more than range.

Before You Buy

Quick Fit Check

• Good match if: You are installing into office, retail, or hospitality ceilings where a flush-mount profile is required and the 2.8 mm wide-angle lens will cover the room at standard ceiling height.
• Good match if: You need AcuSense human and vehicle classification to reduce false alerts on a multi-camera NVR system without stepping up to a larger outdoor housing.
• You may need a different model if: Your primary requirement is long-range outdoor perimeter coverage or active deterrence with strobe and audio warnings - a bullet or TiOC turret camera would be better suited to those scenarios.

Key Features & Technical Specifications

Real-World Scenarios

How It Compares

• Choose this if: You need a flush in-ceiling mount with AcuSense Gen 2 classification and 120 dB WDR in a compact, low-profile housing that suits professional indoor environments.
• You may need a different model if: Your site requires active deterrence with a strobe light or audio warning on intrusion detection - a TiOC turret or bullet camera with built-in siren would be better suited to that use case.
• Pairs well with: A Hikvision AcuSense NVR with PoE ports and audio input channels, which will process the human and vehicle classification metadata and accept the microphone audio feed from this camera.

Common Questions

1. Does this camera work with a standard PoE switch or NVR PoE port?

   Yes. The DS-2CD2E43G2-U supports IEEE 802.3af PoE, which is the standard PoE specification found on most managed switches, unmanaged PoE switches, and Hikvision NVR built-in PoE ports. No PoE+ (802.3at) is required. A single Cat5e or Cat6 cable carries both power and data, which simplifies the ceiling installation considerably.

2. Will this camera reduce false alarm alerts compared to a standard motion detection camera?

   Yes, meaningfully. AcuSense Gen 2 uses deep learning to classify detected objects as human or vehicle before triggering an alert. Standard motion detection triggers on any pixel change - insects, shadows, headlight sweeps. AcuSense filters those out, so events logged on your NVR are tied to actual people or vehicles rather than background movement.

3. Does the DS-2CD2E43G2-U support two-way audio?

   No. This camera has a built-in microphone for audio recording only - there is no built-in speaker. Audio captured by the microphone can be recorded to a compatible NVR with audio input support, but you cannot push audio back through this camera. If two-way audio at the camera position is required, a different model with both microphone and speaker would be needed.

4. Is the 2.8 mm lens wide enough for a standard office room or retail aisle?

   For most indoor ceiling applications, yes. A 2.8 mm fixed lens on a 1/3" sensor produces a wide field of view well suited to covering a room or aisle from a ceiling height of 2.5 to 3.5 m. It is not a zoom lens and cannot be adjusted after installation, so confirm your ceiling height and coverage width requirements match a wide-angle fixed lens before committing to this model.

5. Does this camera work in a covered outdoor area like an undercover car park or building canopy?

   Yes. The IP67 rating means the camera is fully dust-tight and protected against water immersion, which covers condensation, rain ingress from open car park sides, and pressure wash splashing. The operating temperature range of -30 to 60 degrees Celsius also covers Australian climate extremes in covered outdoor locations. It is an in-ceiling mount, so it requires a ceiling or soffit surface to install against - it is not designed for wall or pole mounting.

6. How much storage does a 4MP H.265+ camera typically use compared to H.264?

   Significantly less. H.265+ is Hikvision's optimised implementation of the H.265 codec, which typically reduces bitrate by 50 to 70% compared to H.264 at equivalent visual quality. For a 4MP stream, this can bring continuous recording storage requirements down from roughly 40-50 GB per day per camera under H.264 to 15-25 GB per day under H.265+, depending on scene complexity and bitrate settings. Exact figures depend on your NVR configuration. The team at Security Australia can help size storage if you provide your camera count and retention period.
