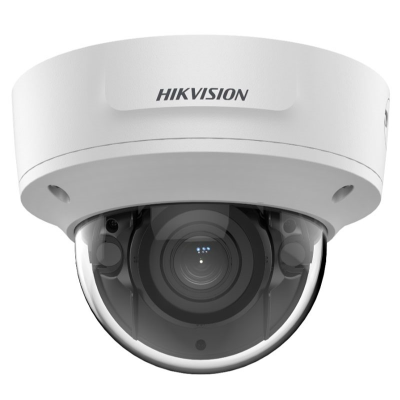

Hikvision DS-2CD2786G2T-IZS 8MP 4K Acusense IP Outdoor Motorised VF Dome CCTV Camera 40m IR, IO, 2.8-12mm

Model: DS-2CD2786G2T-IZS

Who This Is For

Property managers specifying outdoor surveillance across larger commercial sites will find the Hikvision DS-2CD2786G2T-IZS directly addresses one of the most common installation headaches: not knowing the exact field of view needed until the camera is physically on the wall. The 2.8-12mm motorised varifocal lens solves that by allowing remote focus and zoom adjustment after mounting - no ladder required once the cable is run. At 8MP 4K resolution with AcuSense AI filtering, this dome separates people and vehicles from irrelevant motion triggers, cutting down on nuisance alerts. The 40m IR range and 120dB WDR make it equally capable in poorly lit entry points or high-contrast outdoor environments where morning sun and deep shadow exist in the same frame. IO terminals add the option for external alarm input and output integration. This is a specification-grade outdoor dome built for installers who need post-install flexibility without sacrificing image quality or analytics.

What This Camera Actually Does

Who Buys This Model

• Security integrators on commercial fit-outs: The motorised varifocal lens allows final field-of-view tuning from the NVR after cabling is complete - critical when exact camera positions are confirmed late in a project or adjusted on-site.
• Strata and property managers upgrading aging systems: The 8MP sensor gives significantly more coverage and post-event detail than the 2MP cameras commonly being replaced, often reducing the total number of cameras required to cover the same area.
• Retail and hospitality operators with high-contrast entry points: Sites with glass shopfronts, covered walkways, or car park boom gates where strong backlight causes issues benefit directly from the 120dB WDR handling that contrast without manual adjustment.
• Installers specifying alarm-integrated systems: The IO terminals support external alarm device input and trigger output, allowing this camera to connect into existing alarm panels, sirens, or door controllers without additional interface hardware.

Honest Assessment

The DS-2CD2786G2T-IZS performs well where flexibility and image quality both matter. The motorised 2.8-12mm lens is a genuine time-saver on multi-camera commercial installs - focusing and zooming remotely rather than climbing back up to adjust the dome manually is a practical advantage that pays off across a full site deployment. AcuSense AI filtering is effective at human and vehicle classification, and the 120dB WDR handles challenging lighting conditions that would wash out lesser sensors. Available through Security Australia, this camera suits specification-grade outdoor installs where the NVR will support AcuSense event filtering. What it will not do: it does not produce colour images in darkness without supplemental white light, as it uses IR only for night illumination. If full-colour night vision is a priority, a TiOC or colour-night model would serve that requirement better. For wide-area coverage from a single mounting point, a PTZ or multi-sensor panoramic would extend coverage range further than any fixed dome can.

Before You Buy

Quick Fit Check

• Good match if: You need to finalise camera field of view after installation - the 2.8-12mm motorised lens allows remote zoom and focus adjustment from the NVR without revisiting the mounting point.
• Good match if: Your site has high-contrast lighting conditions such as sun-facing entries or covered car parks - the 120dB WDR correctly exposes bright and dark zones in the same frame without manual intervention.
• You may need a different model if: Full-colour night-time footage is required without adding supplemental lighting - a TiOC or dedicated colour-night dome from the Security Australia range would be a better fit for that specific requirement.

Key Features & Technical Specifications

Real-World Scenarios

How It Compares

• Choose this if: You need post-installation field-of-view flexibility combined with 8MP resolution and AcuSense AI filtering on a single outdoor dome - particularly on commercial sites where lens position cannot always be finalised before mounting.
• You may need a different model if: Full-colour night imaging without supplemental lighting is required - a TiOC or dedicated colour-night dome is the more appropriate product type for that specific outcome.
• Pairs well with: An AcuSense-compatible Hikvision NVR to fully activate human and vehicle event filtering, and a PoE switch or PoE NVR with sufficient wattage per port for this camera's power draw.

Common Questions

1. Does this camera work with any NVR or does it need a specific Hikvision recorder?

   It will function as an IP camera on most ONVIF-compatible NVRs, but AcuSense human and vehicle classification requires a Hikvision NVR that specifically supports AcuSense processing. On a non-AcuSense recorder, the camera streams and records normally but classified event filtering and smart alert notifications are not available. If AI-based alarm filtering is the reason you are specifying this model, confirm your NVR supports AcuSense before purchase.

2. How does the motorised varifocal lens actually work - do I need to physically adjust it after mounting?

   No physical access to the dome is required after mounting. The 2.8-12mm motorised lens is controlled entirely through software - via the NVR interface, a web browser, or the Hikvision mobile app. You set the zoom level and trigger autofocus remotely once the camera is in its final position. This is the key practical difference between a motorised VF dome and a manual varifocal dome, where you would need to open the housing and adjust the lens barrel by hand.

3. Will this camera produce usable footage at night without external lighting?

   Yes, using the built-in 850nm IR illuminator up to 40 metres. The footage will be black and white in IR mode, as this camera uses an IR cut filter for day/night switching rather than full-colour night technology. The minimum illumination in IR mode is 0 Lux, meaning it can operate in complete darkness. If colour night footage is a requirement, a TiOC or colour-night variant would need to be selected instead.

4. What does the IO terminal on this camera actually connect to?

   The IO terminals provide an alarm input and an alarm output connection. The input accepts a signal from an external device such as a PIR sensor, door contact, or alarm panel - allowing an external trigger to start recording or send an alert. The output drives an external device such as a siren, strobe, or relay in response to a detection event from the camera. This makes the DS-2CD2786G2T-IZS suitable for sites where camera detection needs to interface with existing alarm hardware without additional converter modules.

5. What zoom ratio does the motorised lens achieve, and how does focal length affect the IR range?

   The 2.8-12mm range represents approximately a 4.3x optical zoom ratio. At 2.8mm, the horizontal field of view is 108.1 degrees - suited to wide coverage of an open area. At 12mm, the field narrows to 45.5 degrees horizontally, concentrating the image on a more distant zone. The 40m IR range specification applies at maximum effectiveness when the lens is zoomed in - at 2.8mm, the broader scene means IR energy is spread across a wider angle and effective range will be shorter. For long-range identification tasks, zooming toward the 12mm end of the range makes better use of the IR illuminator's reach.

6. Does the AcuSense filtering work on both recording triggers and push notifications, or just one of them?

   AcuSense works across both functions when paired with a compatible NVR. Recording can be set to trigger only on confirmed human or vehicle events rather than all motion, which reduces the amount of storage consumed by irrelevant activity. Push notifications to the Hik-Connect app or VMS alert list are also filtered to human and vehicle classifications only. The practical result is that reviewable event recordings and mobile alerts both reflect genuine detections rather than wind, animals, or lighting changes. This filtering behaviour is confirmed through Security Australia for use with compatible Hikvision AcuSense recorders.

7. What is the 120dB WDR rating and does it make a real difference on this camera?

   Yes, 120dB WDR makes a measurable difference in high-contrast outdoor conditions. WDR works by combining multiple exposures of the same frame to recover detail in both bright and dark zones simultaneously. A camera without WDR will either blow out a sunlit background or underexpose a shaded subject - rarely both at once. At 120dB, the DS-2CD2786G2T-IZS handles scenes where the luminance difference between the brightest and darkest areas is extreme - such as a covered entry facing direct sun. This is a confirmed sensor specification, not a software enhancement applied after capture.
