  • Sku: 2cd2785BLACK
  • Vendor: SecurityAustralia

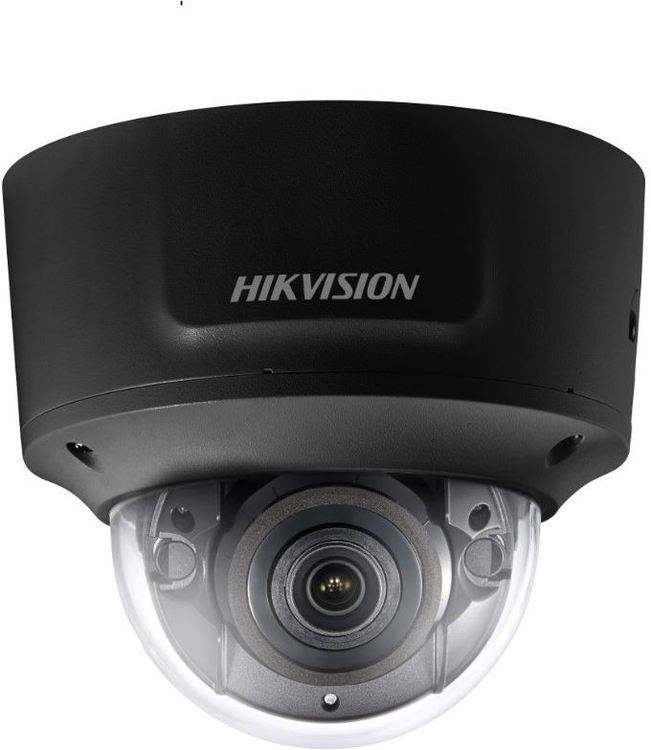

Hikvision DS-2CD2785FWD-IZS 2.8-12mm 8MP IP Black Motorised Outdoor Dome Camera

$517.00 AUD
$450.00 AUD
 per
In stock!
Spend $100.00 to FREE SHIPPING

4K Varifocal Dome Network Camera

The DS-2CD2785FWD-IZS is equipped with wide dynamic range (WDR) technology to handle challenging lighting environments and capture balanced images. Additionally, it offers smart IR technology for effective night-time monitoring, with an IR range sufficient for clear visibility in complete darkness. The camera supports H.265+ video compression, which enhances storage efficiency and reduces bandwidth usage without compromising quality. It is also built with a robust, weather-resistant housing suitable for both indoor and outdoor installations. The camera includes built-in analytics such as motion detection, line crossing, and intrusion detection to enhance security measures.

Key Features

  • High quality imaging with 8 MP resolution
  • Efficient H.265+ compression technology
  • Clear imaging against strong back light due to 120 dB true WDR technology
  • Water and dust resistant (IP66) and vandal proof (IK10)
  • Motorized vari-focal lens for easy installation and monitoring
  • Robust structure design with full metal materials.

Code/SKU: DS-2CD2785FWD-IZS
Quick Specs:

  • Image Sensor: 1/2.5" Progressive Scan CMOS
  • Min. Illumination:
    • Color: 0.01 Lux @ (F1.2, AGC ON), 0 Lux with IR
    • Color: 0.014 Lux @ (F1.4, AGC ON), 0 Lux with IR
  • Shutter Speed: 1/3 s to 1/100,000 s

Addons

8MP 4CH Hikvision...
$2,783.00
8MP 8CH Hikvision...
$4,130.00
8MP 8CH Hikvision...
$5,163.00

Specifications

Camera Specifications
Camera
Image Sensor 1/2.5" Progressive Scan CMOS
Min. Illumination Color: 0.01 Lux @ (F1.2, AGC ON), 0 Lux with IR, Color: 0.014 Lux @ (F1.4, AGC ON), 0 Lux with IR
Shutter Speed 1/3 s to 1/100,000 s
Slow Shutter Yes
Wide Dynamic Range 120dB
Day & Night IR Cut Filter
Angle Adjustment Pan: 0° to 355°, tilt: 0° to 75°, rotate: 0° to 355°
Lens
Focus Auto
Lens Type 2.8 to 12 mm, Motorized
FOV Horizontal field of view: 115° to 35°, Vertical field of view: 60° to 19°, Diagonal field of view: 146° to 38.5°
Aperture F1.4
Lens Mount Φ14
Illuminator
IR Range Up to 30 m
Wavelength 850nm
Video
Max. Resolution 3840 × 2160
Main Stream 50Hz: 20 fps (3840 × 2160), 25 fps (3072 × 1728, 2560 × 1440, 1920 × 1080, 1280 × 720), 60Hz: 20 fps (3840 × 2160), 30 fps (3072 × 1728, 2560 × 1440, 1920 × 1080, 1280 × 720)
Sub Stream 50Hz: 25fps (640 × 480, 640 × 360, 320 × 240), 60Hz: 30fps (640 × 480, 640 × 360, 320 × 240)
Third Stream 50Hz: 25fps (1280 × 720, 640 × 360, 352 × 288), 60Hz: 30fps (1280 × 720, 640 × 360, 352 × 240)
Video Compression Main stream: H.265/H.264, Sub stream: H.265/H.264/MJPEG, Third stream: H.265/H.264
Video Bit Rate 32 Kbps to 16 Mbps
H.264 Type Main Profile/High Profile
H.265 Type Main Profile
H.264+ Main stream supports
H.265+ Main stream supports
Scalable Video Coding (SVC) Support H.264 and H.265 encoding
Region of Interest (ROI) Support 1 fixed region for main stream and sub stream
Audio
Environment Noise Filtering Yes
Audio Sampling Rate 8kHz/16kHz/32kHz/44.1kHZ/48kHz
Audio Compression G.711/G.722.1/G.726/MP2L2/PCM
Audio Bit Rate 64Kbps (G.711)/16Kbps (G.722.1)/16Kbps (G.726)/32-192Kbps (MP2L2)
Network
Simultaneous Live View Up to 6 channels
API ONVIF (PROFILE S, PROFILE G), ISAPI
Protocols TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS
User/Host Up to 32 users, 3 levels: Administrator, Operator and User
Security Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS 1.2, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for ONVIF, TLS1.2
Network Storage Support Micro SD/SDHC/SDXC card (128G), local storage and NAS (NFS, SMB/CIFS), ANR
Client iVMS-4200, Hik-Connect, iVMS-5200, iVMS-4500
Web Browser Plug-in required live view: IE8+, Chrome 41.0-44, Firefox 30.0-51, Safari 8.0-11, Plug-in free live view: Chrome 45.0+, Firefox 52.0+
Alarm Trigger Motion detection, video tampering, network disconnected, IP address conflict, illegal login, HDD full, HDD error, Alarm input, Alarm output
Day/Night Switch Day/Night/Auto/Schedule/Triggered by Alarm In
DNR 3D DNR
Image Enhancement BLC/3D DNR/HLC
Image Settings Rotate mode, saturation, brightness, contrast, sharpness and white balance adjustable by client software or web browser
Interface
Audio 1 input (line in, 3.5 mm), 1 output (3.5 mm), mono sound
Alarm 1 input, 1 output (max. 12 VDC, 30 mA), terminal block
Video Output 1Vp-p composite output (75 Ω) (For adjustment only)
On-board Storage Built-in Micro SD/SDHC/SDXC slot, up to 128 GB
Hardware Reset Yes
Communication Interface 1 RJ45 10M/100M self-adaptive Ethernet port
Event
Basic Event Motion detection, video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error)
Smart Event Line crossing detection, intrusion detection, unattended baggage, object removal, face detection, scene change detection
Face Detection Yes
Exception Detection Scene change detection
General
Linkage Method Trigger recording: memory card, network storage, pre-record and post-record Trigger captured pictures uploading: FTP, HTTP, NAS, Email Trigger notification: HTTP, ISAPI, alarm output, Email
Firmware Version V5.5.80
Web Client Language 32 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)
General Function Anti-flicker, three streams, heartbeat, mirror, privacy masks, password reset via e-mail, pixel counter, HTTP listening
Startup and Operating Conditions -30 °C to +60 °C (-22 °F to +140 °F), Humidity 95% or less (non-condensing)
Power Supply 12 VDC ± 25%, PoE (802.3af), Terminal block for DC input
Power Consumption and Current 12 VDC, 0.95A, max. 11.5W, PoE (802.3af, 36V to 57V), 0.3A to 0.1A, max. 12.9W
Camera Dimension Φ153.4 × 133.1 mm (Φ6.04" × 5.24")
Camera Weight Camera: 1287 g (2.84 lb.)
Approval
Protection IK10, IP66
Camera Specifications
Camera
Image Sensor 1/2.5" Progressive Scan CMOS
Min. Illumination Color: 0.01 Lux @ (F1.2, AGC ON), 0 Lux with IR, Color: 0.014 Lux @ (F1.4, AGC ON), 0 Lux with IR
Shutter Speed 1/3 s to 1/100,000 s
Slow Shutter Yes
Wide Dynamic Range 120dB
Day & Night IR Cut Filter
Angle Adjustment Pan: 0° to 355°, tilt: 0° to 75°, rotate: 0° to 355°
Lens
Focus Auto
Lens Type 2.8 to 12 mm, Motorized
FOV Horizontal field of view: 115° to 35°, Vertical field of view: 60° to 19°, Diagonal field of view: 146° to 38.5°
Aperture F1.4
Lens Mount Φ14
Illuminator
IR Range Up to 30 m
Wavelength 850nm
Video
Max. Resolution 3840 × 2160
Main Stream 50Hz: 20 fps (3840 × 2160), 25 fps (3072 × 1728, 2560 × 1440, 1920 × 1080, 1280 × 720), 60Hz: 20 fps (3840 × 2160), 30 fps (3072 × 1728, 2560 × 1440, 1920 × 1080, 1280 × 720)
Sub Stream 50Hz: 25fps (640 × 480, 640 × 360, 320 × 240), 60Hz: 30fps (640 × 480, 640 × 360, 320 × 240)
Third Stream 50Hz: 25fps (1280 × 720, 640 × 360, 352 × 288), 60Hz: 30fps (1280 × 720, 640 × 360, 352 × 240)
Video Compression Main stream: H.265/H.264, Sub stream: H.265/H.264/MJPEG, Third stream: H.265/H.264
Video Bit Rate 32 Kbps to 16 Mbps
H.264 Type Main Profile/High Profile
H.265 Type Main Profile
H.264+ Main stream supports
H.265+ Main stream supports
Scalable Video Coding (SVC) Support H.264 and H.265 encoding
Region of Interest (ROI) Support 1 fixed region for main stream and sub stream
Audio
Environment Noise Filtering Yes
Audio Sampling Rate 8kHz/16kHz/32kHz/44.1kHZ/48kHz
Audio Compression G.711/G.722.1/G.726/MP2L2/PCM
Audio Bit Rate 64Kbps (G.711)/16Kbps (G.722.1)/16Kbps (G.726)/32-192Kbps (MP2L2)
Network
Simultaneous Live View Up to 6 channels
API ONVIF (PROFILE S, PROFILE G), ISAPI
Protocols TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS
User/Host Up to 32 users, 3 levels: Administrator, Operator and User
Security Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS 1.2, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for ONVIF, TLS1.2
Network Storage Support Micro SD/SDHC/SDXC card (128G), local storage and NAS (NFS, SMB/CIFS), ANR
Client iVMS-4200, Hik-Connect, iVMS-5200, iVMS-4500
Web Browser Plug-in required live view: IE8+, Chrome 41.0-44, Firefox 30.0-51, Safari 8.0-11, Plug-in free live view: Chrome 45.0+, Firefox 52.0+
Alarm Trigger Motion detection, video tampering, network disconnected, IP address conflict, illegal login, HDD full, HDD error, Alarm input, Alarm output
Day/Night Switch Day/Night/Auto/Schedule/Triggered by Alarm In
DNR 3D DNR
Image Enhancement BLC/3D DNR/HLC
Image Settings Rotate mode, saturation, brightness, contrast, sharpness and white balance adjustable by client software or web browser
Interface
Audio 1 input (line in, 3.5 mm), 1 output (3.5 mm), mono sound
Alarm 1 input, 1 output (max. 12 VDC, 30 mA), terminal block
Video Output 1Vp-p composite output (75 Ω) (For adjustment only)
On-board Storage Built-in Micro SD/SDHC/SDXC slot, up to 128 GB
Hardware Reset Yes
Communication Interface 1 RJ45 10M/100M self-adaptive Ethernet port
Event
Basic Event Motion detection, video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error)
Smart Event Line crossing detection, intrusion detection, unattended baggage, object removal, face detection, scene change detection
Face Detection Yes
Exception Detection Scene change detection
General
Linkage Method Trigger recording: memory card, network storage, pre-record and post-record Trigger captured pictures uploading: FTP, HTTP, NAS, Email Trigger notification: HTTP, ISAPI, alarm output, Email
Firmware Version V5.5.80
Web Client Language 32 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)
General Function Anti-flicker, three streams, heartbeat, mirror, privacy masks, password reset via e-mail, pixel counter, HTTP listening
Startup and Operating Conditions -30 °C to +60 °C (-22 °F to +140 °F), Humidity 95% or less (non-condensing)
Power Supply 12 VDC ± 25%, PoE (802.3af), Terminal block for DC input
Power Consumption and Current 12 VDC, 0.95A, max. 11.5W, PoE (802.3af, 36V to 57V), 0.3A to 0.1A, max. 12.9W
Camera Dimension Φ153.4 × 133.1 mm (Φ6.04" × 5.24")
Camera Weight Camera: 1287 g (2.84 lb.)
Approval
Protection IK10, IP66

Documentation

3 Years Manufacturer Warranty

All IP cameras and recording devices (NVR’s/DVR’s) are covered by a 3 year back-to-base manufacturer warranty.

Our warranty is limited to the replacement of faulty items or parts and does not include damage due to incorrect fitting of parts or accessories, or damage due to mishandling the equipment once out of the box. All faults are sent to the manufacturer for inspection and diagnosis before a replacement is sent out.

Read more about the Terms & Conditions here – https://www.securityaustralia.com.au/terms-and-conditions/

Trusted Brand Partner & Security Equipment Wholesaler

Authorised Brand Partner with Responsive & Fast Aussie Sales Support Team ★★★★★
Best After-Sales Support and Troubleshooting Team with Years of Installation Experience.

Free Delivery* & Despatch Time

*Just spend over $100 to activate Fast Free Shipping!

Despatch Times: Products are despatched on the same day if the order was placed before 11am on any weekday, Monday - Friday. All other orders are processed and despatched within 24 hours or next business day.

Order Confirmation: Once you place an order, you will receive a confirmation email. This indicates that your order has been received in our system and is now being processed for dispatch. If your item is back-ordered or unavailable, we will notify you via email, and if we do not receive a response, we will attempt to contact you by phone as soon as possible. We value your time and strive to be prompt. If your item(s) are available for immediate shipment (within 2 days), we will process the charges and prepare the order for shipping.

Shipping Times: General shipping times for StarTrack, TNT and Allied couriers are between 1-3 working days from despatch. Longer delivery times may be caused by your package being held at your local courier depot that is beyond our control. Please contact us or the local post depot for confirmation.

Tracking Numbers: all tracking numbers will be emailed to you by our warehouse processing team within the day, after your order is despatched to our local courier.

View full details

Hikvision DS-2CD2785FWD-IZS 2.8-12mm 8MP IP Black Motorised Outdoor Dome Camera

The DS-2CD2785FWD-IZS is a state-of-the-art 4K varifocal dome network camera by Hikvision, designed to provide high-resolution video surveillance. It features an 8-megapixel resolution, delivering exceptionally clear and detailed images. This camera supports a varifocal lens, allowing for flexible adjustment of the viewing angle and zoom to suit various monitoring needs. Its advanced digital noise reduction (DNR) technology ensures crisp and clear footage even in low-light conditions. The DS-2CD2785FWD-IZS is equipped with wide dynamic range (WDR) technology to handle challenging lighting environments and capture balanced images. Additionally, it offers smart IR technology for effective night-time monitoring, with an IR range sufficient for clear visibility in complete darkness.

The camera supports H.265+ video compression, which enhances storage efficiency and reduces bandwidth usage without compromising quality. It is also built with a robust, weather-resistant housing suitable for both indoor and outdoor installations. The camera includes built-in analytics such as motion detection, line crossing, and intrusion detection to enhance security measures. Its remote access capabilities enable users to monitor live footage and review recordings from anywhere via the internet. Integration with various video management systems (VMS) allows for seamless operation within existing security setups. The DS-2CD2785FWD-IZS is designed for easy installation, featuring Power over Ethernet (PoE) support to simplify wiring. This model also includes tamper-proof features to ensure the camera remains operational and secure against vandalism. Its compact dome design offers a discreet surveillance solution that blends into various environments. Overall, the DS-2CD2785FWD-IZS combines high-definition performance with advanced features to deliver a comprehensive security solution.

Features

  • 4K Ultra High Definition (UHD) Resolution: Provides high-quality, detailed video with a resolution of 3840 x 2160 pixels.
  • Varifocal Lens: Adjustable 2.8 mm to 12 mm lens for flexible field of view and zoom capabilities.
  • Wide Dynamic Range (WDR): Offers up to 120 dB to handle challenging lighting conditions and ensure clear images.
  • Smart IR Technology: Infrared illumination for night vision up to 30 meters (98 feet) in low-light conditions.
  • H.265+ Video Compression: Efficient video compression standard to reduce bandwidth and storage requirements while maintaining high video quality.
  • Built-in Microphone: Integrated audio capture for recording sound along with video.
  • Weatherproof and Vandal-Resistant Design: IP67 and IK10 ratings ensure durability in harsh environments and protection against vandalism.
  • True Day/Night Functionality: Automatic switching between color and black-and-white modes depending on lighting conditions.
  • Motion Detection and Alerts: Advanced motion detection capabilities to trigger alerts and recording based on movement.
  • Network Integration: Supports PoE (Power over Ethernet) for simplified installation and integration with network-based surveillance systems.
Technical Specifications
Video
Max. Resolution 3840 × 2160
Main Stream 50Hz: 20 fps (3840 × 2160), 25 fps (3072 × 1728, 2560 × 1440, 1920 × 1080, 1280 × 720), 60Hz: 20 fps (3840 × 2160), 30 fps (3072 × 1728, 2560 × 1440, 1920 × 1080, 1280 × 720)
Sub Stream 50Hz: 25fps (640 × 480, 640 × 360, 320 × 240), 60Hz: 30fps (640 × 480, 640 × 360, 320 × 240)
Third Stream 50Hz: 25fps (1280 × 720, 640 × 360, 352 × 288), 60Hz: 30fps (1280 × 720, 640 × 360, 352 × 240)
Video Compression Main stream: H.265/H.264, Sub stream: H.265/H.264/MJPEG, Third stream: H.265/H.264
Video Bit Rate 32 Kbps to 16 Mbps
H.264 Type Main Profile/High Profile
H.265 Type Main Profile
H.264+ Main stream supports
H.265+ Main stream supports
Scalable Video Coding (SVC) Support H.264 and H.265 encoding
Region of Interest (ROI) Support 1 fixed region for main stream and sub stream
Audio
Environment Noise Filtering Yes
Audio Sampling Rate 8kHz/16kHz/32kHz/44.1kHZ/48kHz
Audio Compression G.711/G.722.1/G.726/MP2L2/PCM
Audio Bit Rate 64Kbps (G.711)/16Kbps (G.722.1)/16Kbps (G.726)/32-192Kbps (MP2L2)
