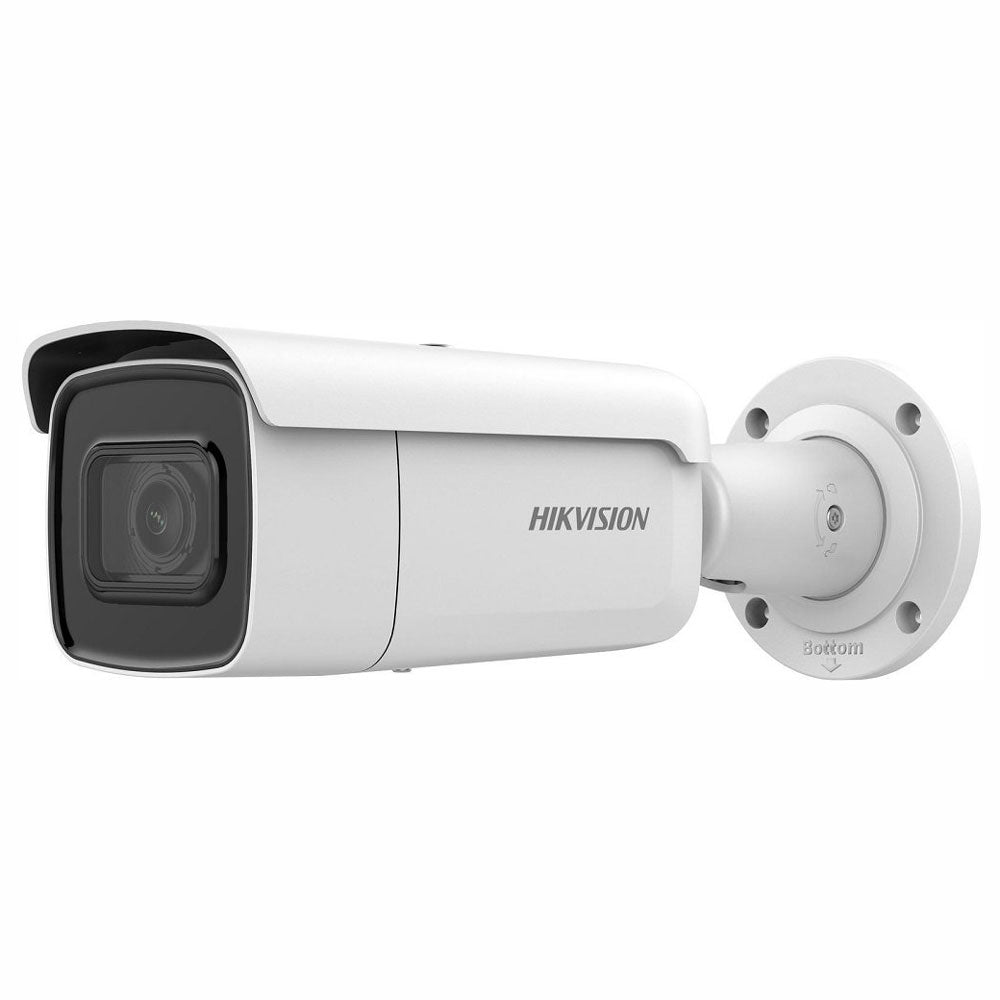

Hikvision DS-2CD2685G1-IZS 8MP Outdoor Motorised VF Bullet 2.8-12mm with Darkfighter
4K Powered-by-DarkFighter Varifocal Bullet Network Camera
The DS-2CD2685G1-IZS supports advanced network connectivity, enabling seamless integration with existing security systems. It includes smart analytics features such as motion detection and line crossing, enhancing its capability to identify and alert on suspicious activities. The camera's high-resolution capability ensures that even the smallest details are captured with precision, aiding in accurate identification and evidence collection. Its user-friendly interface and remote access options make it convenient for users to manage and view live feeds from anywhere.
Key Features
Code/SKU: DS-2CD2685G1-IZS
Quick Specs:
| Camera | |
|---|---|
| Image Sensor | 1/2" Progressive Scan CMOS |
| Min. Illumination | Color: 0.008 Lux @ (F1.2, AGC ON), 0.011 Lux @ (F1.4, AGC ON) |
| Shutter Speed | 1/3 s to 1/100,000 s |
| Slow Shutter | Yes |
| Wide Dynamic Range | 120dB |
| Day & Night | IR Cut Filter |
| Angle Adjustment | Pan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360° |
| Lens | |
| Focus | Auto |
| Lens Type | 2.8 to 12 mm; Motorized |
| FOV | Horizontal field of view: 112° to 46°, Vertical field of view: 60° to 26°, Diagonal field of view: 133° to 53° |
| Aperture | F1.4 |
| Lens Mount | Φ14 |
| Illuminator | |
| IR Range | Up to 50 m |
| Wavelength | 850nm |
| Video | |
| Max. Resolution | 3840 × 2160 |
| Main Stream | 50Hz: 20 fps (3840 × 2160), 25 fps (3072 × 1728, 2560 × 1440, 1920 × 1080, 1280 × 720), 60Hz: 20 fps (3840 × 2160), 30 fps (3072 × 1728, 2560 × 1440, 1920 × 1080, 1280 × 720) |
| Sub Stream | 50Hz: 25fps (640 × 480, 640 × 360, 320 × 240), 60Hz: 30fps (640 × 480, 640 × 360, 320 × 240) |
| Third Stream | 50Hz: 25fps (1280 × 720, 640 × 360, 352 × 288), 60Hz: 30fps (1280 × 720, 640 × 360, 352 × 240) |
| Video Compression | Main stream: H.265/H.264, Sub stream: H.265/H.264/MJPEG, Third stream: H.265/H.264 |
| Video Bit Rate | 32 Kbps to 16 Mbps |
| H.264 Type | Main Profile/High Profile |
| H.265 Type | Main Profile |
| H.264+ | Main stream supports |
| H.265+ | Main stream supports |
| Region of Interest (ROI) | Support 1 fixed region for main stream and sub stream separately |
| Audio | |
| Environment Noise Filtering | Yes |
| Audio Sampling Rate | 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz |
| Audio Compression | G.711/G.722.1/G.726/MP2L2/PCM |
| Audio Bit Rate | 64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2) |
| Network | |
| Simultaneous Live View | Up to 6 channels |
| API | ONVIF (PROFILE S, PROFILE G), ISAPI |
| Protocols | TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS, WebSocket, WebSockets |
| User/Host | Up to 32 users, 3 levels: Administrator, Operator and User |
| Security | Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS 1.2, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for ONVIF, TLS1.2 |
| Network Storage | Support Micro SD/SDHC/SDXC card (128G), local storage and NAS (NFS, SMB/CIFS), ANR |
| Client | iVMS-4200, Hik-Connect, iVMS-5200, iVMS-4500 |
| Web Browser | Plug-in required live view: IE8+, Chrome 41.0-44, Firefox 30.0-51, Safari 8.0-11, Plug-in free live view: Chrome 45.0+, Firefox 52.0+ |
| Alarm Trigger | Motion detection, video tampering, network disconnected, IP address conflict, illegal login, HDD full, HDD error |
| Image | |
| Day/Night Switch | Day/Night/Auto/Schedule/Triggered by Alarm In (-S) |
| DNR | 3D DNR |
| Image Enhancement | BLC/3D DNR/HLC |
| Image Settings | Rotate mode, saturation, brightness, contrast, sharpness and white balance adjustable by client software or web browser |
| Interface | |
| Audio | 1 input (line in), 1 output, mono sound, terminal block |
| Alarm | 1 alarm input, 1 alarm output (max. 12 VDC, 30 mA), terminal block |
| Video Output | 1Vp-p composite output (75 Ω) (For adjustment only) |
| On-board Storage | Built-in micro SD/SDHC/SDXC slot, up to 128 GB |
| Hardware Reset | Yes |
| Communication Interface | 1 RJ45 10M/100M self-adaptive Ethernet port, terminal block |
| Event | |
| Basic Event | Motion detection, video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error) |
| Smart Event | Line crossing detection, intrusion detection, unattended baggage detection, object removal detection |
| Face Detection | Yes |
| Exception Detection | Scene change detection |
| General | |
| Linkage Method | Trigger recording: memory card, network storage, pre-record and post-record. Trigger captured pictures uploading: FTP, HTTP, NAS, Email. Trigger notification: HTTP, ISAPI, alarm output, Email |
| Firmware Version | V5.5.80 |
| Web Client Language | 32 languages including English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil) |
| General Function | Anti-flicker, three streams, heartbeat, mirror, privacy masks, password reset via e-mail, pixel counter, HTTP listening |
| Startup and Operating Conditions | -30 °C to +60 °C (-22 °F to +140 °F), humidity 95% or less (non-condensing) |
| Power Supply | 12 VDC ± 25%, PoE (802.3at, class 4) |
| Power Consumption and Current | 12 VDC, 1.2A, max. 14.5W, PoE: (802.3at, 42.5V to 57V), 0.5A to 0.3A, max. 18W |
| Camera Dimension | Φ105 × 297.5 mm (Φ4.1"× 11.7") |
| Camera Weight | Camera: 1300 g (2.9 lb.), With package: 2000 g (4.4 lb.) |
| Approval | Protection: IK10, IP67 |
All IP cameras and recording devices (NVR’s/DVR’s) are covered by a 3 year back-to-base manufacturer warranty.
Our warranty is limited to the replacement of faulty items or parts and does not include damage due to incorrect fitting of parts or accessories, or damage due to mishandling the equipment once out of the box. All faults are sent to the manufacturer for inspection and diagnosis before a replacement is sent out.
Read more about the Terms & Conditions here – https://www.securityaustralia.com.au/terms-and-conditions/
*Just spend over $100 to activate Fast Free Shipping!
Despatch Times: Products are despatched on the same day if the order was placed before 11am on any weekday, Monday - Friday. All other orders are processed and despatched within 24 hours or next business day.
Order Confirmation: Once you place an order, you will receive a confirmation email. This indicates that your order has been received in our system and is now being processed for dispatch. If your item is back-ordered or unavailable, we will notify you via email, and if we do not receive a response, we will attempt to contact you by phone as soon as possible. We value your time and strive to be prompt. If your item(s) are available for immediate shipment (within 2 days), we will process the charges and prepare the order for shipping.
Shipping Times: General shipping times for StarTrack, TNT and Allied couriers are between 1-3 working days from despatch. Longer delivery times may be caused by your package being held at your local courier depot that is beyond our control. Please contact us or the local post depot for confirmation.
Tracking Numbers: all tracking numbers will be emailed to you by our warehouse processing team within the day, after your order is despatched to our local courier.
Hikvision DS-2CD2685G1-IZS 8MP Outdoor Motorised VF Bullet 2.8-12mm with Darkfighter
Hikvision DS-2CD2685G1-IZS 8MP Outdoor Motorised VF Bullet Camera Powered by Darkfighter
The Hikvision DS-2CD2685G1-IZS is a state-of-the-art outdoor bullet camera that delivers exceptional 8MP resolution surveillance. Equipped with Darkfighter technology, it excels in various lighting conditions, ensuring clear images.
This camera is designed with advanced features like a motorized varifocal lens (2.8-12mm) for flexible coverage. Its robust construction allows for reliable performance, making it ideal for outdoor installations.
With powerful infrared illumination, this camera provides high-quality night vision, ensuring comprehensive security monitoring in complete darkness. The DS-2CD2685G1-IZS is perfect for reliable surveillance in both residential and commercial environments.
Features:
Functions:
Real-Time HD Video Monitoring:
Provides continuous high-definition video streaming, allowing users to monitor activity and respond swiftly to events as they occur within accessible areas.
Intelligent Detection Features:
Employs advanced analytics for detecting specific activities and motions, thereby decreasing false alarms while enhancing overall security alert accuracy.
Active Night Vision Capabilities:
Ensures reliable performance with infrared illumination for monitoring complete darkness, effectively capturing critical details without additional lighting sources.
Remote Access and Management:
Users can access real-time video feeds and recorded footage remotely through applications, providing seamless management and monitoring from various locations.
Comprehensive Alarm Functions:
Integrates alarms and event-triggered alerts to notify users promptly of detected intrusions, facilitating swift action against potential threats.
User-Friendly Installation:
Designed for easy setup across different environments, facilitating a straightforward installation process for effective operational deployment.
Flexible Coverage Options:
The motorized lens allows for quick adaptation to various monitoring scenarios, providing coverage across wide areas and focusing as needed.
Robust Environmental Adaptability:
Engineered to perform optimally in diverse weather conditions, ensuring that the camera operates reliably while maintaining continuous security.
Technical Specifications
| Model | DS-2CD2685G1-IZS |
| Image Sensor | 1/1.8" Progressive Scan CMOS |
| Max. Resolution | 8 MP (3840 x 2160) |
| Lens Type | Varifocal motorized lens, 2.8 mm to 12 mm |
| Minimum Illumination | Color: 0.0014 Lux @(F1.0, AGC ON); 0 Lux with IR |
| Wide Dynamic Range | 120 dB WDR |
| IR Range | Up to 50 meters |
| Video Compression | H.265+, H.265, H.264+, H.264 |
| Protection Rating | IP67 |
| Audio Features | Built-in microphone and speaker |
| Power Supply | 12VDC ± 25%, PoE (802.3af) |
| Operating Temperature | -30°C to +60°C (-22°F to +140°F) |
| Weight | Approx. 2.5 kg (5.5 lb) |
| Dimensions | Approx. dimensions (not specified in the input) |
