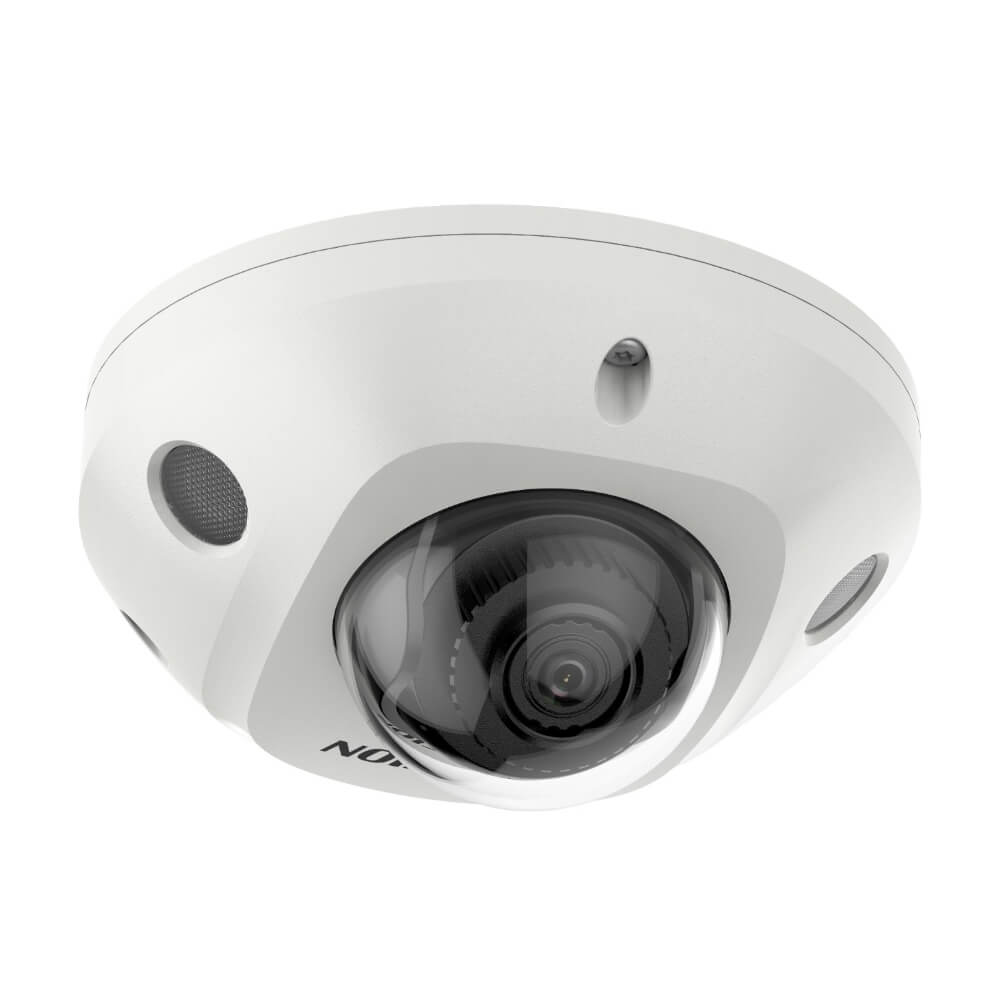

Hikvision DS-2CD2586G2-IS 8MP Outdoor Acusense Mini Dome CCTV Camera 30 IR with MIC
Why This Model
- AcuSense false alarm filtering: Classifies motion events as human or vehicle before alerting, so security staff respond to real threats rather than wading through notifications triggered by animals or foliage.
- 4K imaging in a mini dome body: The 3840 x 2160 resolution captures licence plates and facial detail without the physical footprint of a full-size turret or bullet camera.
- Built-in mic for audio evidence: The integrated microphone adds an audio layer to recorded footage, useful for dispute resolution in retail or access control scenarios without needing an external audio device.
Accessories
Select options before adding this product to cart.
Need help choosing?
Click to ask a question - same day response (~2 hours during business hours)
Product Overview
Model: DS-2CD2586G2-IS
Who This Is For
When outdoor coverage at a compact footprint is the priority, the Hikvision DS-2CD2586G2-IS delivers 8MP resolution in a mini dome housing that suits eave soffits, building facades, and entry overhangs without the visual bulk of a full-size dome or bullet. It is built around Hikvision's AcuSense engine, which classifies detections as human or vehicle before triggering an alert - making it a practical fit for small business owners, property managers, and residential installers who have dealt with excessive motion alerts from trees, animals, or passing headlights. The 2.8mm fixed lens covers wide entry-point angles, the IP67 housing handles rain and dust without additional enclosures, and the built-in microphone and speaker support two-way audio for reception-style or access-point use. If you are specifying a system where accurate event notifications matter as much as image quality, this camera is built around that exact problem.
What This Camera Actually Does
AcuSense Human and Vehicle Classification
The onboard AcuSense engine analyses motion in real time and flags only detections classified as human or vehicle. Alerts from swaying branches, animals, and lighting changes are filtered before they reach your NVR event log or mobile notification, reducing the noise that makes most motion detection impractical.
8MP 4K Resolution at 3840x2160
At 3840x2160 pixels, the image contains enough detail to zoom into a recorded frame and still read a number plate or identify facial features at close to mid range. This matters most when reviewing footage after an incident rather than relying solely on live monitoring.
30m IR Night Vision
Built-in infrared illumination reaches up to 30 metres in complete darkness, with a minimum illumination rating of 0.0005 Lux. That is sufficient for driveways, car parks, and perimeter paths where ambient lighting is absent or unreliable, without requiring external IR illuminators.
Two-Way Audio
The DS-2CD2586G2-IS carries both a built-in microphone and a built-in speaker, confirmed by the IS suffix. This enables live two-way conversation from a connected NVR or mobile app - useful at entry points, reception areas, or delivery zones where verbal interaction adds operational value beyond passive recording.
H.265+ Compression
H.265+ reduces the bitrate of an 8MP stream significantly compared with H.264, which directly affects how much storage your NVR needs and how long recordings are retained before overwriting. On a system recording multiple 4K cameras, this compression difference becomes meaningful at the storage planning stage.
IP67 Outdoor Housing
The IP67 rating means the housing is fully dust-tight and rated for immersion in water up to 1 metre - well beyond what rain exposure on a building exterior demands. No junction box or additional weatherproof enclosure is required for standard outdoor mounting positions.
Who Buys This Model
- Small business owners upgrading from lower-resolution systems: The step up to 8MP makes a material difference when reviewing footage for disputed transactions, staff incidents, or break-ins - scenarios where standard 2MP recordings often lack the detail needed for identification.
- Residential installers fitting eave cameras at entry points: The mini dome profile, IP67 rating, and 2.8mm wide-angle lens make this a practical fit for front door overhangs, side gate entries, and garage approaches without requiring a larger housing footprint.
- Property managers dealing with nuisance alert fatigue: Sites using standard motion detection across multiple cameras generate excessive notifications. AcuSense classification cuts alert volume to human and vehicle events only, which changes how usable the notification system actually is day to day.
- Childcare and healthcare facilities requiring audio capability: The confirmed built-in microphone and speaker support two-way audio at staff entry points or monitored zones where verbal communication supplements visual coverage.
Honest Assessment
The DS-2CD2586G2-IS does two things notably well: it delivers 4K imaging in a compact outdoor housing that installs cleanly on standard surfaces, and it filters detection events through AcuSense classification before they become alerts or recordings. For installers and end users who have previously managed systems flooded with irrelevant motion events, that filtering is a genuine operational improvement rather than a marketing claim. The IP67 housing handles Australian outdoor conditions without additional protection, and H.265+ compression keeps storage demands reasonable across a multi-camera deployment. Available through Security Australia, this model sits in a practical range for sites that need accuracy and image quality together. What it will not do is provide colour night vision - IR illumination produces monochrome night footage, so if full-colour low-light imaging is the requirement, a different camera type with white-light or colour-tuned sensors would be more suitable. The fixed 2.8mm lens also means no adjustable field of view, so long-corridor or deep-perimeter applications may need a different focal length.
Before You Buy
Installer Note: The DS-2CD2586G2-IS is a fixed 2.8mm lens model. At 8MP, the wider field of view works well for entry points and open areas but will not deliver identification-level detail at distances beyond 8-10 metres. If your mounting position is more than 6 metres from the primary subject zone, confirm whether a longer focal length variant suits the layout before ordering. Also note that AcuSense event-based recording and smart search features require a compatible Hikvision NVR with AcuSense support - a standard DVR or third-party recorder will not expose these classification functions.
Quick Fit Check
- Good match if: You are mounting at a building entry, driveway gate, or car park approach where a wide 2.8mm field of view suits the geometry and AcuSense classification will reduce nuisance alerts from passing traffic or vegetation.
- Good match if: Your site needs two-way audio at a monitored point - the confirmed built-in microphone and speaker mean no external audio device is required, keeping the installation compact and the cable count low.
- You may need a different model if: Full-colour night vision is a specification requirement - this camera uses infrared illumination for monochrome night footage, and a camera type with built-in white-light LEDs or a colour-tuned sensor would be better suited to that outcome.
Key Features & Technical Specifications
Real-World Scenarios
How It Compares
- Choose this if: You need 8MP outdoor imaging with AcuSense human and vehicle classification in a compact dome housing that includes two-way audio without adding external devices.
- You may need a different model if: Your priority is full-colour night vision - a camera type with built-in white-light illuminators or colour-specific sensors will outperform IR-based monochrome night footage for that requirement.
- Pairs well with: A Hikvision AcuSense-compatible PoE NVR - without a compatible NVR, the AcuSense classification and smart event search functions are not accessible, reducing the camera to standard motion detection only.
Common Questions
-
Does this camera support two-way audio or is the microphone receive-only?
Yes, it supports genuine two-way audio. The IS suffix in the model name DS-2CD2586G2-IS confirms both a built-in microphone and a built-in speaker are present. This means you can speak to someone at the camera location from a connected NVR interface or the Hik-Connect mobile app, not just listen. -
Will this camera work with my existing Hikvision NVR?
It depends on your NVR model. The DS-2CD2586G2-IS will record video on any compatible Hikvision IP NVR. However, to access AcuSense smart event classification, smart search, and human and vehicle filtering, your NVR must specifically support AcuSense. A standard Hikvision NVR without AcuSense support will record the camera but treat detections as standard motion only. Check your NVR's feature list before expecting the filtering to function. -
What does AcuSense actually do differently from standard motion detection?
AcuSense classifies detected objects as human, vehicle, or other before an alert is triggered. Standard motion detection responds to any pixel change in the scene - which includes animals, wind-blown foliage, and shifting shadows. AcuSense reduces those false triggers by only notifying or recording when the onboard algorithm identifies a human or vehicle shape. For sites that previously found motion alerts unmanageable, this is the core practical difference. -
Does the 8MP resolution provide enough detail to identify a person's face or read a number plate?
At close range, yes. At 3840x2160, the image density is high enough that zooming into a recorded frame still retains usable detail at distances of 4-8 metres from the camera. However, the 2.8mm fixed lens produces a wide field of view, which spreads those pixels across a broad scene. For a dedicated number plate camera covering a vehicle approach at 10 metres or more, a longer focal length model with a narrower field would deliver better results. For entry-point identification at typical doorway distances, this camera's resolution is appropriate. -
Is the night vision in colour or black and white?
Black and white. The DS-2CD2586G2-IS uses infrared LED illumination, which produces monochrome footage in low-light and no-light conditions. The 0.0005 Lux minimum illumination rating means it captures usable footage in near-complete darkness, but the image will be greyscale. If colour night vision is a firm requirement, a camera with built-in white-light LEDs or a dedicated colour-at-night sensor would be the correct product type to look for at Security Australia. -
How much storage does an 8MP camera require compared to a standard 2MP camera?
Significantly more at equivalent settings, but H.265+ compression substantially closes that gap. An uncompressed 8MP stream is roughly 4 times the data of a 2MP stream. With H.265+ active, the effective storage impact is reduced considerably. The practical approach is to use an NVR storage calculator with your expected number of cameras, recording hours per day, and H.265+ bitrate settings to arrive at an accurate HDD sizing figure before purchasing storage. -
Does this camera require PoE or does it support a 12V DC power supply?
The DS-2CD2586G2-IS supports standard PoE (IEEE 802.3af), allowing a single Cat5e or Cat6 cable to deliver both power and network data from a PoE NVR or PoE switch. Whether it also accepts a separate 12V DC power input alongside the network connection is not confirmed in the available specification data - if your installation requires DC power rather than PoE, confirm the auxiliary power input before planning your cable run.
Downloads & Resources
No downloads available for this product.
What This Product Does
Why This Model
- AcuSense false alarm filtering: Classifies motion events as human or vehicle before alerting, so security staff respond to real threats rather than wading through notifications triggered by animals or foliage.
- 4K imaging in a mini dome body: The 3840 x 2160 resolution captures licence plates and facial detail without the physical footprint of a full-size turret or bullet camera.
- Built-in mic for audio evidence: The integrated microphone adds an audio layer to recorded footage, useful for dispute resolution in retail or access control scenarios without needing an external audio device.
Not sure if this suits your site?
Ask our team before ordering. We can help confirm lens choice, recorder compatibility, mounting accessories and project quantities.
Specifications
Specifications
| Camera | |
| Image Sensor | 1/1.8″ Progressive Scan CMOS |
| Max. Resolution | 3840 × 2160 |
| Min. Illumination | Color: 0.003 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR |
| Shutter Time | 1/3 s to 1/100,000 s |
| Day & Night | IR cut filter |
| Angle Adjustment | Pan: -30° to 30°, tilt: 0° to 75°, rotate: 0° to 360° |
| Lens | |
| Lens Type | Fixed focal lens, 2.8 and 4 mm optional |
| Focal Length & FOV | 2.8 mm, horizontal FOV 110.0°, vertical FOV 56.7°, diagonal FOV 134.1° 4 mm, horizontal FOV 88.0°, vertical FOV 49.9°, diagonal FOV 100.4° |
| Lens Mount | M12 |
| Iris Type | Fixed |
| Aperture | F1.6 |
| Depth of Field | 2.8 mm: 2.2 m to ∞ 4 mm: 2.6 m to ∞ |
| DORI | 2.8 mm: D: 89 m O: 35 m R: 18 m I: 9 m 4 mm: D: 99 m O: 39 m R: 20 m I: 10 m |
| Illuminator | |
| Supplement Light Type | IR |
| Supplement Light Range | Up to 30 m |
| Smart Supplement Light | Yes |
| IR Wavelength | 850 nm |
| Video | |
| Main Stream | 50 Hz: 25 fps (3840 × 2160, 3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720) 60 Hz: 24 fps (3840 × 2160) 30 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720) |
| Sub-Stream | 50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360) 60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360) |
| Third Stream | 50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) 60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) *Third stream is supported under certain settings. |
| Video Compression | Main stream: H.265/H.264/H.265+/H.264+ Sub-stream: H.265/H.264/MJPEG Third stream: H.265/H.264 *Third stream is supported under certain settings. |
| Video Bit Rate | 32 Kbps to 16 Mbps |
| H.264 Type | Baseline Profile/Main Profile/High Profile |
| H.265 Type | Main Profile |
| Bit Rate Control | CBR/VBR |
| Scalable Video Coding (SVC) | H.264 and H.265 encoding |
| Region of Interest (ROI) | 1 fixed region for main stream and sub-stream |
| Audio | |
| Environment Noise Filtering | Yes |
| Audio Sampling Rate | 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz |
| Audio Compression | G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC |
| Audio Bit Rate | 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC) |
| Network | |
| Simultaneous Live View | Up to 6 channels |
| API | Open Network Video Interface (Profile S, Profile G, Profile T), ISAPI, SDK |
| Protocols | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, ARP, WebSocket, WebSockets |
| User/Host | Up to 32 users. 3 user levels: administrator, operator and user |
| Security | Password protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video Interface |
| Network Storage | NAS (NFS, SMB/CIFS), auto network replenishment (ANR) Together with high-end Hikvision memory card, memory card encryption and health detection are supported. |
| Client | |
| Client Software | iVMS-4200, Hik-Connect, Hik-Central |
| Web Browser | Plug-in required live view: IE 10, IE 11 Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+ Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+ |
| Image | |
| Wide Dynamic Range (WDR) | 120 dB |
| SNR | ≥ 52 dB |
| Day/Night Switch | Day, Night, Auto, Schedule |
| Image Enhancement | BLC, HLC, 3D DNR |
| Image Parameters Switch | Yes |
| Image Settings | Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser |
| Interface | |
| Ethernet Interface | 1 RJ45 10 M/100 M self-adaptive Ethernet port |
| On-Board Storage | Built-in memory card slot, support microSD card, up to 512 GB |
| Built-in Microphone | Yes |
| Audio | -IS: 1 input (line in), two-core terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium 1 output (line out), two-core terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium |
| Alarm | -IS: 1 input, 1 output (max. 12 VDC, 20 mA) |
| Reset Key | Yes |
| Event | |
| Basic Event | Motion detection (support alarm triggering by specified target types (human and vehicle)), video tampering alarm, exception |
| Linkage | Upload to FTP/NAS/memory card, notify surveillance center, trigger recording, trigger capture, send email |
| Smart Event | Line crossing detection, intrusion detection, region entrance detection, region exiting detection Scene change detection |
| Deep Learning Function | Face Capture: Yes Perimeter Protection: Line crossing, intrusion, region entrance, region exiting Support alarm triggering by specified target types (human and vehicle) |
| General | |
| Power | 12 VDC ± 25%, 0.54 A, max. 6.5 W, Ø5.5 mm coaxial power plug, reverse polarity protection PoE (802.3af, 36 V to 57 V), 0.22 A to 0.14 A, max. 8 W |
| Material | Base: aluminum, cover: plastic |
| Dimension | Ø113.6 mm × 72.6 mm (Ø4.5" × 2.9") |
| Package Dimension | 134 mm × 134 mm × 108 mm (5.3" × 5.3" × 4.3") |
| Weight | Approx. 400 g (0.9 lb.) With Package Weight: Approx. 635 g (1.4 lb.) |
| Storage Conditions | -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) |
| Startup and Operating Conditions | -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) |
| Language | 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian |
| General Function | Anti-flicker, heartbeat, mirror, privacy mask, flash log, password reset via email, pixel counter |
| Approval | |
| EMC | FCC (47 CFR Part 15, Subpart B) CE-EMC (EN 55032: 2015, EN 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014) RCM (AS/NZS CISPR 32: 2015) IC (ICES-003: Issue 7) KC (KN32: 2015, KN35: 2015) |
| Safety | UL (UL 62368-1) CB (IEC 62368-1: 2014+A11) CE-LVD (EN 62368-1: 2014/A11: 2017) LOA (IEC/EN 60950-1) |
| Environment | CE-RoHS (2011/65/EU) WEEE (2012/19/EU) Reach (Regulation (EC) No 1907/2006) |
| Protection | IP67: IEC 60529-2013 IK08: IEC 62262:2002 |
