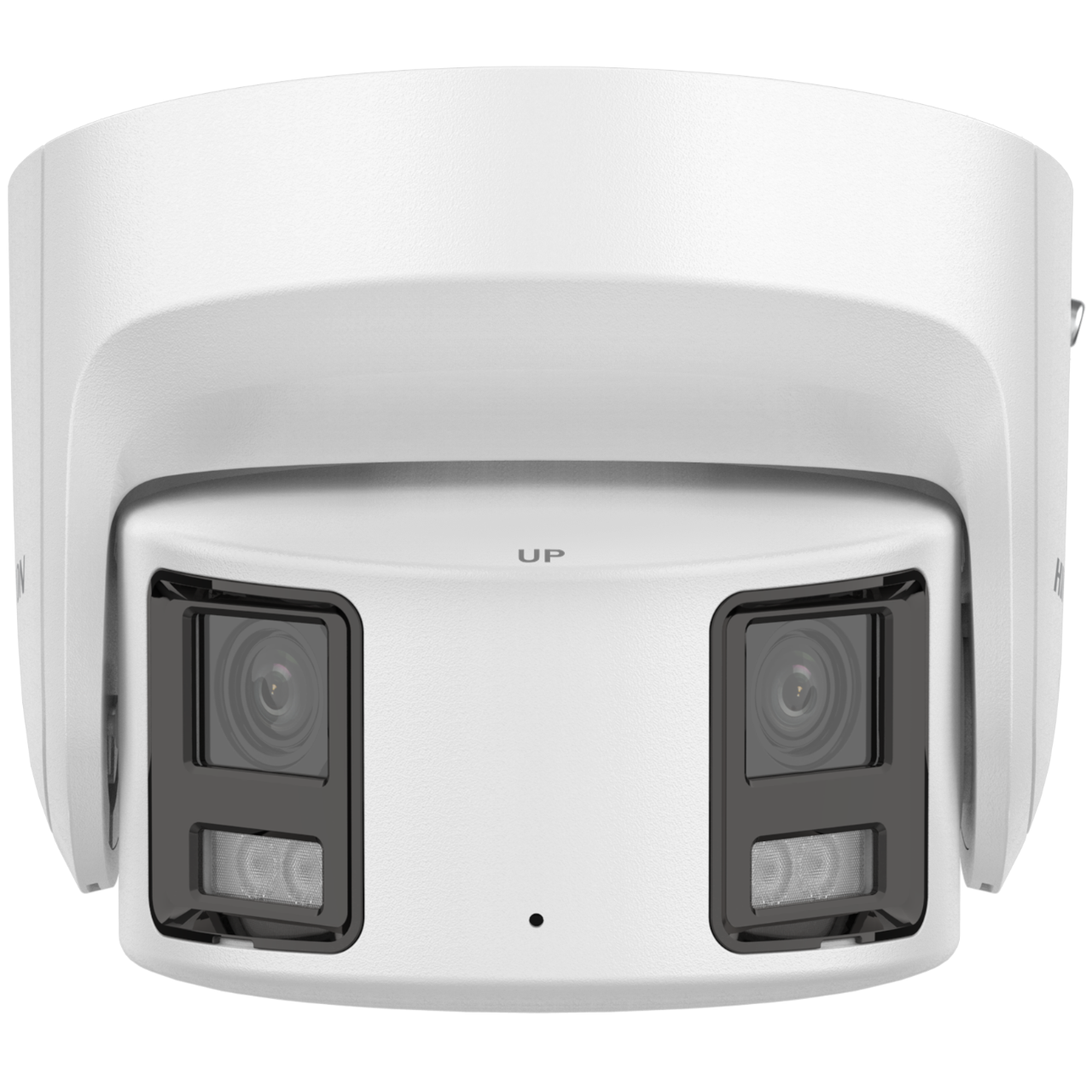

Hikvision DS-2CD2367G2P-LSU/SL 6MP ColorVu Turret Dual Head Strobe + Speaker Network Camera
The Hikvision DS-2CD2367G2P-LSU/SL is a 6 MP Panoramic ColorVu Fixed Turret Network Camera that offers unparalleled surveillance capabilities with its advanced AcuSense technology. Designed to deliver 24/7 color imaging, this camera ensures clear and vibrant video even in low-light conditions, making it ideal for both day and night monitoring.
Infrared Range: 30m IR ensures clear visibility in complete darkness.
Lens Options: 2.8mm (Horizontal FOV: 98°, Vertical FOV: 52°, Diagonal FOV: 115°)
Features:
Ideal for both residential and commercial applications, this panoramic camera provides comprehensive coverage and advanced security features to effectively safeguard your property.
Code/SKU: DS-2CD2367G2P-LSU/SL
Quick Specs:
| Camera | |
|---|---|
| Image Sensor | 2 × 1/2.5" Progressive Scan CMOS |
| Max. Resolution | 3632 × 1632 |
| Min. Illumination | Color: 0.0005 Lux @ (F1.0, AGC ON), 0 Lux with light |
| Shutter Time | 1/3 s to 1/100,000 s |
| Angle Adjustment | Pan: 0° to 30°, tilt: -75° to 75° |
| Lens | |
| Lens Type | Fixed focal lens, dual lens, 2.8 mm |
| Focal Length & FOV | 2.8 mm, horizontal FOV: 180°, vertical FOV: 81° |
| Lens Mount | M12 |
| Iris Type | Fixed |
| Aperture | F1.0 |
| Depth Of Field | 2 m to ∞ |
| DORI | |
| DORI | 2.8 mm, D: 45 m, O: 17.5 m, R: 9 m, I: 4.5 m |
| Illuminator | |
| Supplement Light Type | White Light |
| Supplement Light Range | Up to 30 m |
| Smart Supplement Light | Yes |
| Video | |
| Main Stream | 50 Hz: 20 fps (3632 × 1632) 60 Hz: 20 fps (3632 × 1632) |
| Sub-Stream | 50 Hz: 20 fps (1200 × 536, 960 × 432) 60 Hz: 20 fps (1200 × 536, 960 × 432) |
| Video Compression | Main stream: H.265+/H.265/H.264+/H.264 Sub-stream: H.265/H.264/MJPEG |
| Video Bit Rate | 32 Kbps to 16 Mbps |
| H.264 Type | Baseline Profile, Main Profile, High Profile |
| H.265 Type | Main Profile |
| Bit Rate Control | CBR, VBR |
| Scalable Video Coding (SVC) | H.264 and H.265 encoding |
| Region Of Interest (ROI) | 1 fixed region(s) for main stream |
| Audio | |
| Audio Type | Mono sound |
| Audio Compression | G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC |
| Audio Bit Rate | 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC) |
| Audio Sampling Rate | 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz |
| Environment Noise Filtering | Yes |
| Network | |
| Protocols | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, Websocket, Websockets |
| Simultaneous Live View | Up to 6 channels |
| API | Open Network Video Interface (Profile S, Profile G, Profile T), ISAPI, SDK |
| User/Host | Up to 32 users 3 user levels: administrator, operator, and user |
| Security | |
| Security | Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.2, host authentication (MAC address) |
| Network Storage | |
| Network Storage | NAS (NFS, SMB/CIFS), Auto Network Replenishment (ANR) Together with high-end Hikvision memory card, memory card encryption and health detection are supported. |
| Client | |
| Client | iVMS-4200, Hik-Connect, Hik-Central |
| Web Browser | Plug-in required live view: IE 10, IE 11 Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+ Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+ |
| Image | |
| Image Parameters Switch | Yes |
| Image Settings | Saturation, brightness, contrast, sharpness, gain, white balance, adjustable by client software or web browser |
| Day/Night Switch | Day, Night, Auto, Schedule |
| Wide Dynamic Range (WDR) | 130 dB |
| SNR | ≥ 52 dB |
| Image Enhancement | BLC, HLC, 3D DNR |
| Privacy Mask | 8 rectangular privacy masks |
| Interface | |
| Ethernet Interface | 1 RJ45 10 M/100 M self-adaptive Ethernet port |
| On-Board Storage | Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB |
| Built-In Microphone | Yes |
| Built-In Speaker | Max. power consumption: 1.2 W, max. sound pressure level: 10 cm: 95 dB |
| Audio | 1 input (line in), terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium; 1 output (line out), terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium |
| Alarm | 1 input(s), 1 output(s) (max. 24 VDC/24 VAC, 1 A) |
| Reset Key | Yes |
| Event | |
| Basic Event | Motion detection (support alarm triggering by specified target types (human and vehicle)), alarm input and output, flashing alarm light output, audible alarm output, exception |
| Smart Event | Line crossing detection, intrusion detection, region entrance detection, region exiting detection (support alarm triggered by specified target types (human and vehicle)), Scene change detection |
| Linkage | Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, trigger recording, trigger capture, audible warning, white light flashing |
| General | |
| Power | 12 VDC ± 25%, 0.88 A, max. 10.5 W, Ø5.5 mm coaxial power plug, reverse polarity protection; PoE: 802.3af, Class 3, 36 V to 57 V, 0.35 A to 0.22 A, max. 12.5 W |
| Material | Base: metal, cover: metal |
| Dimension | Ø140 mm × 145.6 mm (Ø5.5 × 5.7") |
| Package Dimension | 230 mm × 230 mm × 230 mm (9" × 9" × 9") |
| Weight | Approx. 920 g (2.0 lb.) |
| With Package Weight | Approx. 1680 g (3.7 lb.) |
| Storage Conditions | -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) |
| Startup And Operating Conditions | -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) |
| Language | |
| Language | 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian |
| General Function | |
| General Function | Anti-banding, heartbeat, flash log, pixel counter |
| Approval | |
| EMC | FCC: 47 CFR Part 15, Subpart B; CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014; RCM: AS/NZS CISPR 32: 2015; IC: ICES-003: Issue 7 |
| Safety | UL: UL 62368-1; CB: IEC 62368-1: 2014+A11; CE-LVD: EN 62368-1: 2014/A11: 2017 |
| Environment | CE-RoHS: 2011/65/EU; WEEE: 2012/19/EU; Reach: Regulation (EC) No 1907/2006 |
| Protection | IP67: IEC 60529-2013 |
All IP cameras and recording devices (NVR’s/DVR’s) are covered by a 3 year back-to-base manufacturer warranty.
Our warranty is limited to the replacement of faulty items or parts and does not include damage due to incorrect fitting of parts or accessories, or damage due to mishandling the equipment once out of the box. All faults are sent to the manufacturer for inspection and diagnosis before a replacement is sent out.
Read more about the Terms & Conditions here – https://www.securityaustralia.com.au/terms-and-conditions/
*Just spend over $100 to activate Fast Free Shipping!
Despatch Times: Products are despatched on the same day if the order was placed before 11am on any weekday, Monday - Friday. All other orders are processed and despatched within 24 hours or next business day.
Order Confirmation: Once you place an order, you will receive a confirmation email. This indicates that your order has been received in our system and is now being processed for dispatch. If your item is back-ordered or unavailable, we will notify you via email, and if we do not receive a response, we will attempt to contact you by phone as soon as possible. We value your time and strive to be prompt. If your item(s) are available for immediate shipment (within 2 days), we will process the charges and prepare the order for shipping.
Shipping Times: General shipping times for StarTrack, TNT and Allied couriers are between 1-3 working days from despatch. Longer delivery times may be caused by your package being held at your local courier depot that is beyond our control. Please contact us or the local post depot for confirmation.
Tracking Numbers: all tracking numbers will be emailed to you by our warehouse processing team within the day, after your order is despatched to our local courier.
Hikvision DS-2CD2367G2P-LSU/SL 6MP ColorVu Turret Dual Head Strobe + Speaker network Camera
Upgrade your security system with the Hikvision DS-2CD2367G2P-LSU/SL, a 6MP Panoramic ColorVu Fixed Turret Network Camera designed to deliver exceptional image quality and comprehensive coverage. This advanced camera features a unique dual-sensor design that captures a wide 180-degree panoramic view, ensuring no detail is missed. With Hikvision's innovative ColorVu technology, this camera provides vibrant, full-color images 24/7, even in low-light conditions, making it an ideal choice for monitoring large areas such as shopping centers, warehouses, and parking lots.
ColorVu Technology:
The DS-2CD2367G2P-LSU/SL is equipped with Hikvision's ColorVu technology, which ensures full-color surveillance at all times. By using a large F1.0 super-aperture lens and advanced sensor technology, this camera captures more light, delivering clear and colorful images even in minimal lighting conditions. This feature is crucial for identifying details such as clothing colors or vehicle models during nighttime surveillance.
AcuSense Technology:
Leveraging deep learning algorithms, AcuSense technology accurately detects and classifies human and vehicle targets, significantly reducing false alarms. This ensures that the camera focuses on real security threats, providing reliable and efficient monitoring for enhanced safety.
Panoramic Design with Image Fusion:
The dual-sensor design of the DS-2CD2367G2P-LSU/SL enables it to capture a wide 180-degree view, ideal for monitoring expansive areas. Hikvision's Image Fusion technology seamlessly combines the images from both sensors into a single, unified panoramic view, ensuring consistent and comprehensive coverage.
Live-Guard Technology:
This camera is equipped with Hikvision's Live-Guard technology, offering real-time deterrence through active strobe lights and customizable audio alarms. These features are designed to deter potential intruders immediately, providing an additional layer of security.
Built-In Two-Way Audio:
The camera features a built-in microphone and speaker, enabling two-way communication. This function is particularly useful for interacting with visitors or warning intruders in real-time, enhancing the overall security of your premises.
Technical Specifications
| Model | DS-2CD2367G2P-LSU/SL |
| Image Sensor | 1/1.8" Progressive Scan CMOS |
| Max. Resolution | 3072 × 2048 (6 MP) |
| Min. Illumination | Color: 0.0005 Lux @ (F1.0, AGC ON), 0 Lux with white light |
| Field of View (FOV) | Horizontal: 180°, Vertical: 90° |
| Wide Dynamic Range | 130 dB |
| IR Range | Up to 30 meters |
| Audio Features | Built-in microphone and speaker for two-way audio |
| Weatherproof Rating | IP67 (water and dust resistant) |
| Video Compression | H.265+, H.265, H.264+, H.264 |
| Power Supply | 12 VDC ± 25% or PoE (802.3af) |
| Audio Compression | G.711ulaw/G.711alaw/G.722.1/G.726/AAC |
| Operating Conditions | -30 °C to 60 °C (-22 °F to 140 °F), Humidity: 95% or less (non-condensing) |
| Weight | Approx. 1 kg (2.2 lb) |
| DORI Distance | Detection: 84 m, Observation: 33 m, Recognition: 16 m, Identification: 8 m |
