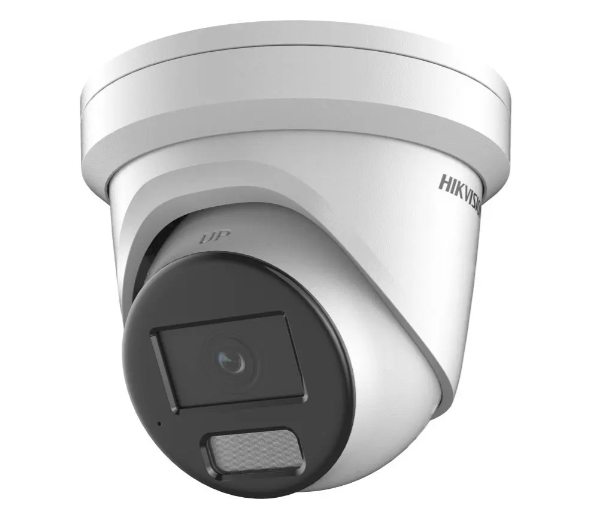

6 MP Smart Hybrid Light with ColorVu Fixed Turret Network Camera
The DS-2CD2367G2H-LIU features intelligent video analytics that enable accurate motion detection and alert notifications. It supports H.265+ video compression, reducing bandwidth and storage requirements while maintaining high image quality. This model integrates seamlessly with Hikvision's NVRs and other devices for a comprehensive surveillance system. Its user-friendly interface allows for easy installation and configuration, minimizing setup time. The camera's advanced image processing algorithms ensure optimal performance, even in complex lighting scenarios. With its wide dynamic range (WDR) feature, it effectively balances bright and dark areas in the scene.
Key Features
Code/SKU: DS-2CD2367G2H-LIU
Quick Specs:
| Camera | Image Sensor | 1/1.8" Progressive Scan CMOS |
|---|---|---|
| Max. Resolution | 3200 × 1800 | |
| Min. Illumination | Color: 0.0005 Lux @ (F1.0, AGC ON), 0 Lux with light | |
| Shutter Time | 1/3 s to 1/100,000 s | |
| Day & Night | IR cut filter | |
| Angle Adjustment | Pan: 0° to 360°, tilt: 0° to 75°, rotate: 0° to 360° | |
| Lens Type | Fixed focal lens, 2.8 and 4 mm optional | |
| Focal Length & FOV | 2.8 mm, horizontal FOV 108.8°, vertical FOV 56.4°, diagonal FOV 134.3% 4 mm, horizontal FOV 93.3°, vertical FOV 47.2°, diagonal FOV 114.2% | |
| Lens Mount | M16 | |
| Iris Type | Fixed | |
| Aperture | F1.0 | |
| Depth of Field | 2.8 mm: 3.3 m to ∞ 4 mm: 3.8 m to ∞ | |
| DORI | 2.8 mm: D: 89 m, O: 35 m, R: 17 m, I: 8 m 4 mm: D: 109 m, O: 43 m, R: 21 m, I: 10 m | |
| Supplement Light Type | IR, White Light | |
| Supplement Light Range | Up to 30 m | |
| Smart Supplement Light | Yes | |
| IR Wavelength | 850 nm | |
| Main Stream | 50 Hz: 25 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720) 60 Hz: 24 fps (3200 × 1800) 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720) | |
| Sub-Stream | 50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360) 60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360) | |
| Third Stream | 50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) 60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) *Third stream is supported under certain settings. | |
| Video Compression | Main stream: H.265/H.264/H.264+/H.265+ Sub-stream: H.265/H.264/MJPEG Third stream: H.265/H.264 *Third stream is supported under certain settings. | |
| Video Bit Rate | 32 Kbps to 16 Mbps | |
| H.264 Type | Baseline Profile, Main Profile, High Profile | |
| H.265 Type | Main Profile | |
| Bit Rate Control | CBR, VBR | |
| Scalable Video Coding (SVC) | H.264 and H.265 encoding | |
| Region of Interest (ROI) | 1 fixed region for main stream and sub-stream | |
| Audio Compression | -U: G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC | |
| Audio Bit Rate | -U: 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/16 Kbps to 64 Kbps (AAC-LC)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3) | |
| Audio Sampling Rate | -U: 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz | |
| Environment Noise Filtering | -U: Yes | |
| Protocols | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket, WebSockets, SRTP, SFTP | |
| Simultaneous Live View | Up to 6 channels | |
| API | Open Network Video Interface (Profile S, Profile G, Profile T), ISAPI, SDK, ISUP | |
| User/Host | Up to 32 users 3 user levels: administrator, operator, and user | |
| Security | Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.1/1.2/1.3, host authentication (MAC address) | |
| Network Storage | NAS (NFS, SMB/CIFS), Auto Network Replenishment (ANR) | |
| Client | iVMS-4200, Hik-Connect, Hik-Central | |
| Web Browser | Plug-in required live view: IE 10, IE 11 Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+ Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+ | |
| Image Parameters Switch | Yes | |
| Image Settings | Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance, adjustable by client software or web browser | |
| Day/Night Switch | Day, Night, Auto, Schedule | |
| Image Enhancement | BLC, HLC, 3D DNR | |
| SNR | ≥ 52 dB | |
| Wide Dynamic Range (WDR) | 130 dB | |
| Privacy Mask | 4 programmable polygon privacy masks | |
| Ethernet Interface | 1 RJ45 10 M/100 M self-adaptive Ethernet port | |
| On-Board Storage | Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB | |
| Built-in Microphone | -U: Yes | |
| Reset Key | Yes | |
| Basic Event | Motion detection (support alarm triggering by specified target types (human and vehicle)), video tampering alarm, exception | |
| Linkage | Upload to FTP/NAS/memory card, notify surveillance center, trigger recording, trigger capture, send email | |
| Smart Event | Scene change detection | |
| Deep Learning Function | Face Capture: Yes Perimeter Protection: Line crossing, intrusion, region entrance, region exiting Support alarm triggering by specified target types (human and vehicle) | |
| Power | 12 VDC ± 25%, 0.54 A, max. 6.5 W, Ø5.5 mm coaxial power plug, reverse polarity protection PoE: IEEE 802.3af, Class 3, max. 8 W | |
| Material | Cover: Metal, main body: Metal | |
| Dimension | Ø138.3 mm × 115.4 mm (Ø5.4" × 4.5") | |
| Package Dimension | 170 mm × 170 mm × 160 mm (6.7" × 6.7" × 6.3") | |
| Weight | Approx. 770 g (1.7 lb.) With Package Weight: Approx. 1040 g (2.3 lb.) | |
| Storage Conditions | -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) | |
| Startup and Operating Conditions | -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) | |
| General Function | Heartbeat, mirror, password reset via email, pixel counter, anti-banding | |
| Language | 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian | |
| Approval | EMC: CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014 RCM: AS/NZS CISPR 32: 2015 IC: ICES-003: Issue 7 KC: KN32: 2015, KN35: 2015 | |
| Safety | UL: UL 62368-1 CB: IEC 62368-1: 2014+A11 CE-LVD: EN 62368-1: 2014/A11: 2017 BIS: IS 13252 (Part 1): 2010/IEC 60950-1: 2005 | |
| Environment | CE-RoHS: 2011/65/EU | |
| Protection | IP67: IEC 60529-2013 | |
All IP cameras and recording devices (NVR’s/DVR’s) are covered by a 3 year back-to-base manufacturer warranty.
Our warranty is limited to the replacement of faulty items or parts and does not include damage due to incorrect fitting of parts or accessories, or damage due to mishandling the equipment once out of the box. All faults are sent to the manufacturer for inspection and diagnosis before a replacement is sent out.
Read more about the Terms & Conditions here – https://www.securityaustralia.com.au/terms-and-conditions/
*Just spend over $100 to activate Fast Free Shipping!
Despatch Times: Products are despatched on the same day if the order was placed before 11am on any weekday, Monday - Friday. All other orders are processed and despatched within 24 hours or next business day.
Order Confirmation: Once you place an order, you will receive a confirmation email. This indicates that your order has been received in our system and is now being processed for dispatch. If your item is back-ordered or unavailable, we will notify you via email, and if we do not receive a response, we will attempt to contact you by phone as soon as possible. We value your time and strive to be prompt. If your item(s) are available for immediate shipment (within 2 days), we will process the charges and prepare the order for shipping.
Shipping Times: General shipping times for StarTrack, TNT and Allied couriers are between 1-3 working days from despatch. Longer delivery times may be caused by your package being held at your local courier depot that is beyond our control. Please contact us or the local post depot for confirmation.
Tracking Numbers: all tracking numbers will be emailed to you by our warehouse processing team within the day, after your order is despatched to our local courier.
Hikvision DS-2CD2367G2H-LIU 6MP Smart Hybrid Light ColorVu Turret Camera 2.8mm/4mm
The Hikvision 6 MP Smart Hybrid Light Dome Network Camera DS-2CD2367G2H-LIU combines advanced technology and high performance for superior surveillance. Equipped with a 6 MP resolution, it ensures crystal-clear image quality, capturing fine details even in challenging conditions. The Smart Hybrid Light technology enhances visibility in low-light environments, providing vibrant color images day and night. This dome camera is designed for both indoor and outdoor use, offering versatility and durability. With its robust construction, it can withstand various weather conditions, making it ideal for any setting. The DS-2CD2367G2H-LIU features intelligent video analytics that enable accurate motion detection and alert notifications. It supports H.265+ video compression, reducing bandwidth and storage requirements while maintaining high image quality.
This model integrates seamlessly with Hikvision's NVRs and other devices for a comprehensive surveillance system. Its user-friendly interface allows for easy installation and configuration, minimizing setup time. The camera's advanced image processing algorithms ensure optimal performance, even in complex lighting scenarios. With its wide dynamic range (WDR) feature, it effectively balances bright and dark areas in the scene. The DS-2CD2367G2H-LIU also includes remote access capabilities, allowing users to view live feeds from anywhere. The camera supports two-way audio, enabling real-time communication through the surveillance system. Its sleek dome design blends discreetly with various environments, providing a professional appearance. The DS-2CD2367G2H-LIU is an ideal choice for those seeking high-quality, reliable security solutions.
