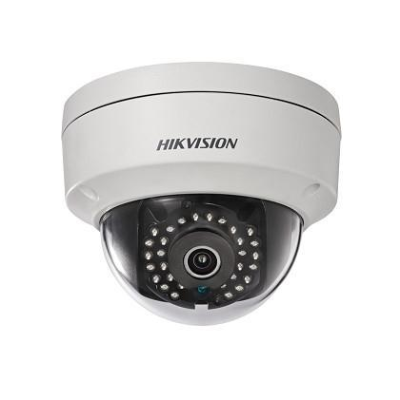

Hikvision DS-2CD2142FWD 4MP Outdoor Dome, WIFI, I/O, 30m IR, IP67, IK08, 2.8mm

Model: HIK-2CD2142FIWS2

Who This Is For

When running cable through an existing wall or ceiling is impractical, the Hikvision DS-2CD2142FWD gives installers a 4MP outdoor dome with built-in WiFi - removing the need to pull Ethernet to every mounting position. That makes it well-suited to small business owners, property managers, and self-installing homeowners who need a capable outdoor camera on an existing 2.4GHz or 5GHz network without a PoE infrastructure. The IK08 vandal-resistant housing and IP67 weatherproofing mean it handles exposed eave and soffit positions, and the 2.8mm fixed lens delivers a wide field of view across entry points, car parks, and outdoor common areas. The 120dB true wide dynamic range handles backlit entrances - a doorway facing morning sun, for example - without washing out the subject. Audio I/O support adds flexibility for sites where a wired audio connection to an NVR or control panel is needed.

What This Camera Actually Does

Who Buys This Model

• Small business owners retrofitting existing premises: Where cutting new cable runs through finished walls or ceilings is not practical, the WiFi capability lets the camera connect to an existing network without a dedicated PoE cable to each position.
• Strata and property managers covering outdoor common areas: The IK08 and IP67 ratings make this suitable for car parks, bin enclosures, and external walkways where the camera is mounted at reachable height and needs to handle both weather and deliberate interference.
• Installers working on backlit or mixed-light environments: The 120dB true WDR is a confirmed specification that makes this camera appropriate for glass-fronted entries, lobbies with exterior windows, or any position where the lighting behind the subject creates a challenging exposure problem.
• Self-installing homeowners adding outdoor coverage: The 2.8mm wide-angle lens and WiFi connectivity suit homeowners who want wide coverage of a driveway or entry without running Ethernet cable through roof cavities or external walls.

Honest Assessment

The DS-2CD2142FWD does several things well for its class. The combination of 4MP resolution, 120dB true WDR, and WiFi connectivity in an IK08-rated outdoor dome housing is practical for sites where cabling is the main installation constraint. H.264+ compression keeps storage requirements manageable, and the IP67 and IK08 ratings are independently confirmed rather than implied. This camera is available through Security Australia as part of the broader Hikvision range.

Where this camera is not the right tool: WiFi is not a substitute for a wired PoE run on sites where network reliability and bandwidth are critical - warehouses, large commercial premises, and multi-camera deployments with congested 2.4GHz environments will perform more consistently with a wired system. The 2.8mm fixed lens cannot be adjusted after installation, so sites needing a narrower field of view or longer recognition distance should look at a 4mm or 6mm variant. There is no confirmed colour night vision or AI classification on this model - buyers needing those capabilities should consider a different camera type.

Before You Buy

Quick Fit Check

• Good match if: You need an outdoor dome at a location without a convenient Ethernet cable run and have a reliable WiFi signal within range - the built-in WiFi removes the need for new cabling infrastructure entirely.
• Good match if: The mounting position faces a bright light source such as a glass door or street-facing entrance - the confirmed 120dB true WDR will balance the exposure across both the bright exterior and the darker interior in the same frame.
• You may need a different model if: The site has 10 or more cameras, unreliable WiFi coverage, or requires AI-based person and vehicle classification - a wired PoE system with AcuSense-equipped cameras will be a more suitable product type for that environment.

Key Features & Technical Specifications

Real-World Scenarios

How It Compares

• Choose this if: The installation location lacks a cable run and has a reliable WiFi signal - the built-in WiFi is the differentiating feature over otherwise comparable wired outdoor domes in the same resolution class.
• You may need a different model if: The site requires AI-based detection, colour night vision, or long-distance recognition beyond what a 2.8mm lens supports - a full-colour turret or AcuSense-equipped dome will be a more suitable product type for those requirements.
• Pairs well with: A Hikvision-compatible NVR with WiFi network connectivity, or a PoE-capable access point positioned to deliver consistent signal to the camera's mounting location.

Common Questions

1. Does this camera connect over WiFi without any Ethernet cable at all?

   Yes, with one qualification. The DS-2CD2142FWD has built-in WiFi for data, but it still requires a power source at the mounting point. If you're using a WiFi-only setup, you'll need either a local 12V DC power supply or a PoE injector run to the camera just for power. If you run PoE for power anyway, you could also use that connection for data instead of WiFi.

2. Will this camera handle a backlit doorway where the background is much brighter than the subject?

   Yes. The 120dB true wide dynamic range is specifically designed for this scenario. Unlike digital WDR or basic exposure compensation, true WDR captures separate exposures simultaneously and combines them, so both the bright exterior and the darker foreground subject are rendered with usable detail in the same frame.

3. What does H.264+ compression actually mean for storage on a 4MP camera running 24/7?

   It means roughly half the storage requirement compared to standard H.264 at equivalent quality. For a continuously recording 4MP camera, that difference is significant - a drive that holds 14 days of footage in standard H.264 may hold close to 28 days in H.264+. The compression works by encoding static background areas at lower bitrate and reserving bandwidth for moving objects.

4. Is IK08 enough for a camera mounted at head height in a public area?

   IK08 is a confirmed rating on this model and represents meaningful impact resistance for most commercial applications - it withstands approximately 5 joules of impact energy, which covers accidental contact and most deliberate interference short of sustained tool use. For high-vandalism environments such as transit hubs or correctional facilities, IK10 is the appropriate standard and requires a different camera type.

5. Does this camera support two-way audio?

   Not as a standalone feature. The DS-2CD2142FWD has audio I/O connections, meaning it supports wired audio input and output via external devices such as a microphone or speaker connected to those terminals. It does not have a built-in microphone and speaker combination that would enable two-way audio through the camera itself without external hardware.

6. Can the lens be swapped or adjusted after installation?

   No. The 2.8mm lens is fixed and cannot be changed or adjusted post-installation. If the field of view from 2.8mm is too wide for the specific recognition task - for example, identifying individuals at distances beyond 8-10 metres - the correct solution is to select a camera with a longer focal length before installation, not after. Security Australia stocks this model in the 2.8mm configuration; if a different focal length is needed, confirm availability before purchasing.

7. Does the IP67 rating mean this dome can be fully exposed to rain and sun?

   Yes. IP67 confirms complete dust ingress protection and protection against temporary immersion in water up to 1 metre depth for 30 minutes. In practical terms, this means direct rain, sprinkler water, and pressure wash cleaning at moderate distance are within the camera's design tolerance. Prolonged submersion is not, but for any typical Australian outdoor mounting position, IP67 is an appropriate rating.

Downloads & Resources

• Download Specification Sheet - Hikvision DS-2CD2142FWD
