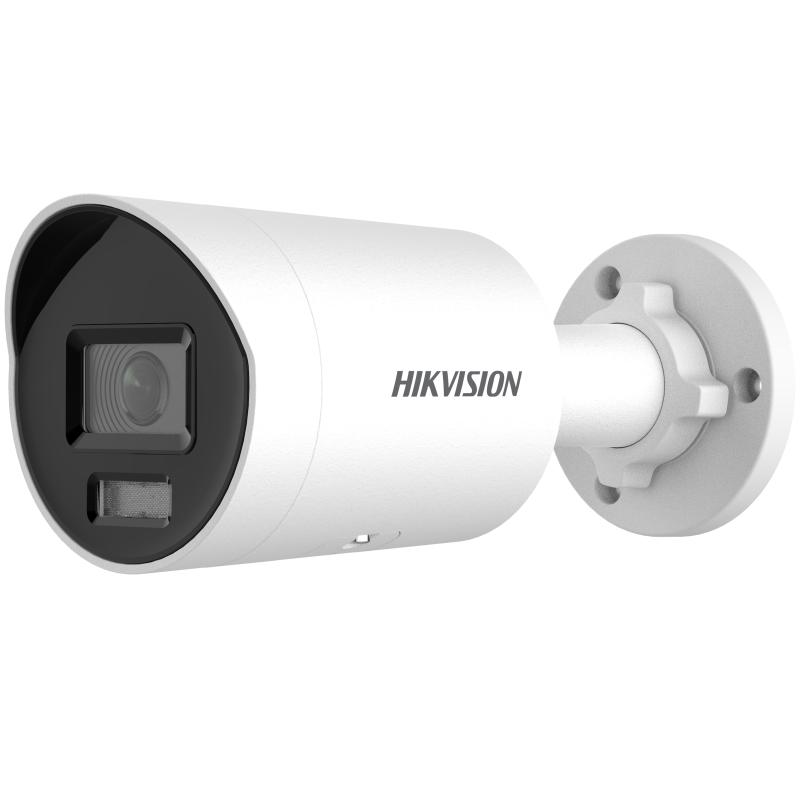

Hikvision DS-2CD2067G2-LU 6MP ColorVu Mini Bullet Camera 2.8mm / 4mm / 6mm
The Hikvision DS-2CD2067G2-L(U) is a 6 MP ColorVu Mini Bullet Network Camera that provides multiple viewing angles and a wide field of view, essential for comprehensive monitoring. This camera offers easy installation and setup, making it a convenient choice for users seeking high-resolution surveillance with minimal hassle. Its intuitive interface and advanced analytics contribute to efficient security management. With its blend of high resolution, color imaging, and smart features, the DS-2CD2067G2-L(U) is a reliable option for effective and high-quality surveillance solutions.
Features
Code/SKU: DS-2CD2067G2-LU
Quick Specs:
| Camera Specifications | |
|---|---|
| Image Sensor | 1/1.8" Progressive Scan CMOS |
| Max. Resolution | 3200 × 1800 |
| Min. Illumination | Color: 0.0008 Lux @ (F1.0, AGC ON), 0 Lux with light |
| Shutter Time | 1/3 s to 1/100,000 s |
| Day & Night | 24/7 color imaging |
| Angle Adjustment | Pan: 0° to 360°, Tilt: 0° to 90°, Rotate: 0° to 360° |
| Lens | |
| Lens Type | Fixed focal lens, 2.8, 4, and 6 mm optional |
| Focal Length & FOV | 2.8mm, Horizontal FOV: 109°, Vertical FOV: 59°, Diagonal FOV: 130% 4 mm, Horizontal FOV: 93°, Vertical FOV: 49°, Diagonal FOV: 111% 6 mm, Horizontal FOV: 57°, Vertical FOV: 30°, Diagonal FOV: 67% |
| Lens Mount | M16 |
| Iris Type | Fixed |
| Aperture | F1.0 |
| Depth of Field | 2.8 mm: 3.1 m to ∞ 4 mm: 3.5 m to ∞ 6 mm: 8.2 m to ∞ |
| DORI | 2.8 mm, D: 84 m, O: 33 m, R: 16 m, I: 8 m 4 mm, D: 102 m, O: 40 m, R: 20 m, I: 10 m 6 mm, D: 168 m, O: 66 m, R: 33 m, I: 16 m |
| Illuminator | |
| Supplement Light Type | White Light |
| Supplement Light Range | Up to 40 m |
| Smart Supplement Light | Yes |
| Video | |
| Main Stream | 50 Hz: 25 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720) 60 Hz: 24 fps (3200 × 1800) 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720) |
| Sub-Stream | 50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360) 60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360) |
| Third Stream | 50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) 60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) |
| Video Compression | Main stream: H.265+/H.265/H.264+/H.264 Sub-stream: H.265/H.264/MJPEG Third stream: H.265/H.264 |
| Video Bit Rate | 32 Kbps to 16 Mbps |
| H.264 Type | Baseline Profile, Main Profile, High Profile |
| H.265 Type | Main Profile |
| Bit Rate Control | CBR, VBR |
| Scalable Video Coding (SVC) | H.264 and H.265 encoding |
| Region of Interest (ROI) | 1 fixed region(s) for main stream and sub-stream |
| Audio | |
| Audio Type | -U: Mono sound |
| Audio Compression | -U: G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC |
| Audio Bit Rate | -U: 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC) |
| Audio Sampling Rate | -U: 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz |
| Environment Noise Filtering | -U: Yes |
| Network | |
| Protocols | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket, WebSockets |
| Simultaneous Live View | Up to 6 channels |
| API | Open Network Video Interface (Profile S, Profile G, Profile T), ISAPI, SDK, ISUP |
| User/Host | Up to 32 users 3 user levels: administrator, operator, and user |
| Security | Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.2, TLS 1.3, host authentication (MAC address) |
| Network Storage | NAS (NFS, SMB/CIFS), Auto Network Replenishment (ANR), Together with high-end Hikvision memory card, memory card encryption and health detection are supported. |
| Client | iVMS-4200, Hik-Connect, Hik-Central |
| Web Browser | Plug-in required live view: IE 10, IE 11, Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+, Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+ |
| Image | |
| Image Parameters Switch | Yes |
| Image Settings | Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance, adjustable by client software or web browser |
| Day/Night Switch | Day, Night, Auto, Schedule |
| Wide Dynamic Range (WDR) | 130 dB |
| SNR | ≥ 52 dB |
| Image Enhancement | BLC, HLC, 3D DNR |
| Privacy Mask | 4 regions of privacy mask |
| Interface | |
| Ethernet Interface | 1 RJ45 10 M/100 M self-adaptive Ethernet port |
| On-Board Storage | Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB |
| Built-in Microphone | -U: Yes |
| Reset Key | Yes |
| Event | |
| Basic Event | Motion detection (support alarm triggering by specified target types (human and vehicle)), video tampering alarm, exception |
| Smart Event | Line crossing detection, intrusion detection, region entrance detection, region exiting detection (support alarm triggered by specified target types (human and vehicle)), scene change detection |
| Linkage | Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger recording, trigger capture, supplement light |
| Deep Learning Function | Face Capture: Yes |
| General | |
| Power | 12 VDC ± 25%, 0.5 A, max. 6.0 W, reverse polarity protection, PoE: 802.3af, Class 3, 36 V to 57 V, 0.25 A to 0.15 A, max. 7.5 W |
| Material | Metal |
| Dimension | Ø74.4 mm × 179.2 mm (Ø2.9 × 7.1") |
| Package Dimension | 234 mm × 120 mm × 117 mm (9.2" × 4.7" × 4.6") |
| Weight | Approx. 520 g (1.1 lb.) |
| With Package Weight | Approx. 760 g (1.7 lb.) |
| Storage Conditions | -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) |
| Startup and Operating Conditions | -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) |
| Language | 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian |
| General Function | Heartbeat, anti-banding, mirror, flash log, password reset via email, pixel counter, password protection, one-key reset, three streams |
| Approval | |
| EMC | FCC: 47 CFR Part 15, Subpart B, CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014, RCM: AS/NZS CISPR 32: 2015, IC: ICES-003: Issue 7 |
| Safety | UL: UL 62368-1, CB: IEC 62368-1: 2014+A11, CE-LVD: EN 62368-1: 2014/A11: 2017 |
| Environment | CE-RoHS: 2011/65/EU, WEEE: 2012/19/EU, Reach: Regulation (EC) No 1907/2006 |
| Protection | IP67: IEC 60529-2013 |
All IP cameras and recording devices (NVR’s/DVR’s) are covered by a 3 year back-to-base manufacturer warranty.
Our warranty is limited to the replacement of faulty items or parts and does not include damage due to incorrect fitting of parts or accessories, or damage due to mishandling the equipment once out of the box. All faults are sent to the manufacturer for inspection and diagnosis before a replacement is sent out.
Read more about the Terms & Conditions here – https://www.securityaustralia.com.au/terms-and-conditions/
*Just spend over $100 to activate Fast Free Shipping!
Despatch Times: Products are despatched on the same day if the order was placed before 11am on any weekday, Monday - Friday. All other orders are processed and despatched within 24 hours or next business day.
Order Confirmation: Once you place an order, you will receive a confirmation email. This indicates that your order has been received in our system and is now being processed for dispatch. If your item is back-ordered or unavailable, we will notify you via email, and if we do not receive a response, we will attempt to contact you by phone as soon as possible. We value your time and strive to be prompt. If your item(s) are available for immediate shipment (within 2 days), we will process the charges and prepare the order for shipping.
Shipping Times: General shipping times for StarTrack, TNT and Allied couriers are between 1-3 working days from despatch. Longer delivery times may be caused by your package being held at your local courier depot that is beyond our control. Please contact us or the local post depot for confirmation.
Tracking Numbers: all tracking numbers will be emailed to you by our warehouse processing team within the day, after your order is despatched to our local courier.
Hikvision DS-2CD2067G2-LU 6MP ColorVu Mini Bullet Camera 2.8mm / 4mm /6mm
Introducing the powerful Hikvision DS-2CD2067G2-LU 6MP ColorVu Mini Bullet Camera, designed to enhance your security monitoring experience. This advanced camera features a 6-megapixel sensor that captures impressive color images even in low-light conditions, ensuring every detail is clearly visible day and night. With its compact design and versatile installation options, it makes an ideal choice for both residential and commercial applications.
Utilizing ColorVu technology, this mini bullet camera provides vibrant color visuals around the clock, surpassing traditional infrared cameras that only offer black-and-white images at night. The device includes fixed lens options of 2.8mm, 4mm, or 6mm to meet varying surveillance needs, offering a wide field of view. Additionally, the built-in network connectivity allows for easy integration into existing surveillance systems, granting remote access and management capabilities via various devices.
The Hikvision DS-2CD2067G2-LU supports H.265+ video compression, effectively reducing bandwidth and storage requirements without sacrificing quality. It is built to withstand various environmental conditions with its robust construction, and features such as motion detection and tampering alarms enhance security management. With its intuitive features and 6MP resolution, the DS-2CD2067G2-LU is a reliable choice for effective surveillance.
Features:
Functions:
Advanced Image Quality: The camera's 6 MP sensor and ColorVu technology work together to deliver vibrant color images, even in low-light environments, enhancing visibility for security purposes.
Flexible Lens Configurations: Available in 2.8mm, 4mm, or 6mm lenses, allowing users to tailor their camera's field of view based on specific monitoring requirements.
Audio Capture: The built-in microphone enables audio recording alongside video footage, adding an extra layer of insight to monitoring scenarios.
Night Vision Capabilities: With an IR range of up to 30 meters, this camera ensures reliable surveillance in darkness, capturing clear images when needed most.
Intelligent Analytics: Features like motion detection and intrusion alerts allow automated responses, enhancing security monitoring and response time to potential threats.
Weather Resistance: The robust IP67 rating protects the camera against dust and water ingress, ensuring reliable operation in various outdoor conditions.
Easy Integration: ONVIF compliance facilitates seamless integration into existing security systems, enhancing operational versatility across varied installations.
User-Friendly Interface: The camera's intuitive menu and configuration options simplify setup and management for users, making it accessible for all experience levels.
Technical Specifications
| Model | DS-2CD2067G2-LU |
| Resolution | 6 MP (3200 × 1800) for clear and detailed images. |
| ColorVu Technology | Provides full-color images 24/7, even in low-light conditions. |
| Fixed Lens Options | Available in 2.8 mm, 4 mm, and 6 mm focal lengths. |
| IR Range | Up to 30 meters (98 feet) for night vision. |
| Wide Dynamic Range (WDR) | Enhances image quality in high-contrast scenes. |
| Video Compression | H.265+ for efficient video storage and bandwidth use. |
| IP67 Rating | Weatherproof for outdoor use. |
| Built-in Analytics | Supports advanced analytics like line crossing and intrusion detection. |
| ONVIF Compatibility | Integrates with a variety of third-party systems and software. |
