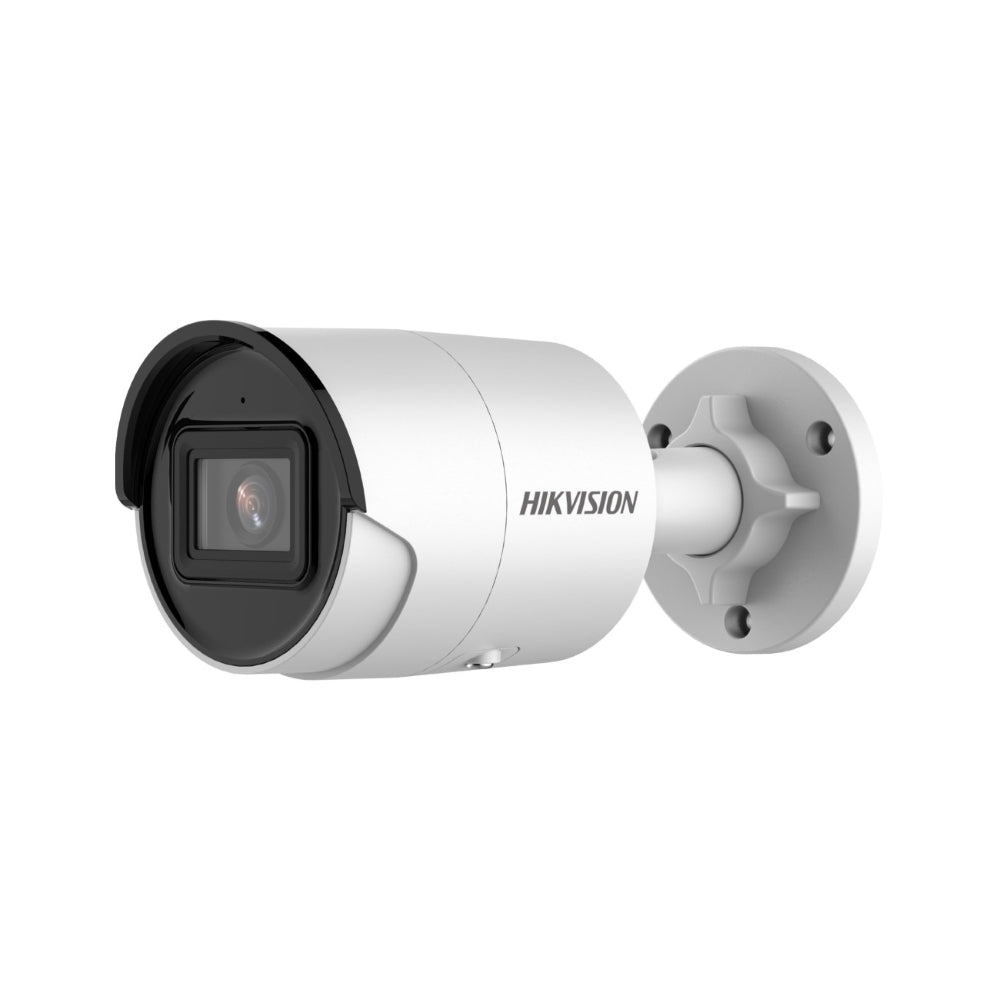

Hikvision DS-2CD2066G2-I 6MP Outdoor Mini Bullet Camera with AcuSense
The Hikvision DS-2CD2066G2-IU is a 6MP outdoor AcuSense Gen 2 mini bullet camera. Empowered by deep learning algorithms, Hikvision's AcuSense technology can distinguish people and vehicles from other moving objects, such as falling leaves or small animals. This feature helps prevent false alarms while providing advanced analytics, active deterrence, and timely alerts. The analytic alert generates searchable alarm events when reviewing recorded footage, saving time and effort. Additionally, the built-in microphone allows for real-time audio security, enabling the user to hear any intruder when the alarm is triggered.
Key Features
Code/SKU: DS-2CD2066G2-IU
Quick Specs:
| Camera | |
|---|---|
| Image Sensor | 1/2.4" Progressive Scan CMOS |
| Max. Resolution | 3200 × 1800 |
| Min. Illumination | Color: 0.003 Lux @ (F1.6, AGC ON),B/W: 0 Lux with IR |
| Shutter Time | 1/3 s to 1/100,000 s |
| Day & Night | IR cut filter |
| Angle Adjustment | Pan: 0° to 360°,tilt: 0° to 90°,rotate: 0° to 360° |
| Lens | |
| Lens Type | Fixed focal lens, 2.8, 4, and 6 mm optional |
| Focal Length & FOV | 2.8 mm, horizontal FOV 105°, vertical FOV 55°, diagonal FOV 127°; 4 mm, horizontal FOV 78°, vertical FOV 38°, diagonal FOV 96°; 6 mm, horizontal FOV 51°, vertical FOV 26°, diagonal FOV 59° |
| Lens Mount | M12 |
| Iris Type | Fixed |
| Aperture | F1.6 |
| DORI | |
| DORI | 2.8 mm: D: 76 m, O: 30 m, R: 15 m, I: 7 m; 4 mm: D: 115 m, O: 45 m, R: 23 m, I: 11 m; 6 mm: D: 164 m, O: 65 m, R: 32 m, I: 16 m |
| Illuminator | |
| Supplement Light Type | IR |
| Supplement Light Range | Up to 40 m |
| Smart Supplement Light | Yes |
| IR Wavelength | 850 nm |
| Video | |
| Main Stream | 50 Hz: 25 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720) 60 Hz: 30 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720) |
| Sub-Stream | 50 Hz: 25 fps (1280 x 720, 640 × 480, 640 × 360) 60 Hz: 30 fps (1280 x 720, 640 × 480, 640 × 360) |
| Third Stream | 50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) 60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) *Third stream is supported under certain settings. |
| Video Compression | Main stream: H.265+/H.265/H.264+/H.264 Sub-stream: H.265/H.264/MJPEG Third stream: H.265/H.264 *Third stream is supported under certain settings. |
| Video Bit Rate | 32 Kbps to 16 Mbps |
| H.264 Type | Baseline Profile, Main Profile, High Profile |
| H.265 Type | Main Profile |
| Bit Rate Control | CBR, VBR |
| Scalable Video Coding (SVC) | H.264 and H.265 encoding |
| Region Of Interest (ROI) | 1 fixed region for main stream and sub-stream |
| Target Cropping | Yes |
| Audio | |
| Audio Type | -U: Mono sound |
| Audio Compression | -U: G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC |
| Audio Bit Rate | -U: 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC) |
| Audio Sampling Rate | -U: 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz |
| Environment Noise Filtering | -U: Yes |
| Network | |
| Protocols | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, ARP, WebSocket, WebSockets, SRTP, SFTP |
| Simultaneous Live View | Up to 6 channels |
| API | Open Network Video Interface (Profile S, Profile G, Profile T), ISAPI, SDK, ISUP |
| User/Host | Up to 32 users. 3 user levels: administrator, operator, and user |
| Security | Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.1/1.2/1.3, host authentication (MAC address) |
| Network Storage | NAS (NFS, SMB/CIFS), Auto Network Replenishment (ANR) Together with high-end Hikvision memory card, memory card encryption and health detection are supported. |
| Client | iVMS-4200, Hik-Connect, Hik-Central |
| Web Browser | Plug-in required live view: IE 10, IE 11 Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+ Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+ |
| Image | |
| Image Parameters Switch | Yes |
| Image Settings | Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance, adjustable by client software or web browser |
| Day/Night Switch | Day, Night, Auto, Schedule |
| Image Enhancement | BLC, HLC, 3D DNR |
| SNR | ≥ 52 dB |
| Wide Dynamic Range (WDR) | 120 dB |
| Privacy Mask | 4 programmable polygon privacy masks |
| Interface | |
| Ethernet Interface | 1 RJ45 10 M/100 M self-adaptive Ethernet port |
| On-Board Storage | Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB |
| Built-in Microphone | Yes |
| Reset Key | Yes |
| Event | |
| Basic Event | Motion detection (support alarm triggering by specified target types (human and vehicle)), video tampering alarm, exception |
| Smart Event | Scene change detection |
| Linkage | Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger recording, trigger capture, trigger alarm output |
| Deep Learning Function | |
| Face Capture | Yes |
| General | |
| Power | 12 VDC ± 25%, 0.5 A, max. 6 W, Ø5.5 mm coaxial power plug, reverse polarity protection PoE: IEEE 802.3af, Class 3, max. 7.2 W |
| Dimension | Ø70 mm × 161.7 mm (Ø2.8" × 6.4") |
| Package Dimension | 216 mm × 121 mm × 118 mm (8.5" × 4.8" × 4.6") |
| Weight | Approx. 490 g (1.1 lb.) With Package Weight: Approx. 759 g (1.7 lb.) |
| Storage Conditions | -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) |
| Startup and Operating Conditions | -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) |
| Language | |
| 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian | |
| General Function | |
| Heartbeat, mirror, flash log, password reset via email, pixel counter, anti-flicker, password protection, one-key reset | |
| Approval | |
| EMC | CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014 RCM: AS/NZS CISPR 32: 2015 KC: KN32: 2015, KN35: 2015 |
| Safety | UL: UL 62368-1 CB: IEC 62368-1: 2014+A11 CE-LVD: EN 62368-1: 2014/A11: 2017 |
| Environment | CE-RoHS: 2011/65/EU WEEE: 2012/19/EU Reach: Regulation (EC) No 1907/2006 |
| Protection | IP67: IEC 60529-2013 |
All IP cameras and recording devices (NVR’s/DVR’s) are covered by a 3 year back-to-base manufacturer warranty.
Our warranty is limited to the replacement of faulty items or parts and does not include damage due to incorrect fitting of parts or accessories, or damage due to mishandling the equipment once out of the box. All faults are sent to the manufacturer for inspection and diagnosis before a replacement is sent out.
Read more about the Terms & Conditions here – https://www.securityaustralia.com.au/terms-and-conditions/
*Just spend over $100 to activate Fast Free Shipping!
Despatch Times: Products are despatched on the same day if the order was placed before 11am on any weekday, Monday - Friday. All other orders are processed and despatched within 24 hours or next business day.
Order Confirmation: Once you place an order, you will receive a confirmation email. This indicates that your order has been received in our system and is now being processed for dispatch. If your item is back-ordered or unavailable, we will notify you via email, and if we do not receive a response, we will attempt to contact you by phone as soon as possible. We value your time and strive to be prompt. If your item(s) are available for immediate shipment (within 2 days), we will process the charges and prepare the order for shipping.
Shipping Times: General shipping times for StarTrack, TNT and Allied couriers are between 1-3 working days from despatch. Longer delivery times may be caused by your package being held at your local courier depot that is beyond our control. Please contact us or the local post depot for confirmation.
Tracking Numbers: all tracking numbers will be emailed to you by our warehouse processing team within the day, after your order is despatched to our local courier.
Hikvision DS-2CD2066G2-I 6MP Outdoor Mini Bullet Camera with Acusense WHITE
Hikvision DS-2CD2066G2-I 6MP Outdoor Mini Bullet Camera with AcuSense
Step into the future of surveillance with our Advanced 6MP AcuSense Network Camera, meticulously engineered for superior security performance. This state-of-the-art camera is equipped with AcuSense technology, which utilizes deep learning algorithms to differentiate between human and vehicle targets, minimizing false alarms triggered by irrelevant moving objects. Designed to deliver high-definition video capture, even in low-light conditions, the camera features the innovative DarkFighter technology. It is perfect for both residential and commercial environments, providing unparalleled clarity and detail with its 6MP resolution.
Additionally, the built-in microphone enhances your security measures by enabling real-time audio monitoring. This camera is not only technologically advanced but also built to withstand harsh weather conditions, making it a reliable choice for any security setup.
Experience the high-quality 6MP resolution with exceptional clarity and detail, even in low-light conditions. Ideal for outdoor use, this camera ensures reliable surveillance with advanced features to meet your security needs.
Features:
Functions:
AcuSense Technology:
Utilizes deep learning algorithms for accurate human and vehicle detection, significantly reducing false alarms from irrelevant movements and enhancing the camera's overall effectiveness in security monitoring.
Hik-Connect App:
Allows users to remotely access and manage camera settings via smartphones, providing real-time viewing, playback, and notifications for enhanced convenience and responsiveness in monitoring activities.
High Efficiency Video Coding:
Utilizes advanced compression techniques to optimize bandwidth and storage requirements, ensuring high-quality video streaming and recording without compromising performance in extensive surveillance setups.
Wide Dynamic Range:
120 dB WDR technology ensures clear imaging in high-contrast lighting conditions, allowing the camera to capture detailed visuals in both bright and shadowy areas for effective monitoring.
IP67 Protection:
This camera's robust construction provides dust-tight and water-resistant capabilities, making it suitable for outdoor installations in harsh weather, ensuring reliable operation in various environmental conditions.
Real-Time Audio Monitoring:
The integrated microphone captures ambient sounds, enhancing the ability to assess situations accurately and providing valuable audio context to the recorded video footage for improved security.
Flexible Installation:
Featuring adjustable angles for pan, tilt, and rotation, this camera can be configured to cover specific areas effectively, enhancing its utility in diverse surveillance environments and scenarios.
Smart Alerts:
The camera sends notifications for detected human or vehicle movements, enabling users to respond promptly to potential security threats and enhancing the effectiveness of the surveillance system.
Technical Specifications
| Model | DS-2CD2066G2-I |
| Resolution | 6MP (3200 × 1800) |
| Image Sensor | 1/2.4" Progressive Scan CMOS |
| Min. Illumination | Color: 0.003 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR |
| Shutter Time | 1/3 s to 1/100,000 s |
| Lens Options | 2.8mm, 4mm, 6mm motorized varifocal |
| Field of View | 2.8mm: H 105.1°, V 53.4°, D 128.6° 4mm: H 83.9°, V 44.5°, D 100.8° 6mm: H 47.5°, V 26°, D 54.5° |
| Night Vision | Up to 30m with EXIR technology |
| Wide Dynamic Range | 120dB true WDR |
| Audio Support | Built-in microphone for real-time audio monitoring |
| Compression Technology | H.265+ for efficient bandwidth and storage savings |
| Environmental Rating | IP67 rated for water and dust resistance |
| Operating Temperature | -40°C to +60°C |
| Dimensions | Approx. 200 mm x 80 mm x 70 mm |
| Weight | Approx. 1.0 kg |
| Smart Features | AcuSense technology for human and vehicle classification |
| Angle Adjustment | Pan: 0° to 360°, Tilt: 0° to 75°, Rotate: 0° to 360° |
