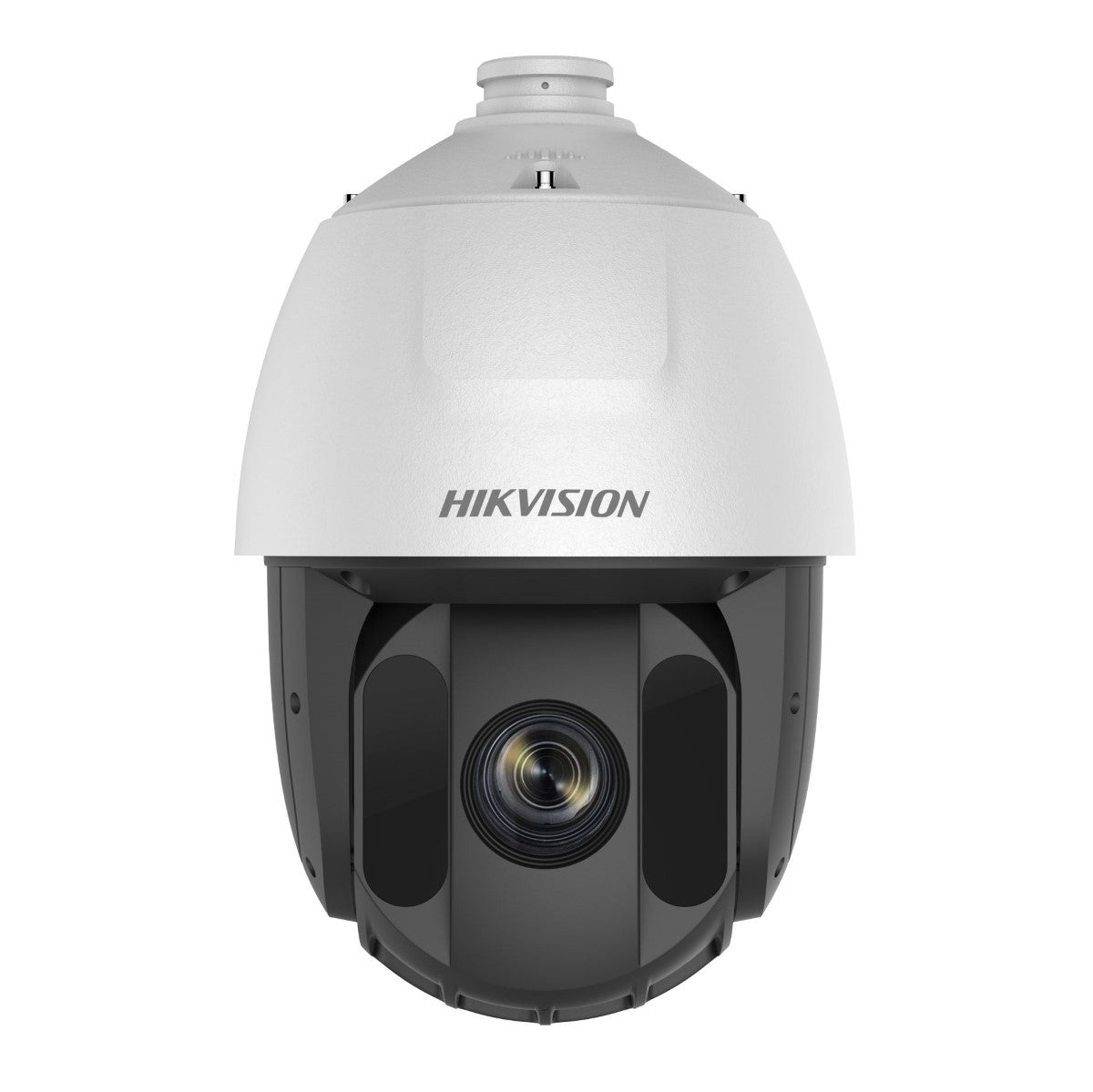

The Hikvision DS-2AE5225TI-AHD-TVI PTZ Dome Camera is a popular choice for TVI installations, featuring a 1/3" progressive scan CMOS chip that enables DWDR and delivers real-time 2MP resolution. It boasts a 25x optical zoom Day/Night lens, providing detailed surveillance over large areas.
| Camera | ||
|---|---|---|
| Image Sensor: | 1/2.8" Progressive Scan CMOS | |
| Effective Pixels: | 1920(H)x1080(V) | |
| Signal System: | PAL/NTSC | |
| Minimum Illumination: | Color: 0.005 Lux @(F1.6, AGC ON)B/W: 0.001 Lux @(F1.6, AGC ON)0 lux with IR | |
| White Balance: | Auto / Manual / ATW / Indoor / Outdoor | |
| AGC: | Auto/Manual | |
| BLC: | ON/OFF | |
| HLC: | Support | |
| WDR: | ≥ 120 dB | |
| Anti-shake: | On / Off | |
| Shutter Time: | PAL: 1-1/10,000sNTSC: 1-1/10,000s | |
| Day& Night: | ICR | |
| Digital Zoom: | 16x | |
| Privacy Mask: | 8 programmable privacy masks | |
| Auto Focus: | Auto / Semi-automatic / Manual | |
| Lens | ||
|---|---|---|
| Focal Length: | 4.8 mm to 120 mm, 25× Optical | |
| Zoom Speed: | Approx. 3.6 s (optical, wide to tele) | |
| Field of View: | Horizontal field of view: 57.6° to 2.5° (wide to tele)Vertical field of view: 34.4° to 1.4° (wide to tele)Diagonal field of view: 64.5° to 2.9° (wide to tele) | |
| Minimum Working Distance: | 10 mm to 1500 mm (wide to tele) | |
| Aperture Range: | F 1.6 to F 3.5 | |
| Pan & Tilt | ||
|---|---|---|
| Pan Range: | 360°endless | |
| Pan Speed: | Pan manual speed: 0.1° to 120°/sPan preset speed: 120°/s | |
| Tilt Range: | -15°-90° (Auto Flip ) | |
| Tilt Speed: | Tilt manual speed: 0.1° to 80°/sTilt preset speed: 80°/s | |
| Proportional Zoom: | Rotation speed can be adjusted automatically according to zoom multiples | |
| Number of Preset: | 256 | |
| Patrol: | 10 patrols, up to 32 presets per patrol | |
| Pattern: | 5 patterns, with the total recording time no less than 10 minutes | |
| Power-off Memory: | Support | |
| Park Action: | Preset/Patrol/Pattern/Pan Scan/Tilt Scan/Panorama Scan/Day Mode/Night Mode/None | |
| PTZ Position Display: | ON/OFF | |
| Infrared | ||
|---|---|---|
| IR Distance: | 150m | |
| Alarm | ||
|---|---|---|
| Alarm Input: | 2 | |
| Alarm Output: | 1 | |
| Input & Output | ||
|---|---|---|
| Video Output: | Switchable TVI/AHD/CVI/CVBS video output, (NTSC or PAL composite, BNC) | |
| UTC function: | UTC protocol (or HIKVISION-C protocol in previous DVR) | |
| General | ||
|---|---|---|
| RS-485 Protocols: | HIKVISION, Pelco-P, Pelco-D, self-adaptive | |
| Language: | English | |
| Power Supply: | 24V AC | |
| Power Consumption: | Max. 30 W (IR:10 W) | |
| Working Temperature/Humidity: | -30 °C-65°C(-22°F-149°F)90% or less | |
| Protection Level: | IP66 standard (outdoor dome)TVS 4,000V lightning protection, surge protection and voltage transient protection | |
| Dimensions: | Ø 208 mm × 305 mm (Ø 8.19" ×12.01") | |
| Weight (approx.): | 3.3 kg (7.28 lb.) | |
All IP cameras and recording devices (NVR’s/DVR’s) are covered by a 3 year back-to-base manufacturer warranty.
Our warranty is limited to the replacement of faulty items or parts and does not include damage due to incorrect fitting of parts or accessories, or damage due to mishandling the equipment once out of the box. All faults are sent to the manufacturer for inspection and diagnosis before a replacement is sent out.
Read more about the Terms & Conditions here – https://www.securityaustralia.com.au/terms-and-conditions/
*Just spend over $100 to activate Fast Free Shipping!
Despatch Times: Products are despatched on the same day if the order was placed before 11am on any weekday, Monday - Friday. All other orders are processed and despatched within 24 hours or next business day.
Order Confirmation: Once you place an order, you will receive a confirmation email. This indicates that your order has been received in our system and is now being processed for dispatch. If your item is back-ordered or unavailable, we will notify you via email, and if we do not receive a response, we will attempt to contact you by phone as soon as possible. We value your time and strive to be prompt. If your item(s) are available for immediate shipment (within 2 days), we will process the charges and prepare the order for shipping.
Shipping Times: General shipping times for StarTrack, TNT and Allied couriers are between 1-3 working days from despatch. Longer delivery times may be caused by your package being held at your local courier depot that is beyond our control. Please contact us or the local post depot for confirmation.
Tracking Numbers: all tracking numbers will be emailed to you by our warehouse processing team within the day, after your order is despatched to our local courier.
Hikvision DS-2AE5225TI-A TVI 2MP Outdoor PTZ Camera 25x Zoom, 150m IR
Experience unparalleled surveillance capability with the Hikvision DS-2AE5225TI-AHD-TVI PTZ Dome Camera, ideal for TVI installations requiring high-definition monitoring. Equipped with a 1/2.8" HD progressive scan CMOS sensor, this camera delivers stunning 1920 × 1080 resolution video.
The camera's 25x optical zoom Day/Night lens ensures exceptional clarity over expansive areas, capturing detailed images even in challenging lighting conditions. With 16x digital zoom, you can zoom in further for precise monitoring.
Enhance your security setup with the Hikvision DS-2AE5225TI-AHD-TVI PTZ Dome Camera, designed for reliability and performance in every monitoring environment.
