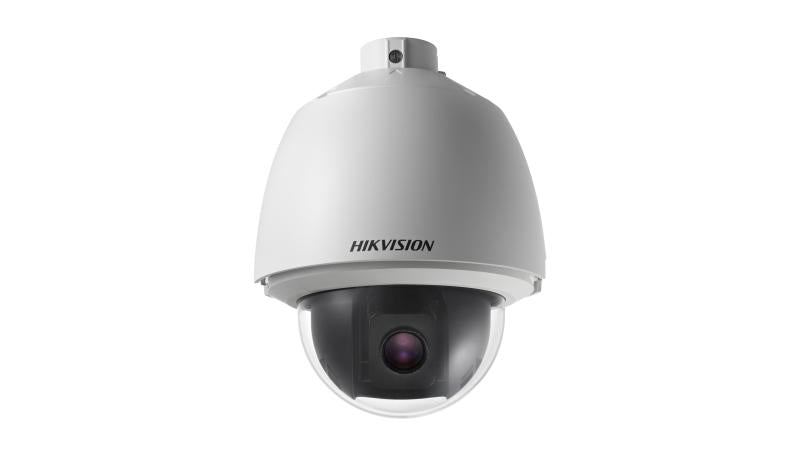

Hikvision DS-2AE5225T-A Pro Series 2MP 25× Speed Dome PTZ Outdoor TurboHD DarkFighter Performance
High-performance Pro-Series PTZ speed-dome featuring 2MP resolution, 25× optical zoom, and DarkFighter low-light technology. Built for all-weather outdoor use, with 120 dB true WDR, switchable analog video outputs, and intelligent positioning to monitor wide areas with precision.
6-8 WEEKS LEAD TIME
Need help choosing?
Click to ask a question - same day response (~2 hours during business hours)
Key Features
Trusted Brand Partner & Security Equipment Wholesaler
- Authorised Brand Partner with Responsive & Fast Aussie Sales Support Team ★★★★★
- Best After-Sales Support and Troubleshooting Team with Years of Installation Experience.
What This Product Does
High-performance Pro-Series PTZ speed-dome featuring 2MP resolution, 25× optical zoom, and DarkFighter low-light technology. Built for all-weather outdoor use, with 120 dB true WDR, switchable analog video outputs, and intelligent positioning to monitor wide areas with precision.
6-8 WEEKS LEAD TIME
Not sure if this suits your site?
Ask our team before ordering. We can help confirm lens choice, recorder compatibility, mounting accessories and project quantities.
Specifications
Specifications
| Camera | ||
|---|---|---|
| Image Sensor: | 1/2.8" Progressive Scan CMOS | |
| Effective Pixels: | 1920(H)x1080(V) | |
| Signal System: | PAL/NTSC | |
| Minimum Illumination: | Color: 0.005 Lux @(F1.6, AGC ON)B/W: 0.001 Lux @(F1.6, AGC ON)0 lux with IR | |
| White Balance: | Auto / Manual / ATW / Indoor / Outdoor | |
| AGC: | Auto/Manual | |
| BLC: | ON/OFF | |
| HLC: | Support | |
| WDR: | ≥ 120 dB | |
| Anti-shake: | On / Off | |
| Shutter Time: | PAL: 1-1/10,000sNTSC: 1-1/10,000s | |
| Day& Night: | ICR | |
| Digital Zoom: | 16x | |
| Privacy Mask: | 8 programmable privacy masks | |
| Auto Focus: | Auto / Semi-automatic / Manual | |
| Lens | ||
|---|---|---|
| Focal Length: | 4.8 mm to 120 mm, 25× Optical | |
| Zoom Speed: | Approx. 3.6 s (optical, wide to tele) | |
| Field of View: | Horizontal field of view: 57.6° to 2.5° (wide to tele)Vertical field of view: 34.4° to 1.4° (wide to tele)Diagonal field of view: 64.5° to 2.9° (wide to tele) | |
| Minimum Working Distance: | 10 mm to 1500 mm (wide to tele) | |
| Aperture Range: | F 1.6 to F 3.5 | |
| Pan & Tilt | ||
|---|---|---|
| Pan Range: | 360°endless | |
| Pan Speed: | Pan manual speed: 0.1° to 120°/sPan preset speed: 120°/s | |
| Tilt Range: | -15°-90° (Auto Flip ) | |
| Tilt Speed: | Tilt manual speed: 0.1° to 80°/sTilt preset speed: 80°/s | |
| Proportional Zoom: | Rotation speed can be adjusted automatically according to zoom multiples | |
| Number of Preset: | 256 | |
| Patrol: | 10 patrols, up to 32 presets per patrol | |
| Pattern: | 5 patterns, with the total recording time no less than 10 minutes | |
| Power-off Memory: | Support | |
| Park Action: | Preset/Patrol/Pattern/Pan Scan/Tilt Scan/Panorama Scan/Day Mode/Night Mode/None | |
| PTZ Position Display: | ON/OFF | |
| Infrared | ||
|---|---|---|
| IR Distance: | 150m | |
| Alarm | ||
|---|---|---|
| Alarm Input: | 2 | |
| Alarm Output: | 1 | |
| Input & Output | ||
|---|---|---|
| Video Output: | Switchable TVI/AHD/CVI/CVBS video output, (NTSC or PAL composite, BNC) | |
| UTC function: | UTC protocol (or HIKVISION-C protocol in previous DVR) | |
| General | ||
|---|---|---|
| RS-485 Protocols: | HIKVISION, Pelco-P, Pelco-D, self-adaptive | |
| Language: | English | |
| Power Supply: | 24V AC | |
| Power Consumption: | Max. 30 W (IR:10 W) | |
| Working Temperature/Humidity: | -30 °C-65°C(-22°F-149°F)90% or less | |
| Protection Level: | IP66 standard (outdoor dome)TVS 4,000V lightning protection, surge protection and voltage transient protection | |
| Dimensions: | Ø 208 mm × 305 mm (Ø 8.19" ×12.01") | |
| Weight (approx.): | 3.3 kg (7.28 lb.) | |
Get Product Help
Ask our team before ordering. We can help confirm lens choice, recorder compatibility, mounting accessories and project quantities.
Shipping & Warranty
3 Years Manufacturer Warranty
All IP cameras and recording devices (NVR’s/DVR’s) are covered by a 3 year back-to-base manufacturer warranty.
Our warranty is limited to the replacement of faulty items or parts and does not include damage due to incorrect fitting of parts or accessories, or damage due to mishandling the equipment once out of the box. All faults are sent to the manufacturer for inspection and diagnosis before a replacement is sent out.
Read more about the Terms & Conditions here – https://www.securityaustralia.com.au/terms-and-conditions/
Free Delivery* & Despatch Time
*Just spend over $100 to activate Fast Free Shipping!
Despatch Times: Products are despatched on the same day if the order was placed before 11am on any weekday, Monday - Friday. All other orders are processed and despatched within 24 hours or next business day.
Order Confirmation: Once you place an order, you will receive a confirmation email. This indicates that your order has been received in our system and is now being processed for dispatch. If your item is back-ordered or unavailable, we will notify you via email, and if we do not receive a response, we will attempt to contact you by phone as soon as possible. We value your time and strive to be prompt. If your item(s) are available for immediate shipment (within 2 days), we will process the charges and prepare the order for shipping.
Shipping Times: General shipping times for StarTrack, TNT and Allied couriers are between 1-3 working days from despatch. Longer delivery times may be caused by your package being held at your local courier depot that is beyond our control. Please contact us or the local post depot for confirmation.
Tracking Numbers: all tracking numbers will be emailed to you by our warehouse processing team within the day, after your order is despatched to our local courier.
