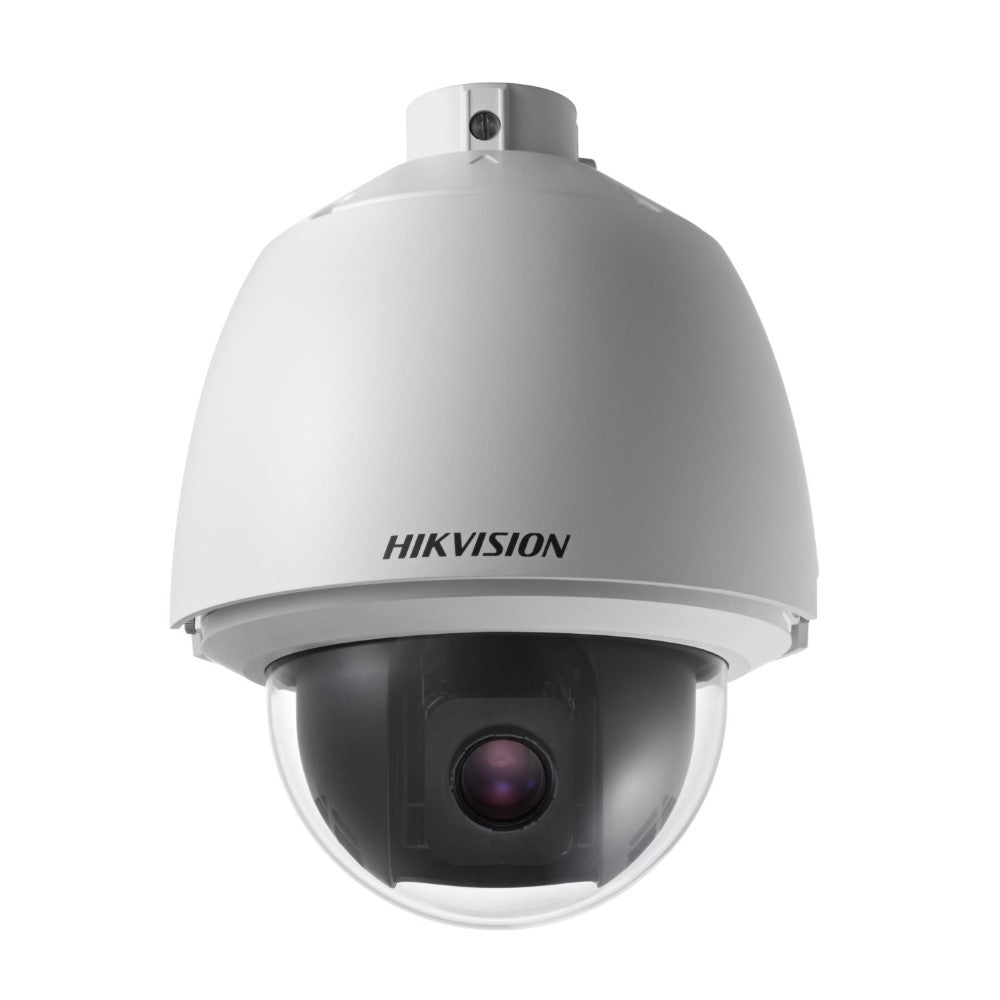

Hikvision DS-2AE4225T-D 4-inch 2 MP 25X Powered by DarkFighter Analog Speed Dome

Model: DS-2AE4225T-D

Who This Is For

When retrofitting or expanding an existing analog CCTV infrastructure is the priority, the Hikvision DS-2AE4225T-D delivers PTZ capability without forcing a full IP system migration. This 4-inch analog speed dome suits security integrators and facilities managers working with Pelco-D, Pelco-P, or Hikvision protocol controllers on established analog systems - think outer perimeters of large commercial properties, carparks, school grounds, and industrial yards where a single camera needs to cover a wide sweep and then zoom in hard on activity. The 25x optical zoom and 100-metre IR range let operators track subjects across distance, while DarkFighter technology keeps usable colour footage at near-darkness levels. At 2.5 kg and IP66-rated, this unit handles outdoor mounting in Australian conditions across a temperature range of -40°C to 70°C, making it equally suited to tropical and alpine installations where weather extremes are a genuine factor.

What This Camera Actually Does

Who Buys This Model

• Security Integrators Extending Analog Systems: Sites with existing Pelco-D or Pelco-P control infrastructure gain PTZ functionality without a costly IP migration - the DS-2AE4225T-D drops into the existing control layer using familiar protocols.
• Facilities Managers at Large Commercial Properties: Carparks, loading docks, and open perimeters where a single camera needs to cover broad areas at wide angle and then zoom in for detail identification use the 25x optical zoom to replace multiple fixed cameras.
• Industrial Site Operators in Harsh Environments: The -40°C to 70°C operating range and IP66 housing suit remote mining, agricultural, and utility sites where weather extremes and dust exposure rule out standard cameras.
• School and Campus Security Teams: Grounds coverage across multiple zones - ovals, carparks, entry approaches - where patrol routes and preset positions allow a single PTZ to cycle through defined monitoring points overnight.
• Operators Requiring Overnight Colour Performance: Sites with minimal artificial lighting where DarkFighter's 0.005 Lux colour capability provides identifiable footage through the night shift without relying solely on IR monochrome output.

Honest Assessment

The DS-2AE4225T-D does two things genuinely well: it delivers serious optical zoom reach - 25x with full 1080p maintained throughout - and it performs in low light at a level most analog PTZ cameras do not match. DarkFighter at 0.005 Lux colour means usable footage in near-dark conditions, and the 120 dB WDR handles mixed-light scenes at entry points and loading areas without manual adjustment. For sites with existing Pelco or Hikvision analog control infrastructure, this camera adds PTZ capability with minimal disruption to the existing system architecture. Where it falls short: this is a 24 VAC analog camera, not an IP device. It does not support PoE, onboard analytics, or network streaming natively - if the installation requires remote IP access, video analytics, or integration into an NVR-based system, an IP PTZ would serve better. The DS-2AE4225T-D is available through Security Australia and suits upgrade projects more than greenfield IP deployments.

Before You Buy

Quick Fit Check

• Good match if: You are adding PTZ coverage to a site already running Pelco-D or Pelco-P analog control equipment and do not want to replace the control layer to gain pan, tilt, and 25x zoom capability.
• Good match if: The installation is outdoors in a harsh or remote environment - the IP66 housing and -40°C to 70°C operating range cover conditions that eliminate many other PTZ options.
• You may need a different model if: Your system is IP-based or you need onboard analytics, PoE power, or direct NVR integration - an IP PTZ camera will serve that architecture far better than this analog speed dome.

Key Features & Technical Specifications

Real-World Scenarios

How It Compares

• Choose this if: Your site runs Pelco-D, Pelco-P, or Hikvision analog control infrastructure and you need to add PTZ coverage with 25x optical zoom and genuine low-light performance without migrating to IP.
• You may need a different model if: Your system is IP-based or you require onboard video analytics, PoE power delivery, or direct NVR network streaming - an IP PTZ camera will integrate cleanly into that architecture where this analog unit cannot.
• Pairs well with: A Pelco-compatible analog PTZ keyboard controller or a hybrid DVR with PTZ control output, allowing preset positions and patrol routes to be programmed and managed from a central operations point.

Common Questions

1. Does this camera work with PoE switches or IP NVRs?

   No. The DS-2AE4225T-D is an analog camera powered by 24 VAC - it does not support PoE, and it does not transmit video over a network connection natively. It connects via coaxial cable to an analog or hybrid DVR, and PTZ commands are sent through the RS-485 or coax control interface using Pelco-D, Pelco-P, or Hikvision protocols. If your system is entirely IP-based, this camera is not compatible without a video encoder between the camera and your NVR.

2. Will this camera identify faces or read number plates at maximum zoom?

   It depends on the distance. At 25x optical zoom and 1080p resolution, the DS-2AE4225T-D can produce detailed close-up imagery of subjects at significant distances, but actual identification capability depends on how far the subject is from the camera. The camera does not include built-in ANPR or facial recognition analytics - it is an optical zoom device, and any analysis is performed by the operator or connected recording system reviewing the footage.

3. What is the optical zoom ratio and how does the field of view change across the zoom range?

   The optical zoom is 25x. At the widest angle, the horizontal field of view is 55.4°, giving broad scene coverage. At maximum telephoto, the horizontal FOV narrows to 2.4°, providing tight close-up detail on a distant subject. The full 1920x1080 resolution is maintained across the entire zoom range - there is no quality penalty for zooming in as there would be with a digital zoom function. The diagonal FOV shifts from 61.5° at wide to 2.9° at tele.

4. How does DarkFighter technology differ from standard IR night vision?

   Standard IR night vision switches the camera to black and white monochrome as light levels drop and relies on the IR illuminator to light the scene. DarkFighter extends colour imaging down to 0.005 Lux - a level most cameras cannot produce colour at - before the ICR filter switches to monochrome mode and the IR takes over at 0 Lux. In practice, this means the camera retains colour detail through twilight, in dimly lit yards, and under partial artificial lighting, where a standard camera would already be showing grainy monochrome output.

5. Which control protocol should I select - Pelco-D, Pelco-P, or Hikvision?

   Match the protocol to whatever your DVR or keyboard controller uses. Pelco-D is the most widely used and is the correct choice for most third-party analog controllers. Pelco-P is a higher-speed variant used by some older controllers. The Hikvision protocol applies when the camera is connected to a Hikvision DVR or controller with its own native PTZ control interface. Selecting the wrong protocol means pan, tilt, and zoom commands will not function even though the video feed is active - confirm your controller's protocol output before commissioning.

6. Does this camera suit outdoor installation in Queensland's wet season or high-dust environments?

   Yes. The IP66 rating means the housing is fully sealed against dust ingress and withstands direct high-pressure water jets, making it suitable for both heavy rainfall and dusty conditions. The operating temperature ceiling of 70°C covers the radiant heat conditions experienced by outdoor-mounted cameras on metal structures in far-north Australia during summer. For coastal installs, standard corrosion precautions at cable entry points remain advisable regardless of the IP66 rating. The DS-2AE4225T-D is stocked by Security Australia for Australian site conditions.

7. What IR illumination distance does this camera cover and is it useful at full 25x zoom?

   The built-in IR illuminator covers up to 100 metres. At maximum 25x optical zoom, the camera can frame subjects at distances well beyond 100 metres during daylight or when DarkFighter colour performance is active, but IR illumination at those extended distances may be insufficient for a fully lit monochrome image. The 100-metre IR figure is the practical working range for zero-light night operation. Within that range, the camera produces a lit black and white image; beyond it in complete darkness, image quality degrades as the IR cannot reach the subject.

Downloads & Resources

No downloads available for this product.
