Hikvision DS-220AZJ-145-WA Metal Wall Mount Bracket – White CCTV Camera Mount for Dome & Turret Cameras

Model: DS-220AZJ-145-WA

Who This Is For

When mounting position is the priority - and a standard flush-ceiling or soffit install won't give the coverage angle needed - a dedicated wall mount bracket solves the problem cleanly. The Hikvision DS-220AZJ-145-WA is a metal wall mount bracket finished in white, designed for use with Hikvision dome and turret cameras. Installers working on residential eaves, commercial building facades, or internal corridor walls where a direct surface mount would point the camera in the wrong direction reach for this bracket to bring the camera out from the wall and angle it correctly. It pairs with compatible Hikvision dome and turret housings and keeps the installation looking tidy without improvised mounting hardware. The white finish suits light-coloured walls and soffits common in residential and light commercial settings.

What This Bracket Actually Does

Who Buys This Model

• Security Installers: Professionals fitting Hikvision dome or turret cameras to external rendered walls where direct surface mounting would produce an unusable camera angle for the intended coverage zone.
• Residential Builders and Electricians: Trades specifying camera mounts during new construction where a white bracket is needed to match light-coloured eaves and fascia on domestic properties.
• DIY Owners Replacing Mounts: Existing Hikvision camera owners who need a correct OEM replacement bracket rather than sourcing a generic third-party alternative that may not line up with the camera base.
• Commercial Fit-Out Contractors: Contractors mounting cameras on corridor or shopfront walls in retail and office environments where a clean white finish is specified for aesthetics.

Honest Assessment

The DS-220AZJ-145-WA does one job: it gives you a stable, correctly aligned wall mount point for compatible Hikvision dome and turret cameras in a white finish. The metal construction is the right call for any external position where the bracket will be exposed to weather, and the manufacturer-matched fitment means no guesswork about whether the camera base will seat properly. It is a straightforward accessory and it is available through Security Australia as part of the Hikvision mounting accessories range. What this bracket will not do is adapt to cameras from other manufacturers - fitment is specific to the Hikvision dome and turret housings it was designed for. If your camera requires a pole mount, a corner mount, or a ceiling drop adapter, this wall bracket is not the right form factor and you should look at the broader mounting accessories range for the correct solution.

Before You Buy

Quick Fit Check

• Good match if: You are mounting a compatible Hikvision dome or turret camera to a vertical wall surface and need the camera positioned away from the wall to achieve the correct downward coverage angle.
• Good match if: Your installation requires a white metal bracket that blends with light-coloured eaves, soffits, or rendered external walls rather than a dark or plastic alternative.
• You may need a different model if: Your installation requires a pole mount, corner mount, junction box adapter, or ceiling pendant - a different mounting accessory type from the Hikvision range will be required for those configurations.

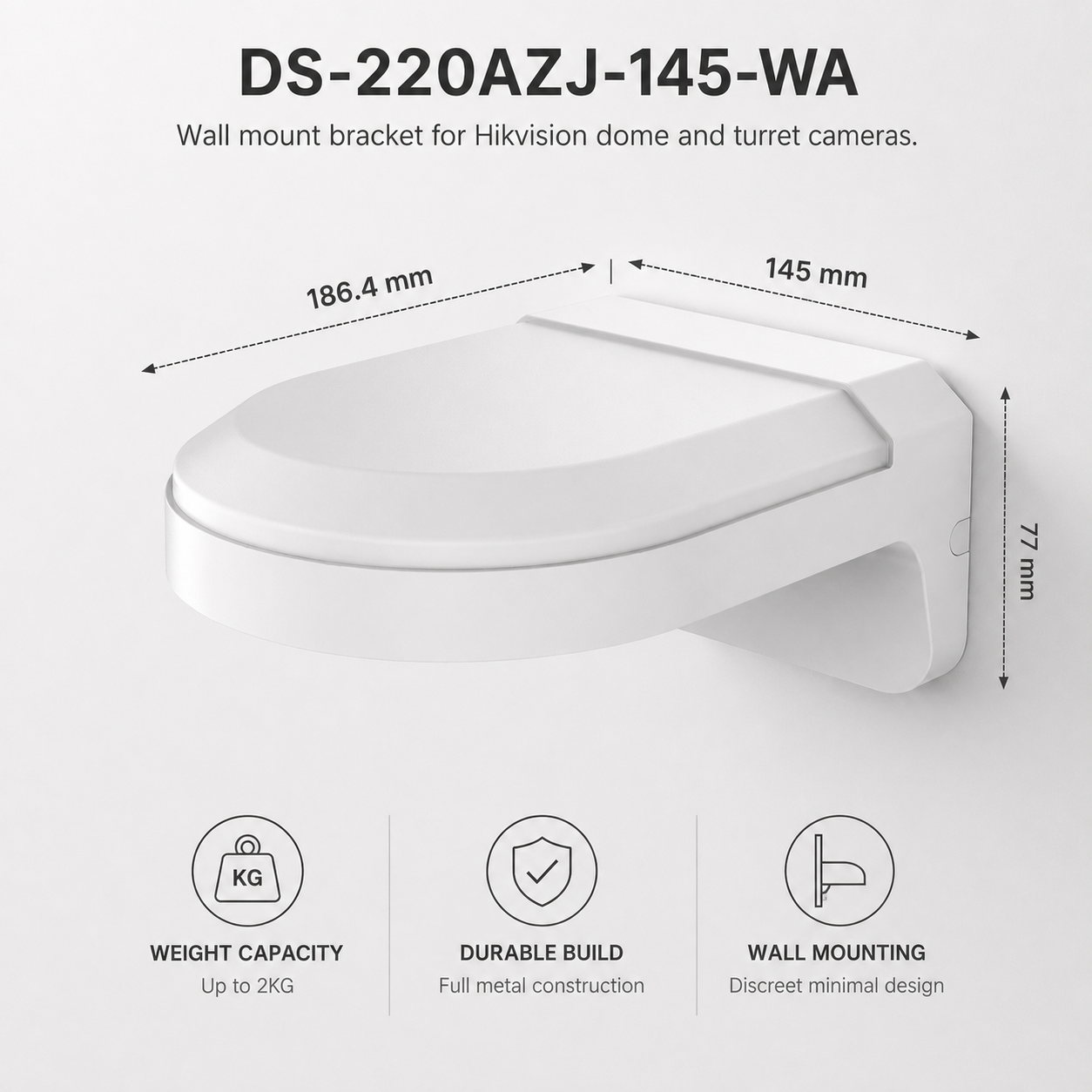

Key Features & Technical Specifications

Real-World Scenarios

How It Compares

• Choose this if: You need a white metal wall bracket specifically matched to Hikvision dome or turret cameras for a surface where direct flush mounting would produce an incorrect coverage angle.
• You may need a different model if: Your camera position requires a pole mount, corner mount, or ceiling drop - a different bracket type from the Hikvision accessories range will suit those configurations better.
• Pairs well with: Compatible Hikvision dome or turret cameras requiring an external or internal wall mount position.

Common Questions

1. Will this bracket fit any Hikvision dome or turret camera?

   Not all Hikvision dome and turret cameras use the same base pattern. The DS-220AZJ-145-WA is designed for cameras listed as compatible with the DS-220AZJ-145 bracket specification. Check the datasheet for your specific camera model to confirm the correct bracket SKU before ordering - Hikvision cameras can have different base diameters and mounting hole layouts across product lines.

2. Can this bracket be used outdoors?

   Yes. The metal construction makes it suited to external wall mounting. The white finish should be inspected periodically in harsh outdoor environments, but the metal body handles weather exposure far better than plastic alternatives. Use appropriate corrosion-resistant fasteners for the wall substrate in coastal or high-humidity locations.

3. Does this bracket have a dark or black colour option?

   This specific SKU - DS-220AZJ-145-WA - is white only. The "WA" suffix in the model number denotes the white finish. If you require a dark bracket to suit a charcoal, grey, or dark-painted surface, check the Security Australia Hikvision mounting accessories range for the corresponding dark-finish variant of this bracket series.

4. Does this bracket allow the camera to be angled after installation?

   The bracket sets the mounting position on the wall - the camera angle adjustment is handled by the camera housing itself, not the bracket. Hikvision dome and turret cameras include their own pan and tilt adjustment within the housing. The bracket's job is to move the camera out from the wall surface to make that adjustment practical.

5. Will cable routing work through this bracket?

   Hikvision wall mount brackets of this type typically include a cable entry point to allow the network cable to pass through or alongside the bracket arm into the wall, keeping the installation tidy. Confirm the routing path suits your wall type and cable run before drilling - the exact entry point geometry should be checked against the physical bracket dimensions.

6. Is this bracket suitable for brick or masonry walls?

   Yes, provided the correct masonry anchors are used. The bracket is fixed to the wall surface using fasteners - on masonry, concrete, or brick, use expansion anchors or resin anchors rated for the combined weight of the bracket and camera. Standard timber screws are not appropriate for masonry substrates.

Downloads & Resources

No downloads available for this product.
