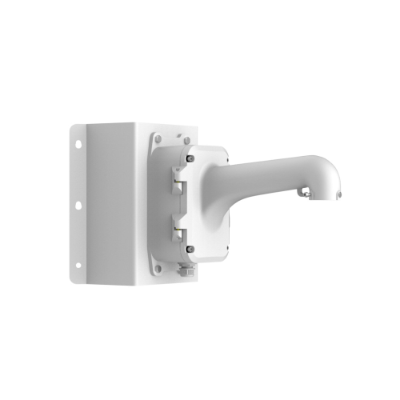

Hikvision DS-1604ZJ-CORNER Corner Wall Mount Bracketfor PTZ Cameras

Model: DS-1604ZJ-CORNER

Who This Is For

When mounting position is the priority and a flat wall simply will not deliver the coverage angle required, the DS-1604ZJ-CORNER is the hardware that solves the problem. Designed specifically for HIK-2DFxxxx series PTZ cameras, this corner wall mount bracket is built for installers and facilities managers who need to position a PTZ unit at a building corner - whether on a warehouse exterior, a retail car park, a school perimeter, or a commercial property boundary. The bracket is constructed from aluminium alloy and steel, weighs 6.2kg, and measures 542.5 x 255.5 x 200mm. It includes integrated cable management to keep cabling protected and tidy at the installation point. Finished in white, it suits most building exteriors without drawing attention. If your project involves a HIK-2DFxxxx PTZ camera and a corner mounting location, this is the bracket specified for that exact combination.

What This Bracket Actually Does

Who Buys This Model

• Security Installers: Specifying a complete PTZ installation on a HIK-2DFxxxx series camera who need a manufacturer-matched bracket for corner wall positions rather than adapting a flat-wall mount.
• Facilities Managers: Replacing an ageing or damaged bracket on an existing HIK-2DFxxxx PTZ installation without needing to change the camera or rerun cabling.
• Commercial Property and Industrial Site Owners: Positioning a PTZ camera at a perimeter corner to cover two building faces or approach roads from a single camera point, minimising total camera count.
• Project Managers and Procurement Teams: Completing a bill of materials for a Hikvision PTZ system and sourcing the correct mounting hardware to match the camera series already specified.

Honest Assessment

The DS-1604ZJ-CORNER does a specific job well: it gives a HIK-2DFxxxx series PTZ camera a stable, weatherproof mounting position at a building corner, with cabling enclosed through the integrated junction box. The aluminium alloy and steel build is appropriate for outdoor PTZ loads, and the white finish suits most commercial and residential exteriors. This is a manufacturer-matched bracket, which matters for load ratings and fixing geometry when a PTZ is in constant motion. Where it will not serve you: it is not a general-purpose or universal PTZ bracket. If your camera model is outside the HIK-2DFxxxx series, verify compatibility before ordering. It is also a corner mount only - for flat wall, pendant, or pole installations you will need a different bracket type. The DS-1604ZJ-CORNER is available through Security Australia as part of a complete Hikvision PTZ mounting accessory range.

Before You Buy

Quick Fit Check

• Good match if: You are installing a HIK-2DFxxxx series PTZ camera at an external building corner and need a manufacturer-specified bracket with integrated cable management.
• Good match if: You need a single camera position to cover two building faces or approach paths and want a stable, weather-resistant mount that holds a PTZ securely through continuous pan and tilt cycles.
• You may need a different model if: Your mounting location is a flat wall, a pole, or a ceiling soffit - a different Hikvision bracket type designed for that specific mounting surface will be the correct specification.

Key Features & Technical Specifications

Real-World Scenarios

How It Compares

• Choose this if: Your HIK-2DFxxxx PTZ camera is going onto a building corner and you want a manufacturer-specified mount with integrated cable management rated for outdoor PTZ loads.
• You may need a different model if: Your mounting location is a flat wall, a vertical pole, or a ceiling pendant position - a flat wall bracket, pole mount, or pendant arm designed for your specific PTZ series will be the correct hardware for those surfaces.
• Pairs well with: HIK-2DFxxxx series PTZ cameras and a compatible PoE+ network switch or PTZ controller, completing a weatherproof corner installation from camera head to cable entry.

Common Questions

1. Will this bracket fit any Hikvision PTZ camera?

   No. The DS-1604ZJ-CORNER is specified for the HIK-2DFxxxx PTZ camera series only. Hikvision produces multiple PTZ ranges with different fixing patterns and load requirements. Using this bracket with a camera outside the HIK-2DFxxxx series may result in misaligned mounting holes or an incorrect load rating for the camera weight. Confirm your camera model number before ordering.

2. Does this bracket work for outdoor installation?

   Yes. The bracket is built from aluminium alloy and steel for outdoor use and includes an integrated junction box for weather-protected cable management. It is designed for exposed corner wall positions where the mount faces weather from two directions simultaneously.

3. What are the dimensions and weight of this bracket?

   The DS-1604ZJ-CORNER measures 542.5 x 255.5 x 200mm and weighs 6.2kg unloaded. This weight is significant when planning wall fixings - the combined load of the bracket plus the PTZ camera head requires solid masonry anchors or structural steel fixing points. Standard cavity wall fixings or plasterboard anchors are not appropriate for this application.

4. Does the bracket include cable management?

   Yes. An integrated junction box is built into the bracket to route and enclose cabling at the mount point. This protects power and data cables from weather exposure at the wall entry - the point in any outdoor PTZ installation where cables are most exposed to rain ingress and mechanical wear.

5. Will this bracket handle the continuous movement loads of a PTZ camera?

   Yes, when used with the specified HIK-2DFxxxx series camera. The aluminium alloy and steel construction is engineered to remain rigid under the dynamic loads generated by a PTZ camera panning, tilting, and stopping repeatedly over its operational life. A manufacturer-matched bracket is preferable to a generic mount for PTZ applications because the load ratings and fixing geometry are designed together for that specific camera weight and movement profile. The DS-1604ZJ-CORNER is stocked by Security Australia as part of the Hikvision PTZ mounting accessory range.

6. Does the corner position affect the PTZ pan and tilt range?

   No - the bracket positions the camera head, but the pan and tilt range is determined by the PTZ camera itself, not the mount. What the corner position does affect is the effective coverage geometry: a PTZ mounted at a corner can sweep across 2 building faces from a single position, which is why corner mounting is often used to reduce total camera count on a perimeter. The bracket holds the camera at the corner angle; the camera's own pan range determines how far it can rotate from that starting position.
