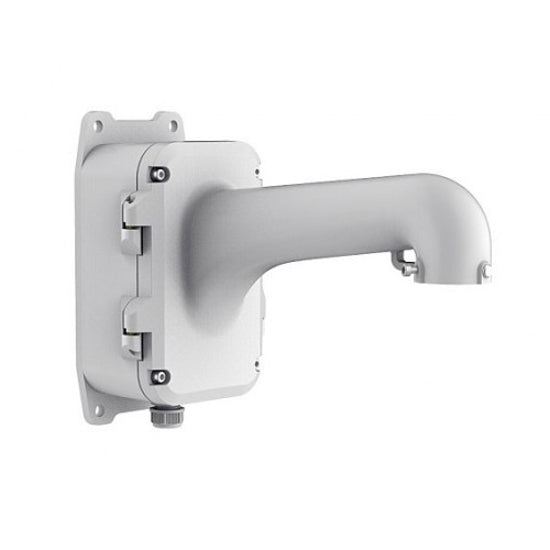

Hikvision DS-1604ZJ-box WHITE Version Wall Mount Bracket with Junction Box

Model: DS-1604ZJ-box

Who This Is For

When clean cable routing and a secure wall-mount position for a speed dome camera is the priority, the DS-1604ZJ-box is the bracket to specify. Built from aluminium alloy with a surface spray finish, it is designed for installers mounting Hikvision speed dome cameras to exterior walls where cable management and long-term weathering are genuine concerns. The integrated junction box means cables are routed internally rather than surface-run, which matters on finished facades, rendered walls, and commercial building exteriors where presentation is part of the brief. The bracket supports both bottom outlet and back outlet cable exit configurations, giving installers flexibility depending on the wall structure and conduit entry point. A built-in safety rope hook is included, which is a practical requirement when working at height with a heavy PTZ or speed dome head. This is a bracket for professional installers who want a tidy result and a fitting that will not move once the job is done.

What This Product Actually Does

Who Buys This Model

• CCTV installers completing PTZ or speed dome jobs: Specifying a matching Hikvision wall bracket with junction box keeps the installation tidy and ensures the mount is rated for the load of a speed dome head.
• Commercial property installers working on rendered or finished facades: The built-in junction box and dual cable outlet options allow a clean installation without surface-run cables on walls where presentation matters.
• Security integrators specifying complete Hikvision PTZ systems: Pairing the camera and bracket from the same manufacturer ensures mechanical compatibility and simplifies sign-off documentation for commercial projects.
• Installers replacing an existing bracket on a live site: The standard junction box footprint and Hikvision compatibility makes this a direct replacement bracket for sites where the original mount has corroded or been damaged.

Honest Assessment

The DS-1604ZJ-box does the specific job it is made for well. The aluminium alloy build handles the weight and vibration of a speed dome camera without the bracket flexing over time, the junction box keeps the cable entry point protected and clean, and the dual outlet option means installers are not locked into one cable routing approach on site. The white finish suits the majority of Australian exterior wall colours without additional painting. Where this bracket will not serve you: it is designed for Hikvision speed dome and PTZ cameras specifically, so it is not the right choice if you are mounting a bullet, turret, or dome from a different manufacturer or camera family. It is also a wall-mount only - if you need pole mounting, corner mounting, or a ceiling pendant arm for an indoor speed dome, a different bracket type is required. The DS-1604ZJ-box is available through Security Australia as part of a broader range of Hikvision mounting hardware.

Before You Buy

Quick Fit Check

• Good match if: You are wall-mounting a Hikvision speed dome or PTZ camera on a finished exterior surface and need cable entry contained within a junction box for a clean result.
• Good match if: Your installation involves working at height with a heavy camera head and the integrated safety rope hook will meaningfully improve on-site safety during fitting.
• You may need a different model if: You need to mount to a pole, corner, ceiling, or parapet - a pole mount bracket, corner mount, or pendant arm from the Hikvision accessory range will be the more suitable product type.

Key Features & Technical Specifications

Real-World Scenarios

How It Compares

• Choose this if: You need a wall-mount bracket with an integrated junction box for a Hikvision speed dome, and a clean cable entry point is a requirement of the installation.
• You may need a different model if: You need to mount to a pole, corner wall section, or require a ceiling pendant arm - a dedicated pole mount, corner bracket, or pendant mount from the Hikvision accessory range will be better suited to those installation types.
• Pairs well with: Hikvision PTZ or speed dome cameras requiring a robust outdoor wall-mount position with managed cable entry.

Common Questions

1. Will this bracket fit my Hikvision PTZ camera?

   This bracket is designed for Hikvision speed dome cameras. If your PTZ or speed dome is a Hikvision model, this bracket is designed to be compatible. If you are unsure whether your specific camera model is supported, check the camera's datasheet for its recommended mounting accessories or contact the team at Security Australia before ordering.

2. Does this bracket support both bottom and back cable outlet routing?

   Yes. The DS-1604ZJ-box supports both bottom outlet and back outlet cable configurations. This means you can route the cable down through the bottom of the junction box or directly back through the wall behind the bracket, depending on where your conduit or wall penetration is located.

3. What is the bracket made from and will it hold up outdoors?

   The bracket is constructed from aluminium alloy with a surface spray finish. Aluminium alloy resists corrosion and handles the load of a speed dome camera without degrading over time in outdoor conditions. The surface spray treatment provides an additional layer of protection against weathering.

4. What does the safety rope hook actually do during installation?

   The safety rope hook gives installers a fixed anchor point to temporarily suspend the camera body while cabling is connected and fixings are tightened. This is particularly useful when working at height, where holding a heavy speed dome head with one hand while connecting cables with the other is unsafe or impractical.

5. Does this bracket work as a pole mount or corner mount?

   No. The DS-1604ZJ-box is a wall-mount bracket only. If your installation requires a pole mount, corner bracket, or parapet mount, you will need a different bracket type. Hikvision produces dedicated accessories for those mounting configurations.

6. Will this bracket suit a dark-coloured or brick wall?

   The DS-1604ZJ-box is supplied in white only. It suits light-coloured rendered, painted, or off-white facade surfaces. On dark brick, charcoal cladding, or dark-toned walls it will be visually prominent. If colour matching is a requirement, check whether a grey or black version of this bracket is available for your project.

Downloads & Resources

No downloads available for this product.
